2016.01.31 Alonso IAC80
2016.01.30 Gary HAO
2016.01.27 Gary HAO
2016.01.24 Alonso IAC80
2016.01.23 Alonso IAC80
2016.01.19 Alonso IAC80
2016.01.18 Alonso IAC80
2016.01.17 Alonso IAC80

Note: The average depth during K2 was ~ 1.3% (30-minute exposure times), with a range of 0.7 to 2.3%. The K2 simulated depth from observations during the past 4 months reached a maximum of ~ 25% in early December, decreased to 8% in February, and has recently risen to 35%. However, the present peak of K2 depth is due to all 6 dips occurring at the same phase; most of an orbit is devoid of dips, which is quite a contrast with December.

Observing Sessions

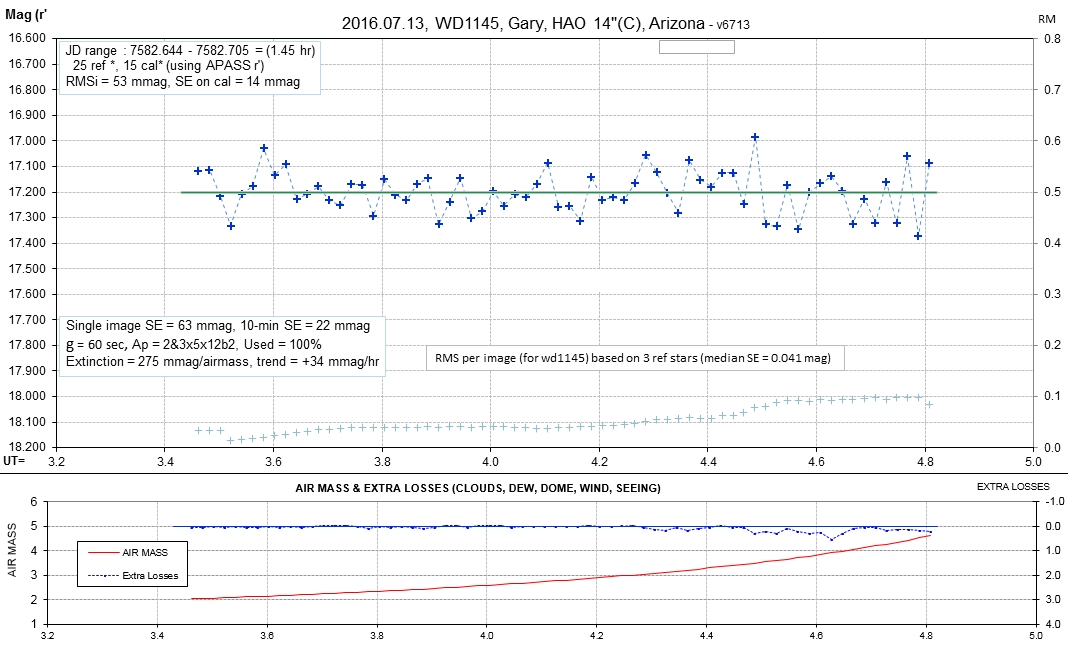

2016.07.13 Gary/HAO

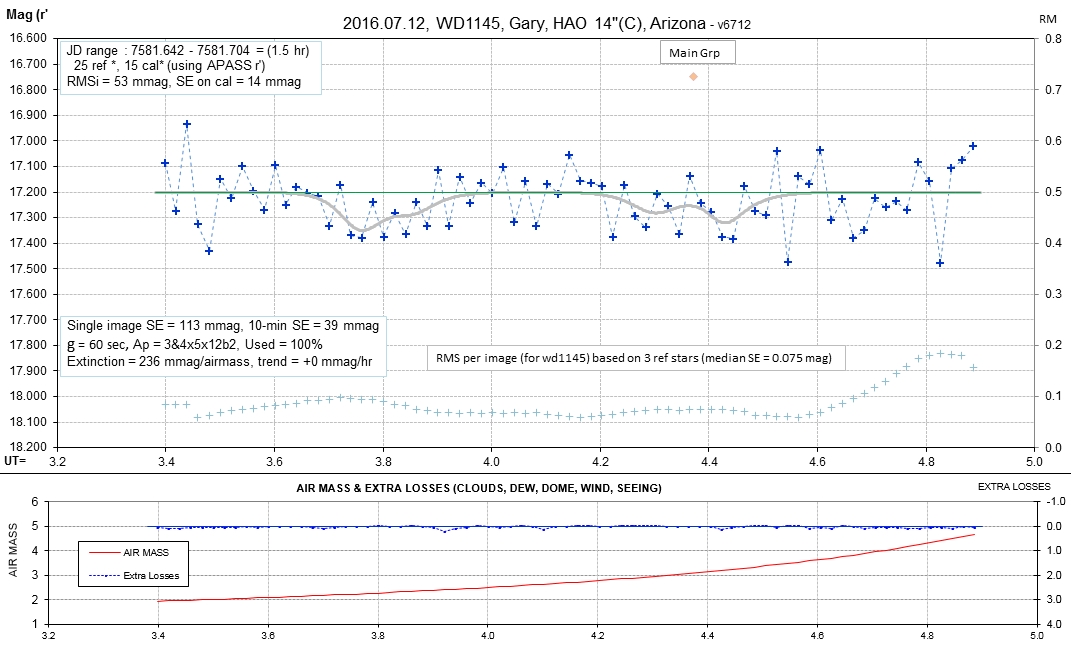

2016.07.12 Gary/HAO

The moon was 24 deg away and "seeing" was worse than usual. I observed to airmass 4.5, which is normally unwise, especially with a blue target, but I'm "desperate" to get phase coverage.

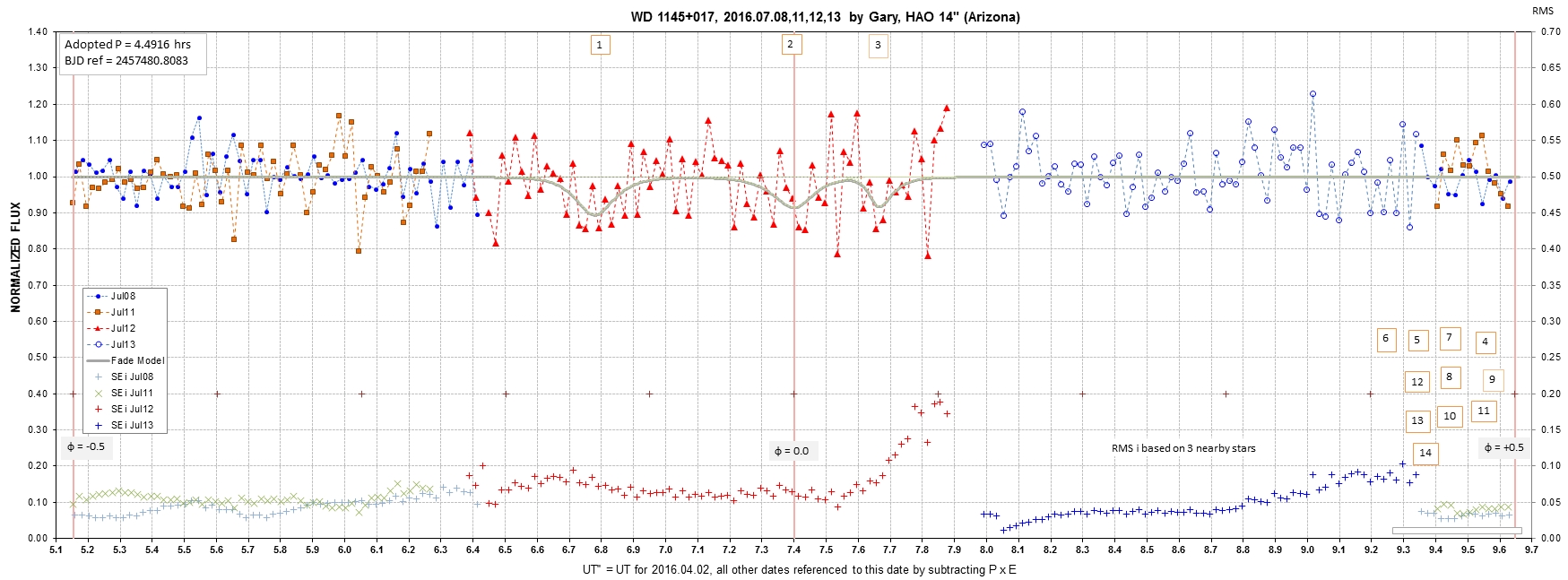

2016.07.11 Gary/HAO

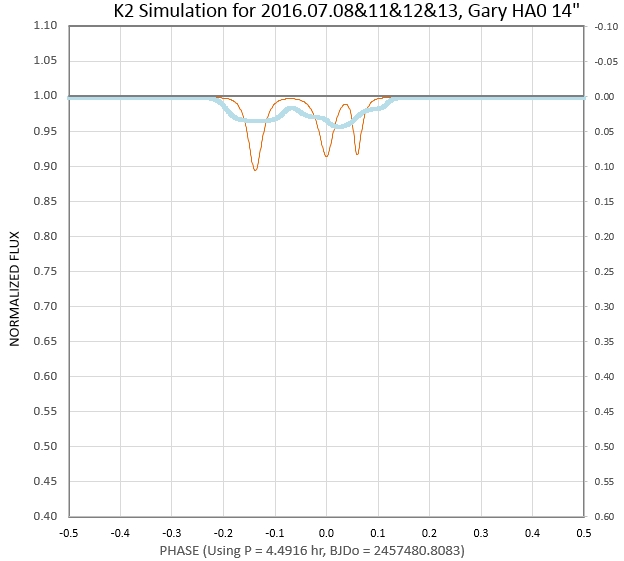

Observing sessions are limited to 1.3 hours, so 3 or 4 consecutive sessions have to combined to provide complete phase coverage. Based on the weather forecast, Jul 11 will be the first of 4 such sessions.

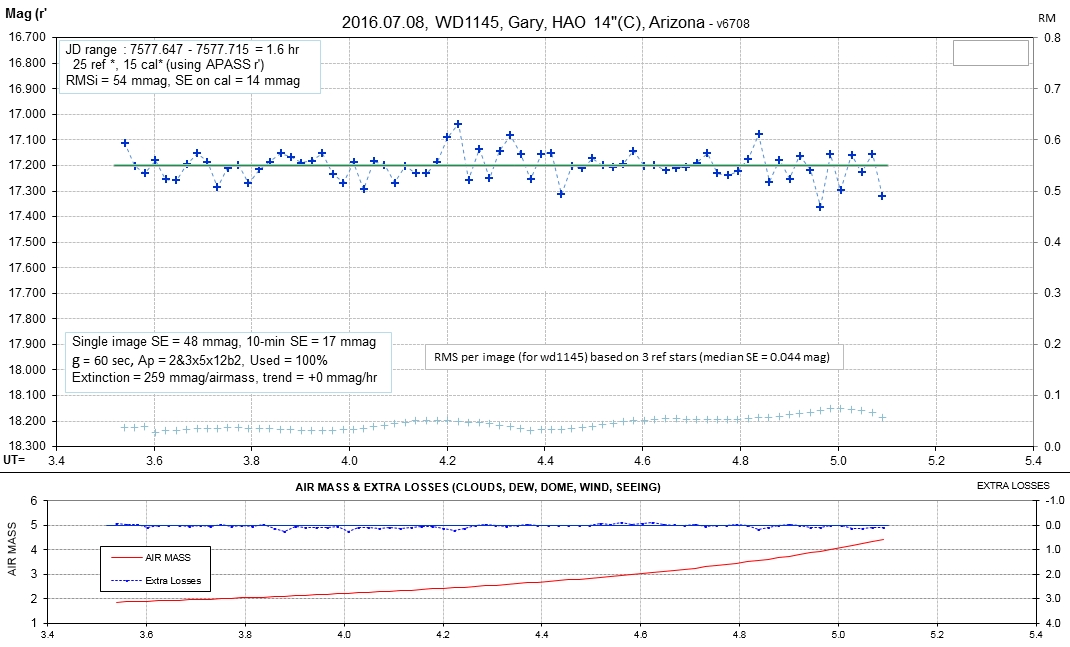

2016.07.08 Gary/HAO





2016.07.04  Gary/HAO

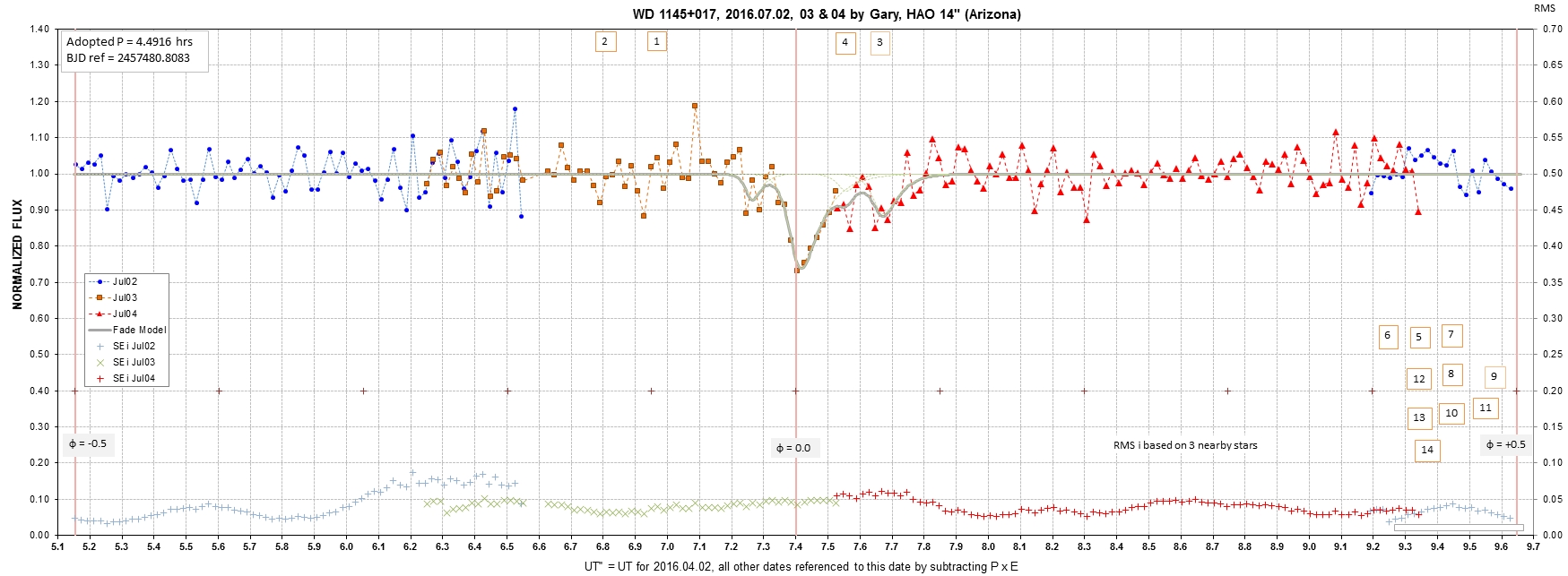

This is a combination of 3 observing sessions, needed to achieve complete orbit phase coverage.







2016.07.03  Gary/ HAO



2016.07.02  Gary/HAO

Observing sessions are limited to ~ 1.8 hours now, so it takes 3 or 4 sessions to get complete orbit phase coverage. This is the first of such a series.

2016.06.18 Gary/HAO

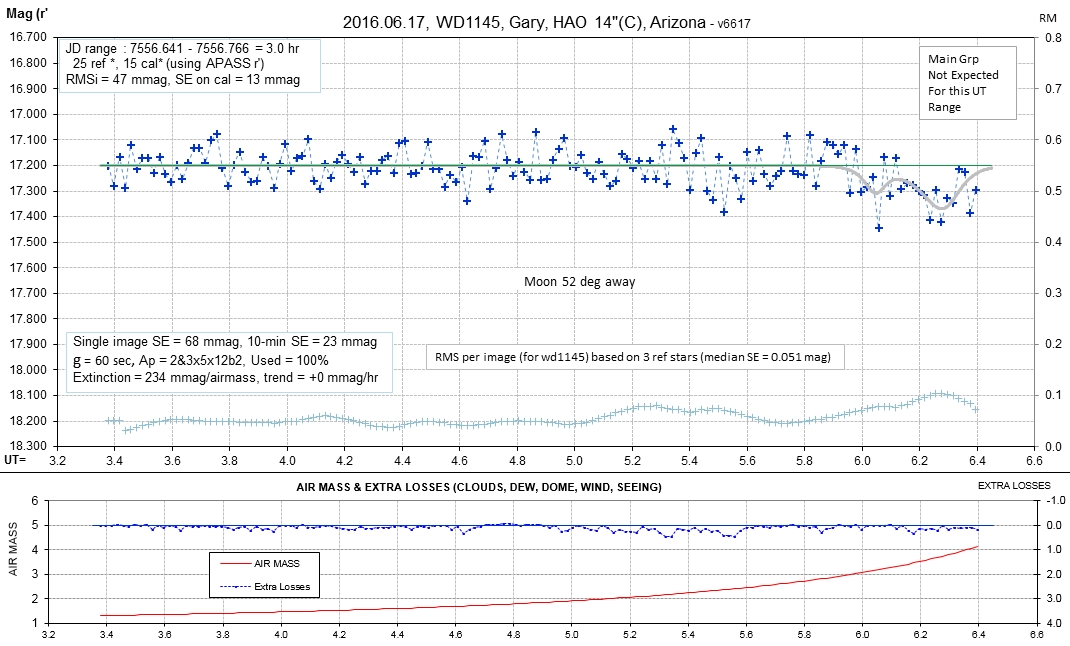

2016.06.17 Gary/HAO

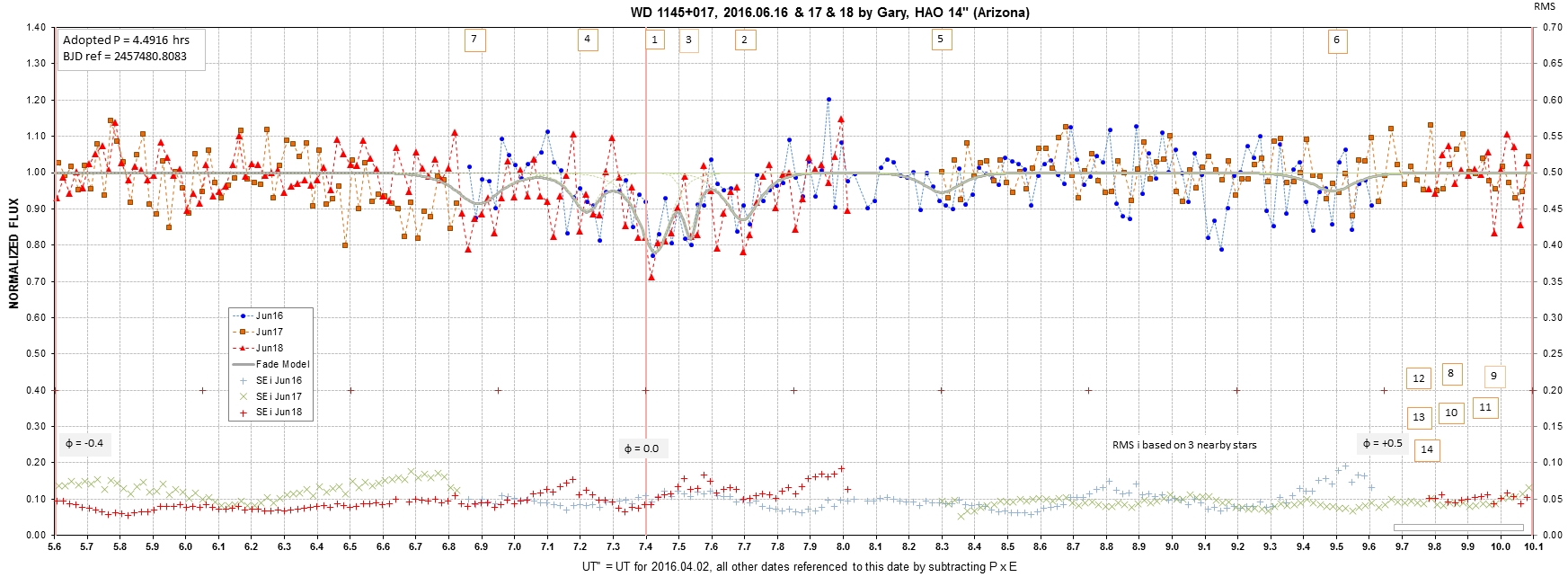

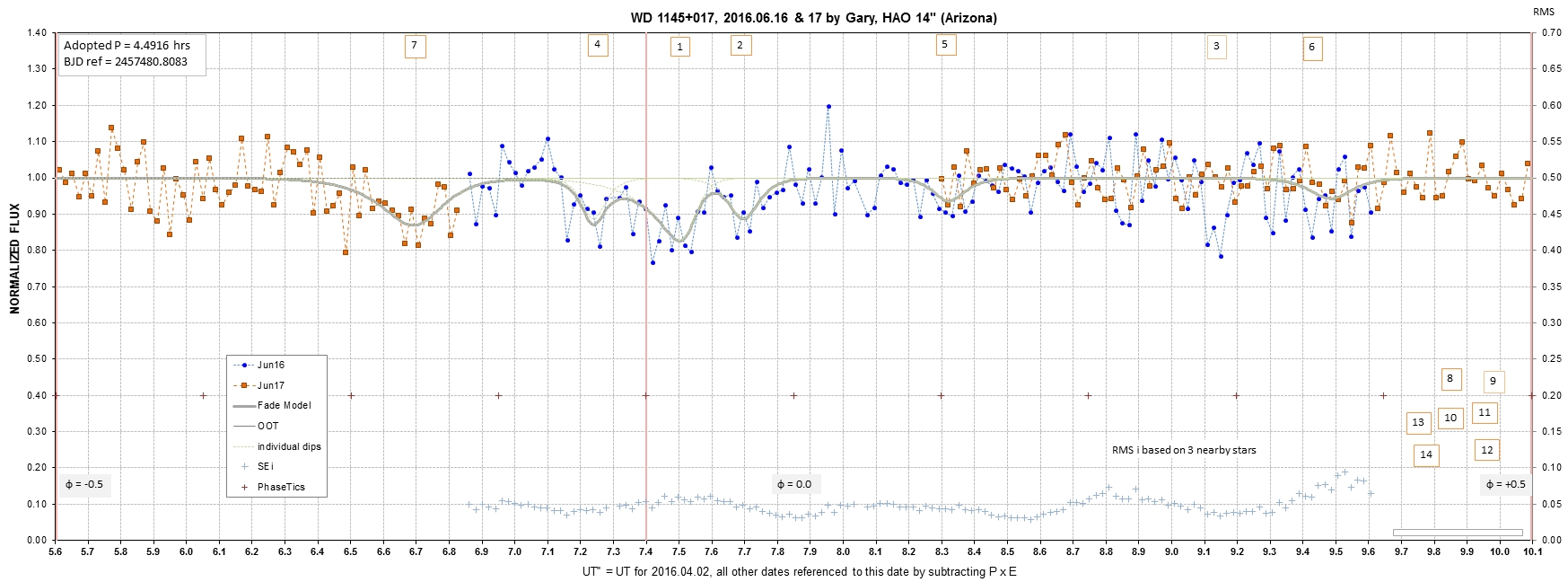

It now requires two consecutive nights to provide complete phase coverage. Here's my Jun 16 & 17 LCs' combined.









2016.06.16 Gary/HAO

Bibbous moon was nearby, but I wanted to know if any new activity was occurring. None was during the 2.8 hrs that included the "main group" of dips (G6121).





2016.06.08 Gary/HAO

The longest observing session for my latitude is 3.9 hrs, and getting shorter by ~ 4 minutes each day. Two nights in a row provides complete phase coverage.







2016.06.04 Gary/HAO

I observed just to see if the activity level was continuing to decrease; and it was!

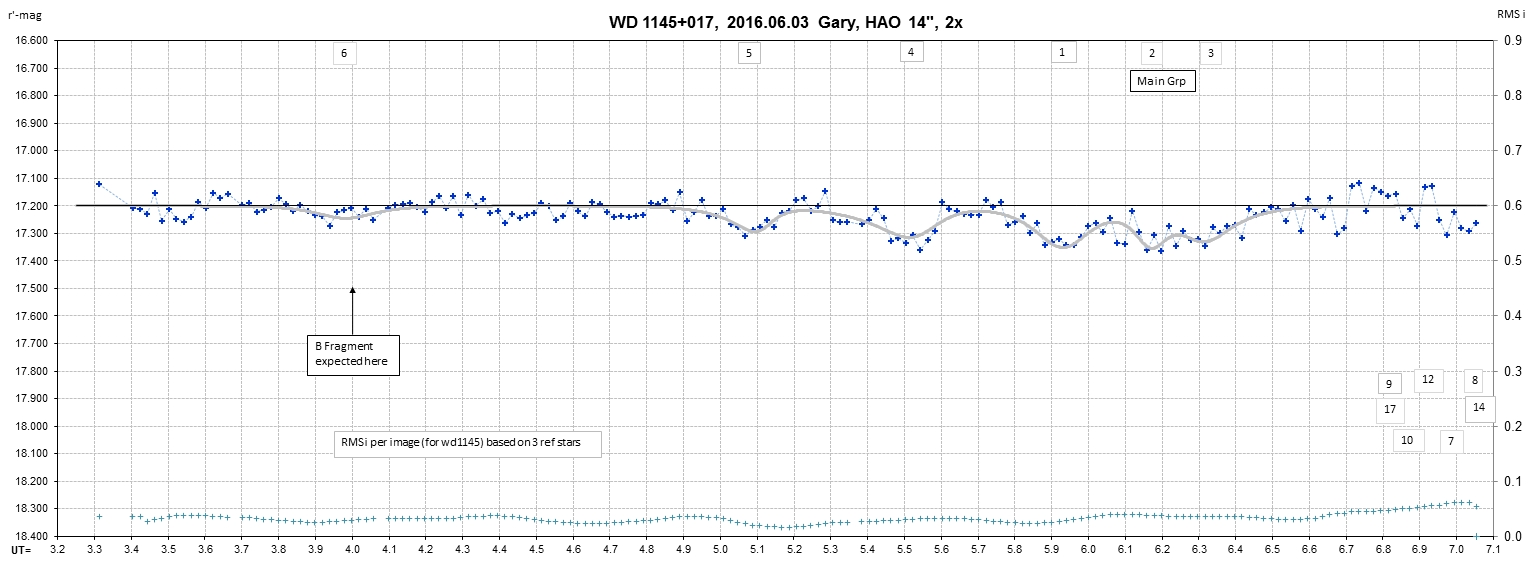

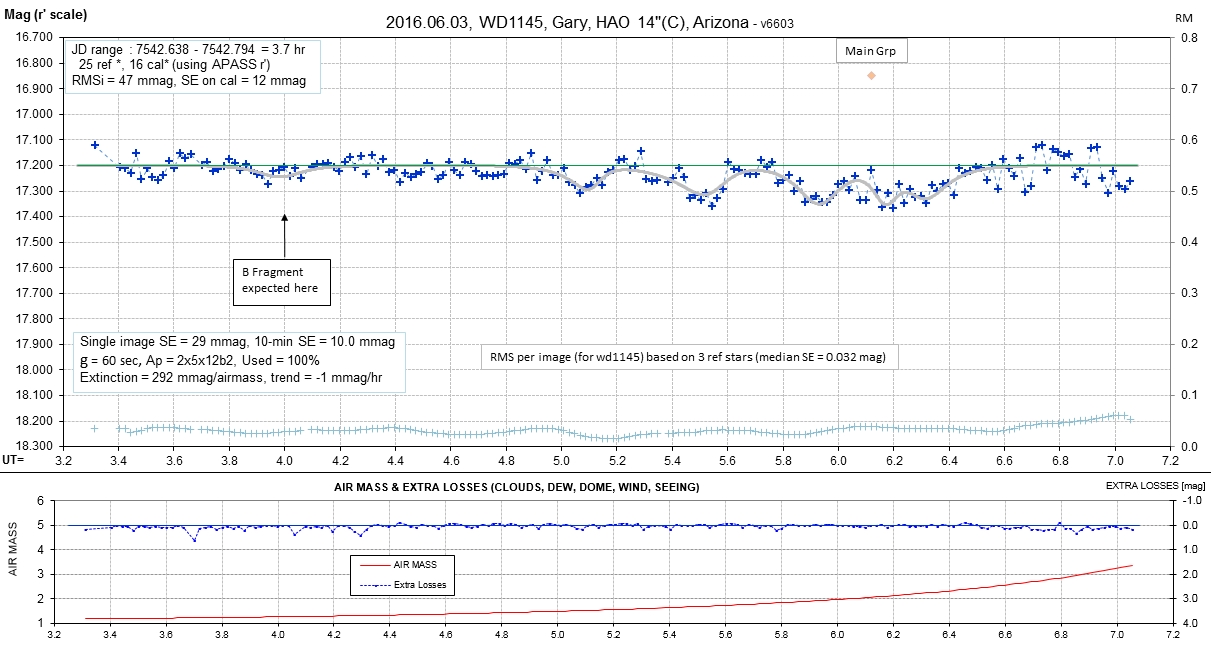

2016.06.03 Gary/HAO

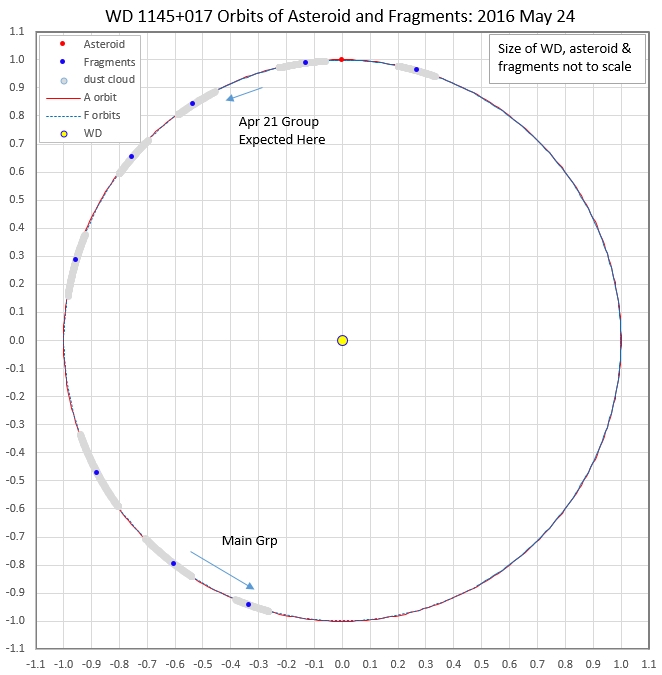

Not a completeorbit, but enough to show that the main group (G6121) is fading & there's no evidence for the b dip.

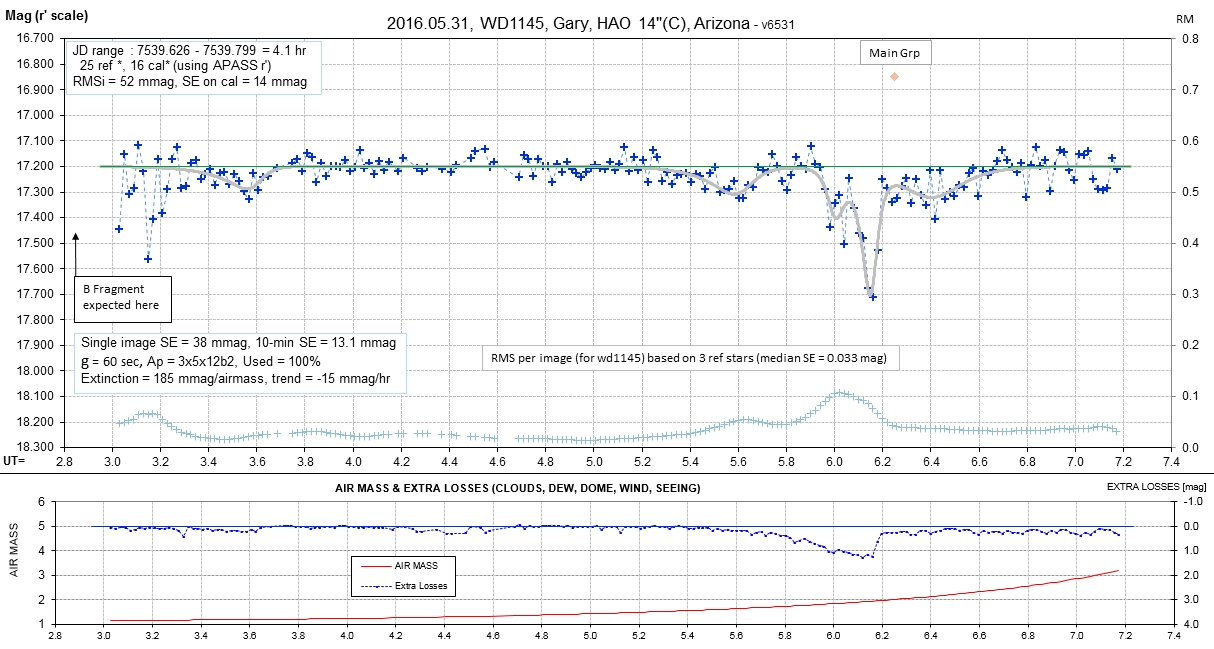

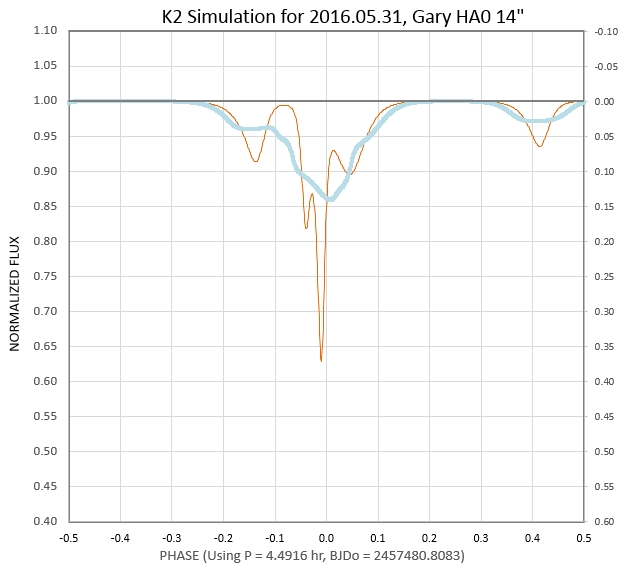

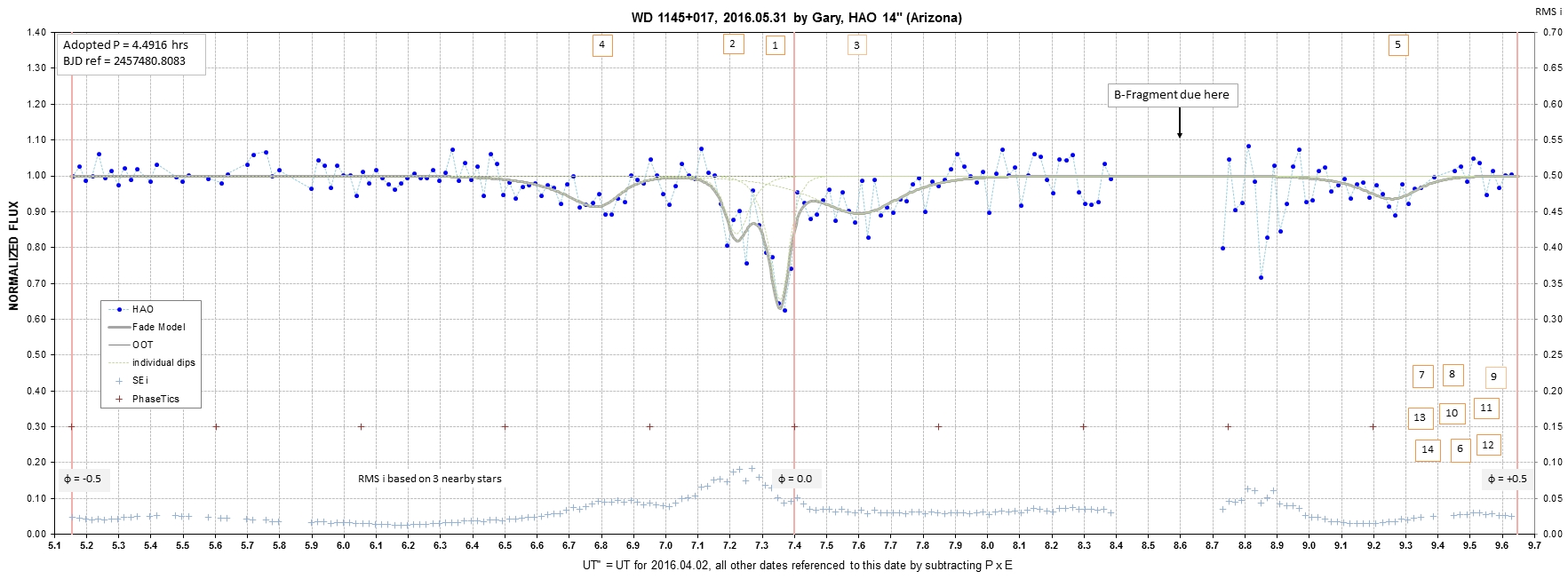

2016.05.31 Gary/HAO

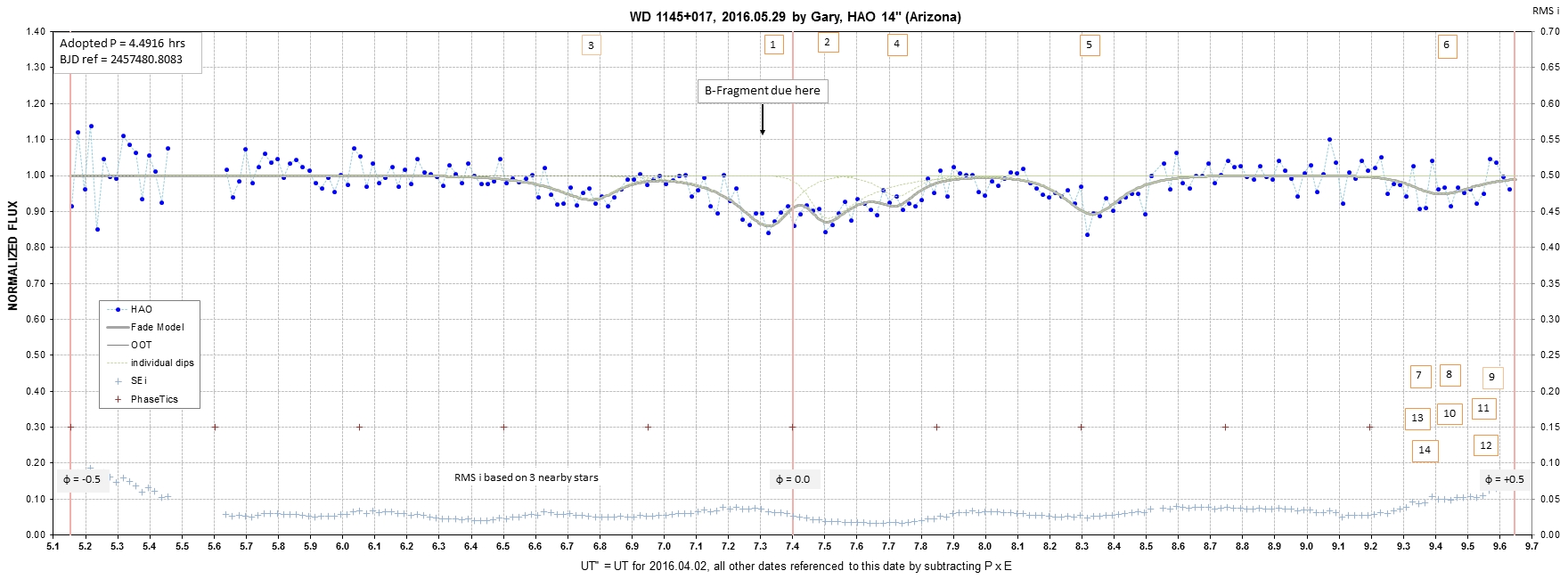

2016.05.29 Gary/HAO

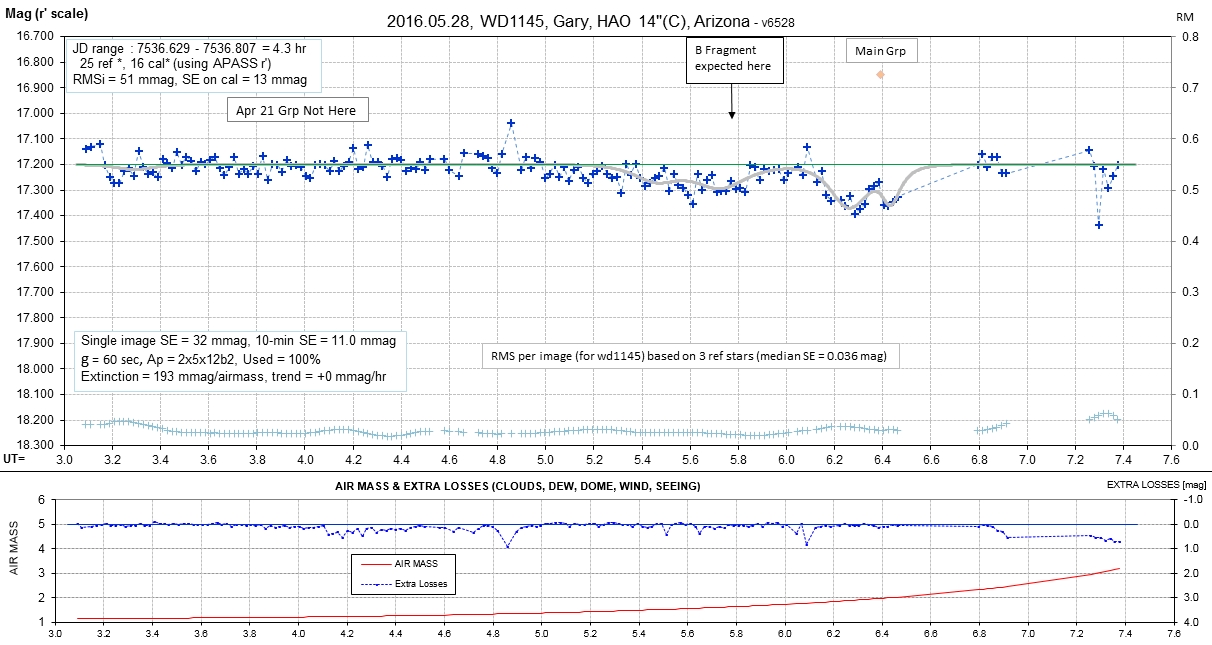

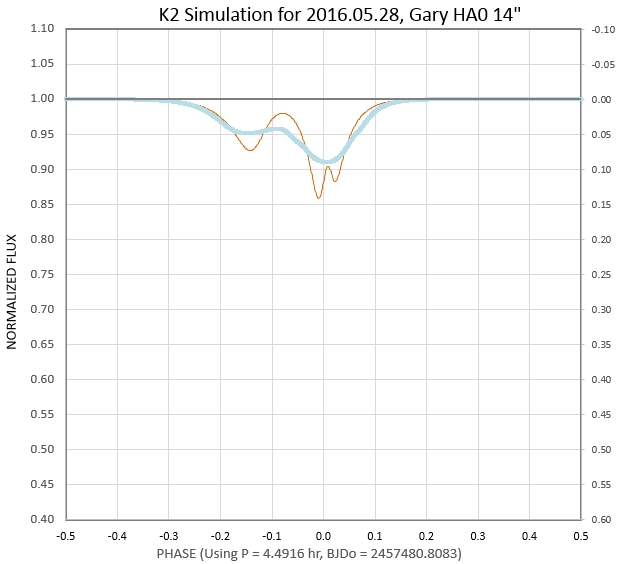

2016.05.28 Gary/HAO

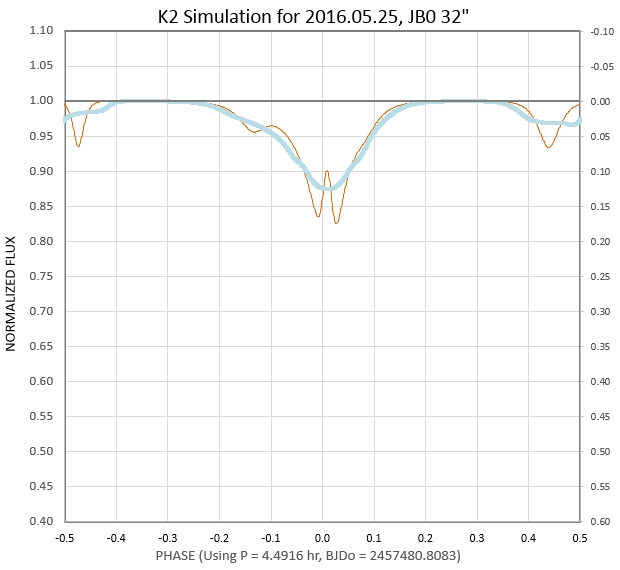

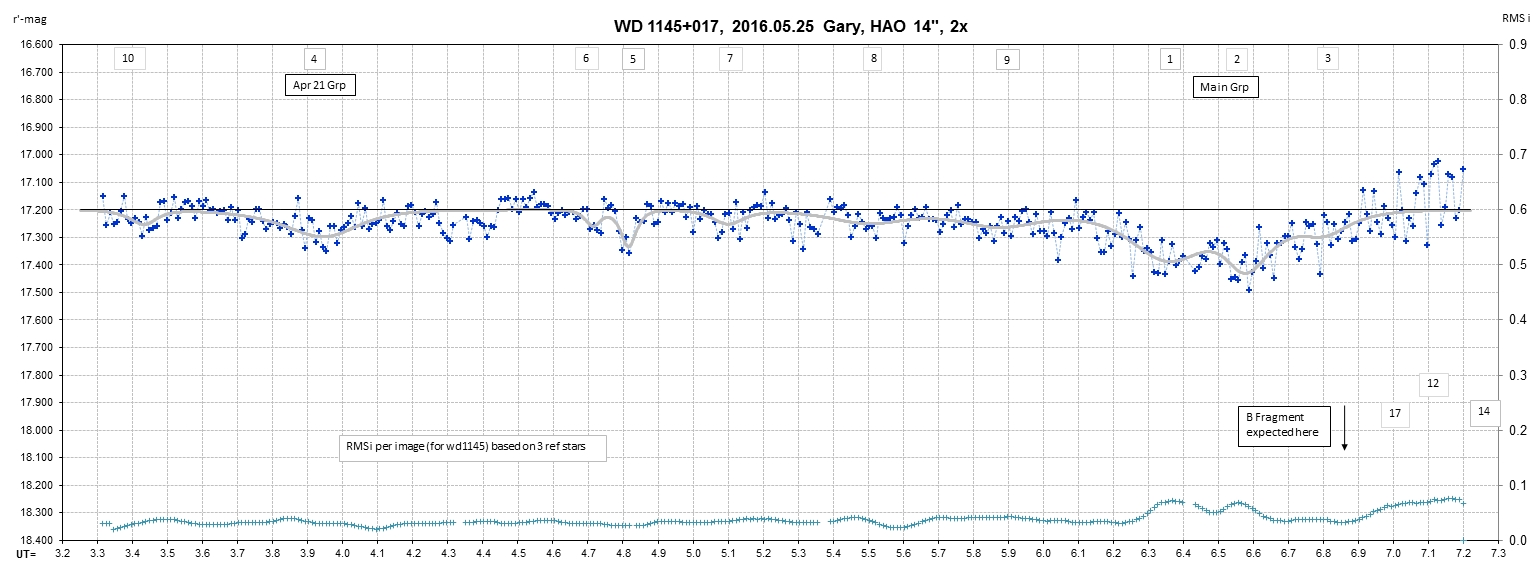

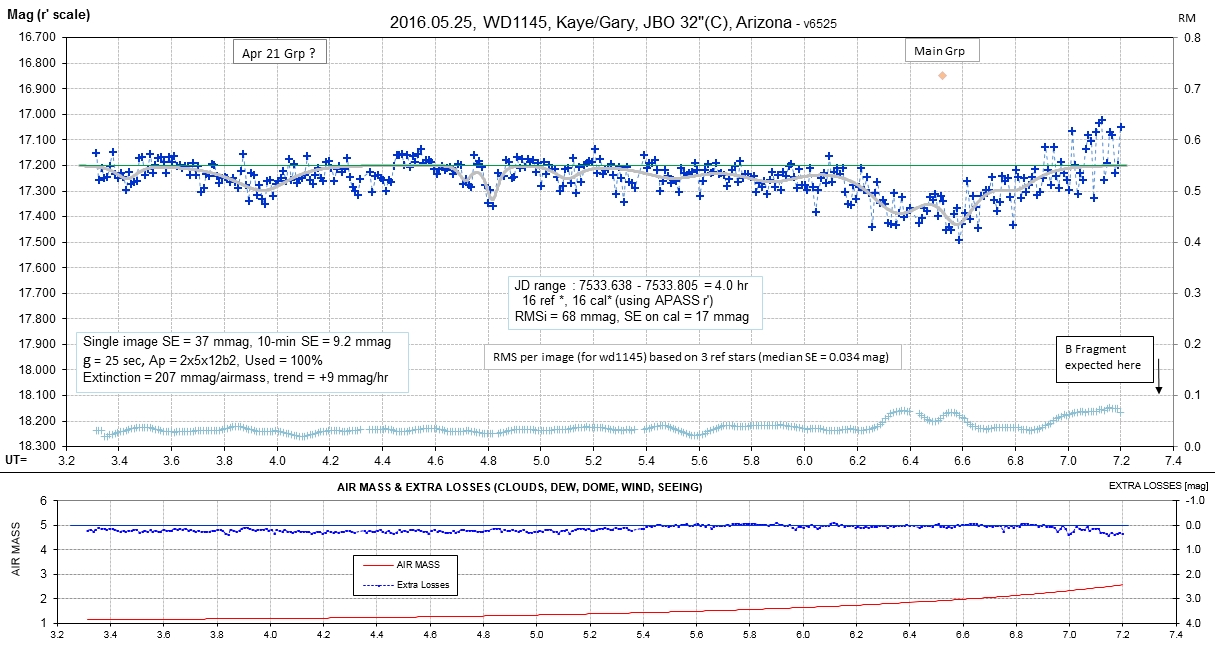

2016.05.25 Kaye/Gary JBO









2016.05.24 Gary









2016.05.22 Kaye/Gary

Couds, wind and full moon ruined most of the observing session, but we got a 1-hr segment that sampled the main group of dips.

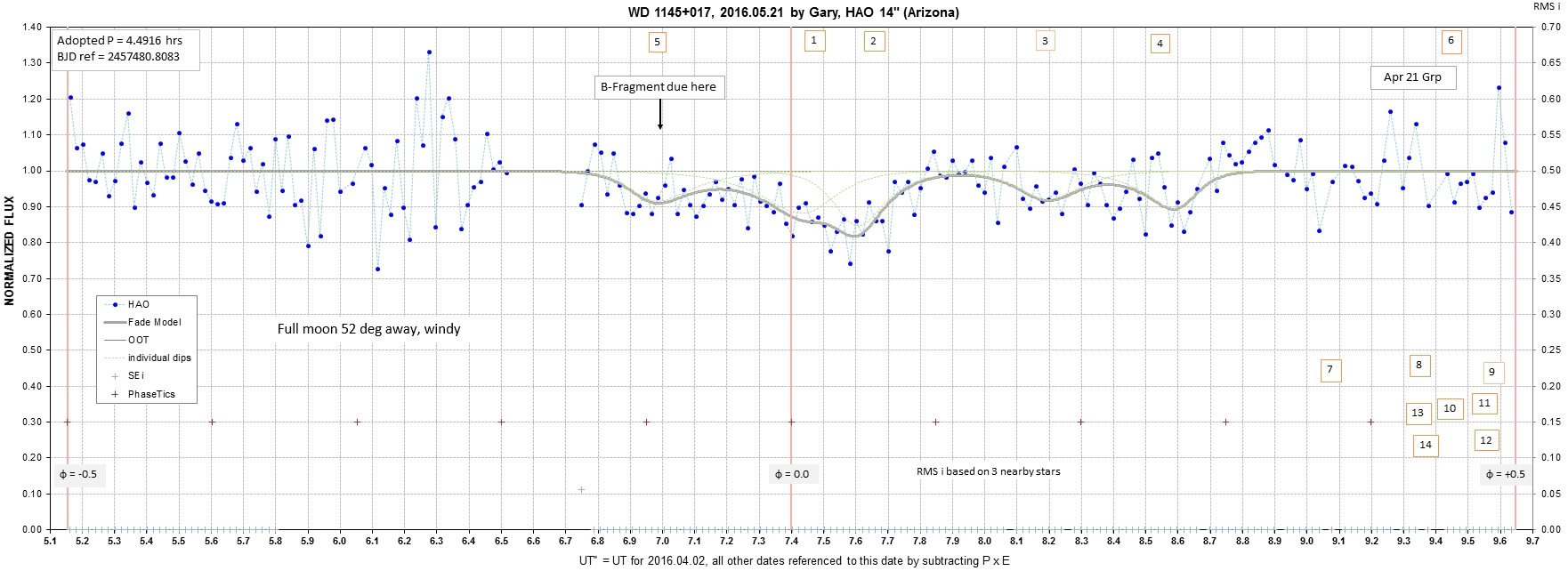

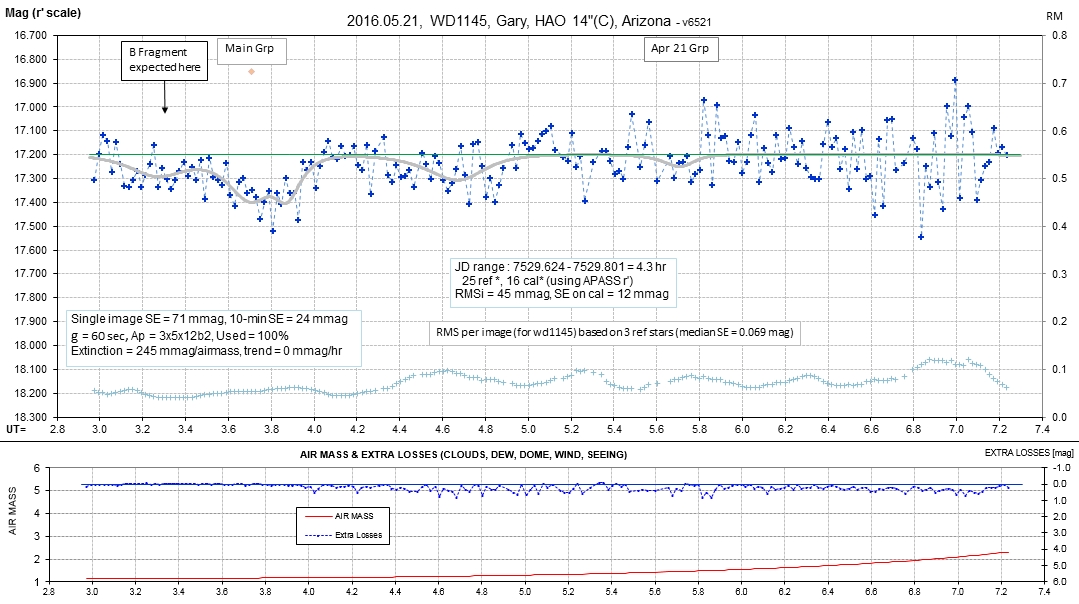

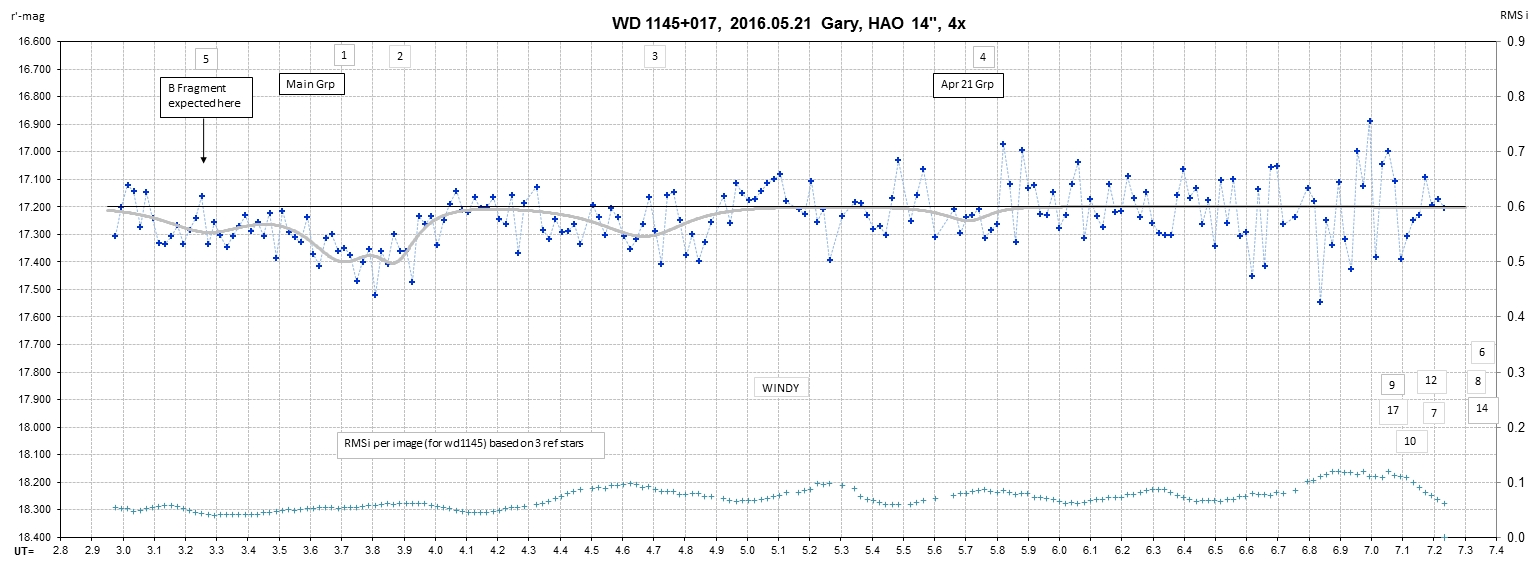

2016.05.21 Gary/HBO

It was windy, and there was a full moon (52 deg away), but I observed anyway.

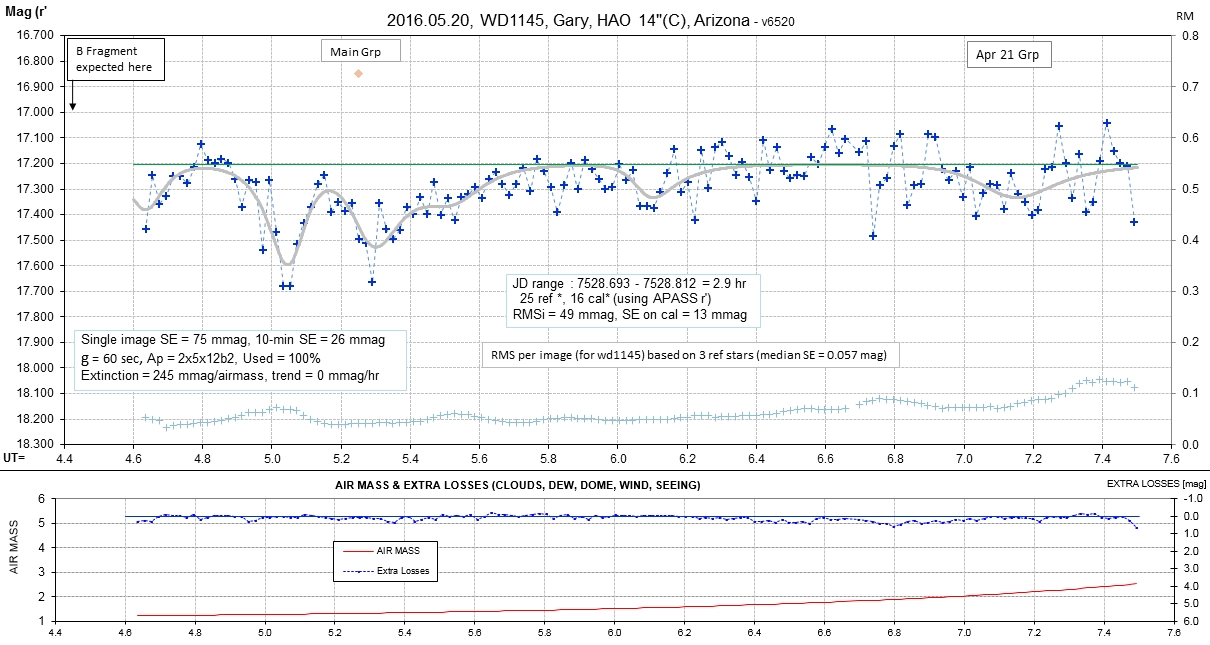

2016.05.20 Gary/HBO

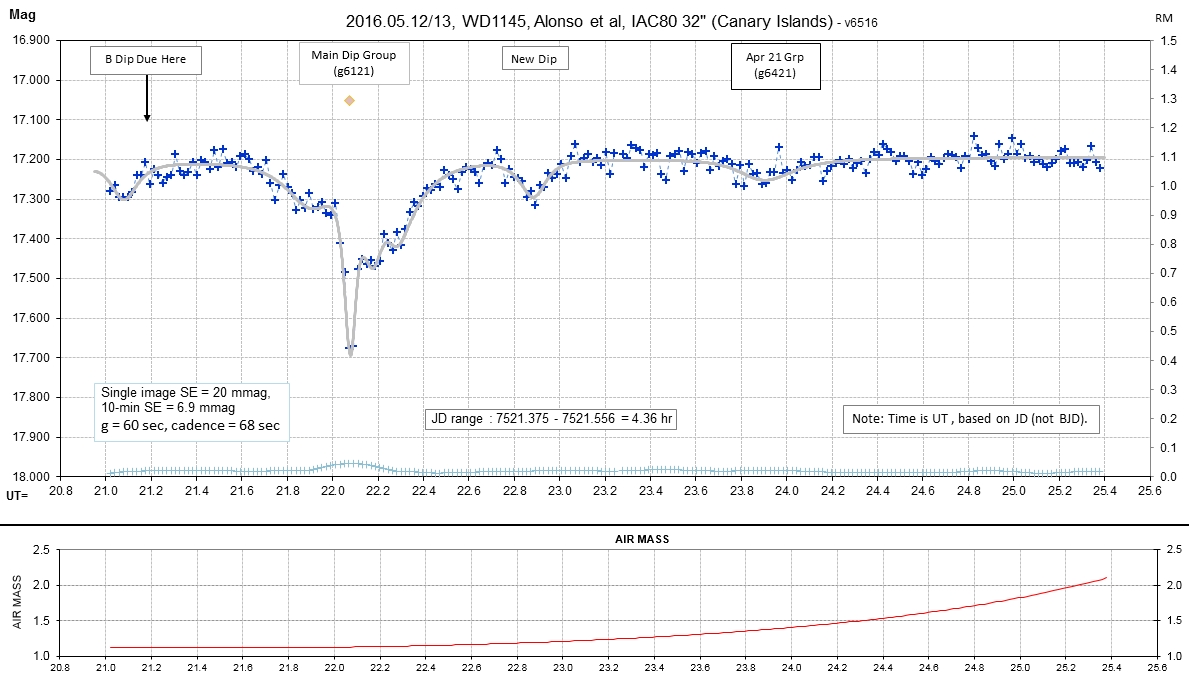

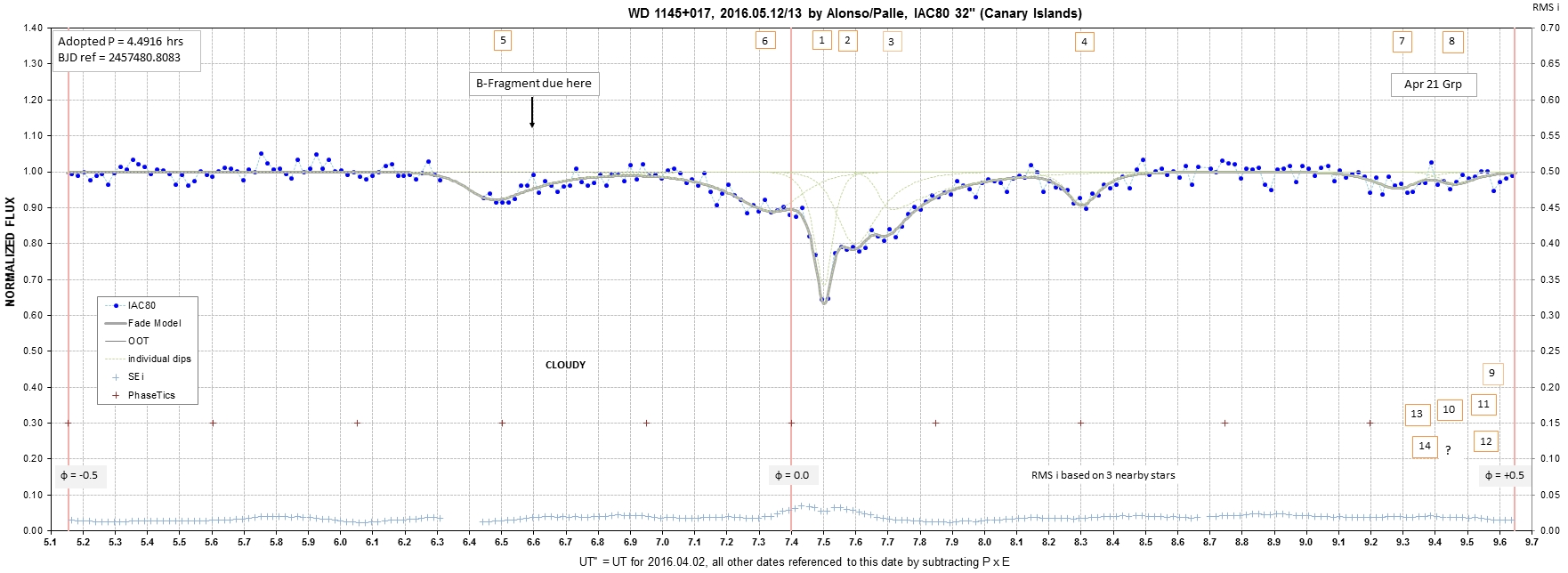

2016.05.12/13 Alonso/Palle IAC80

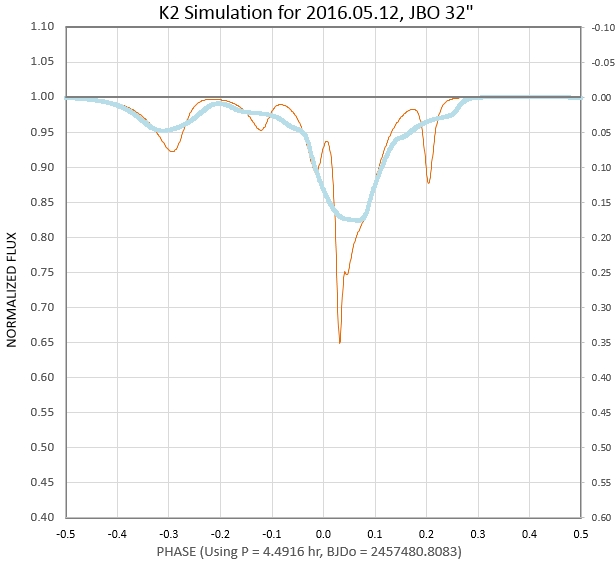

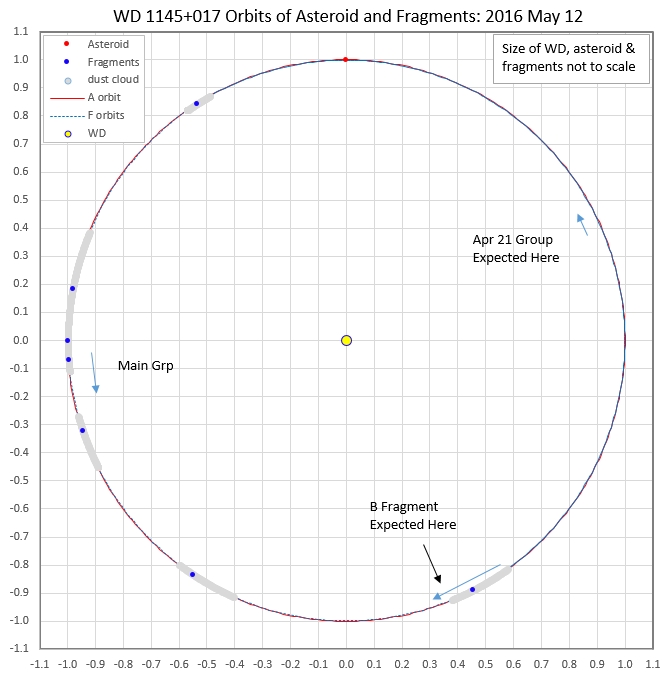

2016.05.12 Kaye/Gary JBO

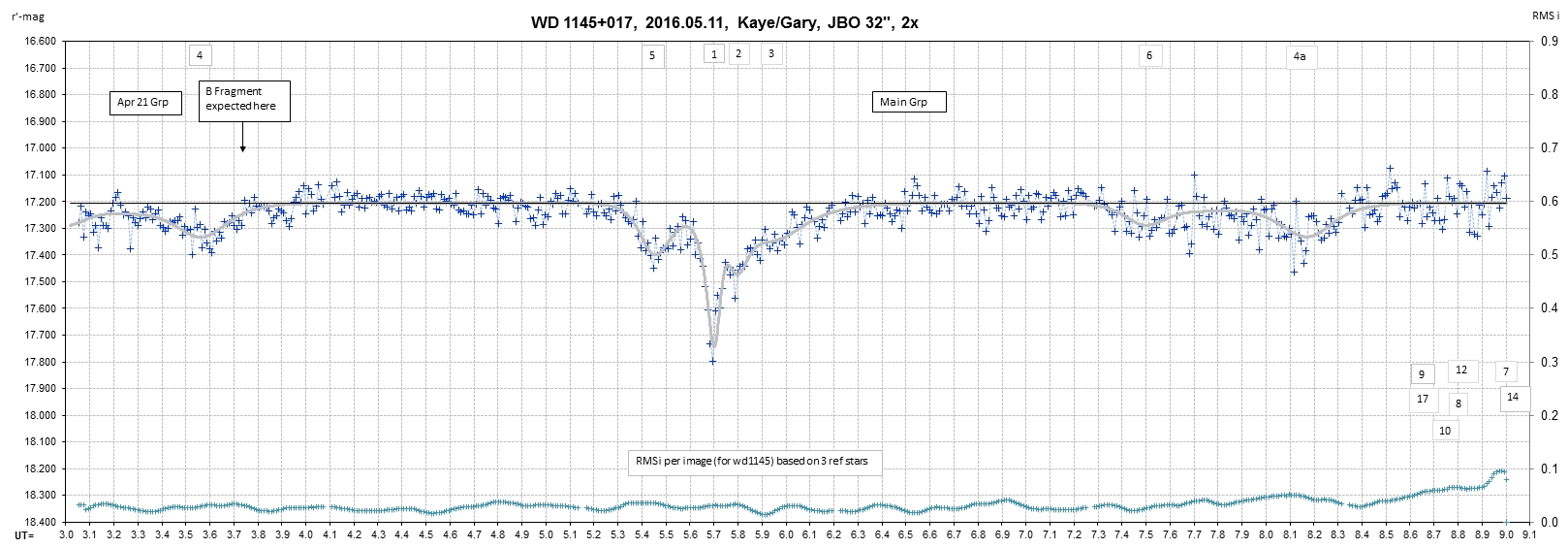

2016.05.11 Kaye/Gary JBO

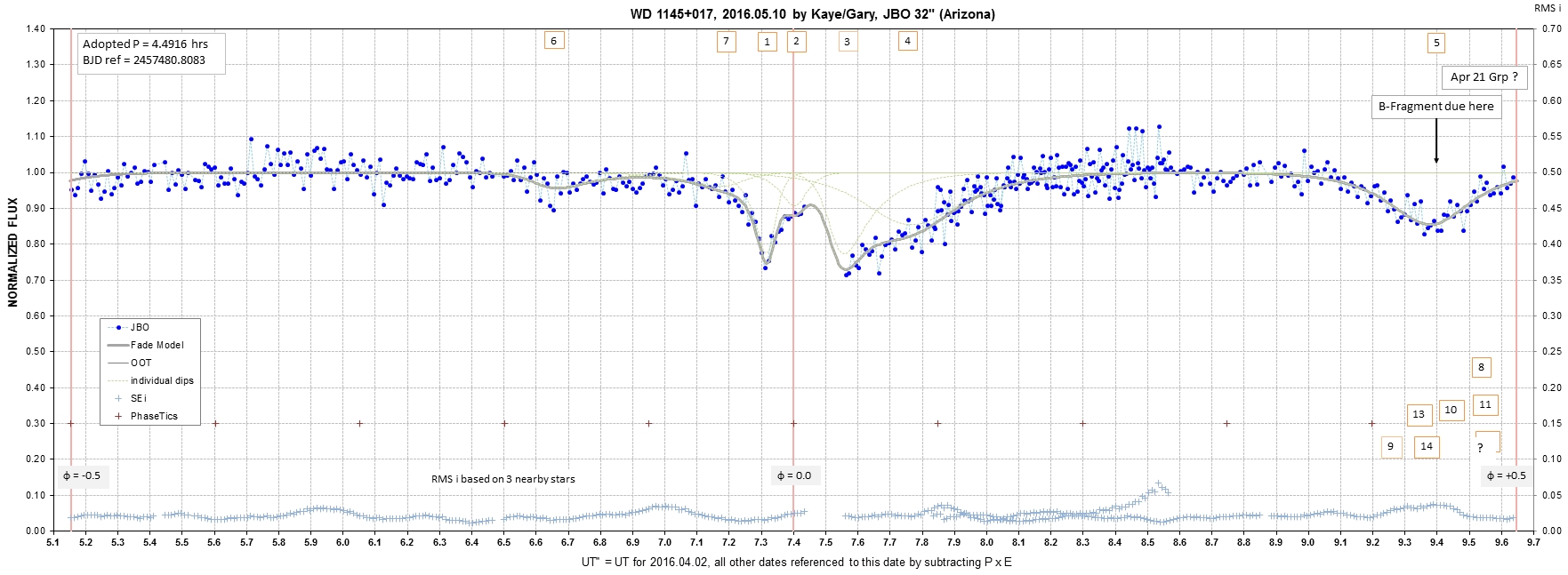

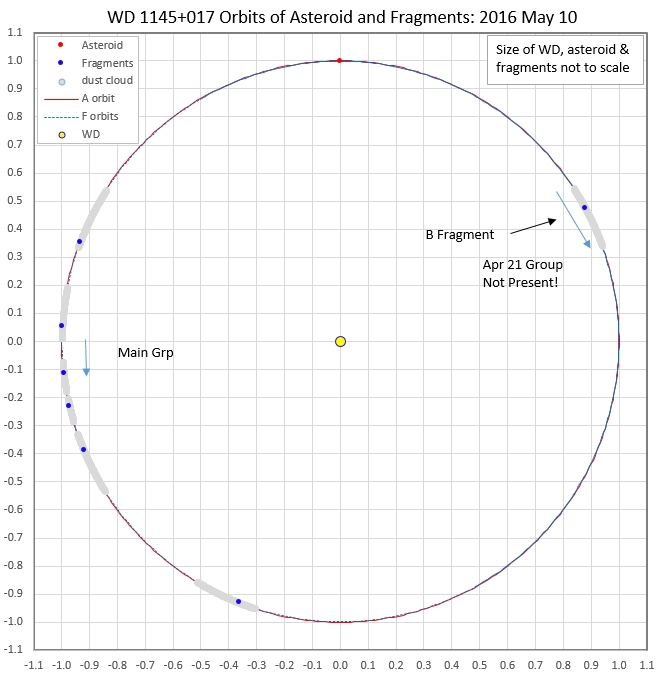

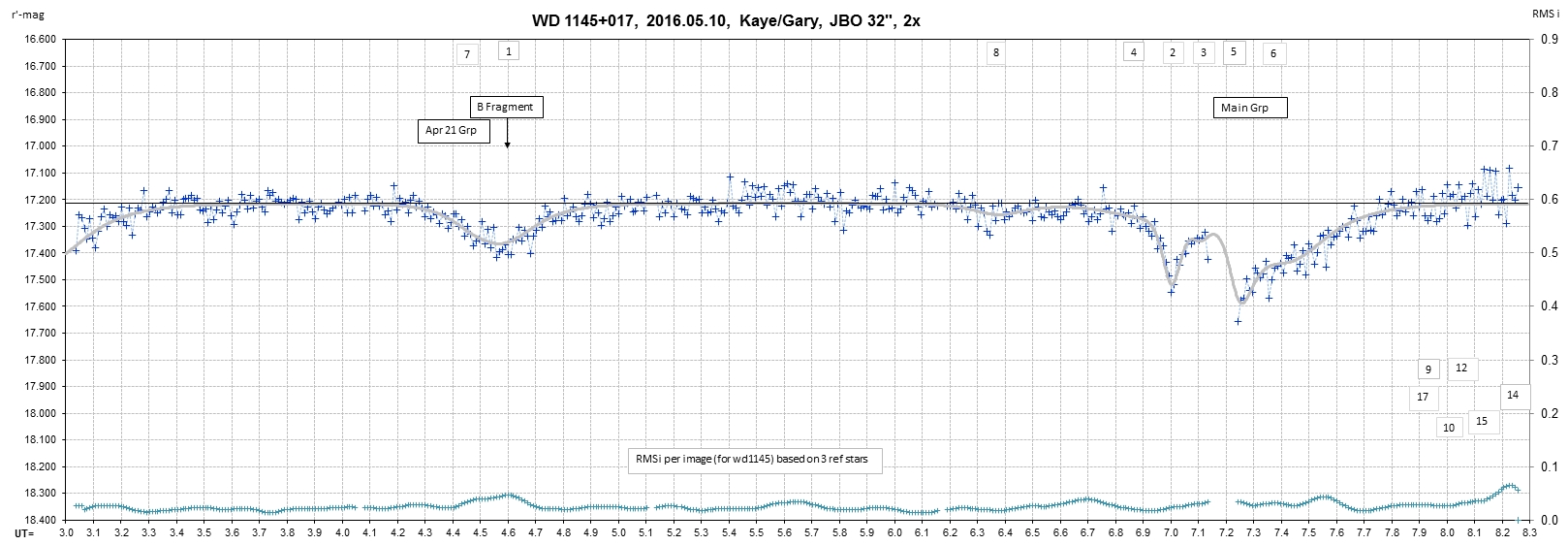

2016.05.10 Kaye/Gary JBO









2016.05.09 Kaye/Gary JBO

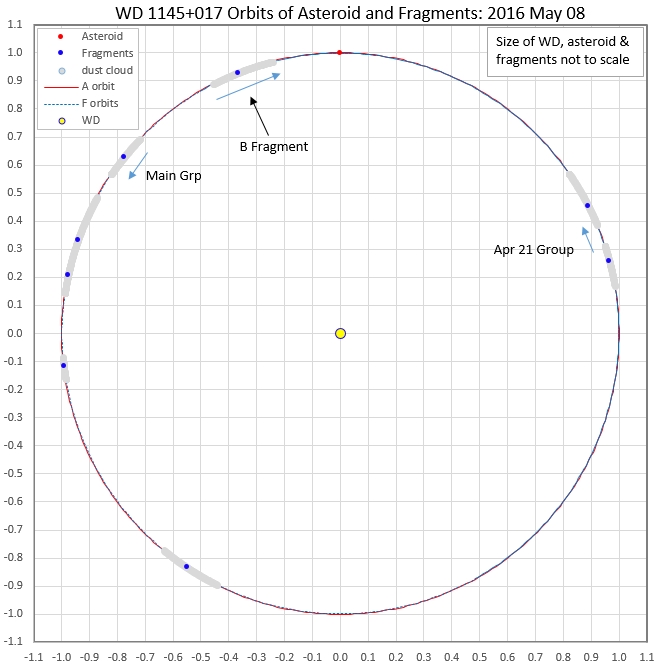

2016.05.08 Kaye/Gary JBO

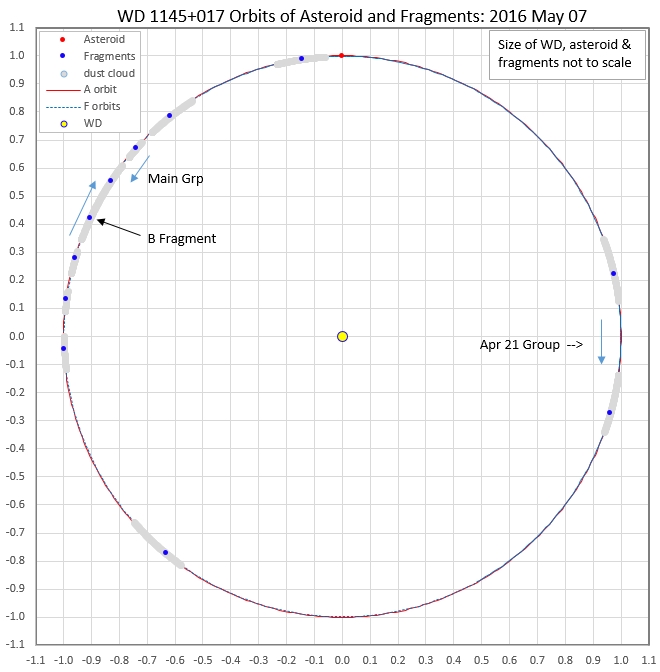

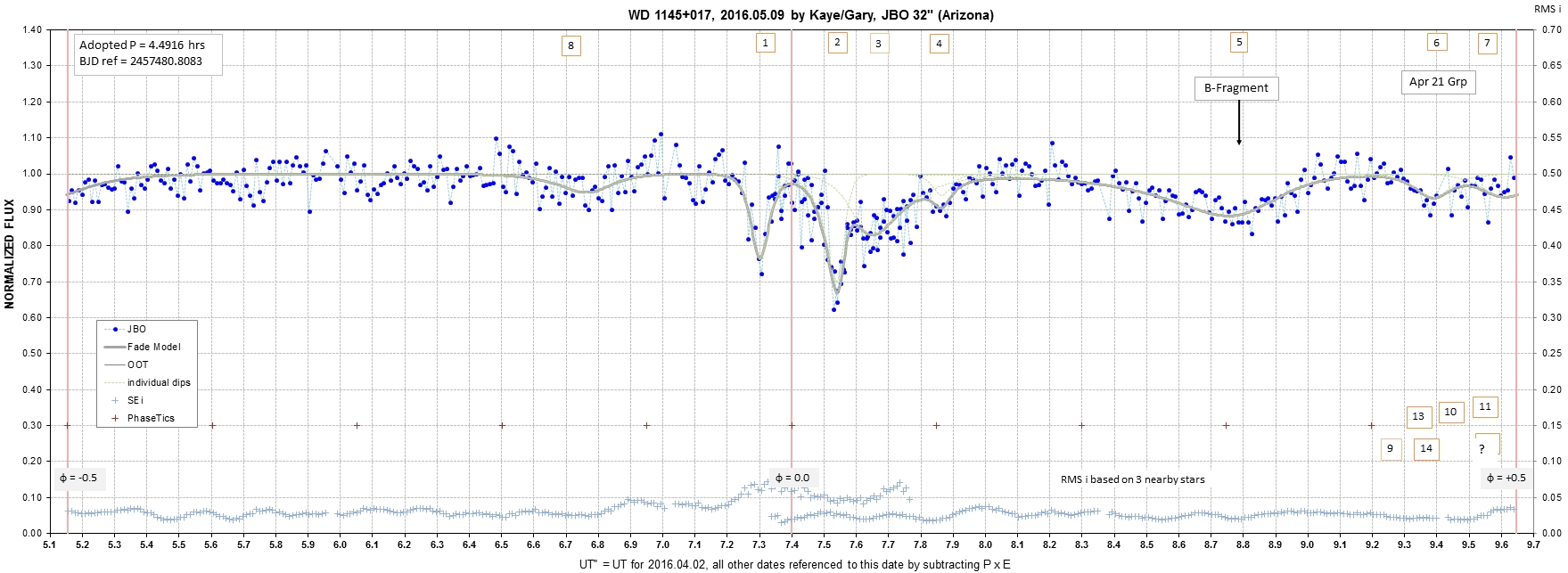

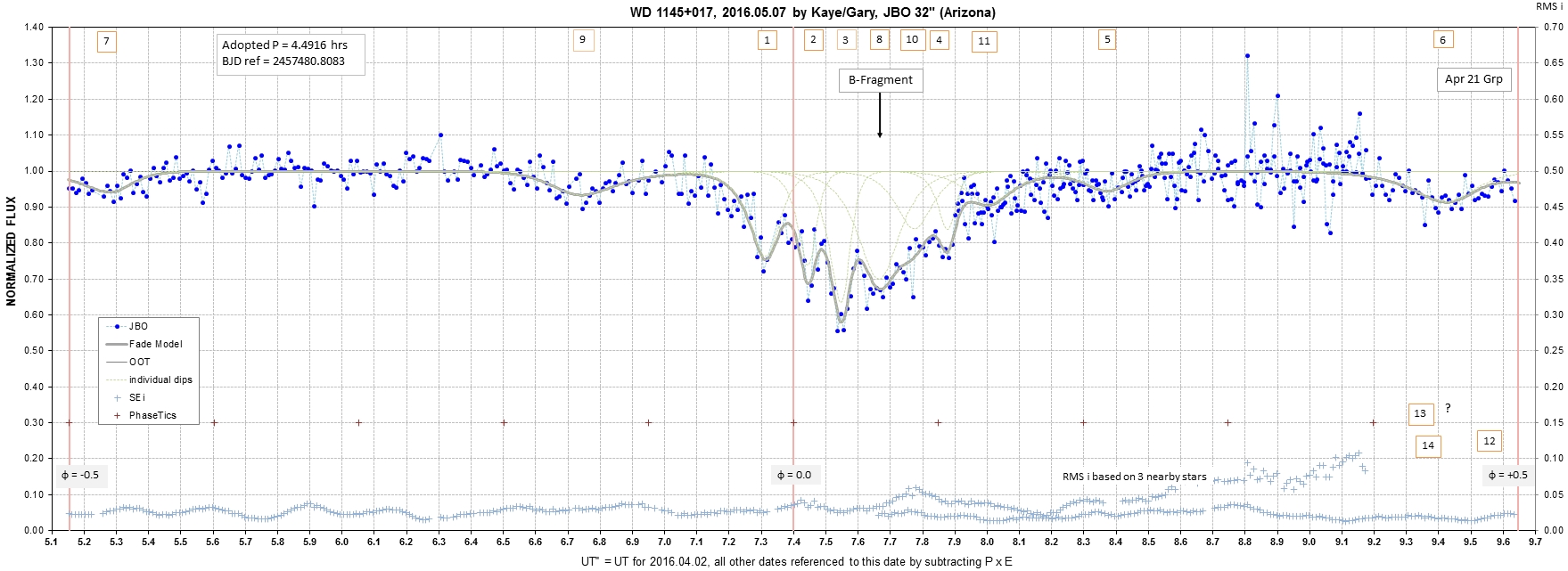

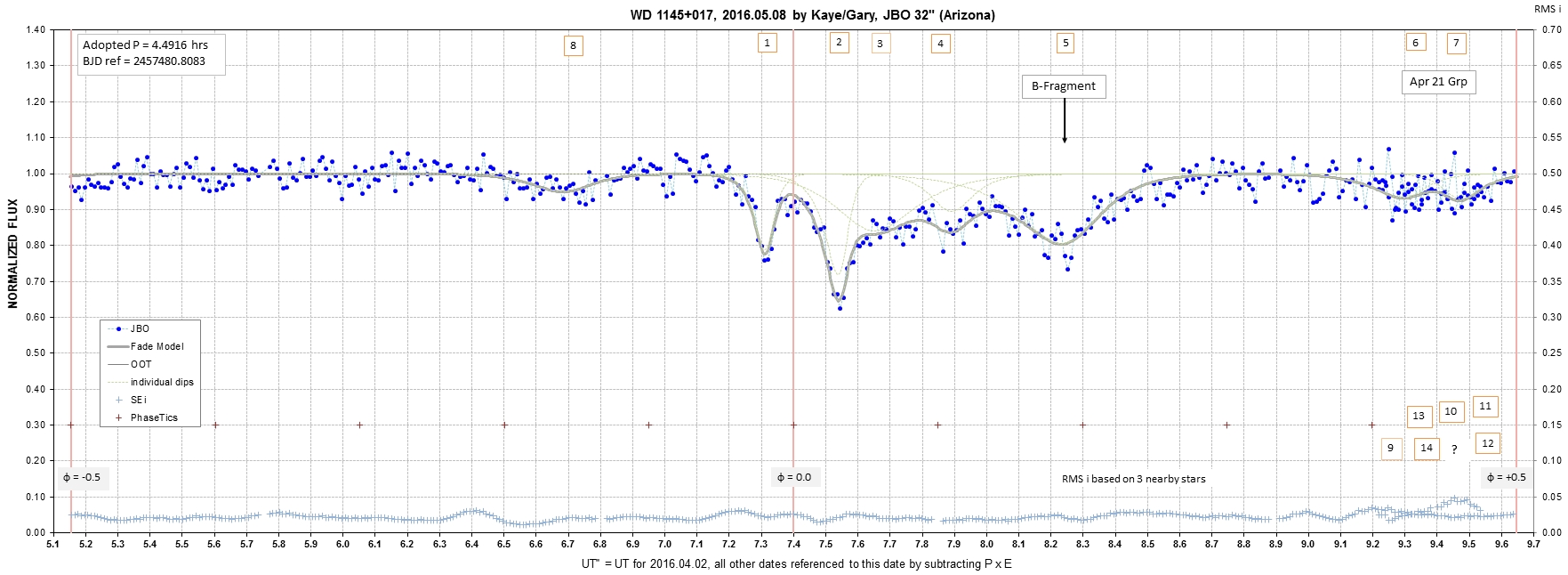

2016.05.07 Kaye/Gary JBO






Note, since cadence is 36 seconds (25-sec exposures) more short-term structure is possible to be recorded than for the other LCs (with ~70-sec cadence, for example).




2016.05.06/07 Hambsch

Data archived but not yet processed.

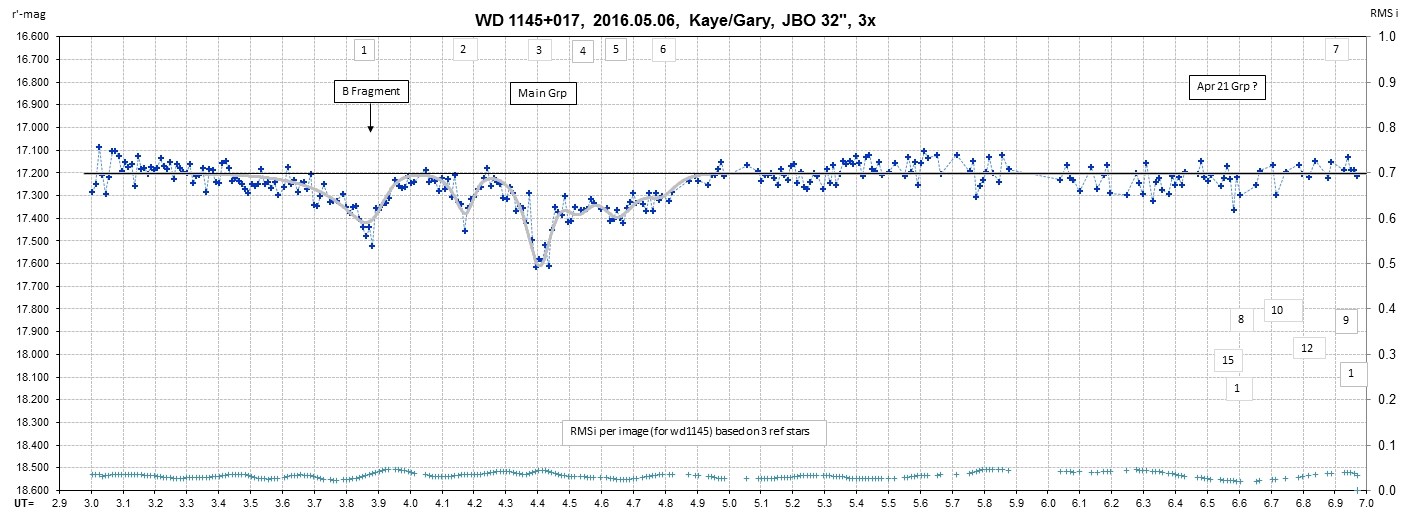

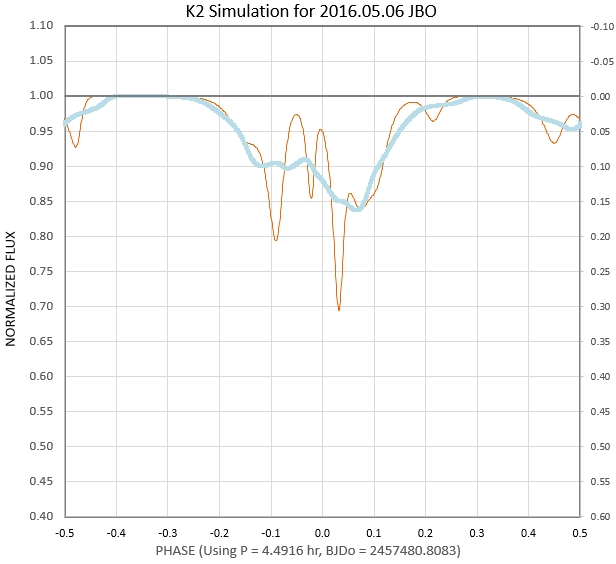

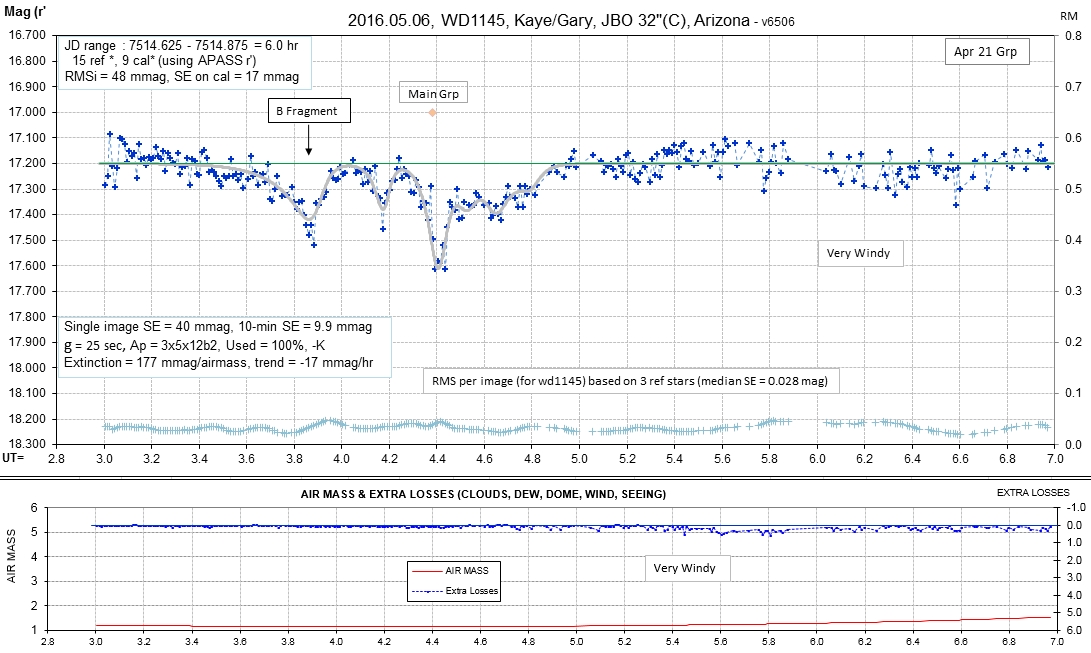

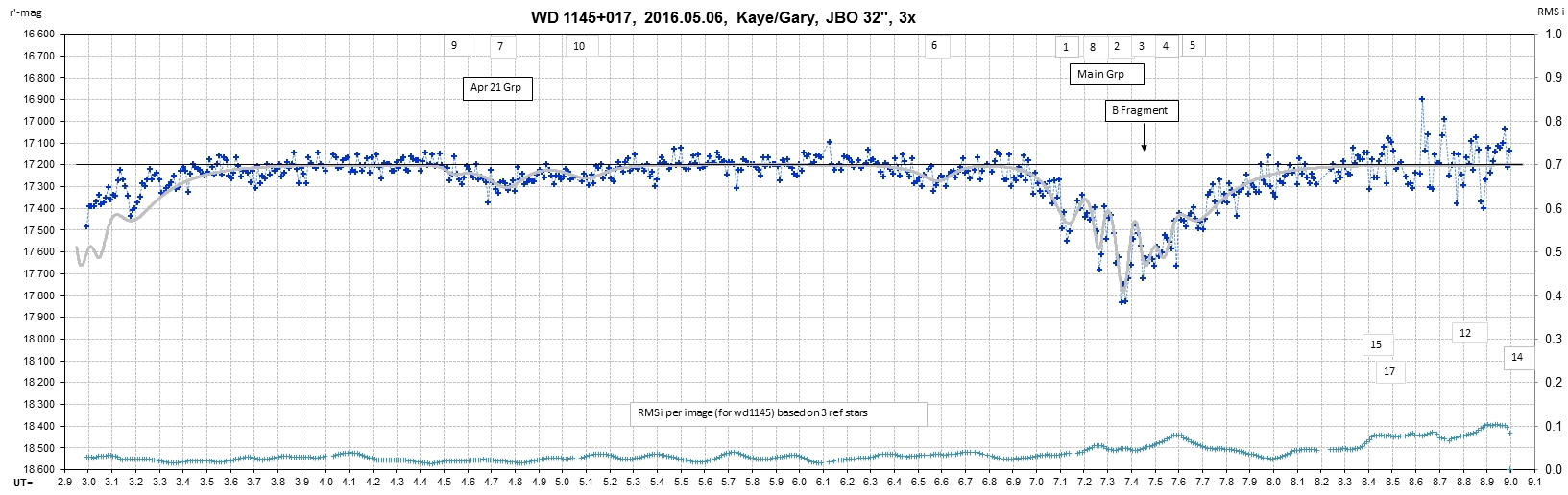

2016.05.06 Kaye/Gary JBO










2016.05.05 Kaye/Gary JBO

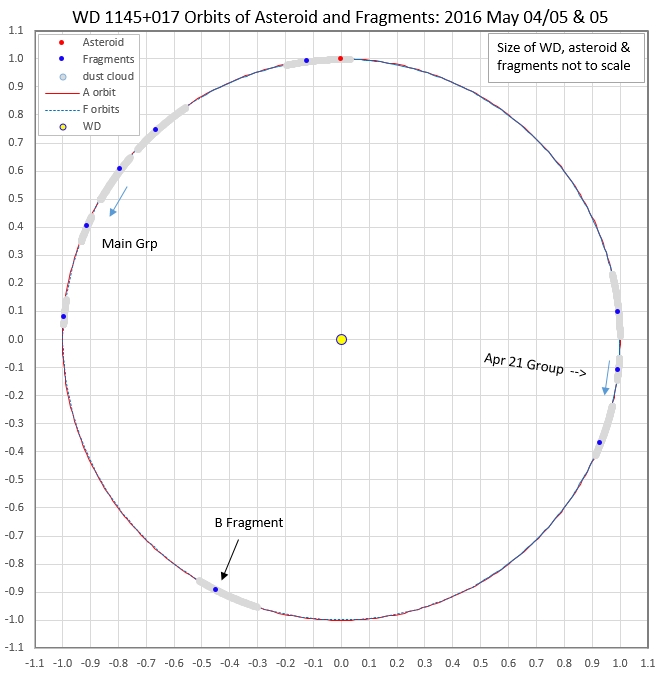

Combination LC. The B dip moved between the orbit observed by Hambsch & Kaye/Gary.

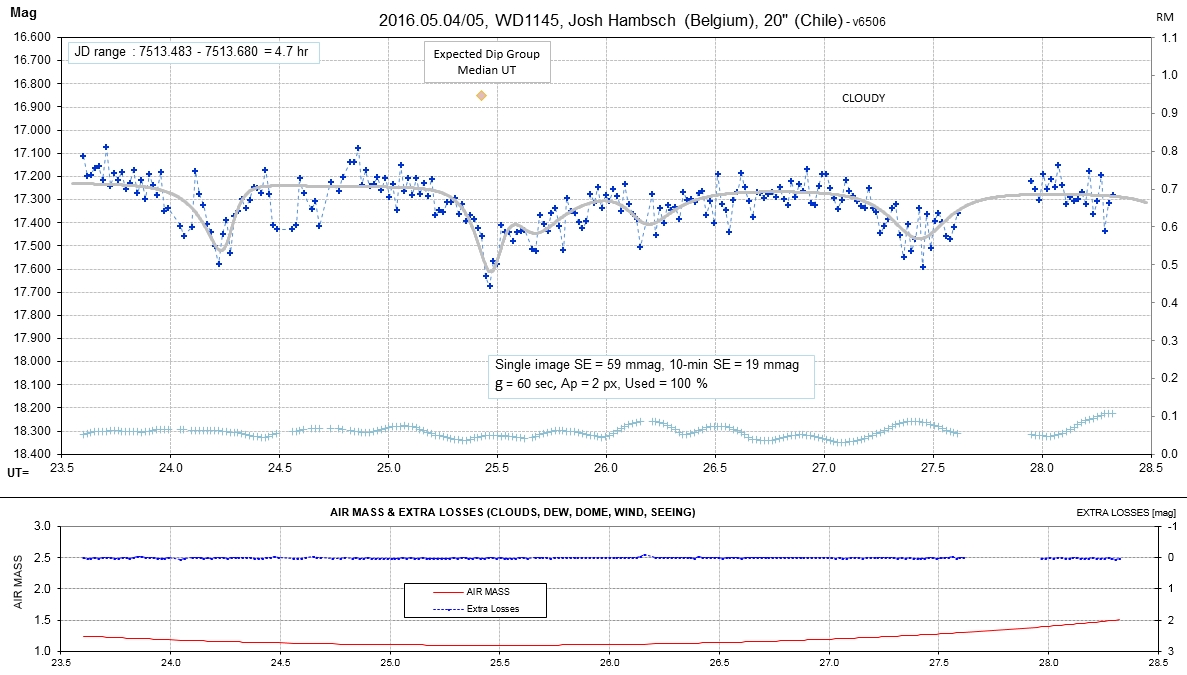

2016.05.04/05 Hambsch

It was cloudy so the noise level is high.



Combination LC. The B dip moved between the orbit observed by Hambsch & Kaye/Gary.

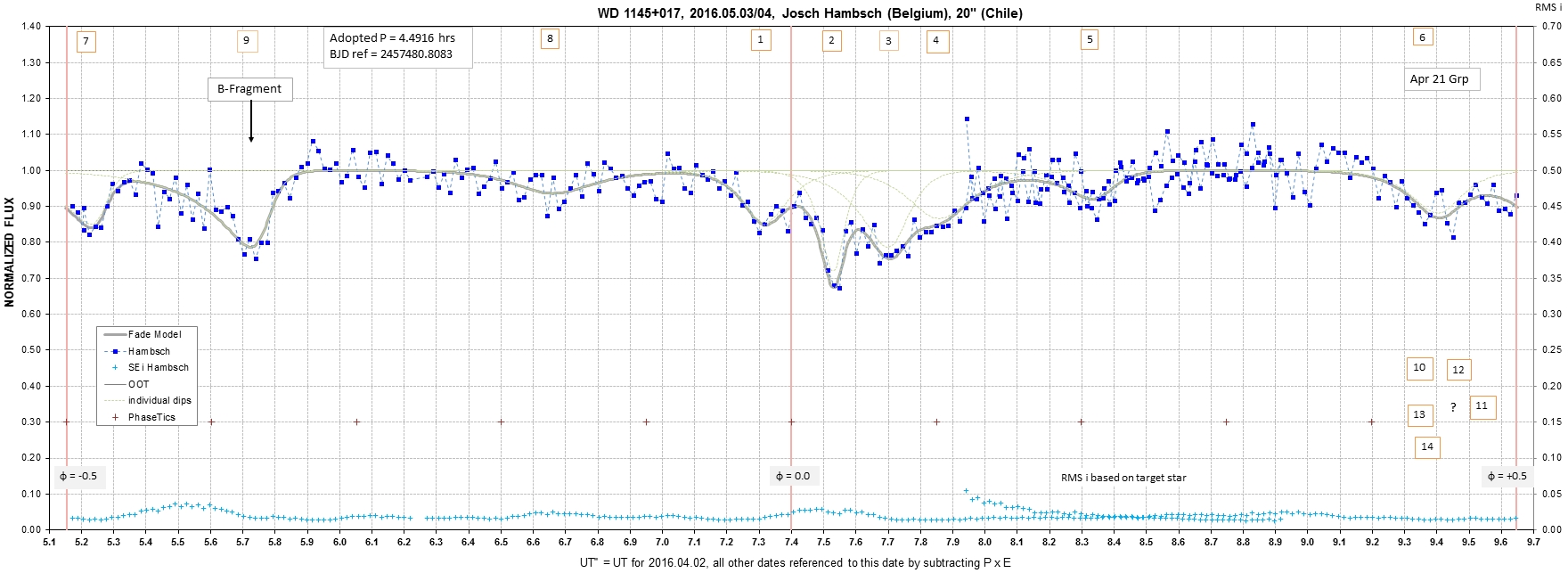

2016.05.03/04 Hambsch









2016.05.03 Kaye/Gary JBO









2016.05.02/03 Hamsch

Data archived but not yet processed.

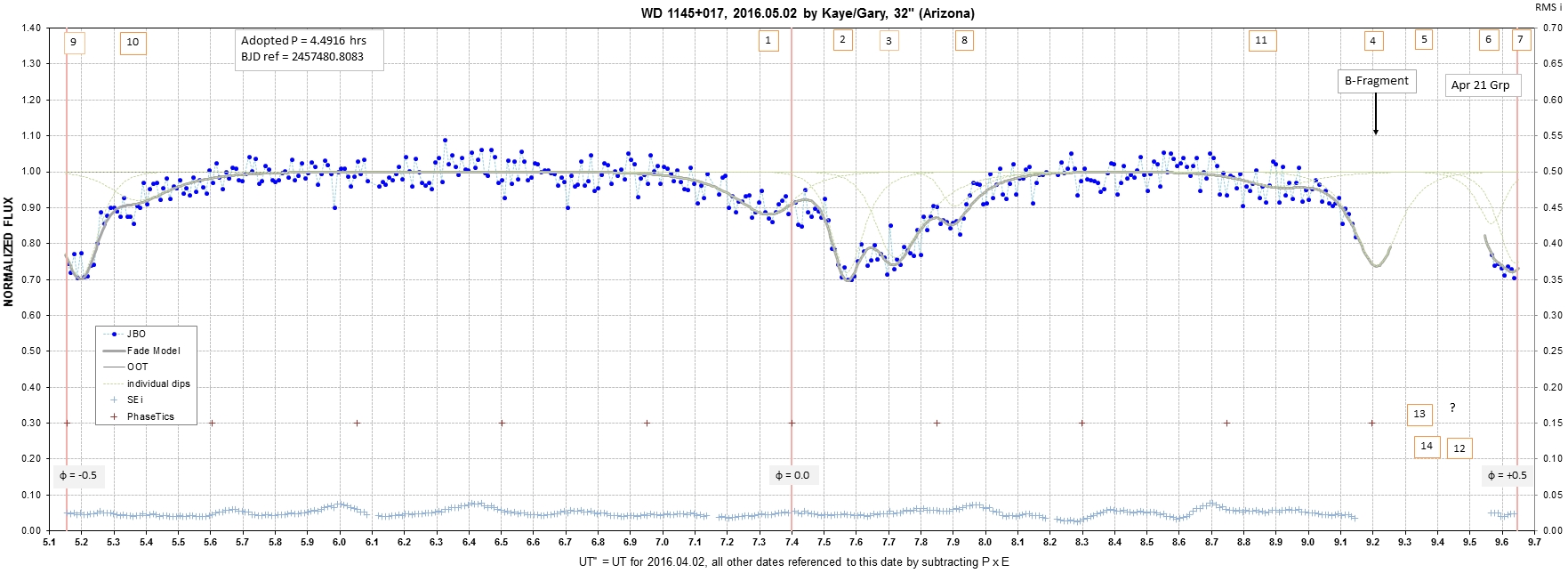

2016.05.02 Kaye/Gary JBO

This is our "best ever" JBO LC. The benchmark of 10-min SE was 8.2 mmag, with cadence of 39 seconds.








2016.05.12/02 Hambsch

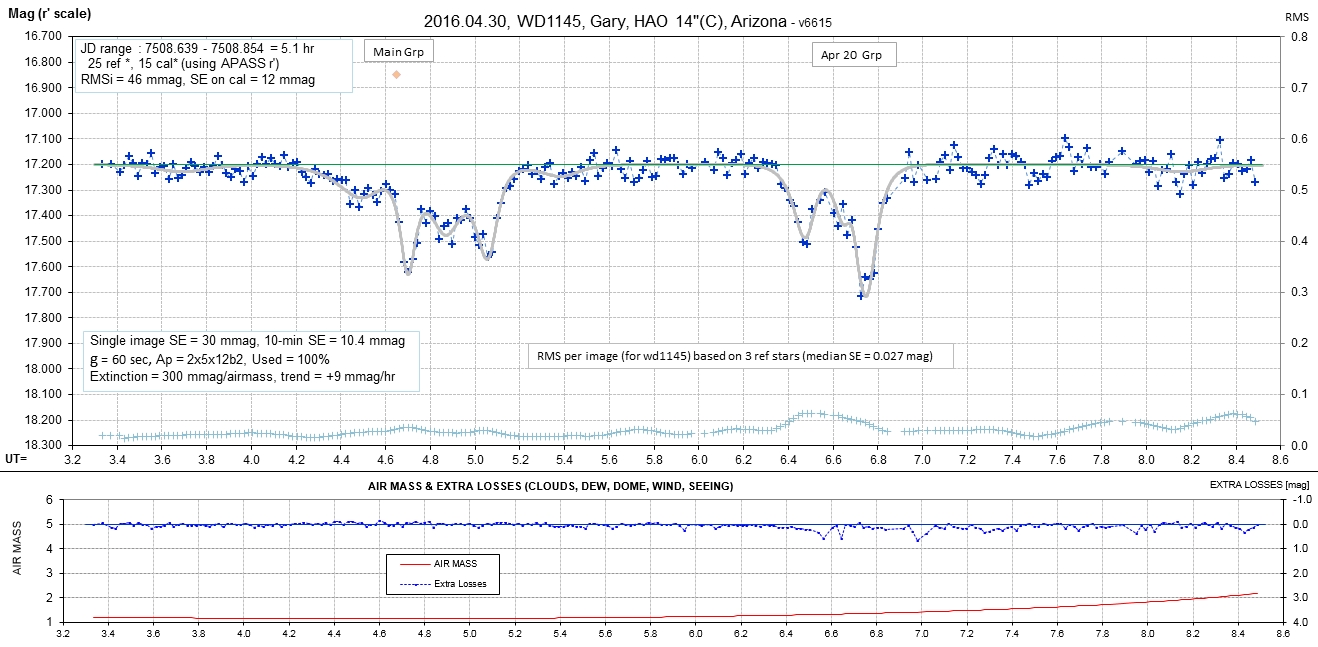

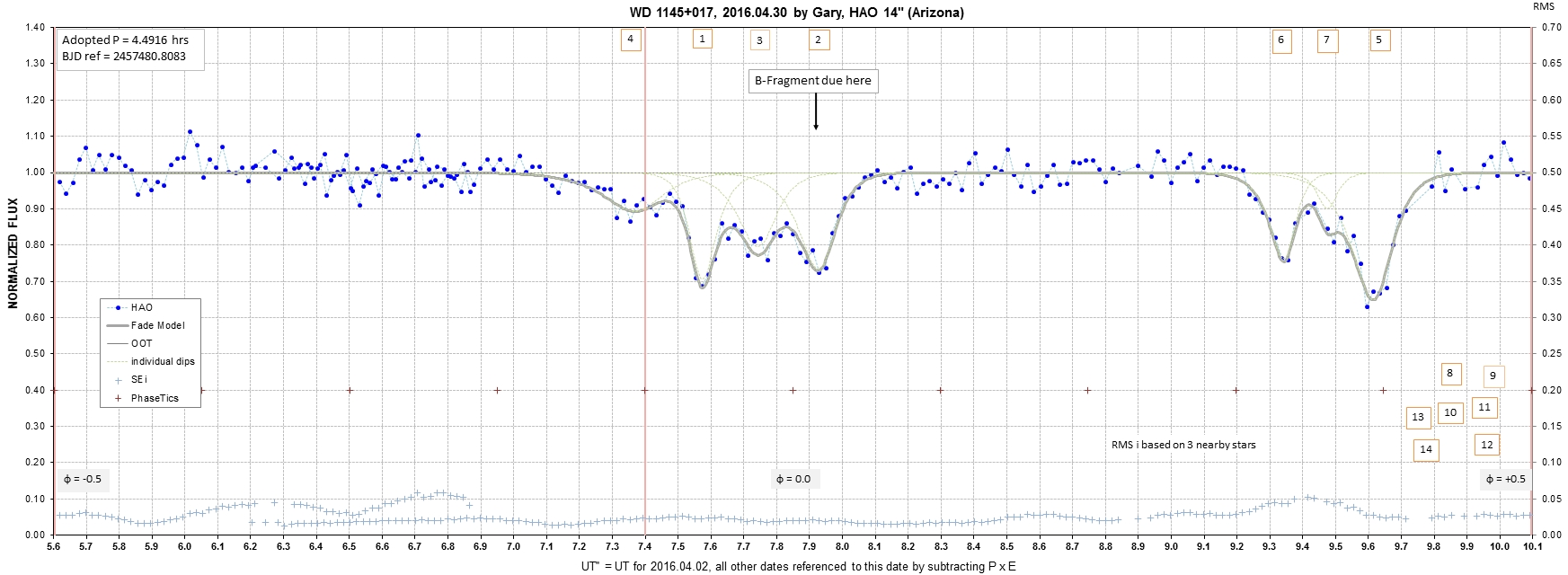

2016.04.30  Gary/HAO

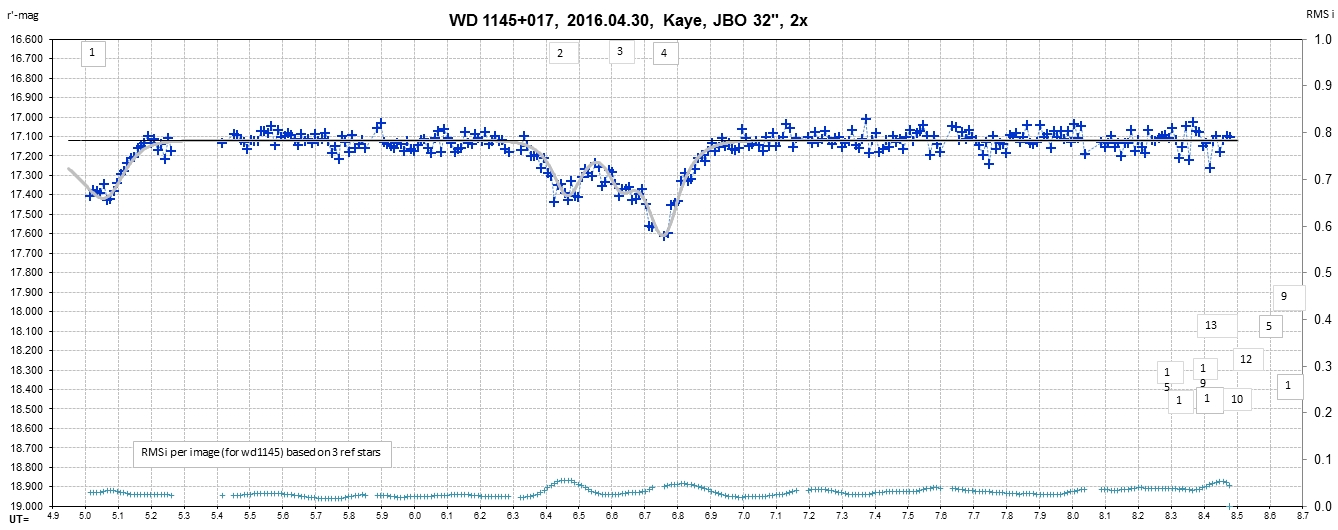

2016.04.30 Kaye/JBO

JBO observing setting changed: 1) sub-frame imaging (75%), 2) exposure time reduced to 25 sec, 3) plate-solving every 40th image, 4) no focusing after start of observing session. The goal is to improve both temporal resolution and duty cycle. The 10-minute SE did improve by the expected amount (13 mmag to 9 mmag). Because this observing session didn't include a complete orbit I won't create a K2sim plot or add the dip model to the waterfall plot.








2016.04.29/30 Hambsch

Data archived, not yet reduced.


2016.04.29 Gary/HAO

Data archived, not yet reduced.

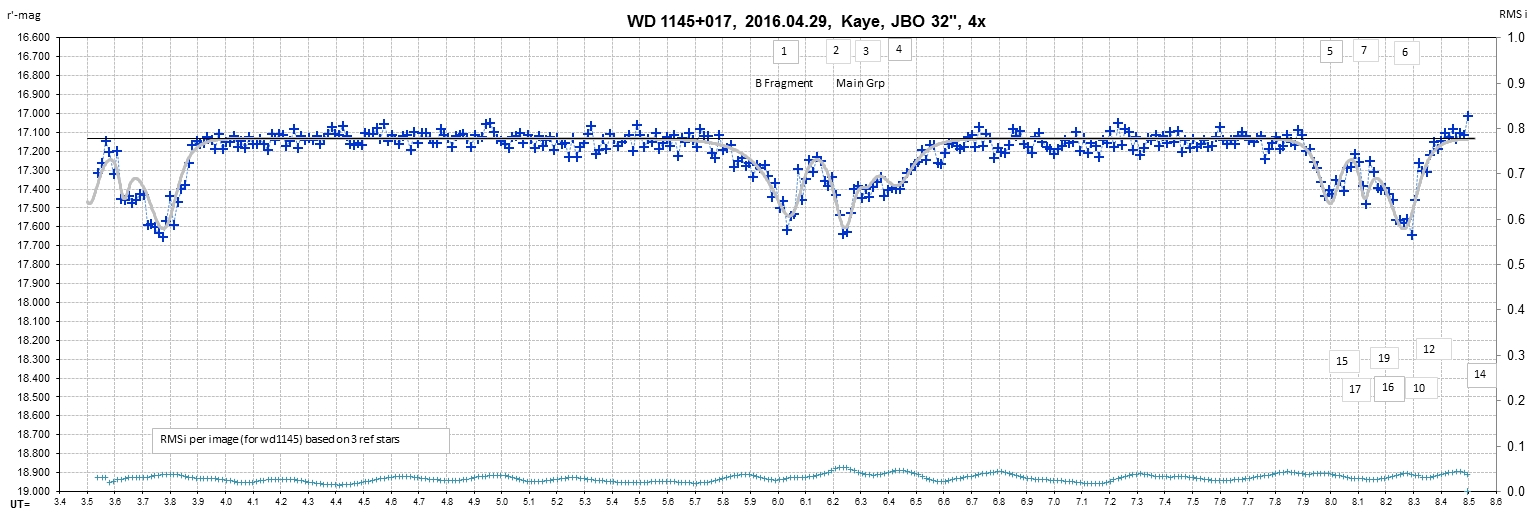

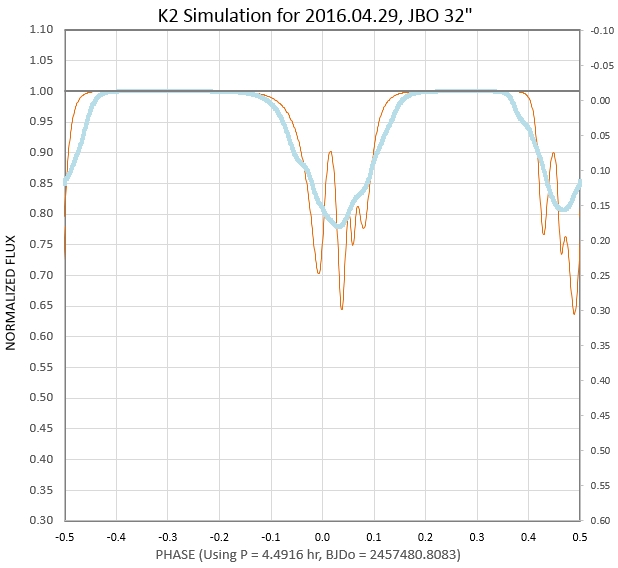

2016.04.29 Kaye/JBO

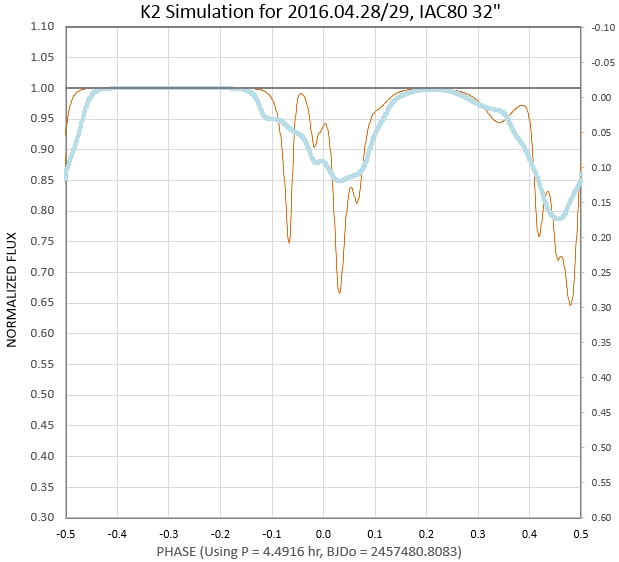

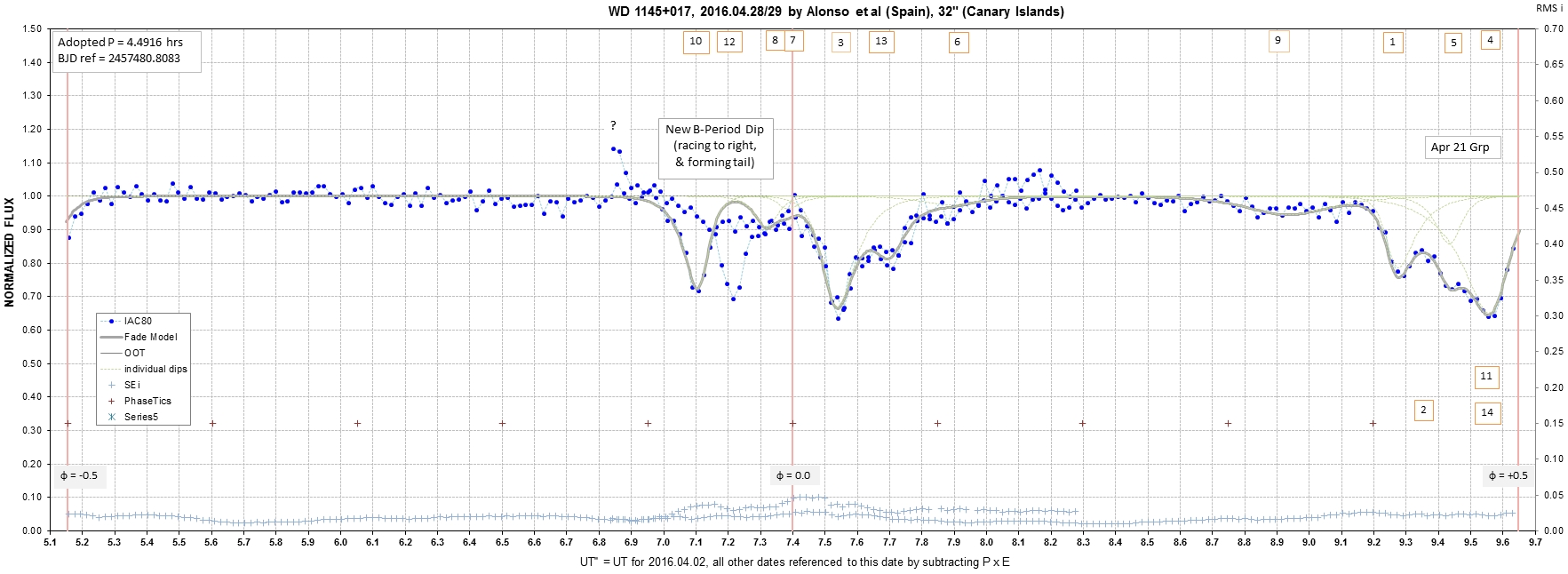

2016.04.28/29 IAC80



2016.04.28 Gary

Data archived, not yet reduced.


2016.04.28 Kaye/JBO

Clouds ruined several hours before useable data could be obtained, starting at 6.7 UT.



2016.04.28 Benni

Clouds rendered data too noisy to use.


2016.04.27/28 Hambsch









2016.04.27/28 IAC80

Clouds interfered with when data could be obstained, and they probably affected the noise level for part of the LC.







2016.04.27 Kaye/JBO

Data archived, not yet reduced.

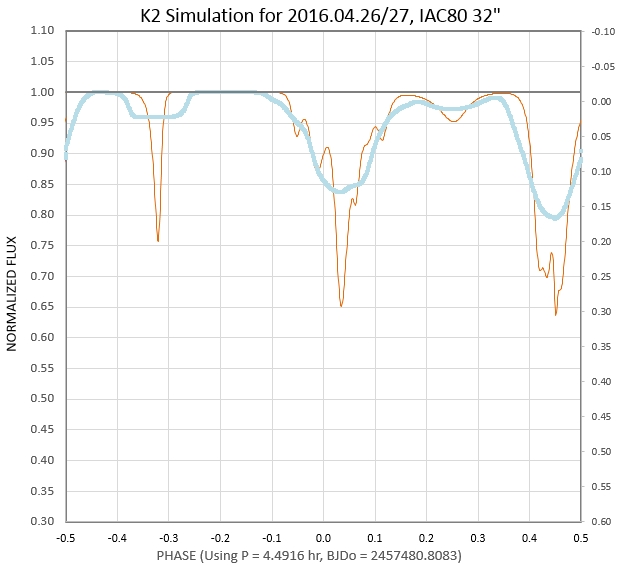

2016.04.26/27 IAC80

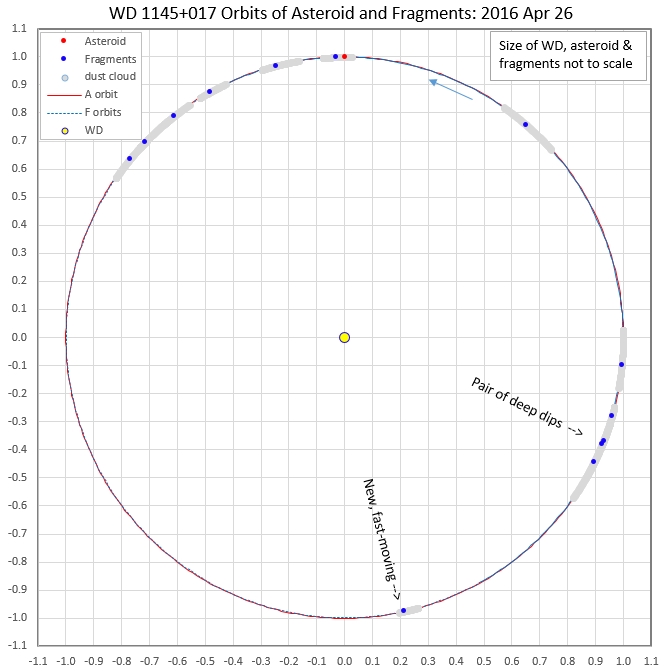

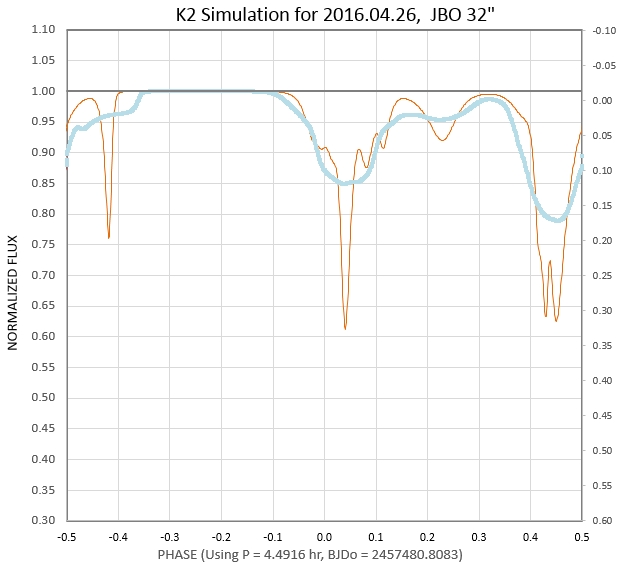

2016.04.26 Kaye JBO

Windy, but still good data. 30-sec exposures.

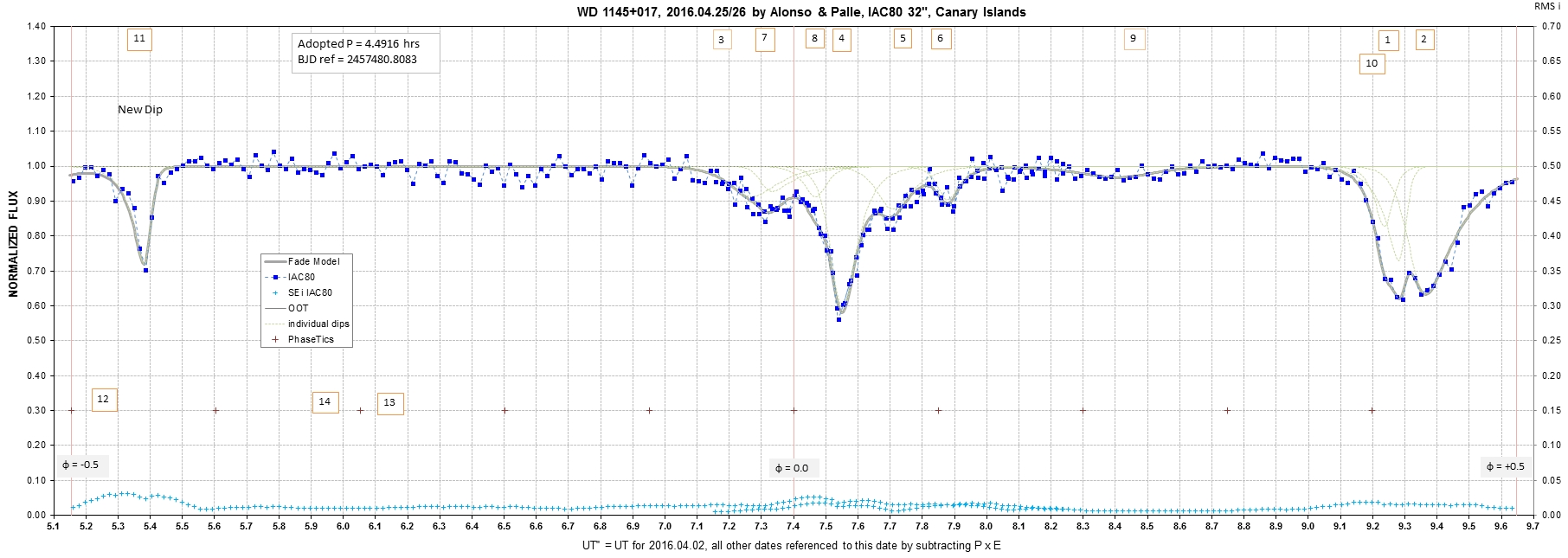

2016.04.25/26 IAC80 Alonso & Palle

Discovery of new dip (after the double dips). 60-sec exposures.

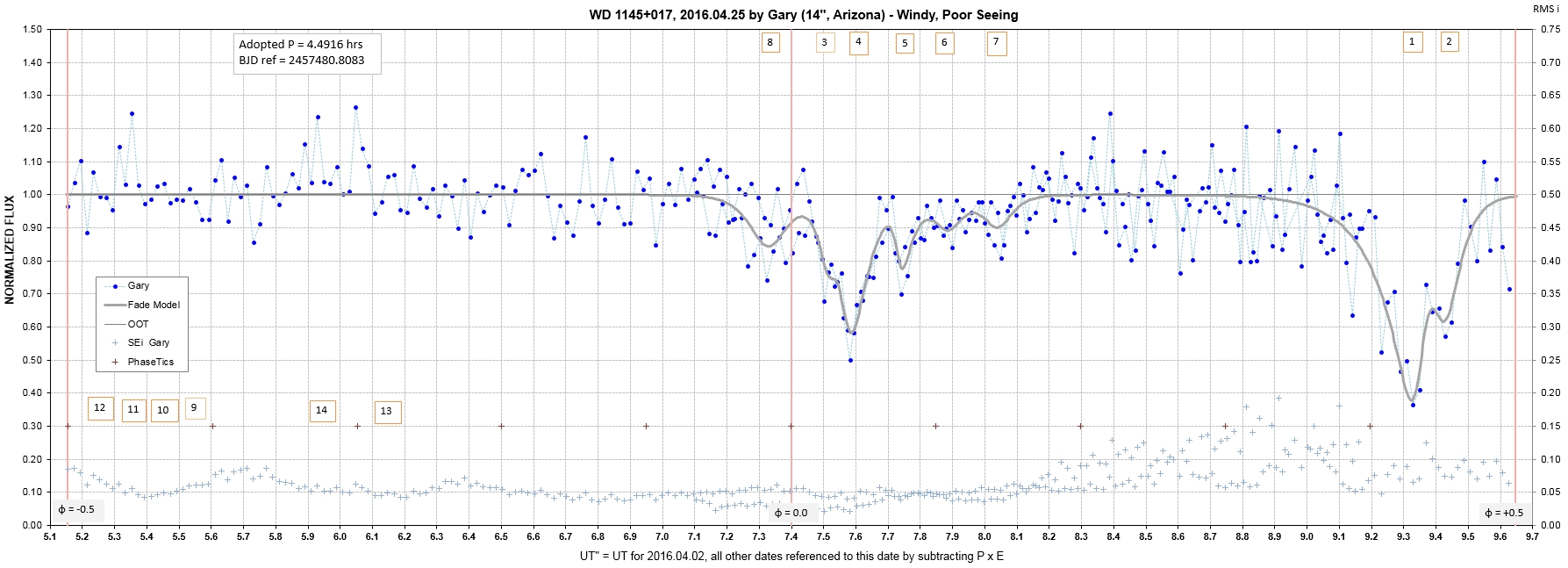

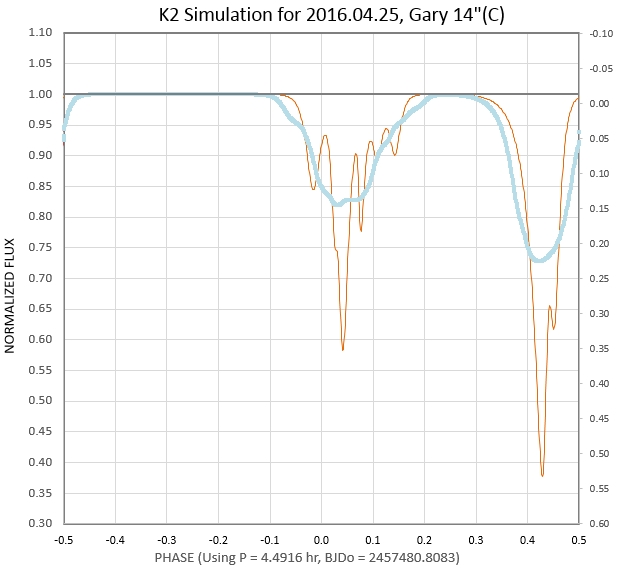

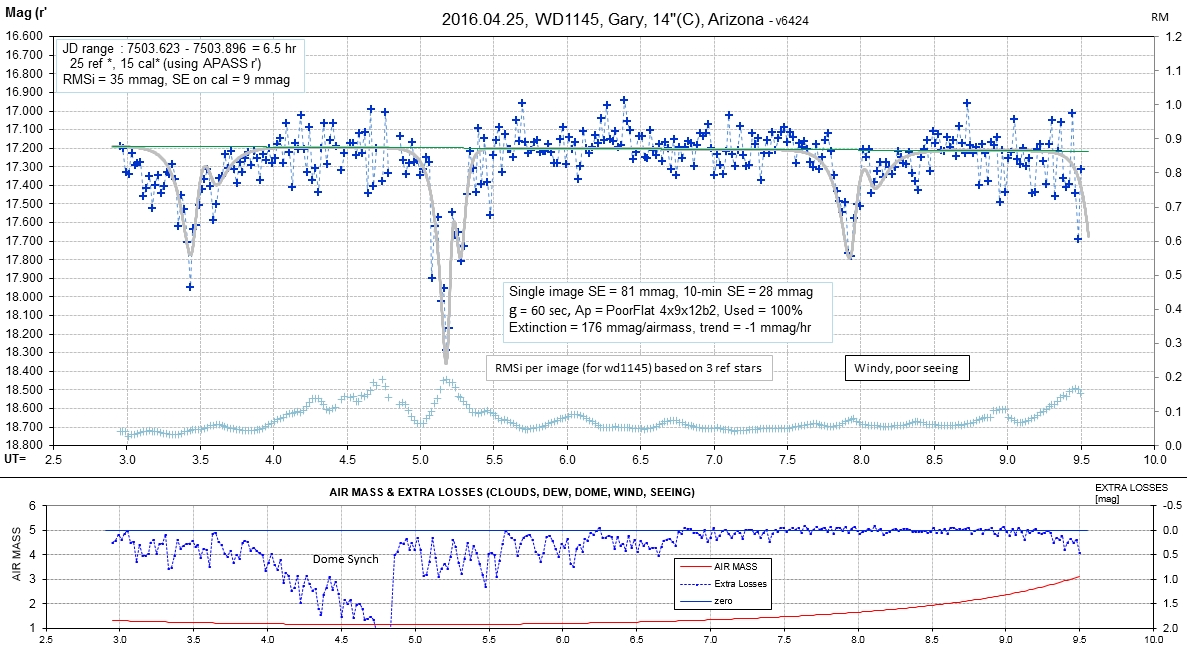

2016.04.25 Gary

Winds made seeing bad; apparently there were occasional cirrus.

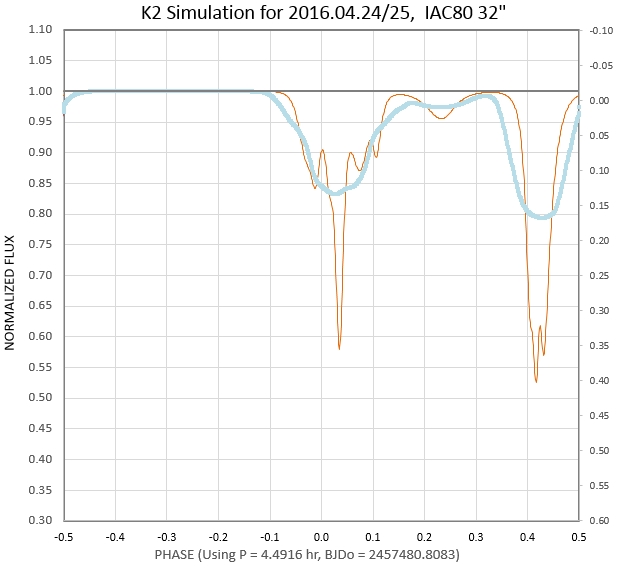

2016.04.24/25 IAC80

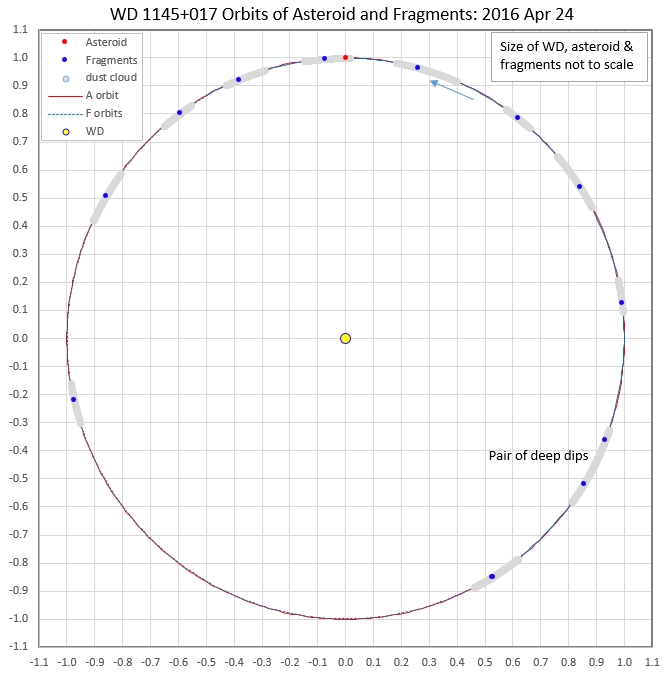

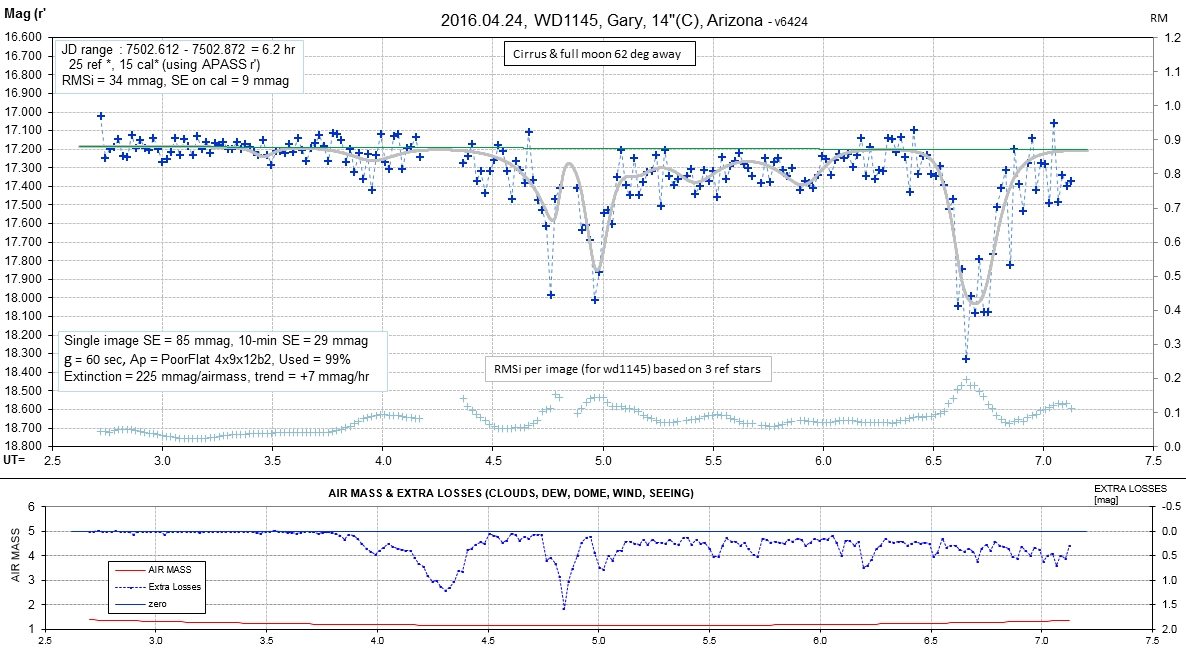

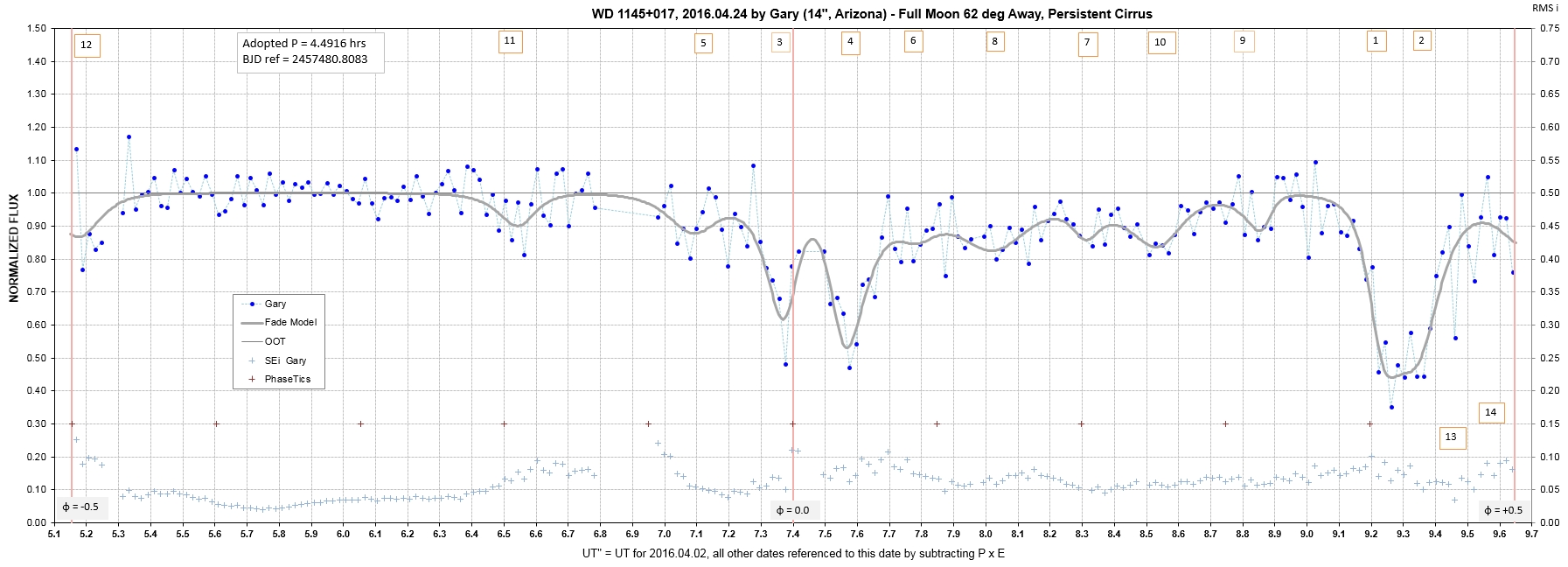

2016.04.24 Gary

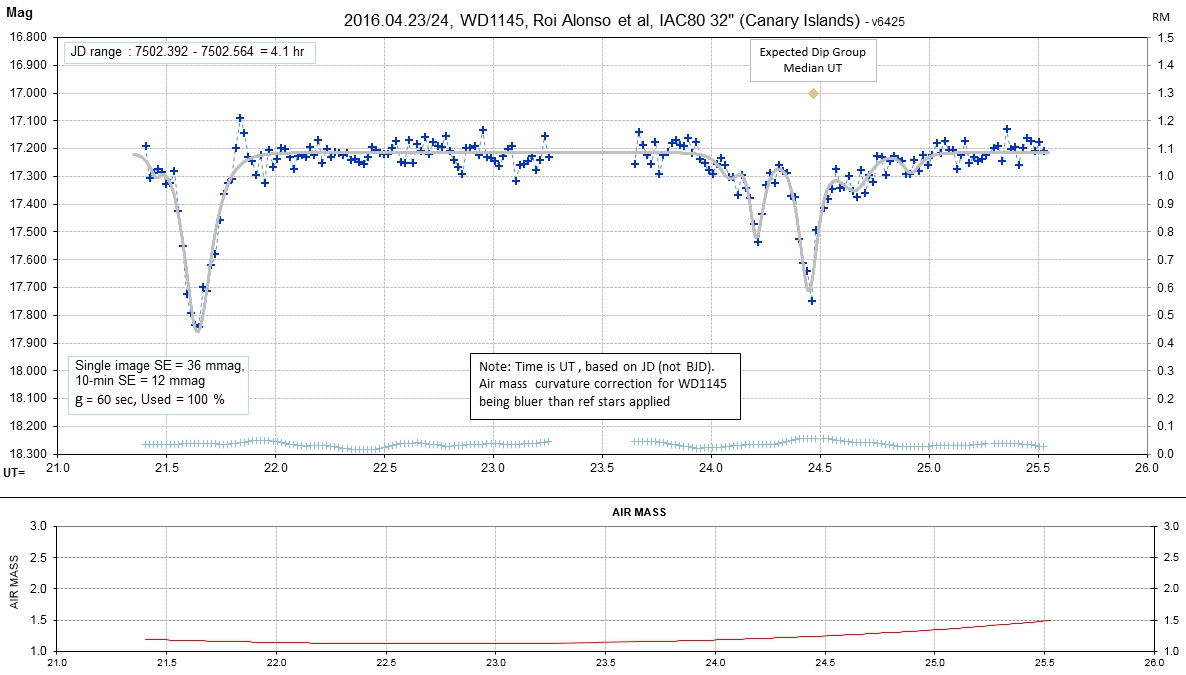

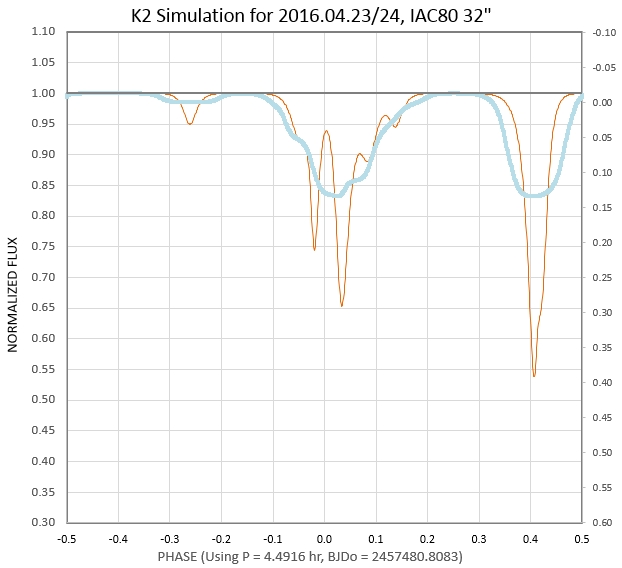

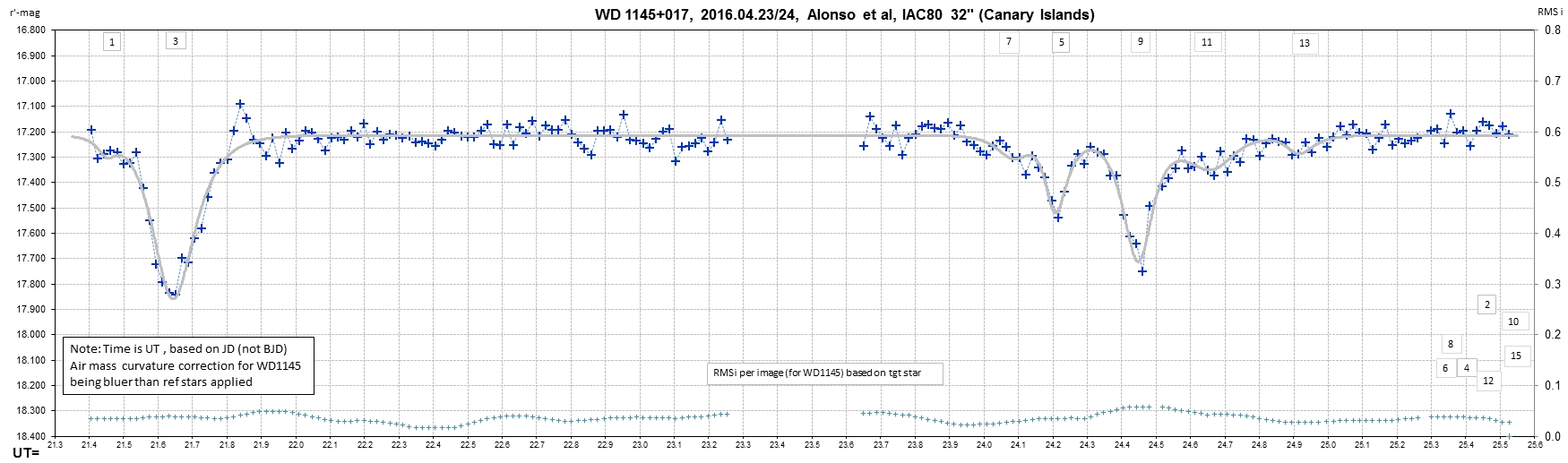

2016.04.23/24 IAC80  Alonso & Palle

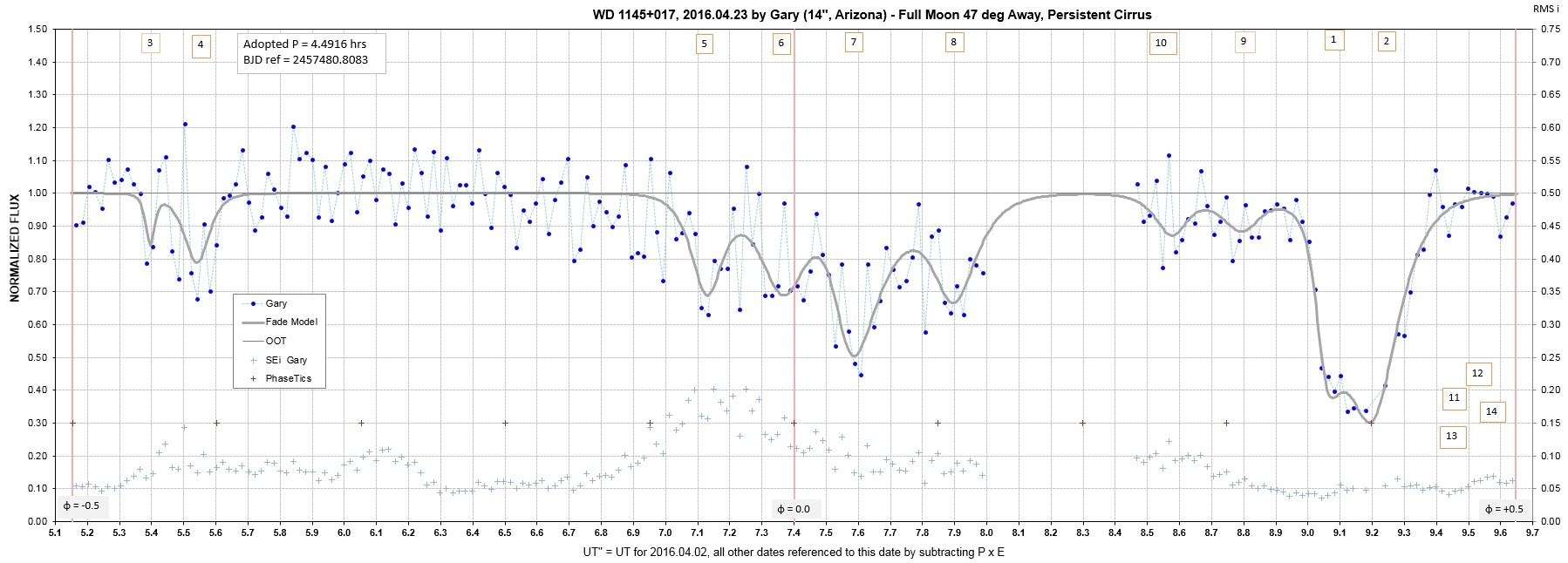

2016.04.23 Gary

Normally I wouldn't observe with overcast cirrus and a full moon (45 deg away), but I was desperate to know what changes were occurring at WD1145. RMS was ~ 3 times worse than usual (112 mmag vs 34 mmag per image), due to cirruse with an optical depth that varied from 0.0 to 1.5, typically ~ 0.5).

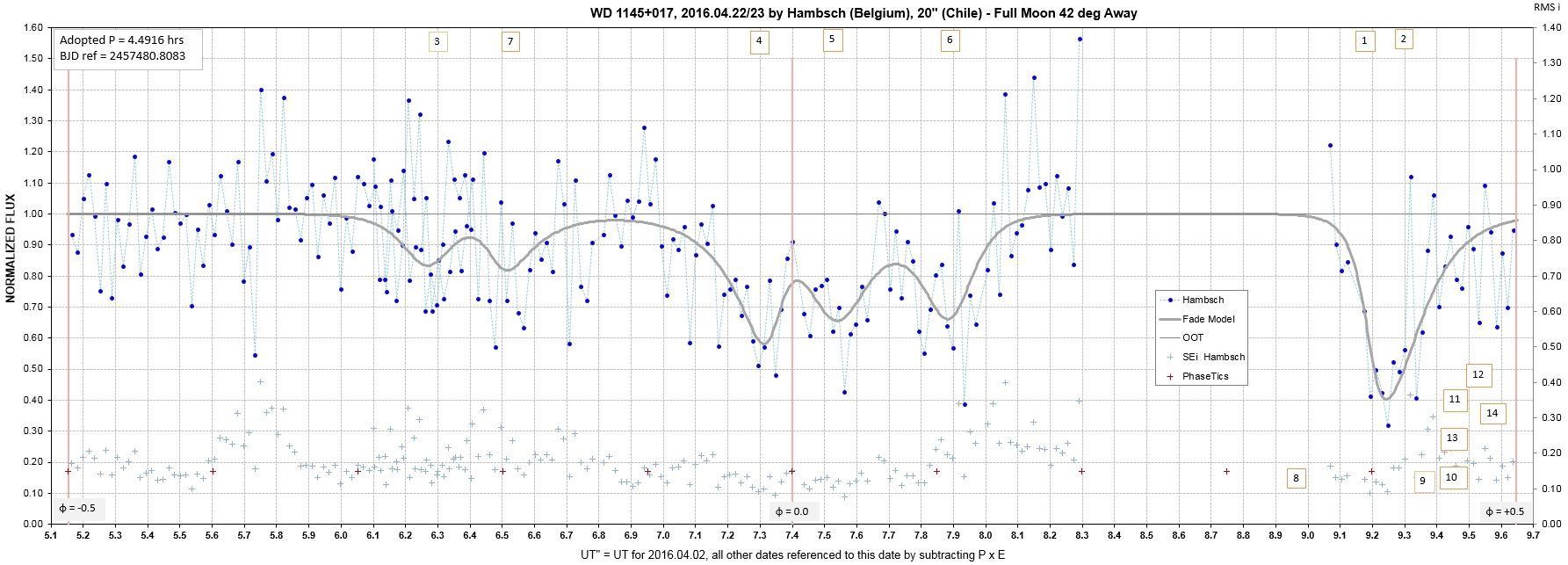

2016.04.22/23 Hambsch

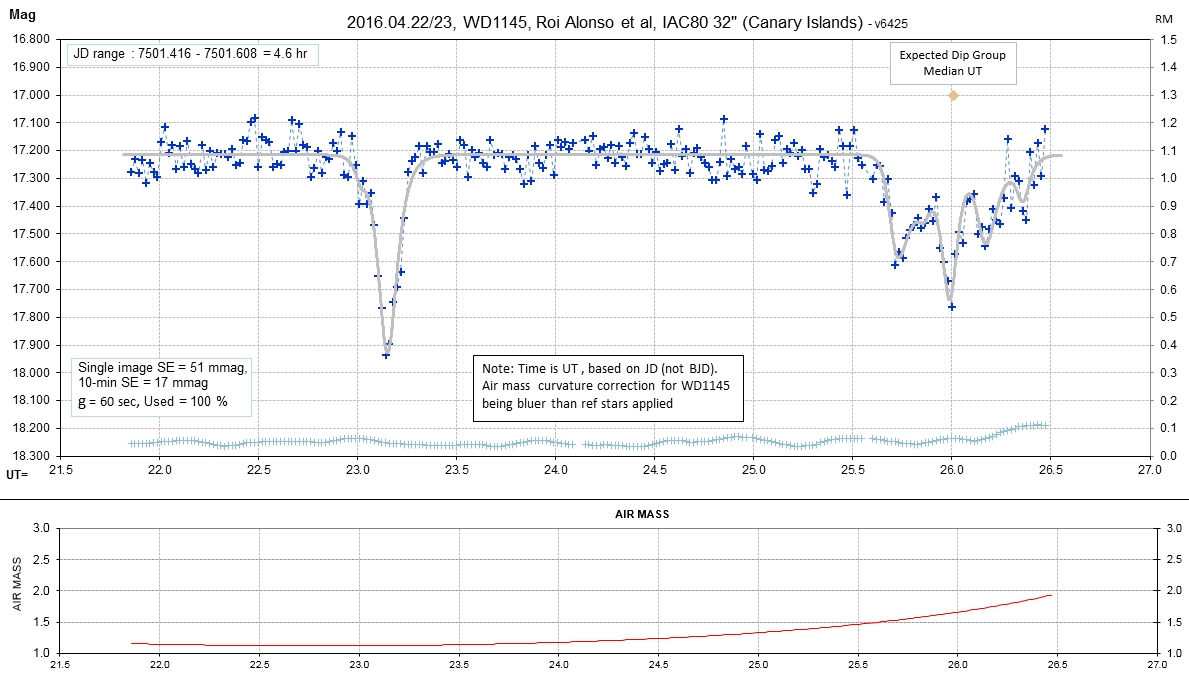

2016.04.22/23 Alonso & Palle

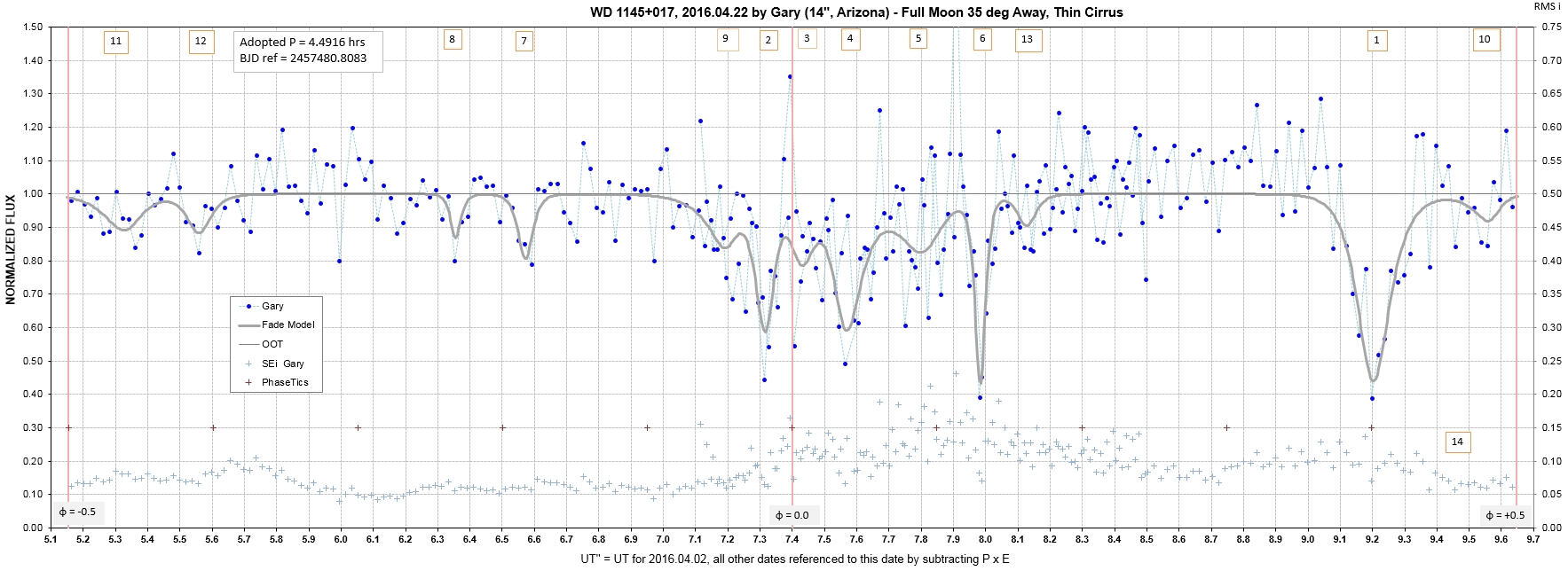

2016.04.22 Gary

Full moon 35 deg away, persistent cirrus, causing noise level (per image) to be higher than normal by factor 3 (114 mmag vs. 34 mmag per image).





2016.04.21 Gary

I was desperate to learn if activity level was increasing as the tight group of fragments pass the asteroid, so I observed in spite of the fact that a full moon was 23 deg away and my sky had thin cirrus. SNR was in fact quite bad, as individual images exhibited RMS that was ~ 5 times greater than normal (173 mmag vs 34 mmag). Nevertheless, the LC appears to be usable, and does in fact show the expected increased activity!

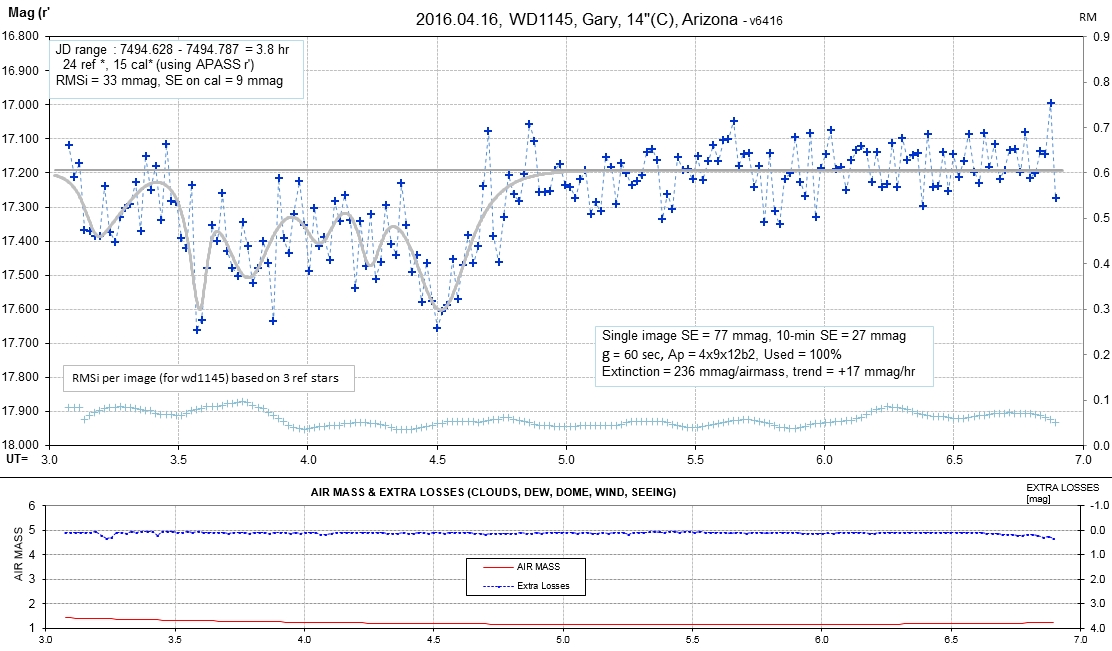

2016.04.16 Gary

Observing conditions were pretty bad: wind & gibbous moon 37 deg away; RMS > twice normal (77 mmag vs. 34 mmag).

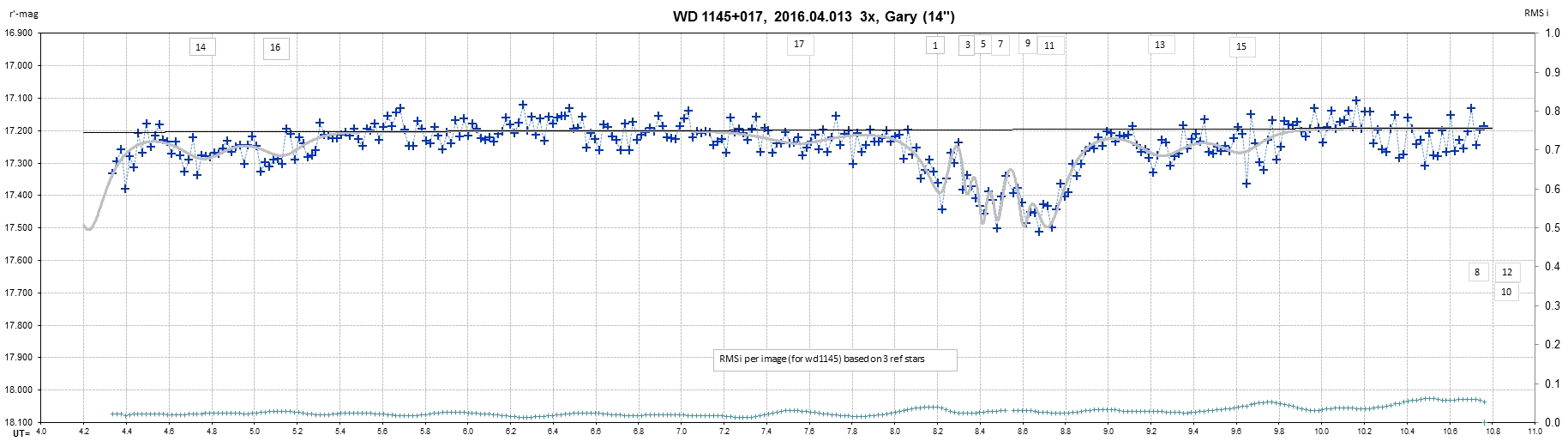

2016.04.13 Gary

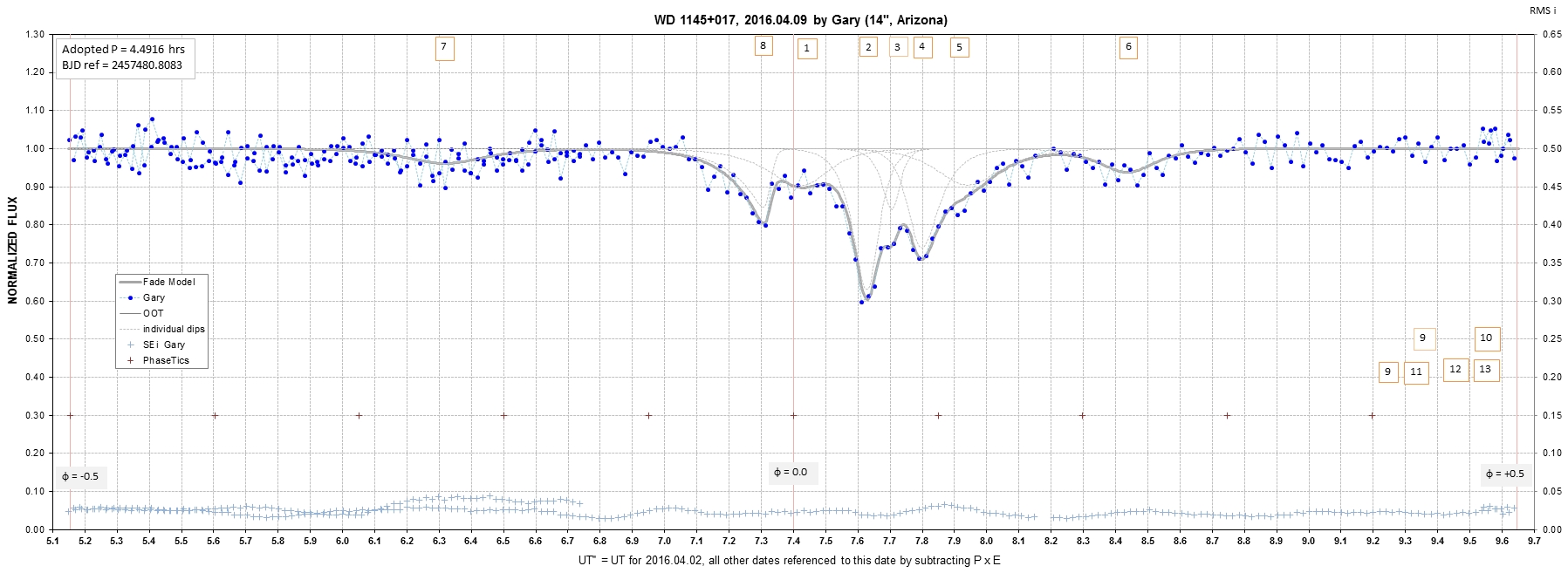

2016.04.09 Gary







2016.04.06 Hambsch (Belgium)



2016.04.06  Ogmen (Cyprus)

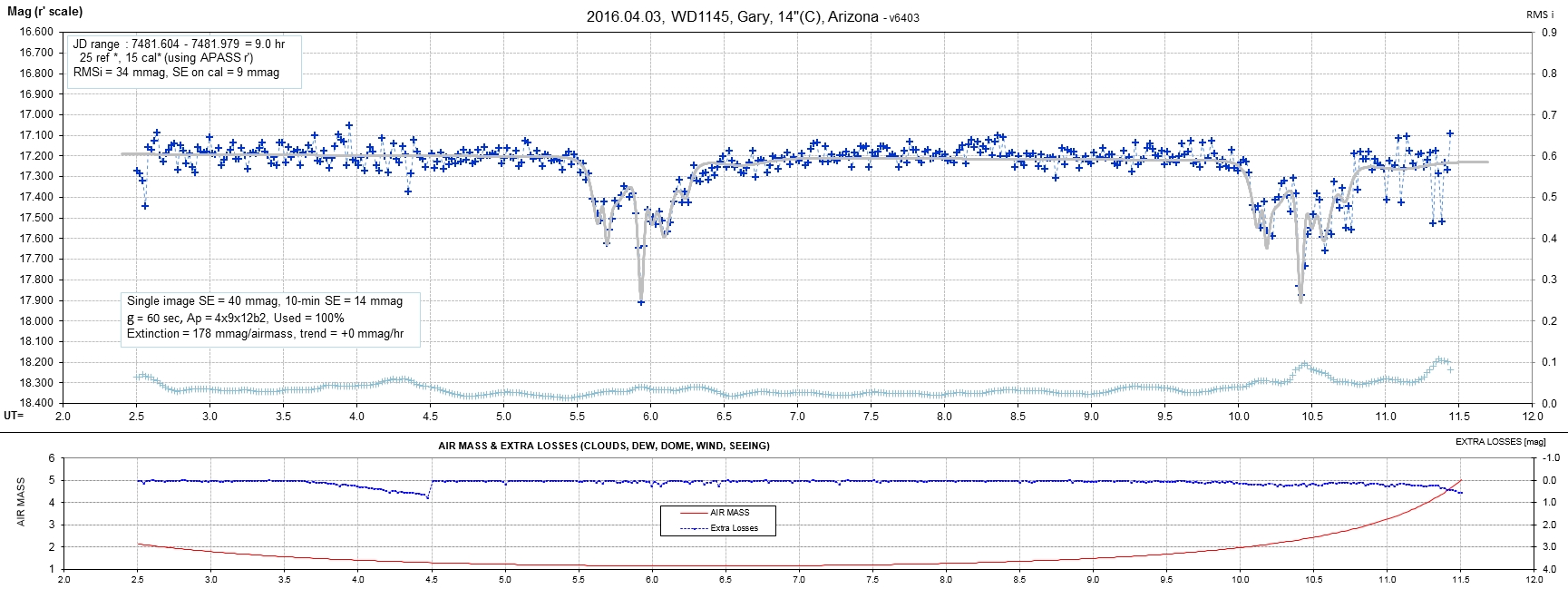

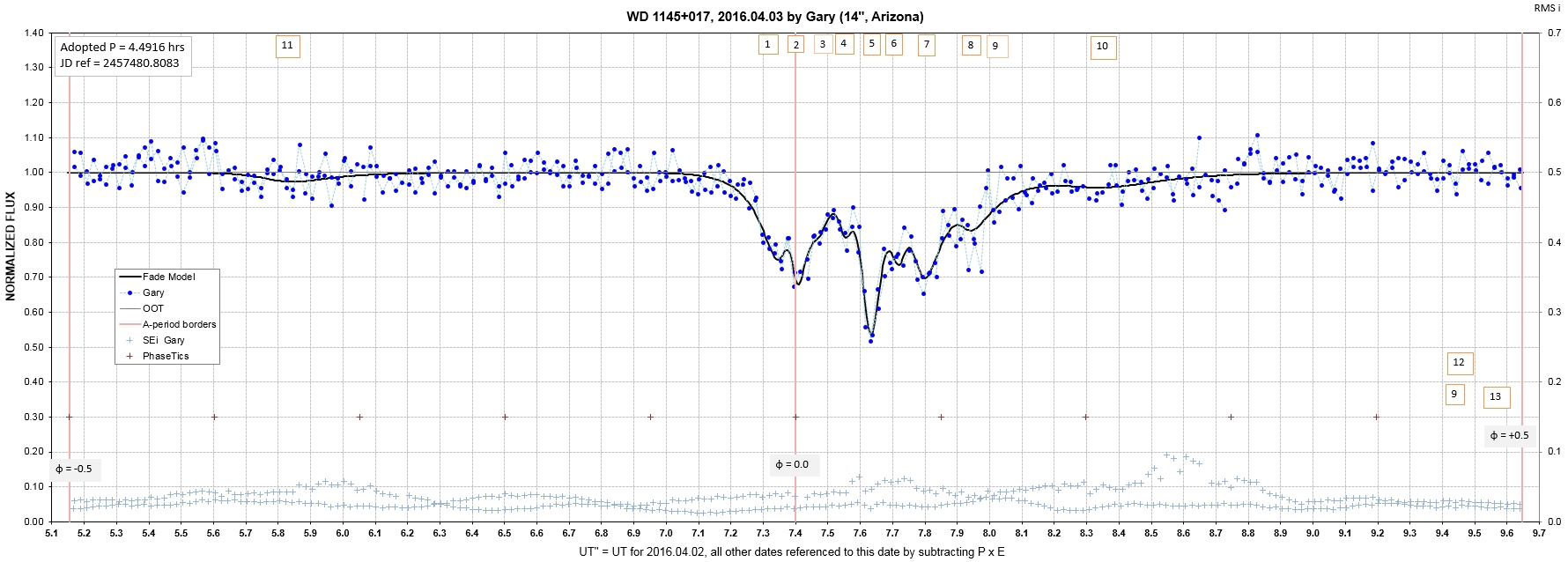

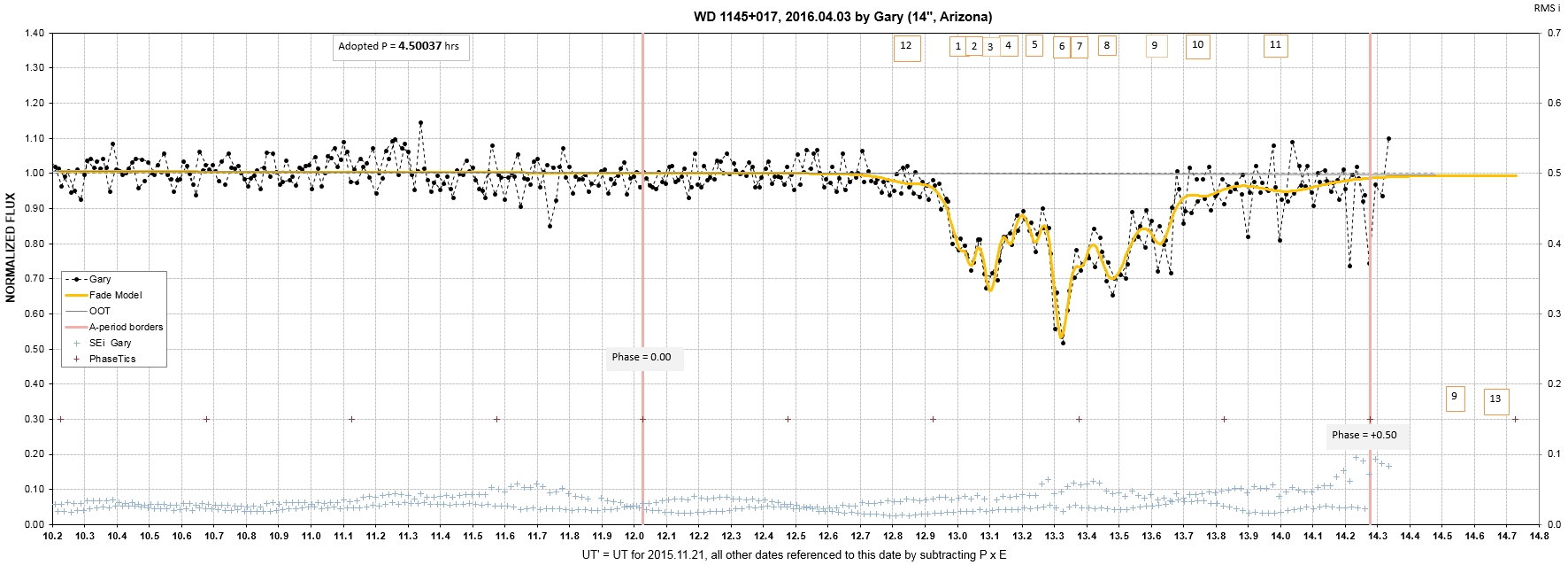

2016.04.03

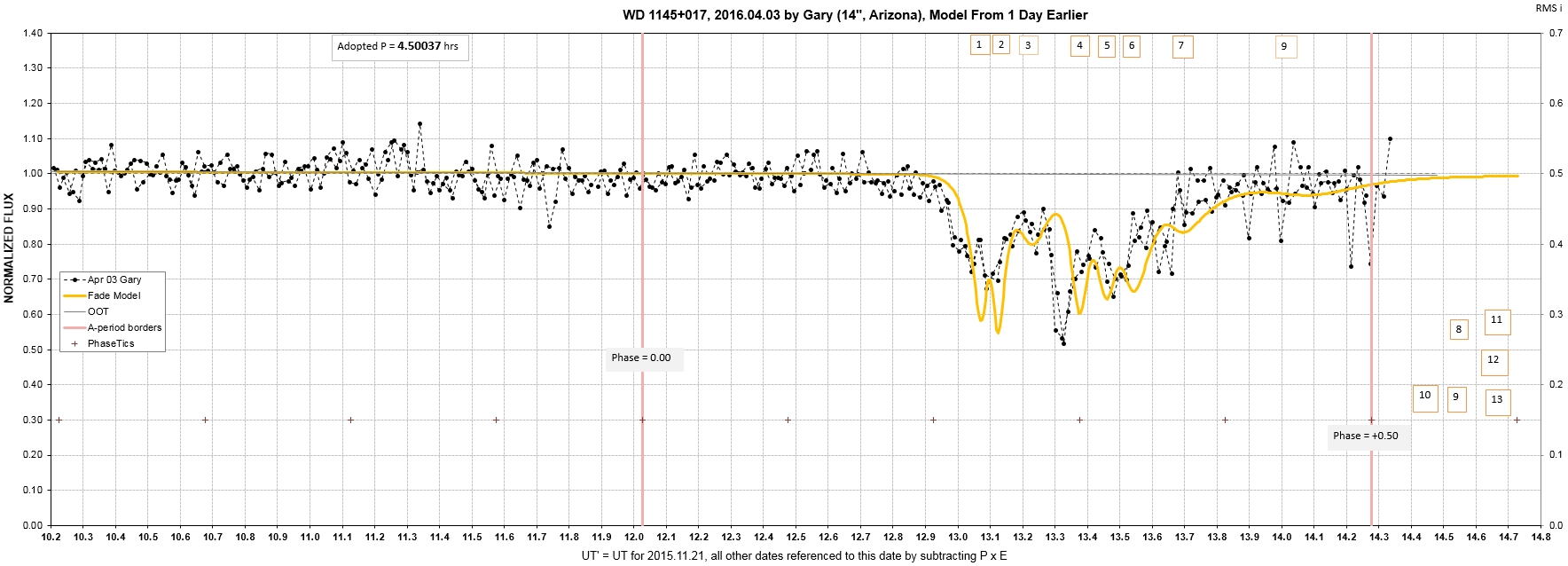

The model is from one day earlier, which allows changes in 1 day to be quite apparent.

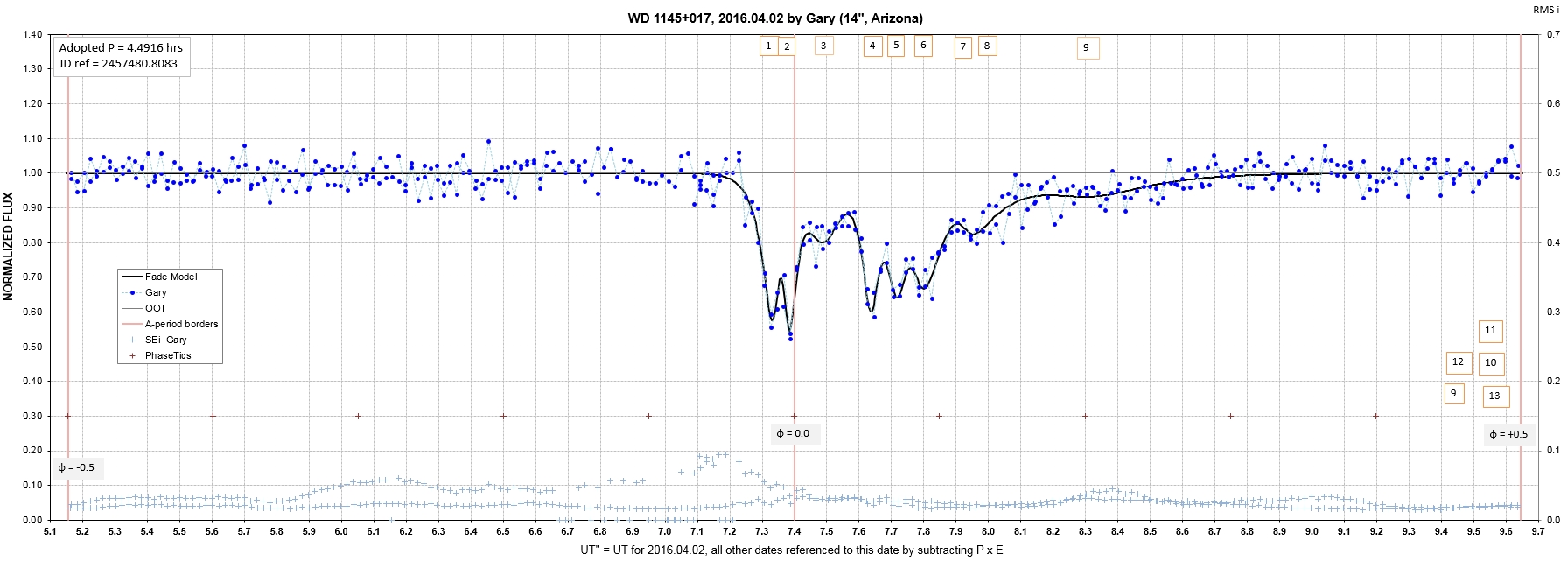

2016.04.01/02 (Ogmen) & 2016.04.02 (Gary), 18-hour LC

Starting on this date I'll switch to use of a "fragment ephemeris" - with zero phase defined by P = 4.4916 hrs and a JD reference of 2457480.8083 (2016 Apr 02, 07.4 UT). For a few dates I'll follow the phase-folded LC using the fragment ephemeris with the previously adopted A-period (asteroid) ephemeris.

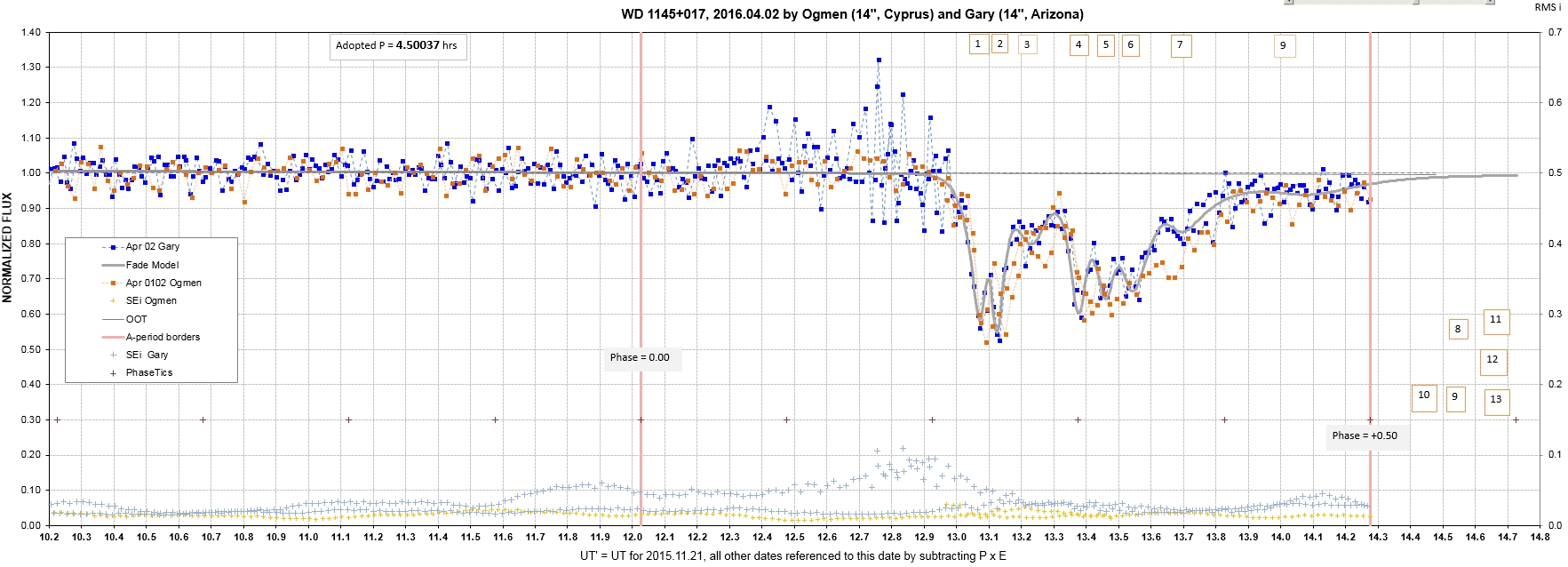

Combining the Ogmen and Gary LC data produces a LC from 2016.04.01 17.6 UT to 201604.02 11.5 UT (17.9 hours, with a data gap of 3.8 hrs; nothing was happening during this gap). Before showing the combined LC, let's compare the Ogmen model fit (orbits #1 & #2) with later data (orbits #3 & #4).


Gary data with Ogmen model fit, showing change during a 9-hour interval. The Ogmen model fit is for data for orbits #1 & #2; the Gary data is for orbits #3 and #4.

Another way to show the difference is to plot both data sets on the same phase-folded LC.



But a better way to compare is to show the entire LC of both data sets (including only the parts near the dip structure):



Or, let's just show the UT regions containing the dip structure:



This last figure shows a systematic change of dip depth during the last 1/2 of the dip structure. There is also a suggestion of the early and sharp dips moving to earlier times.

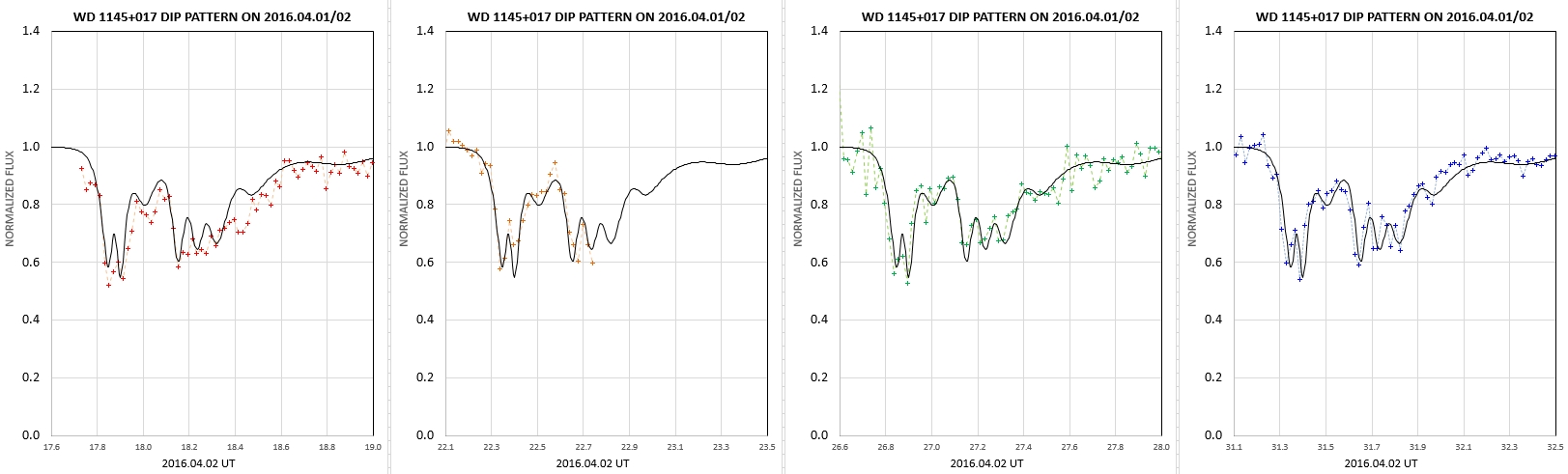

To my knowledge this is the first LC sequence of dip patterns for four consecutive orbits.


2016.04.02

The data in this section is compared with data by Ogmen, taken during the previous two orbits. The combined and comparison analysis is shown in the preceding section.




Folding my data (orbit #3 &4) and model fitting.

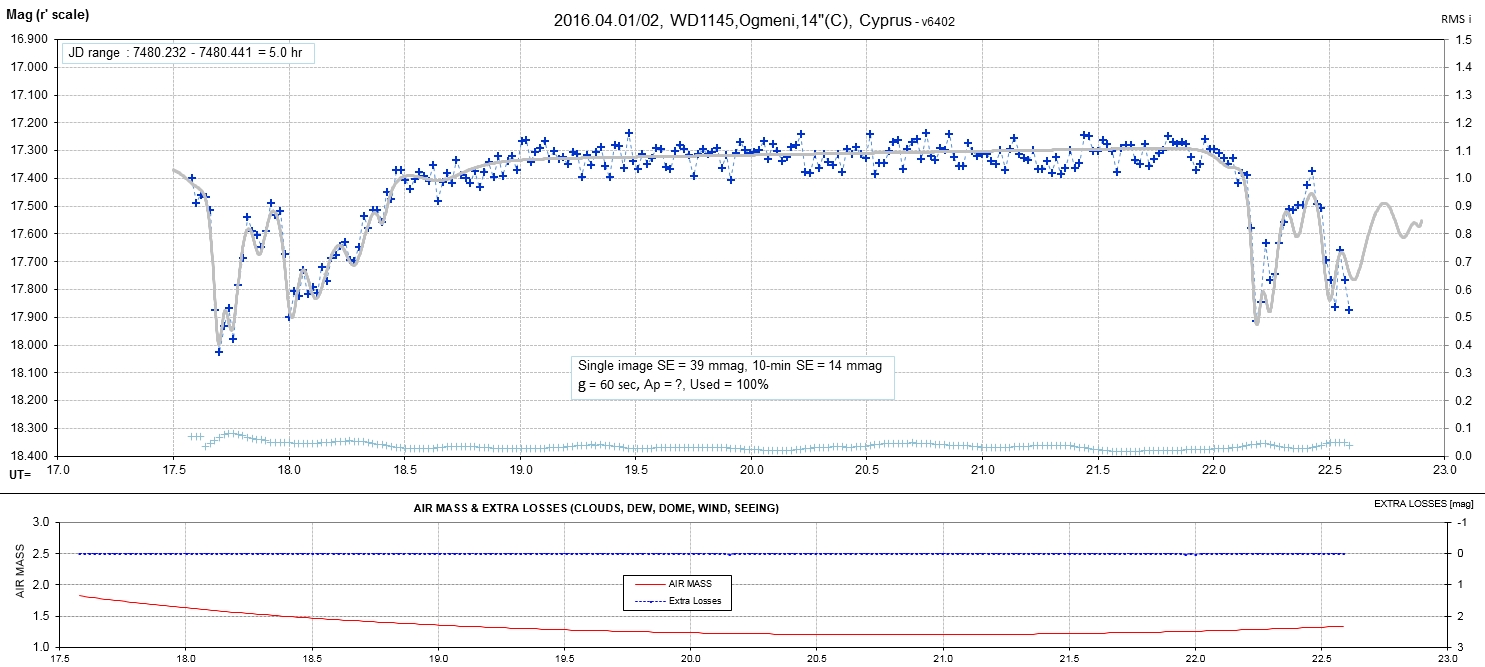

2016.04.01/02  Yenal Ogmen

Starting with this date I will include observations from other observers who collaborate with me in producing combine, long light curves for the purpose of assessing changes of fade shape and depth on timescales of an orbit. The following is LC data by Yenal Ogmen (Cyprus), showing a fade group for two orbits, which I'll refer to as orbit #1 and orbit #2. These data are combined with my observations of orbit #3 and #4 (above section).


Combining all data (orbit #1 & #2) with one model fit.

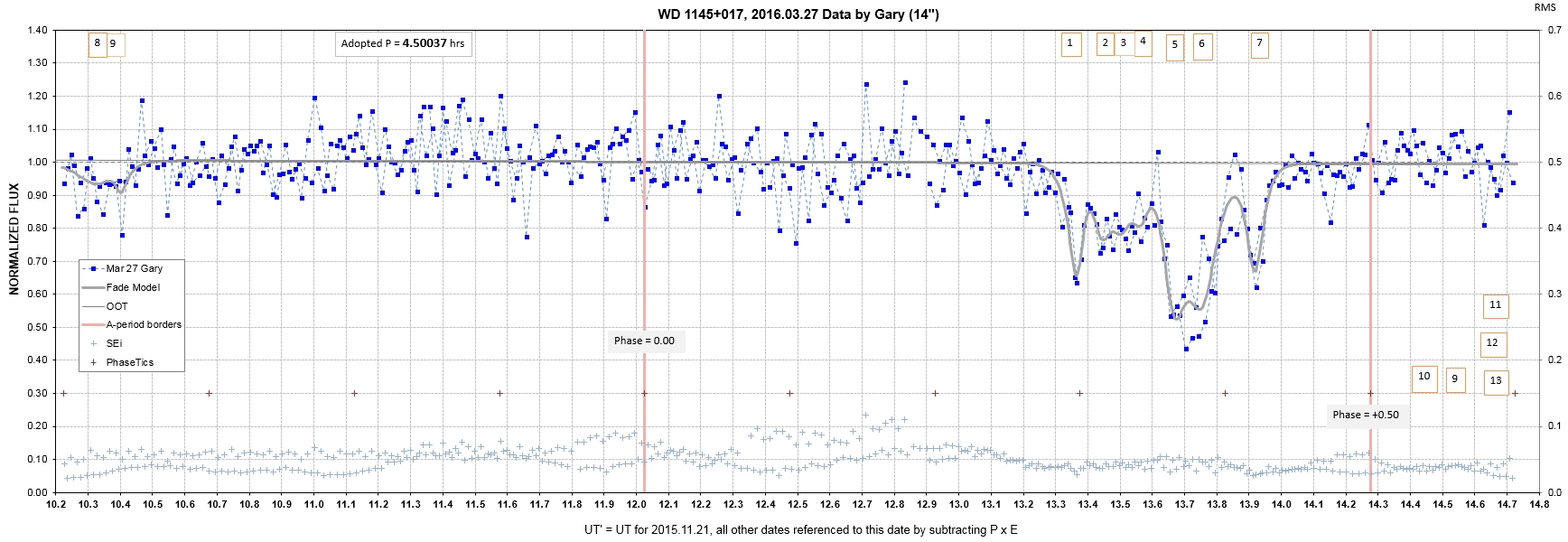

2016.03.27

On this date we attempted a 4-observer LC, but only 2 observers were able to produce a LC segment. The goal was to detect dip depth changes during a 3-orbit combined LC. Roberto Zambelli (Italy, 16") obtained a LC showing the first fade and I obtained a longer LC showing the next two fades. Below is one fade model (average fit to my two fade patterns) shifted to 3 UT times using 4.5 hour shift intervals. Measurement precision is insufficient for assessing the presence of any actual fade structure changes. This project needs larger aperture telescopes with greater SNR.

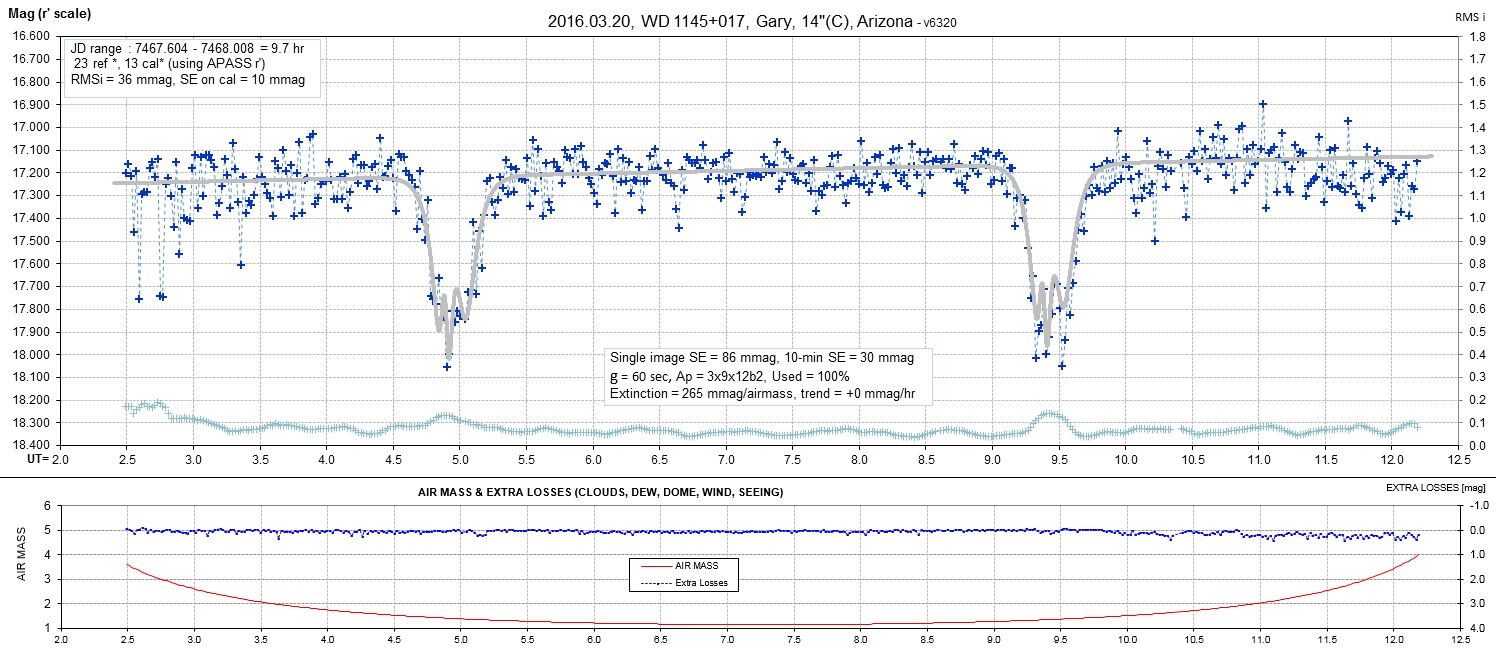

2016.03.20

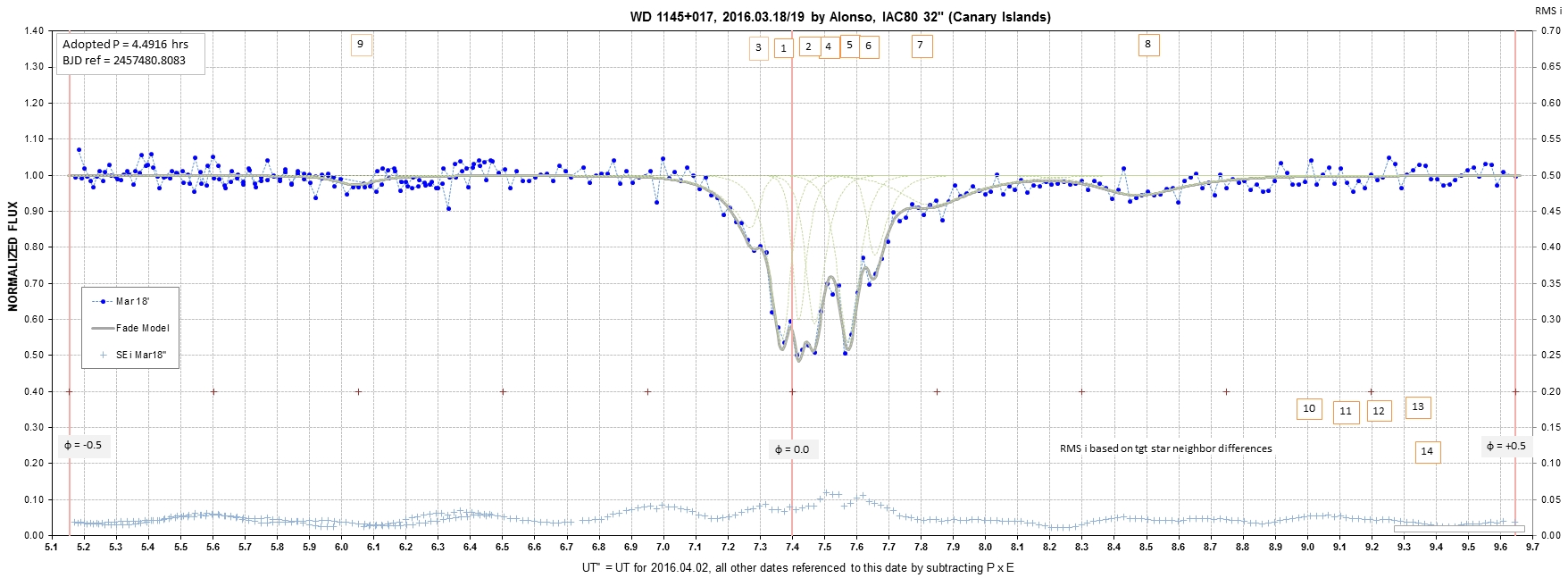

2016.03.18/19 Alonso IAC80

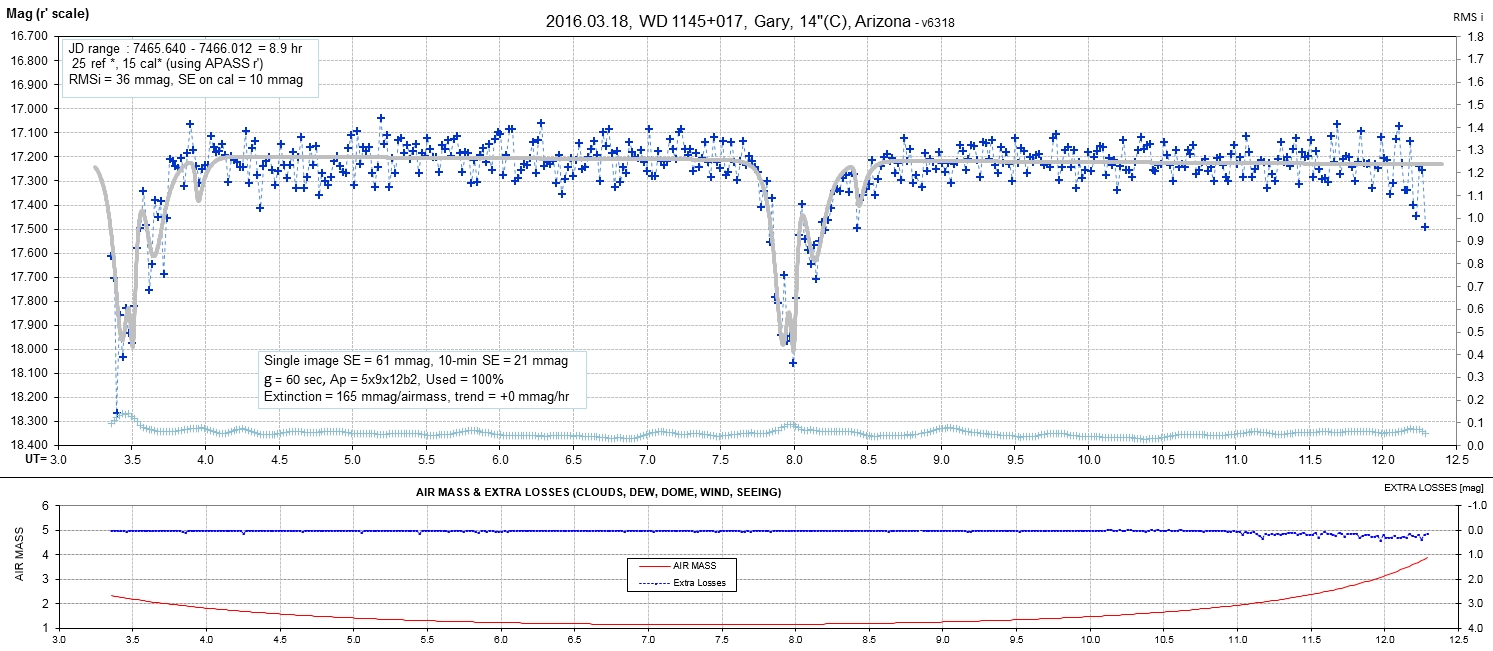

2016.03.18 Gary HAO

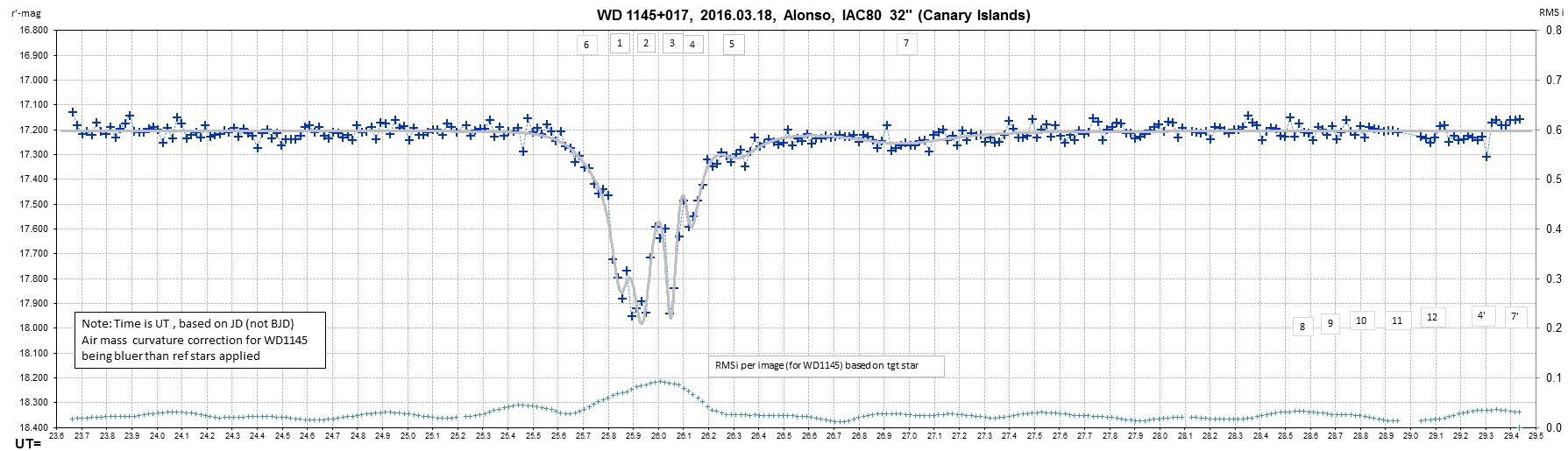

2016.03.18/19 Alonso IAC80




2016.03.15 Gary HAO

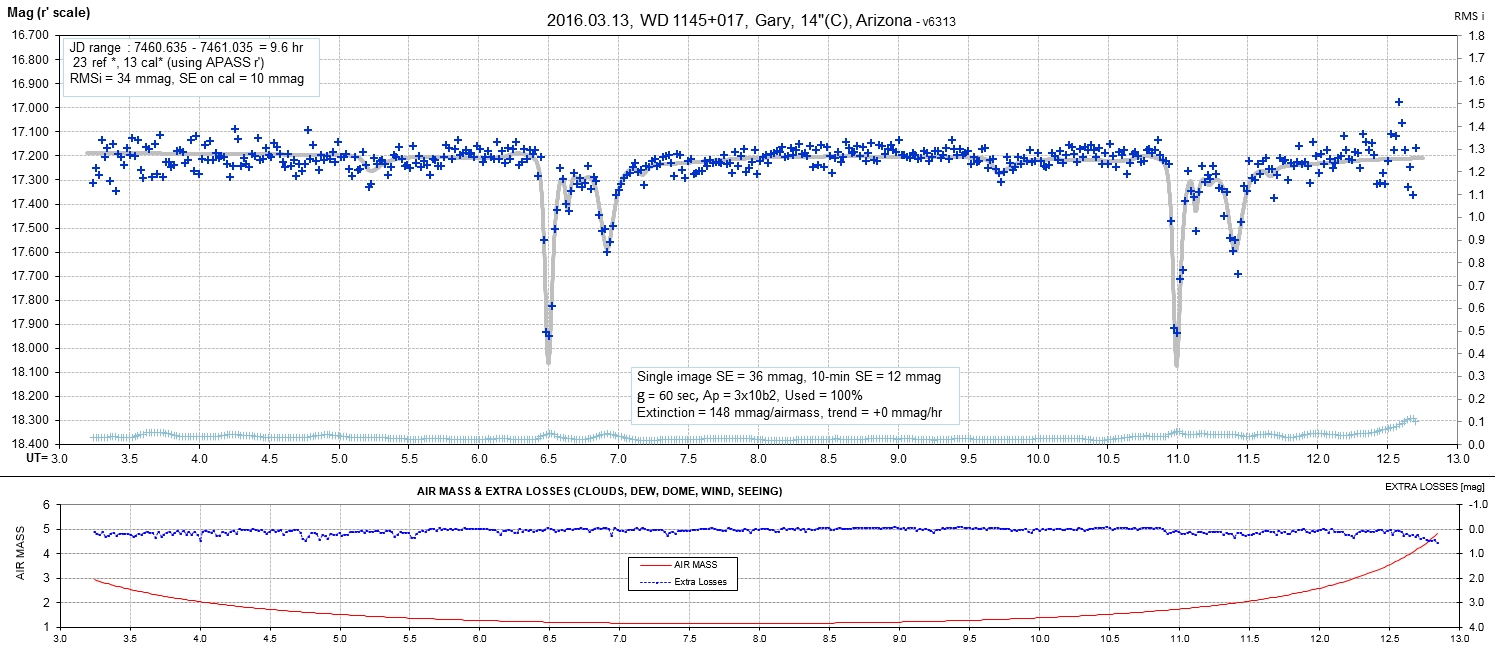

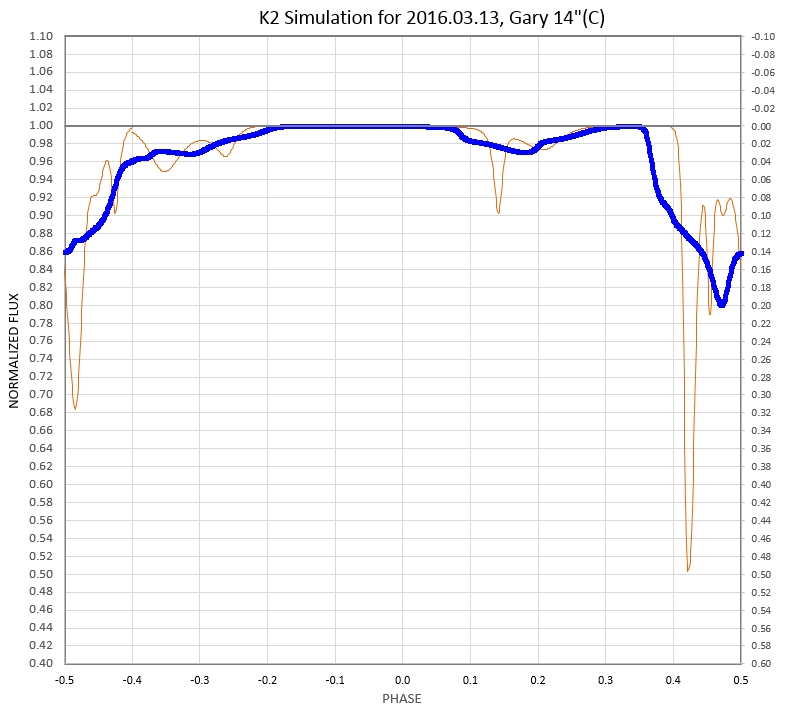

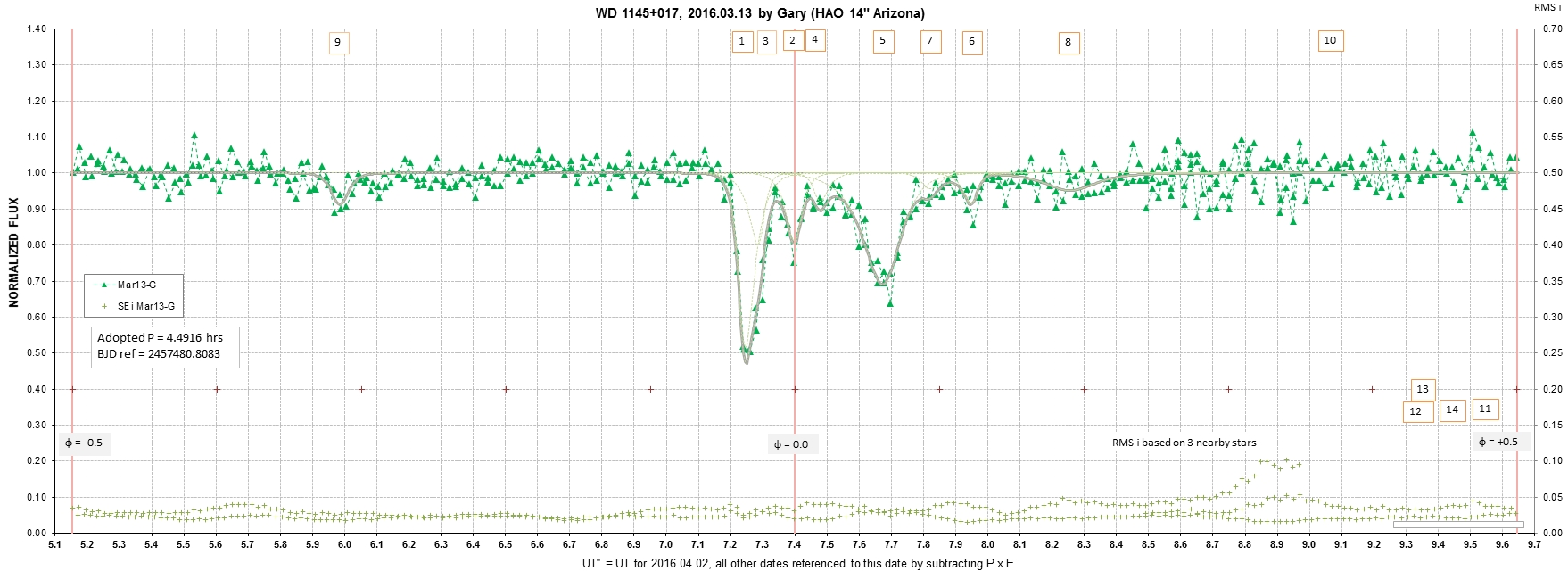

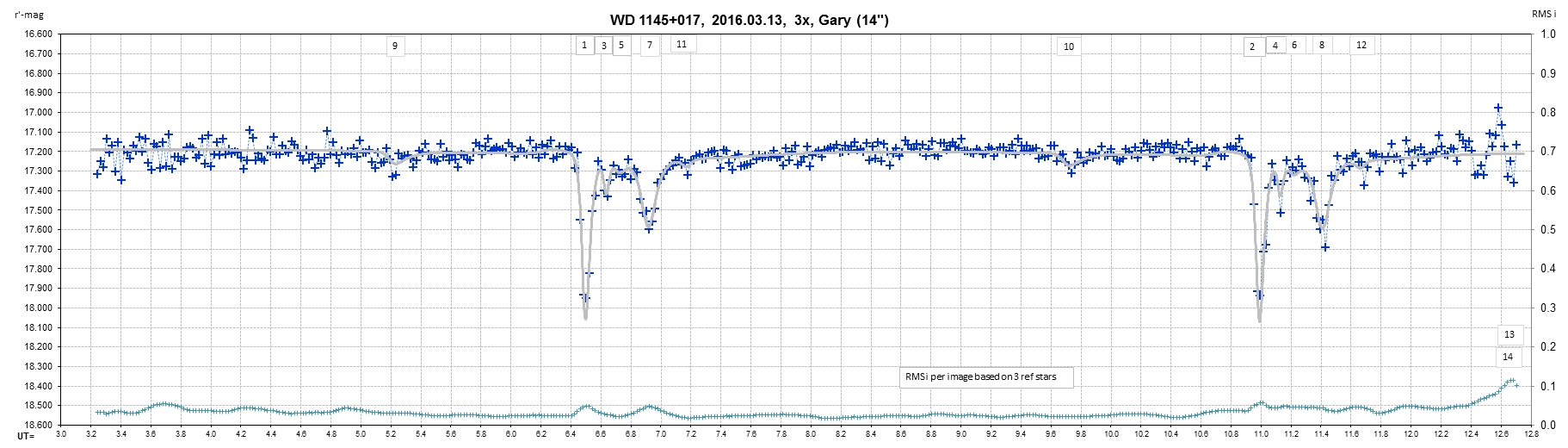

2016.03.13




Uses A-fragment ephemeris.


Uses A-asteroid fragment.

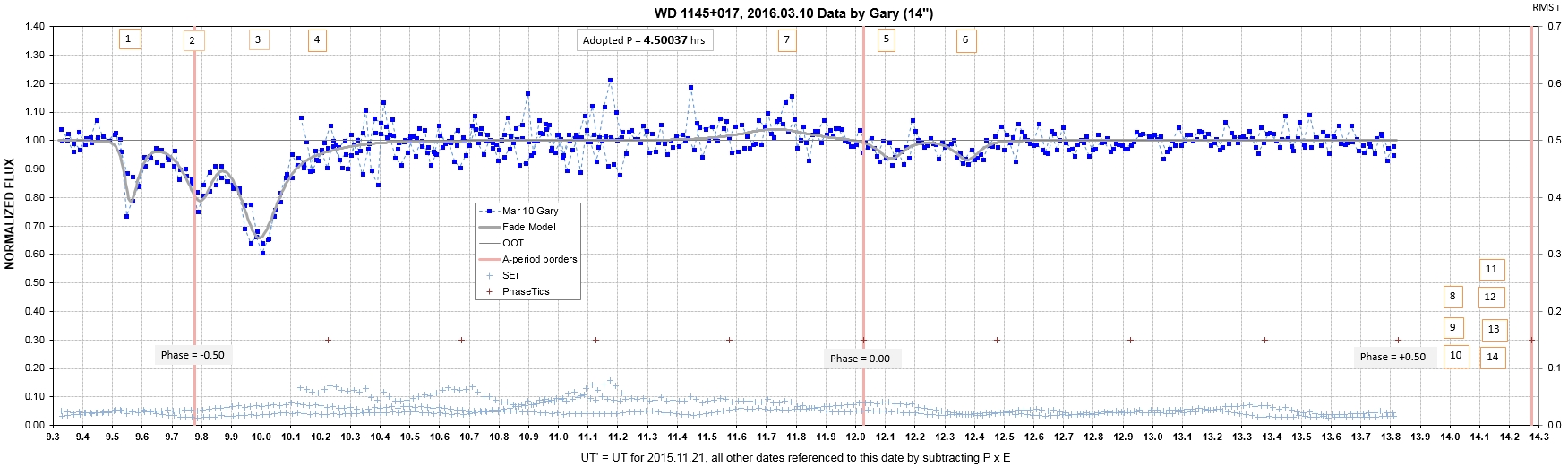

2016.03.10

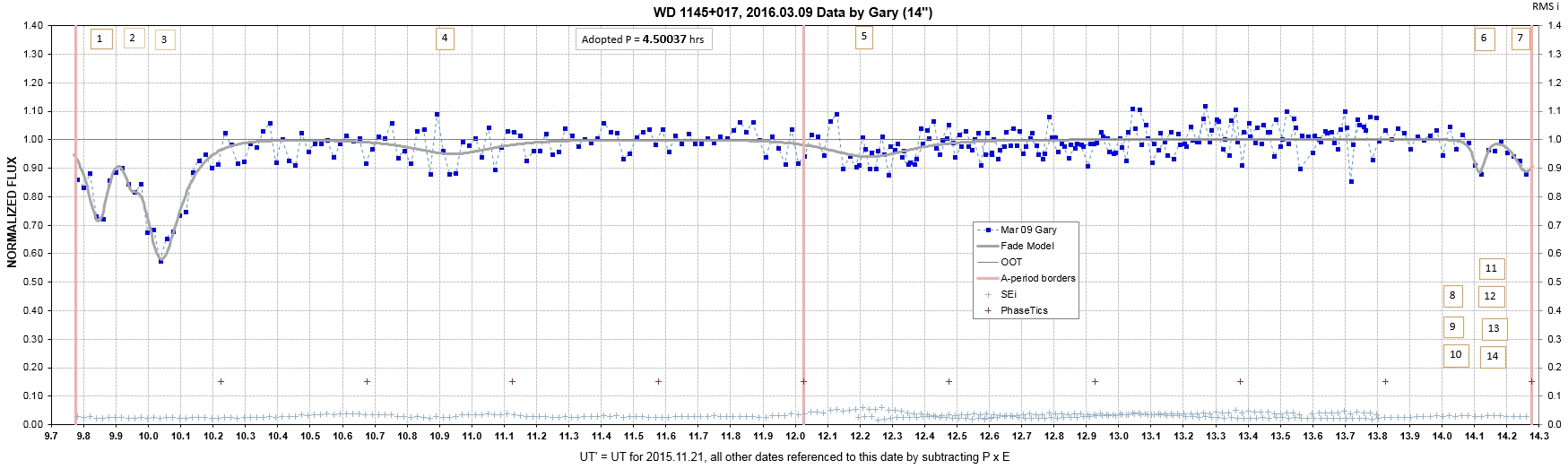

2016.03.09

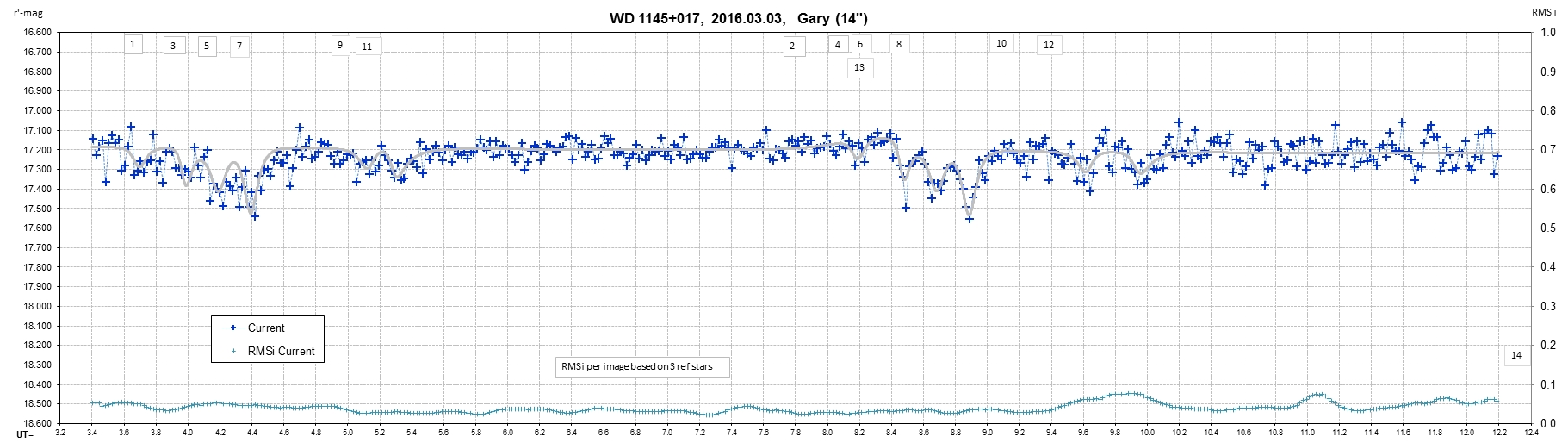

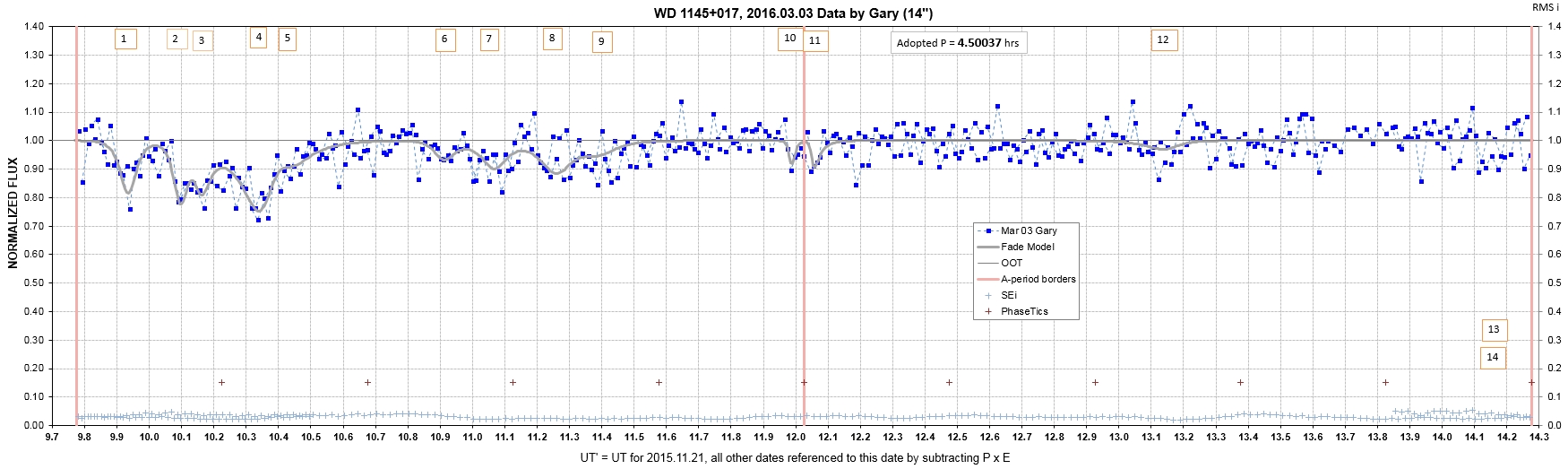

2016.03.03

Another 9-hour observing session; processing underway...

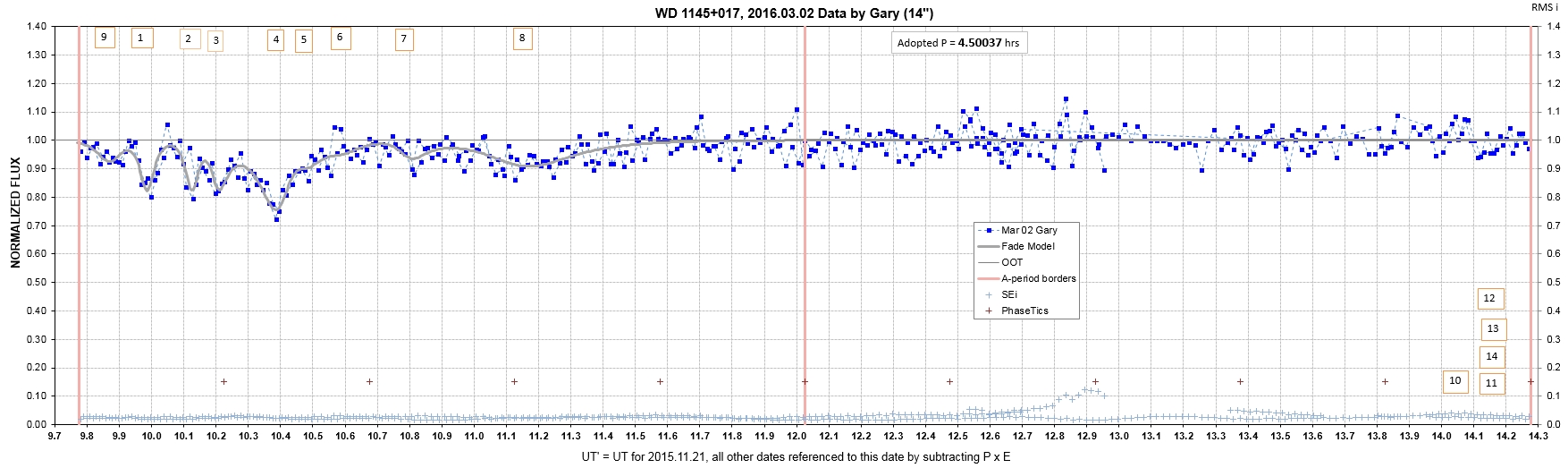

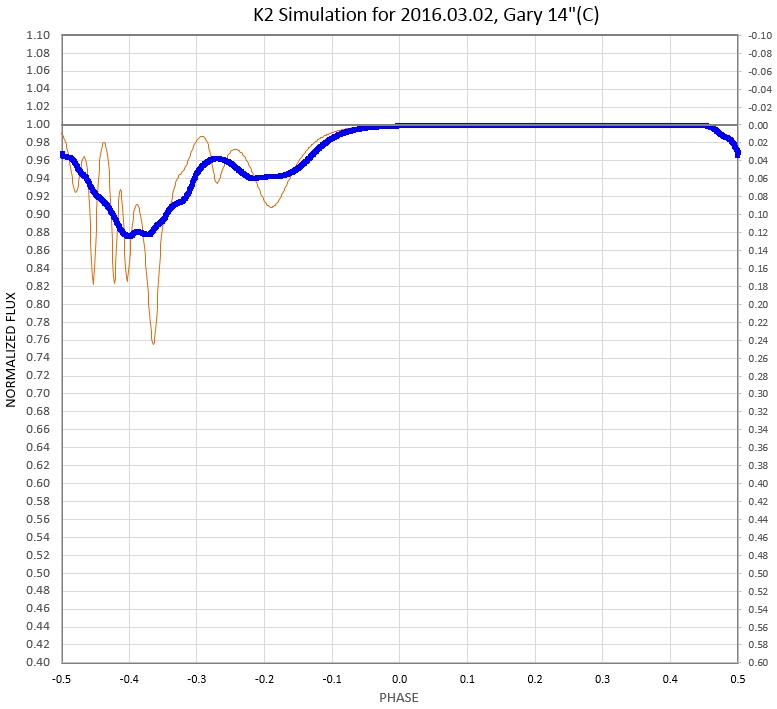

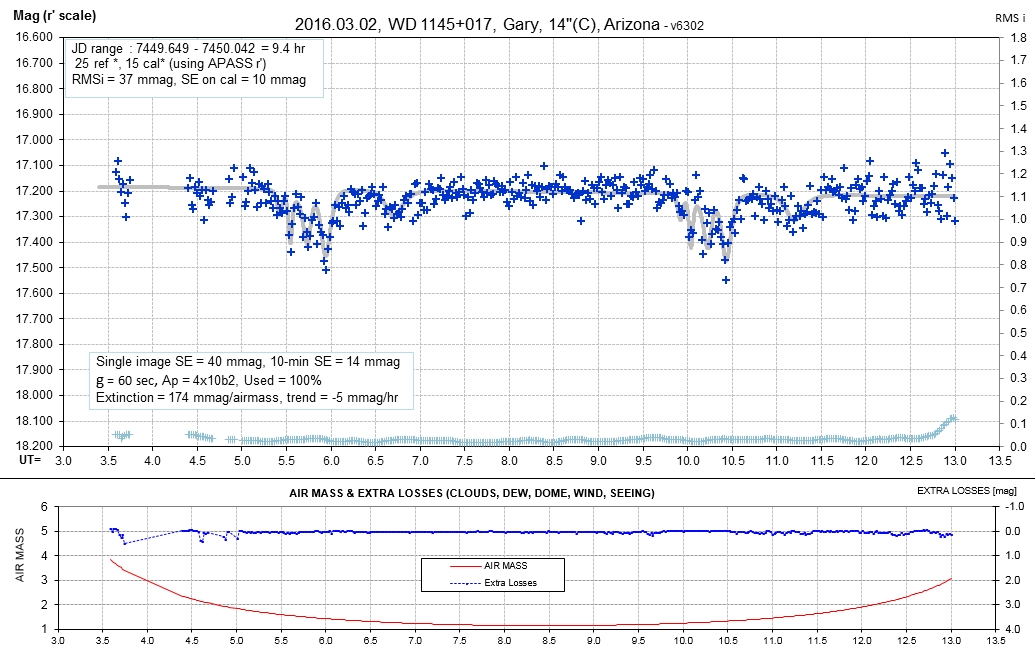

2016.03.02

This is one of the lowest activity LCs since observing began 4 months ago. There are no fade events near A-period zero phase, so apparently no new fragments are being generated. The only set of fade events are bunched together and given their drift rate (with respect to the asteroid A-period) they have to be at least 2.0 months old (generated in late January).

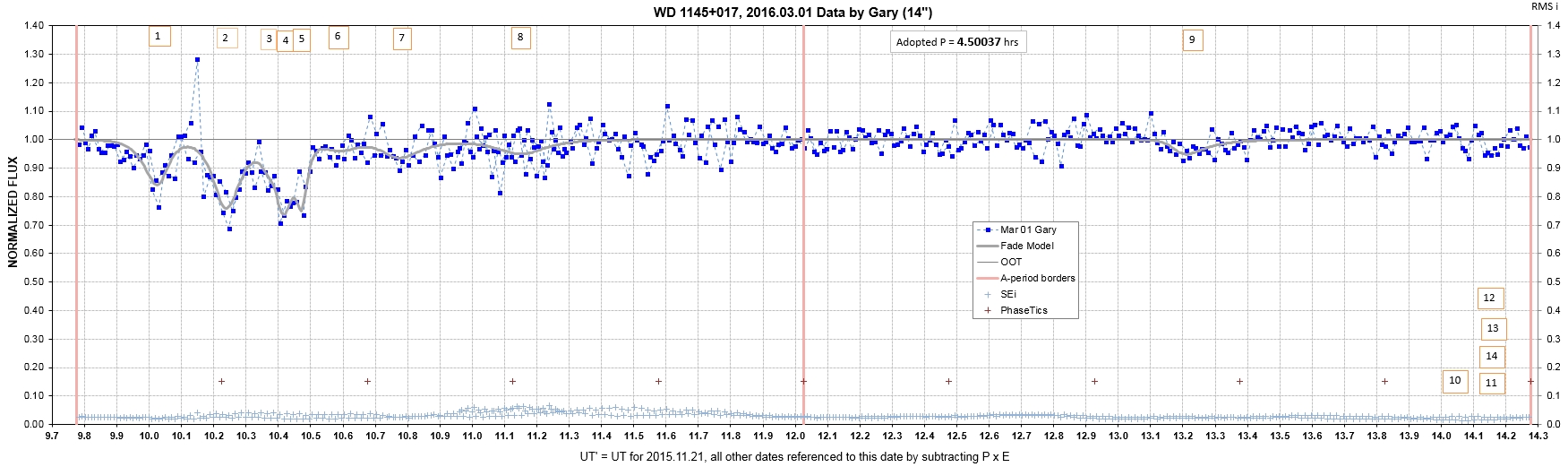

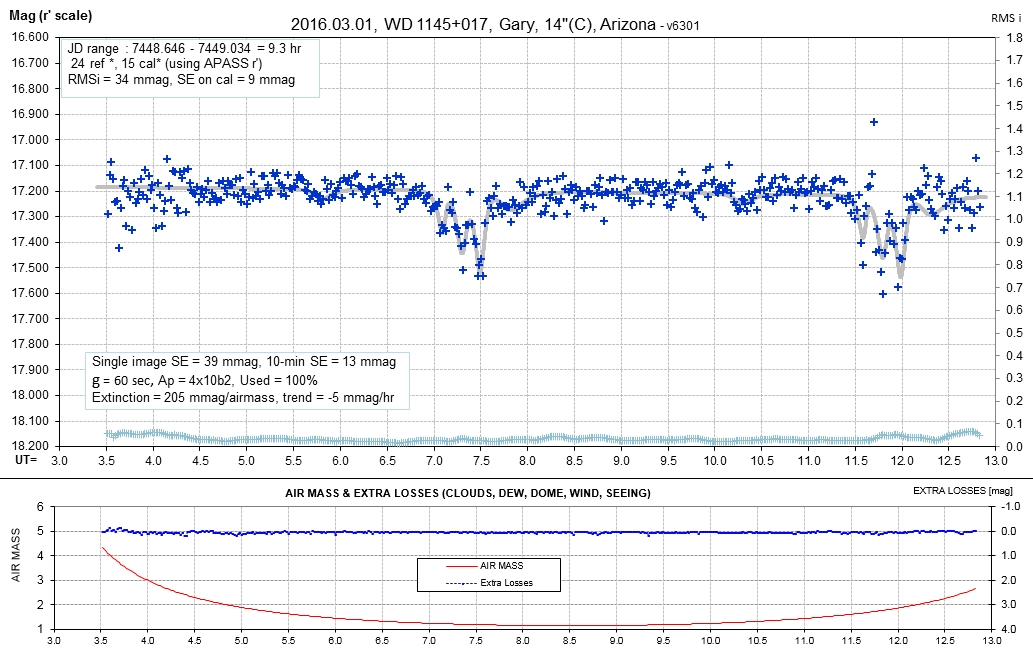

2016.03.01

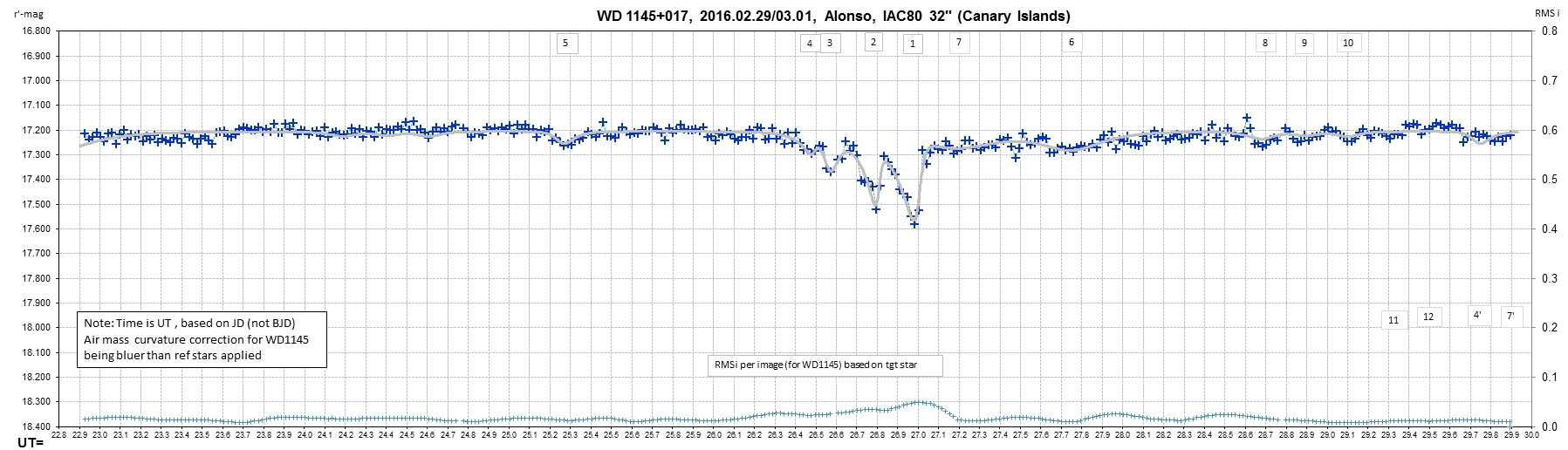

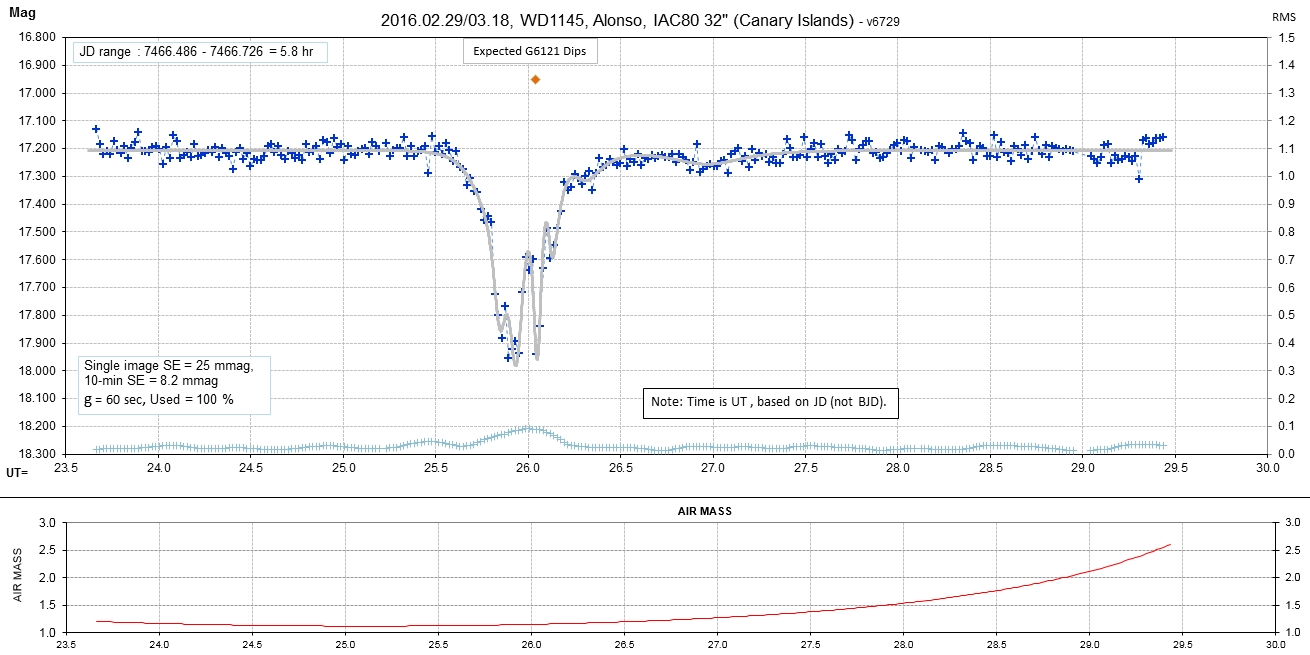

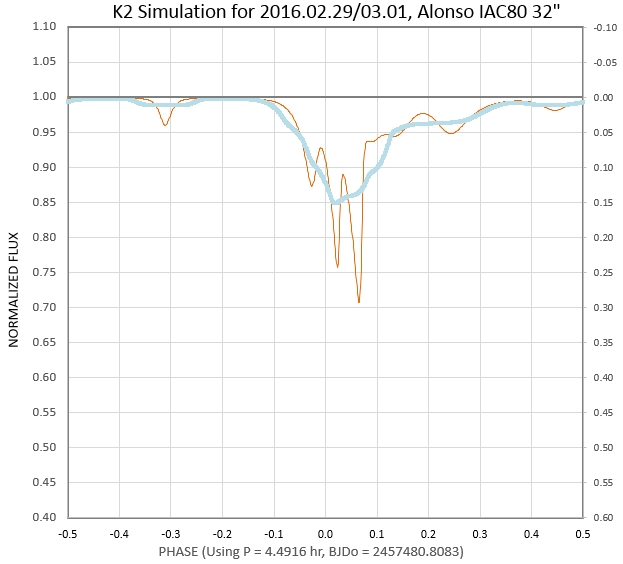

2016.02.29/03.01 Alonso IAC80

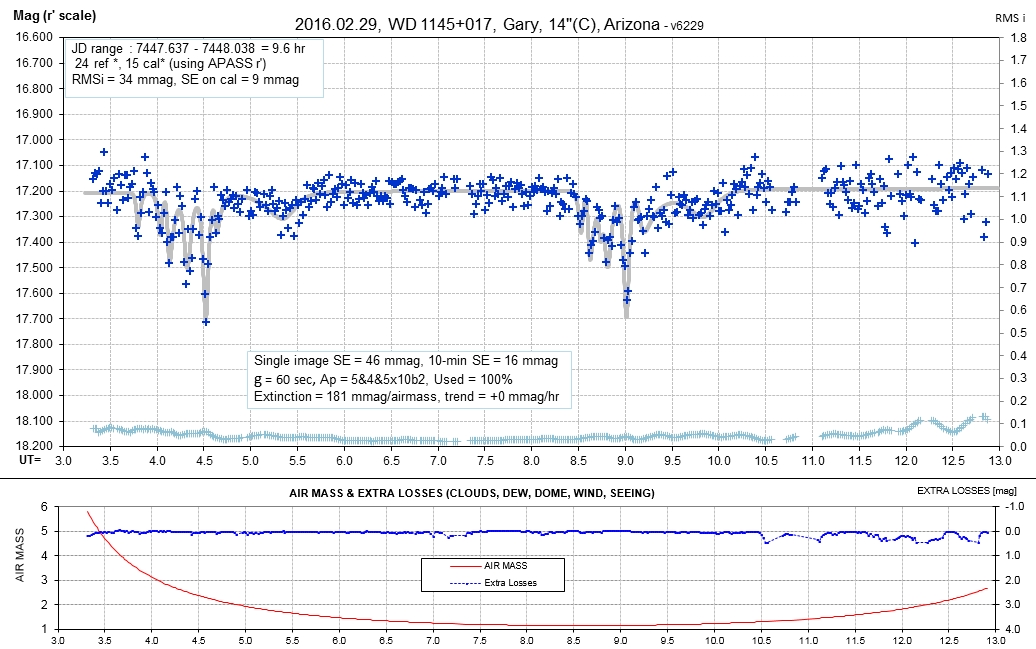

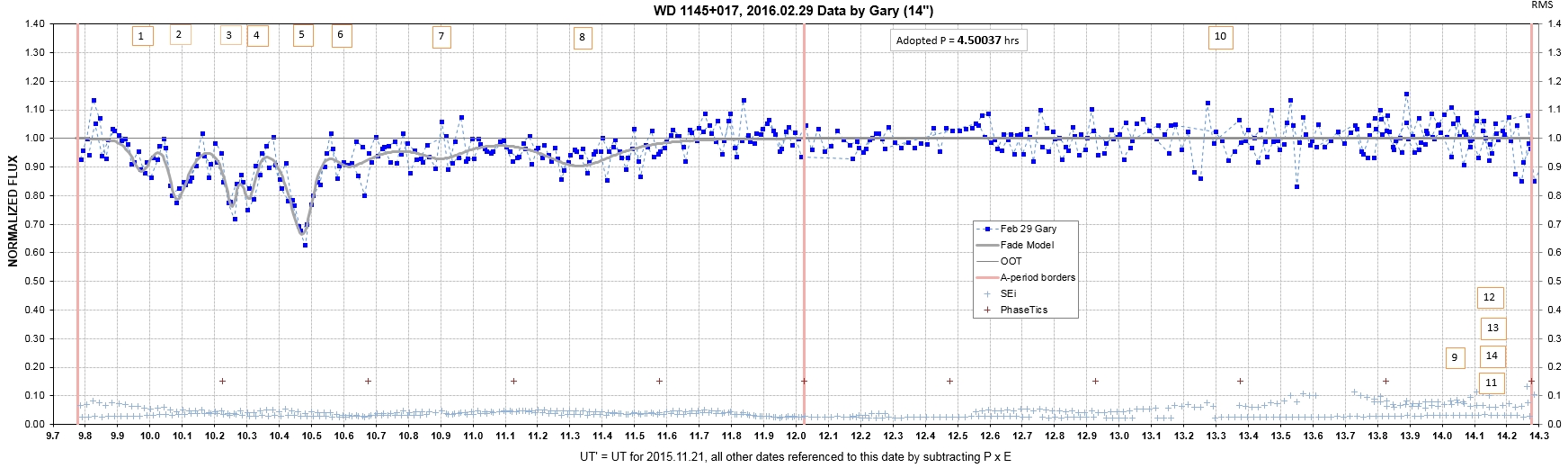

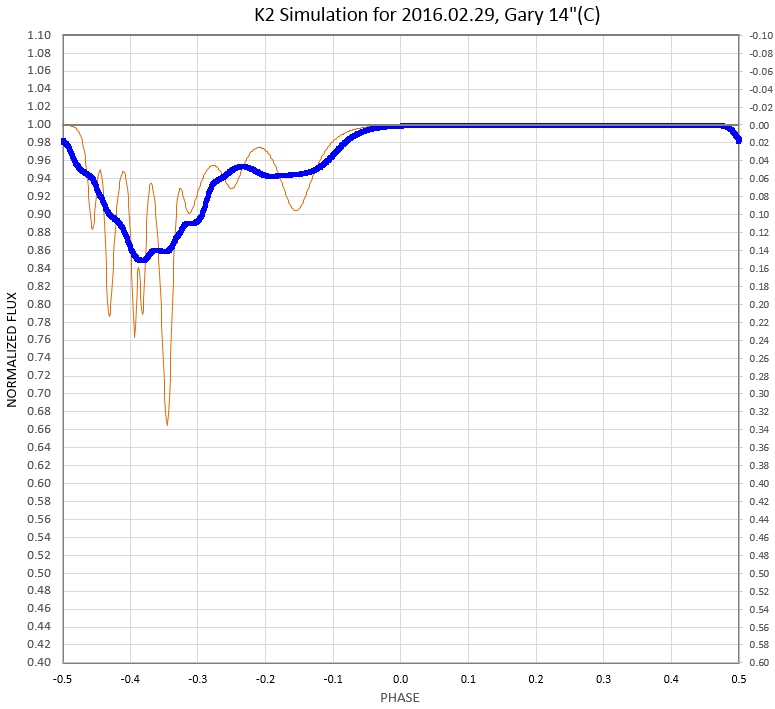

2016.02.29 Gary HAO

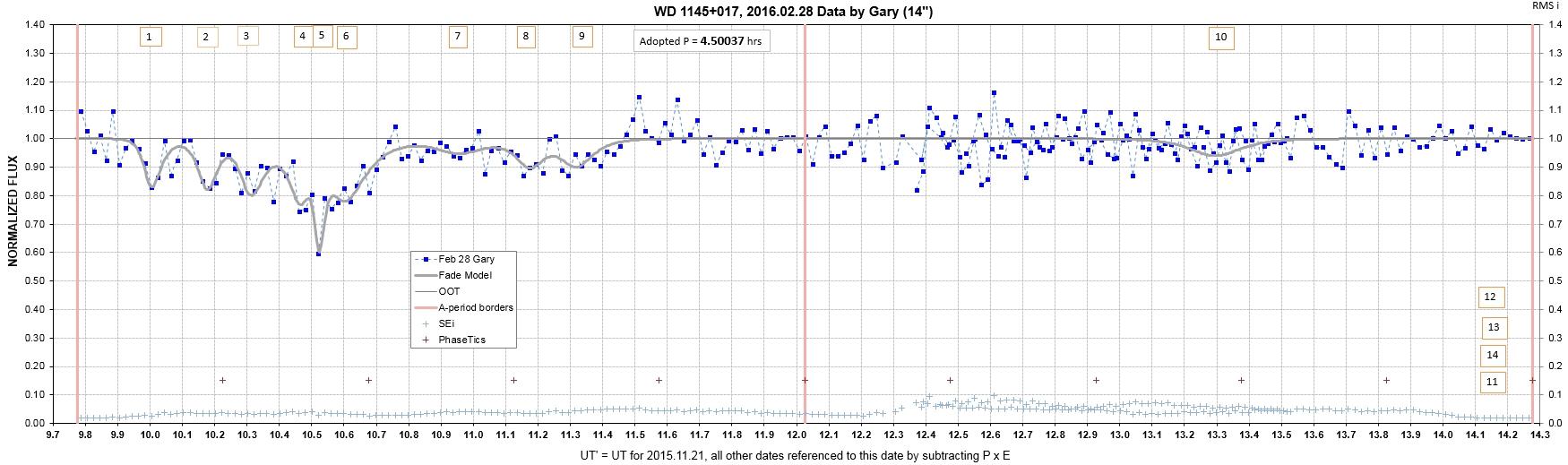

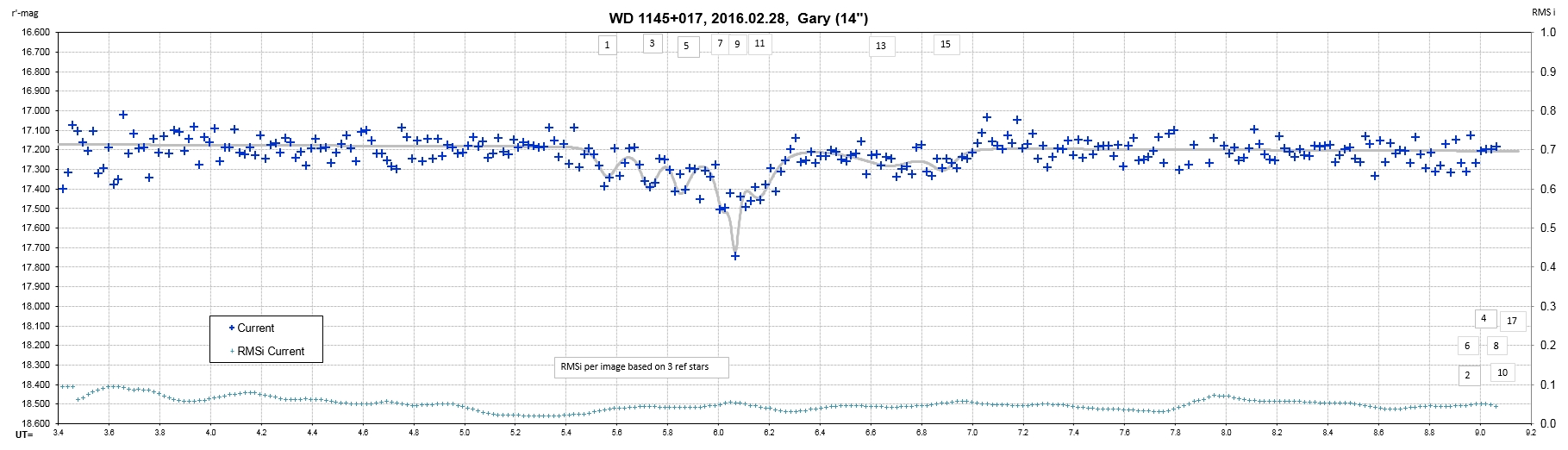

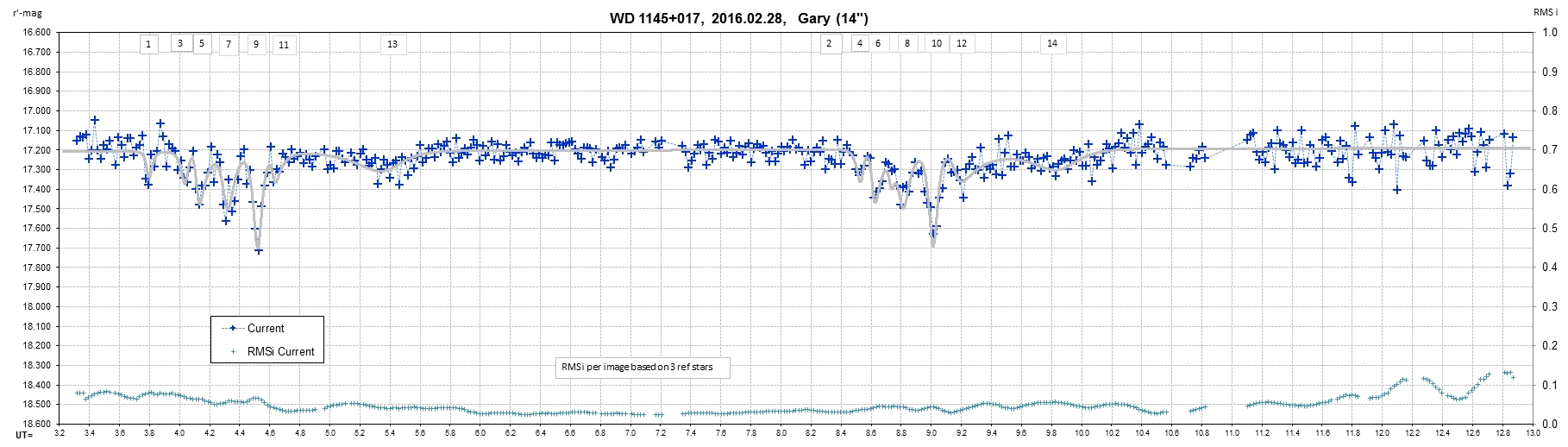

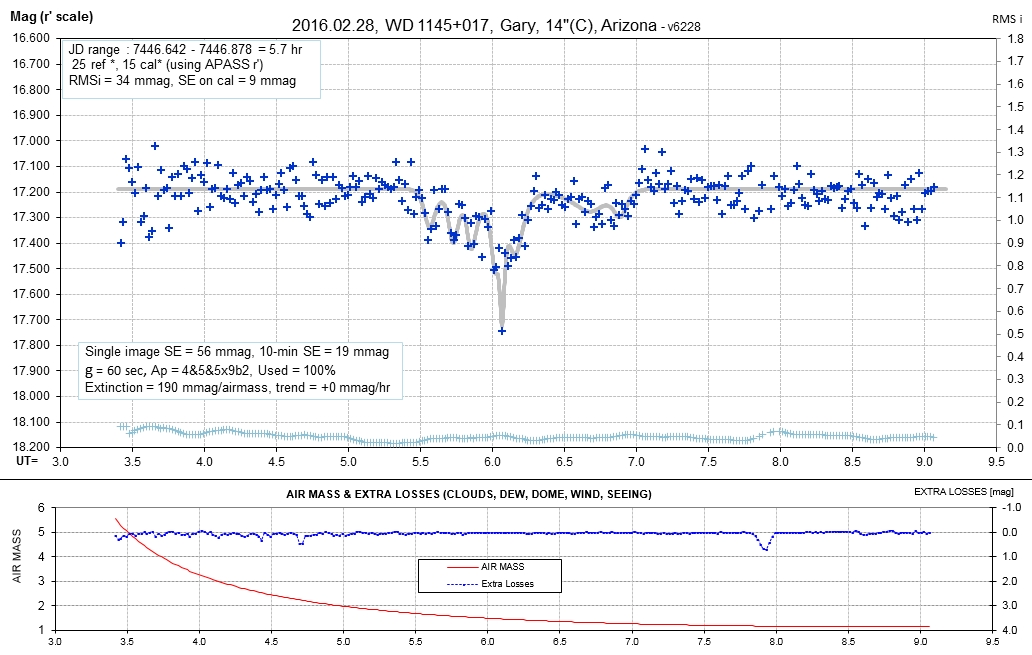

2016.02.28 Gary HAO

The gibbous moon was 43 deg trailing, so wasn't a problem.

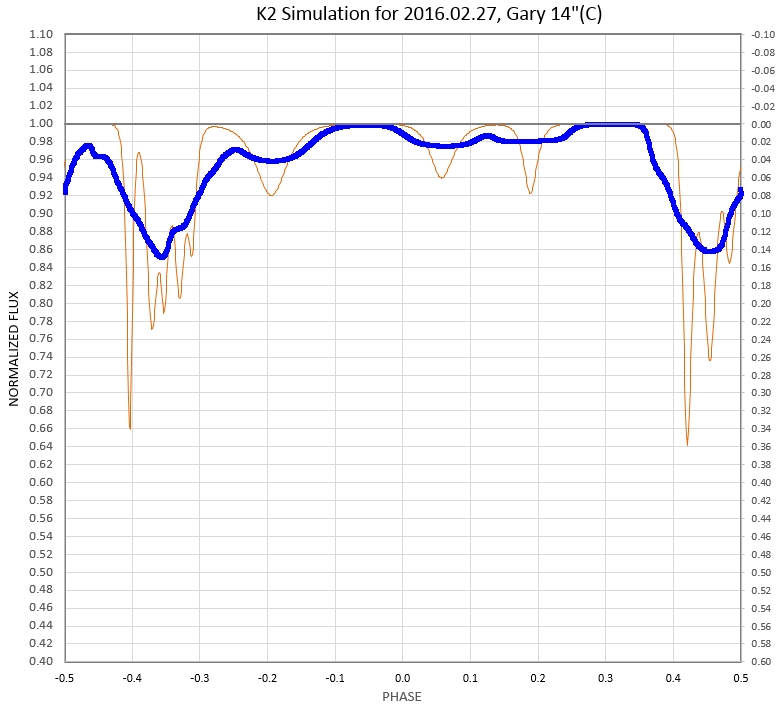

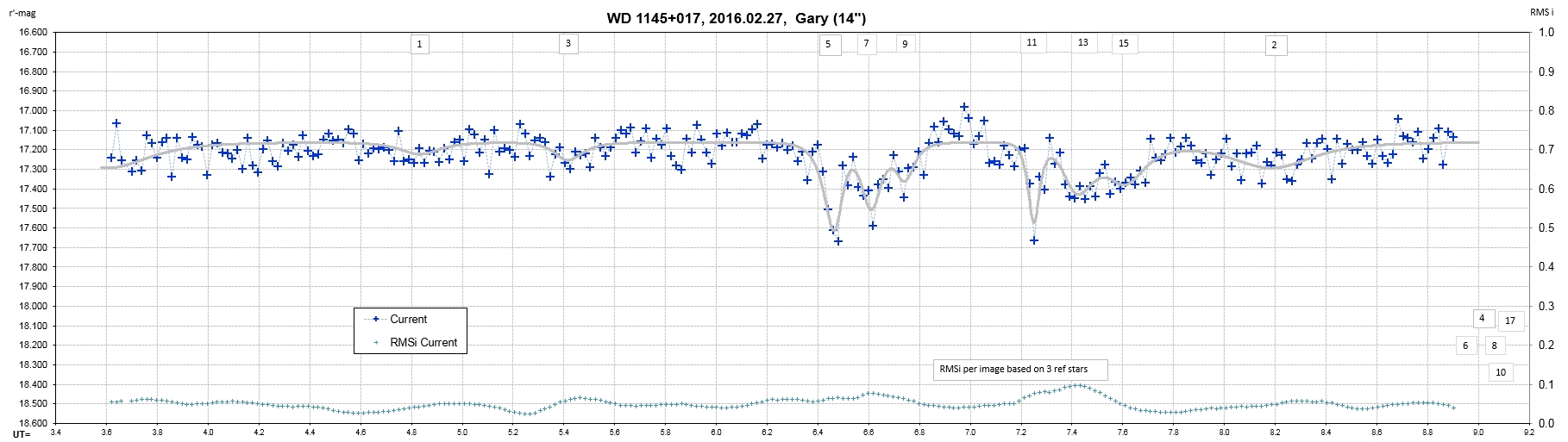

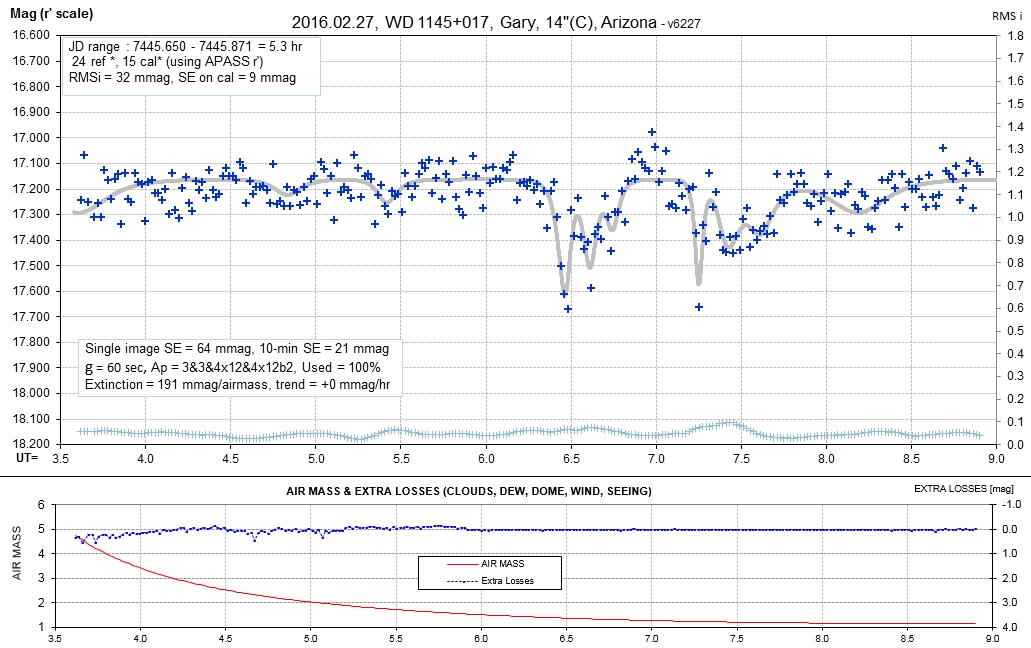

2016.02.27

Gibbous moon rises ~ 30 deg after target.









2016.02.22

Full moon was 30 deg ahead of target, which rendered LC too noisy to be useful.

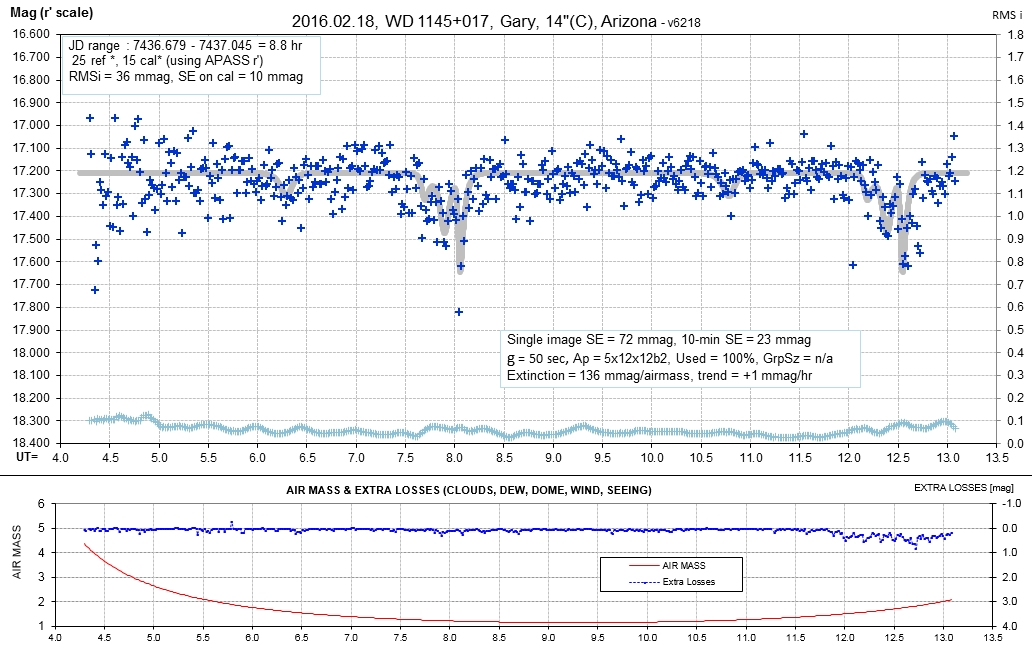

2016.02.18

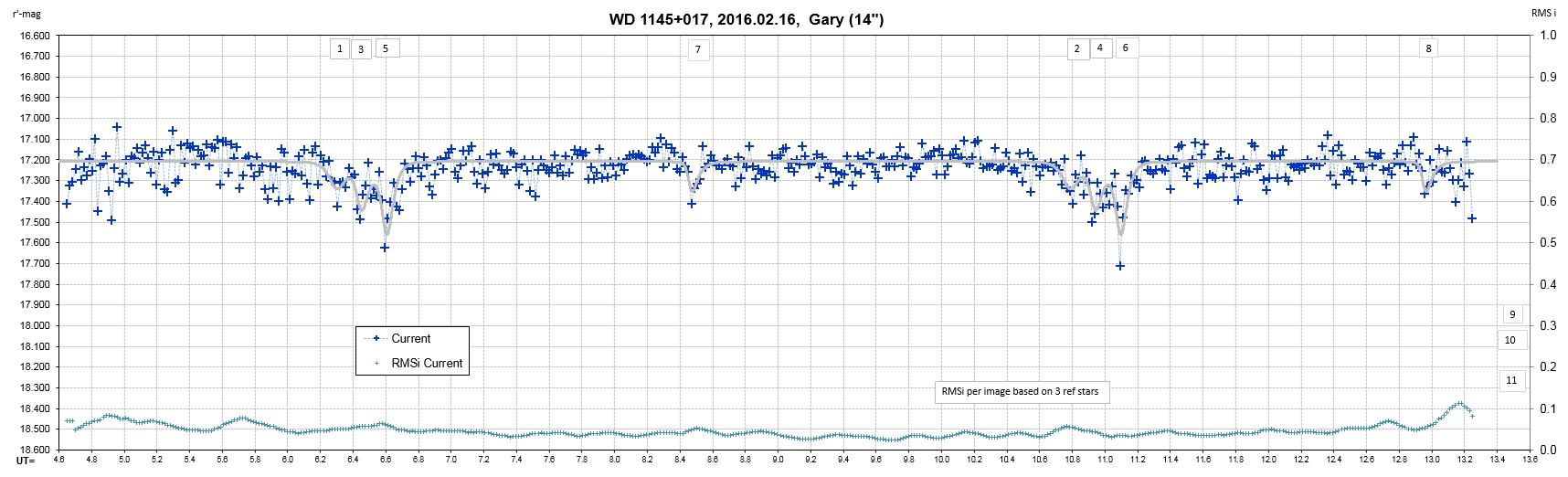

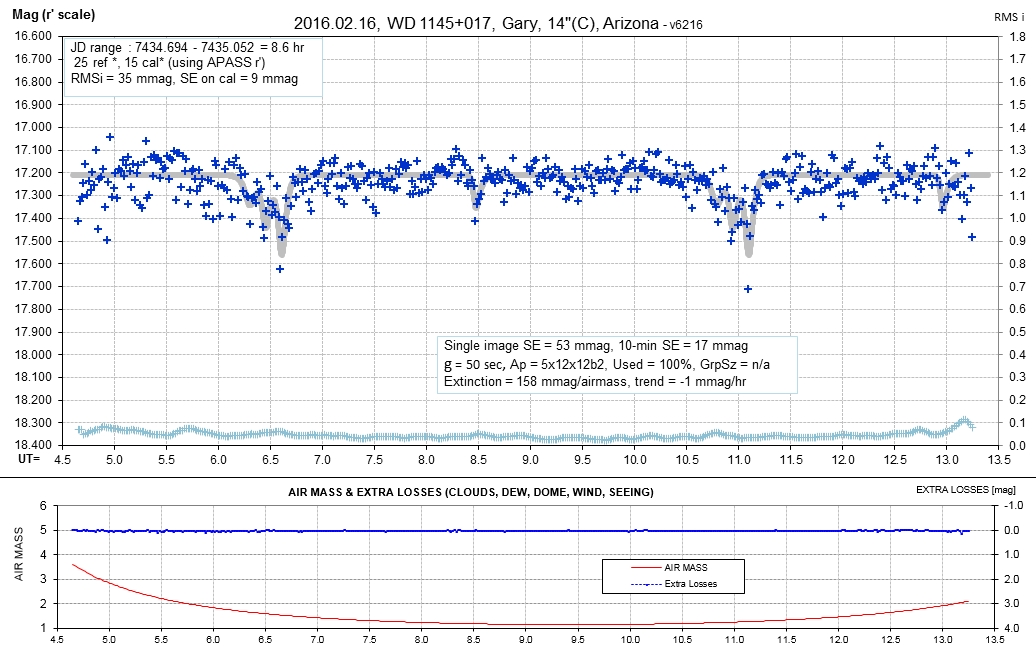

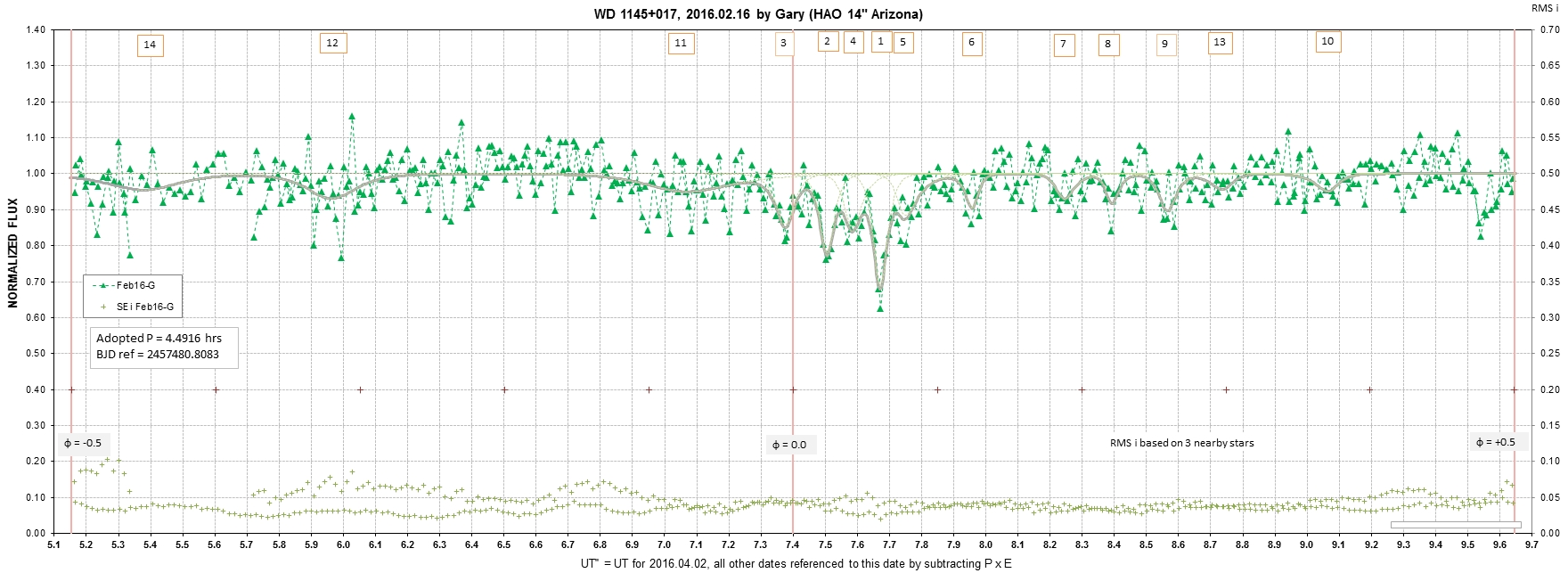

2016.02.16




Uses A-fragment ephemeris.


Uses A-asteroid ephemeris.






2016.02.15 Alonso IAC80

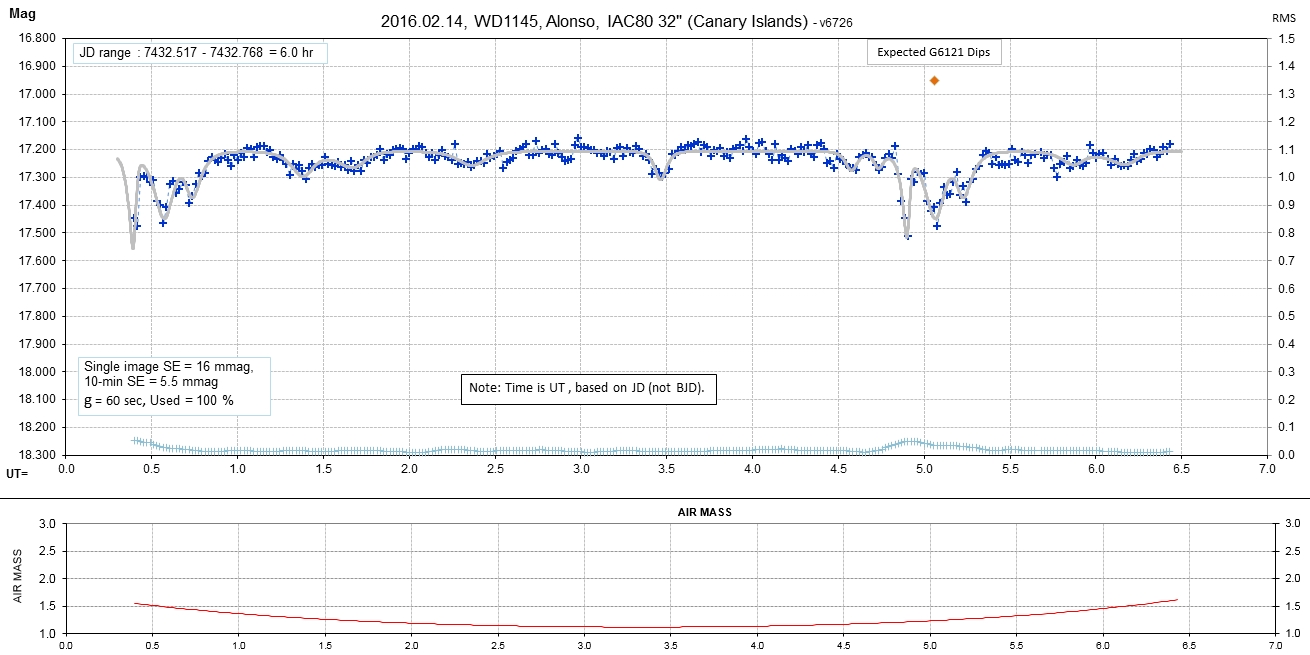

2016.02.14 Alonso IAC80

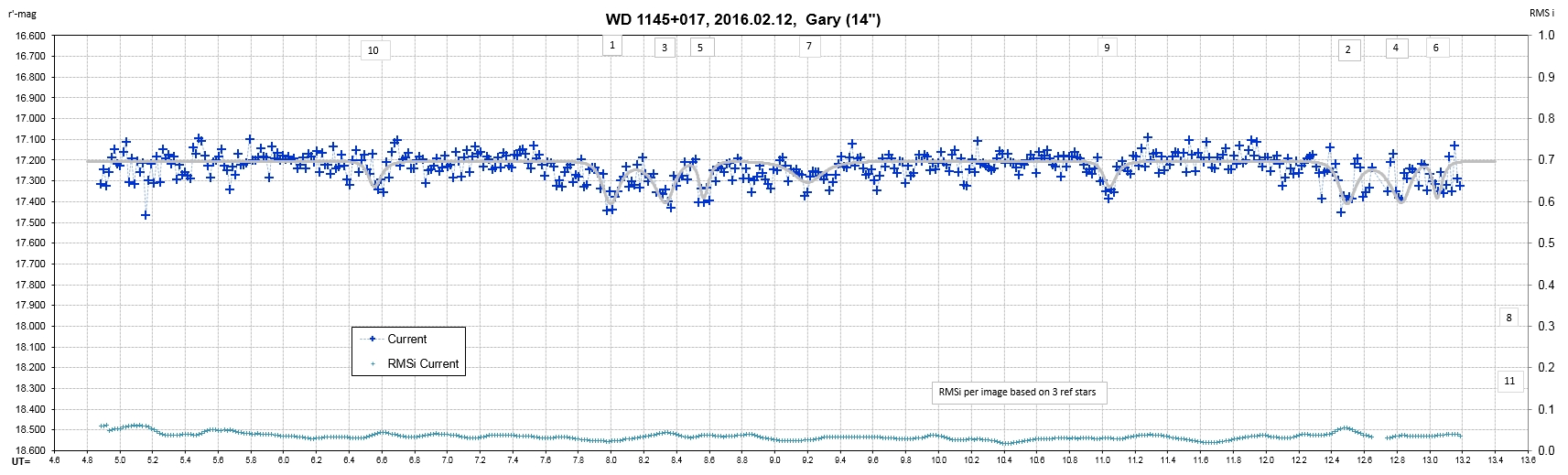

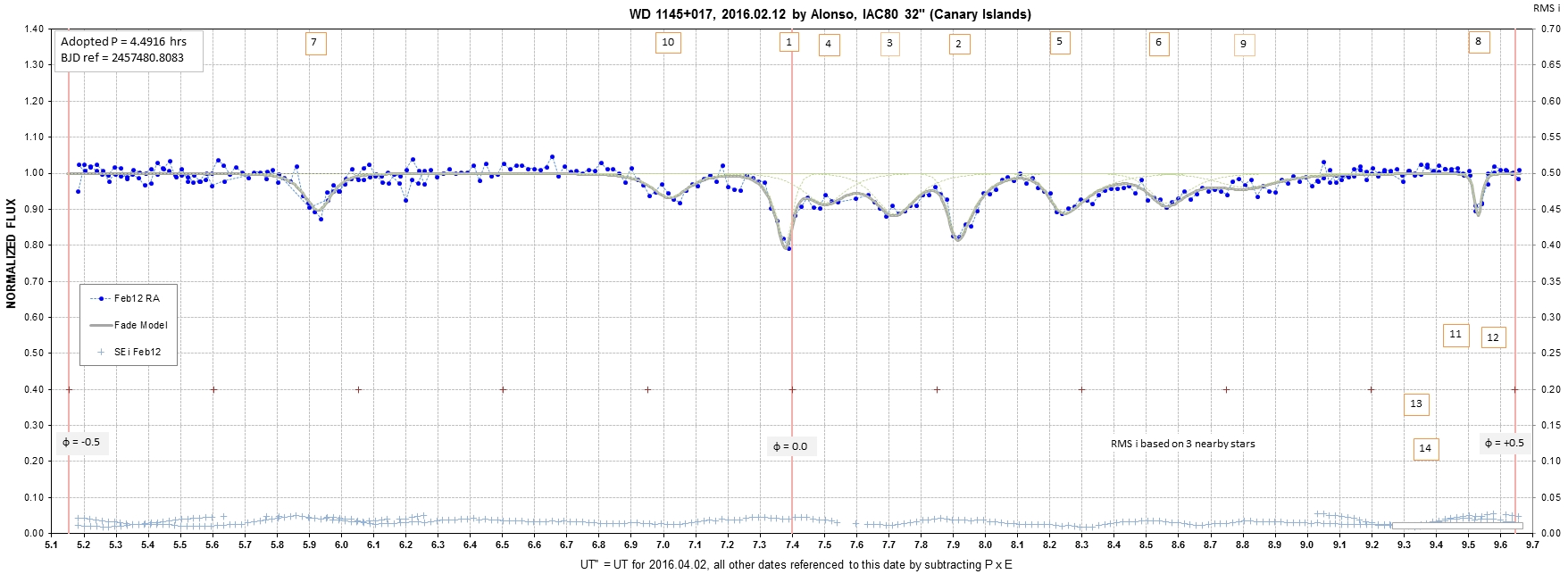

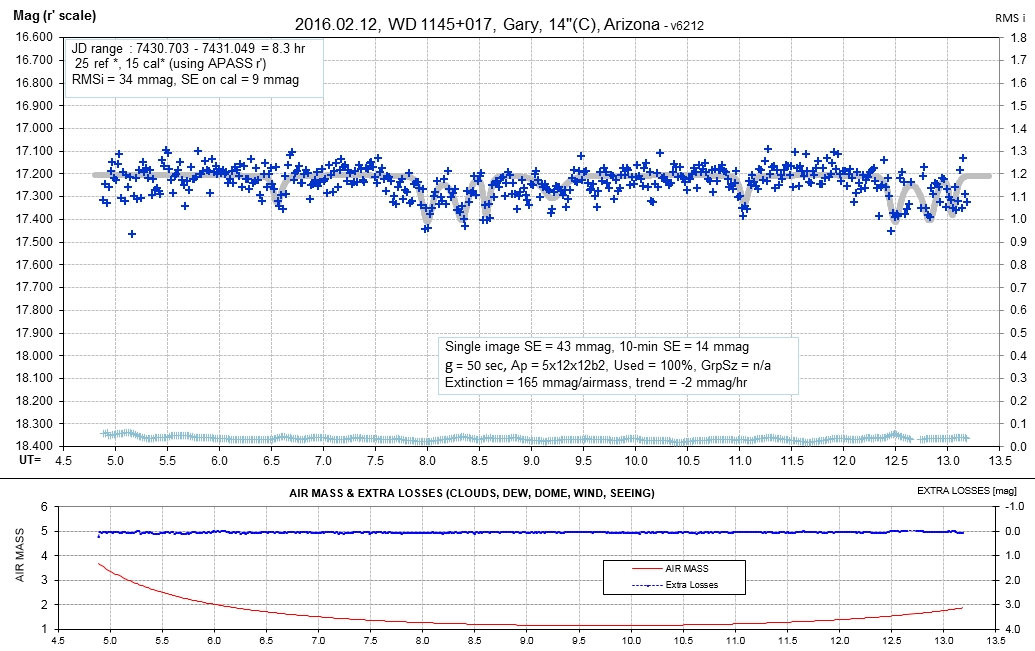

2016.02.12









2016.02.12 Alonso IAC80

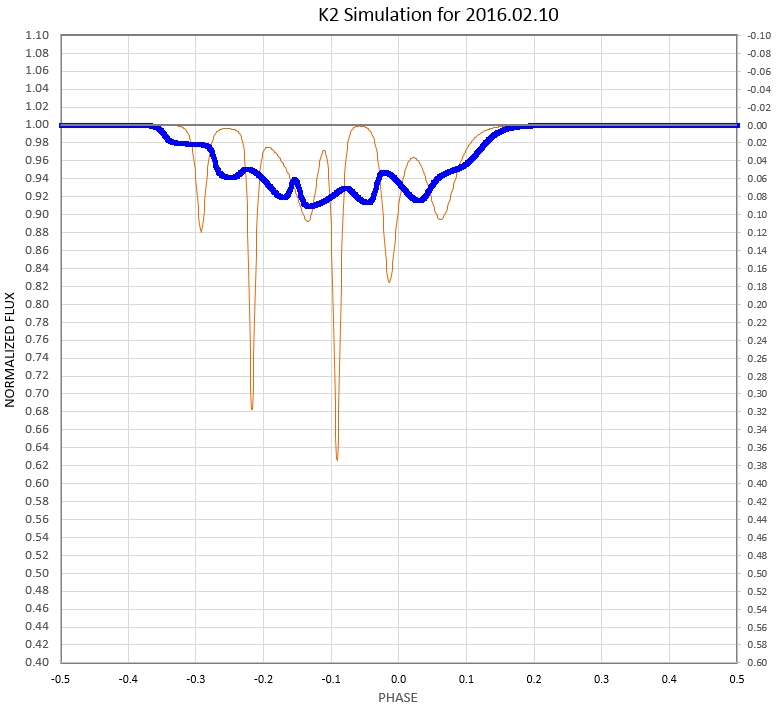

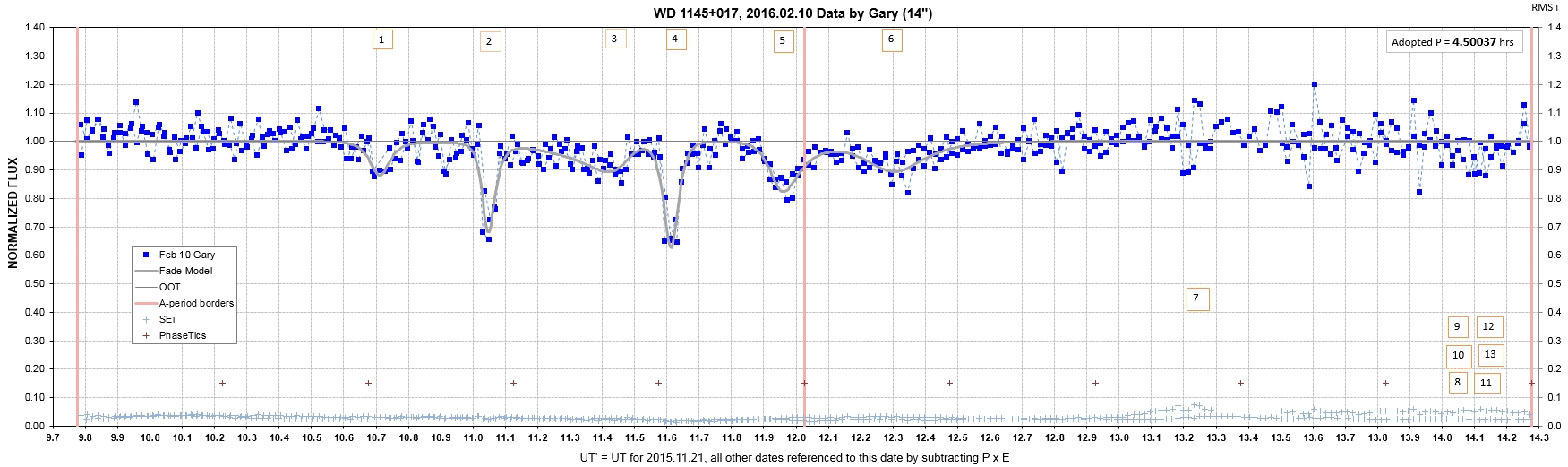

2016.02.10










2016 Feb 09

This night was devoted to measuring B-mag and V-mag using differential photometry of 12 nearby stars with APASS mag's. About half the images were made with each filter.





The measured mag's are: B = 17.174 ± 0.030 and V = 17.250 ± 0.019. Therefore, B-V = - 0.076 ± 0.036.

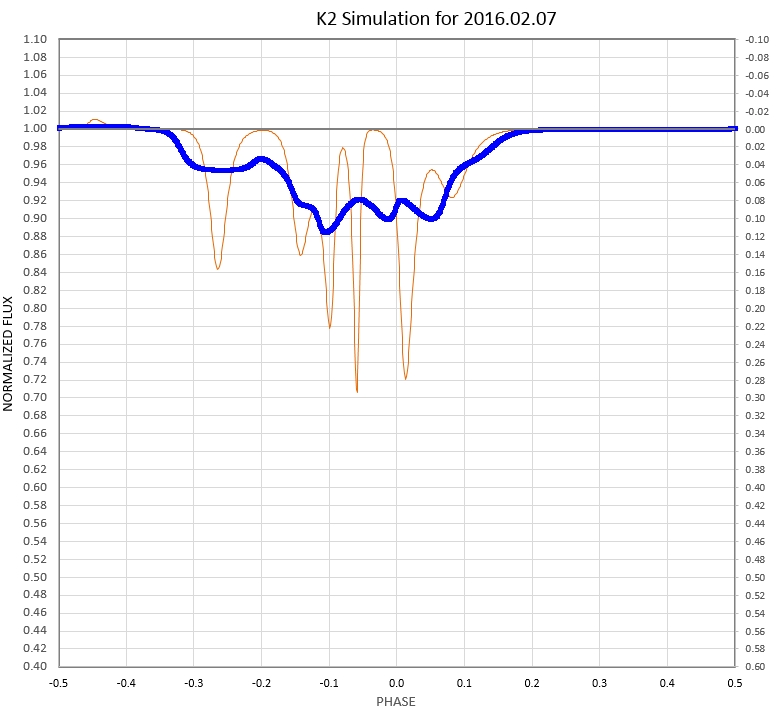

2016 Feb 07

Cirrus was present for the entire observing session.

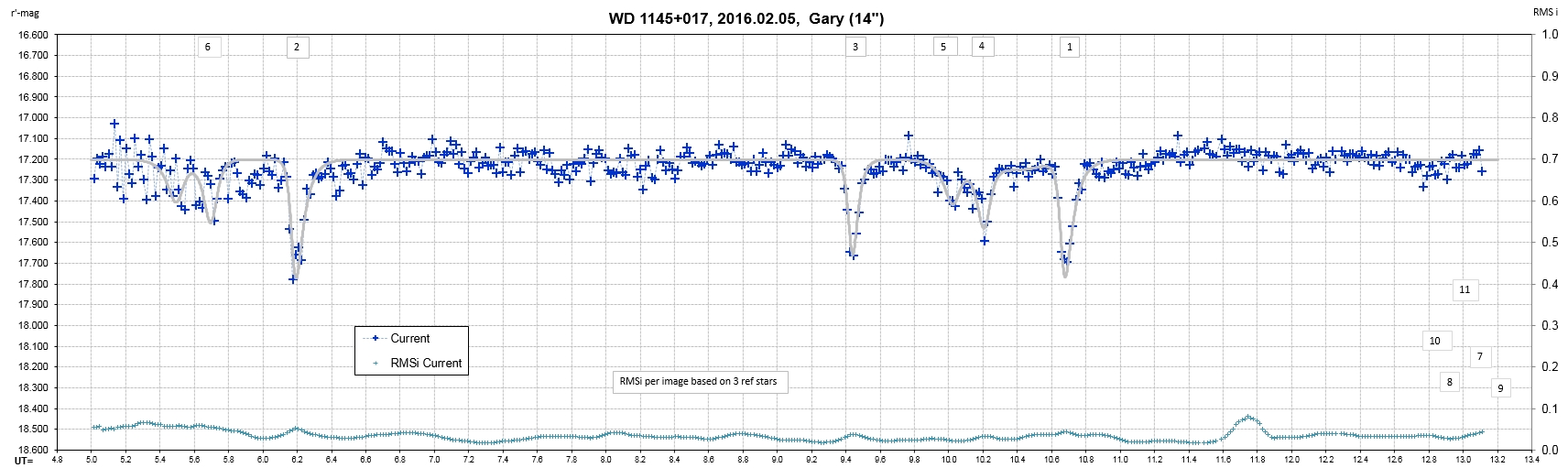

2016 Feb 05

Observing conditions were good for this 8.3-hr session.

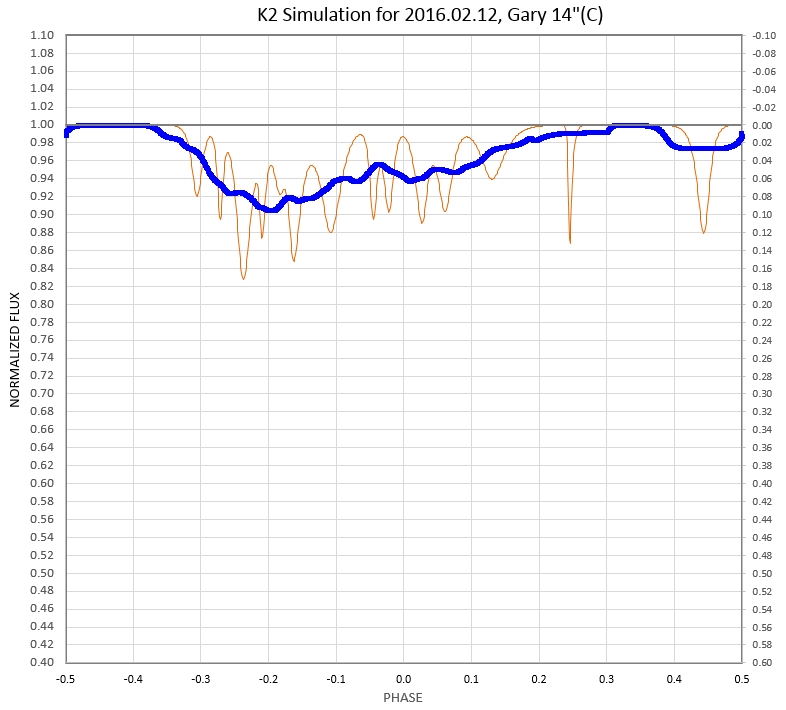

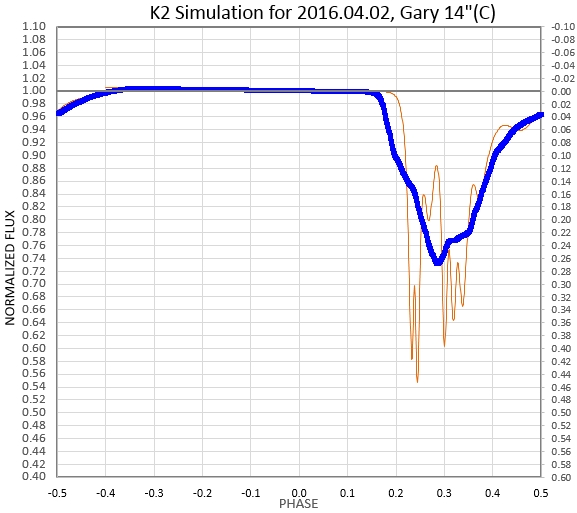

The K2sim way for assessing "fade activity level" continues to decline with date.

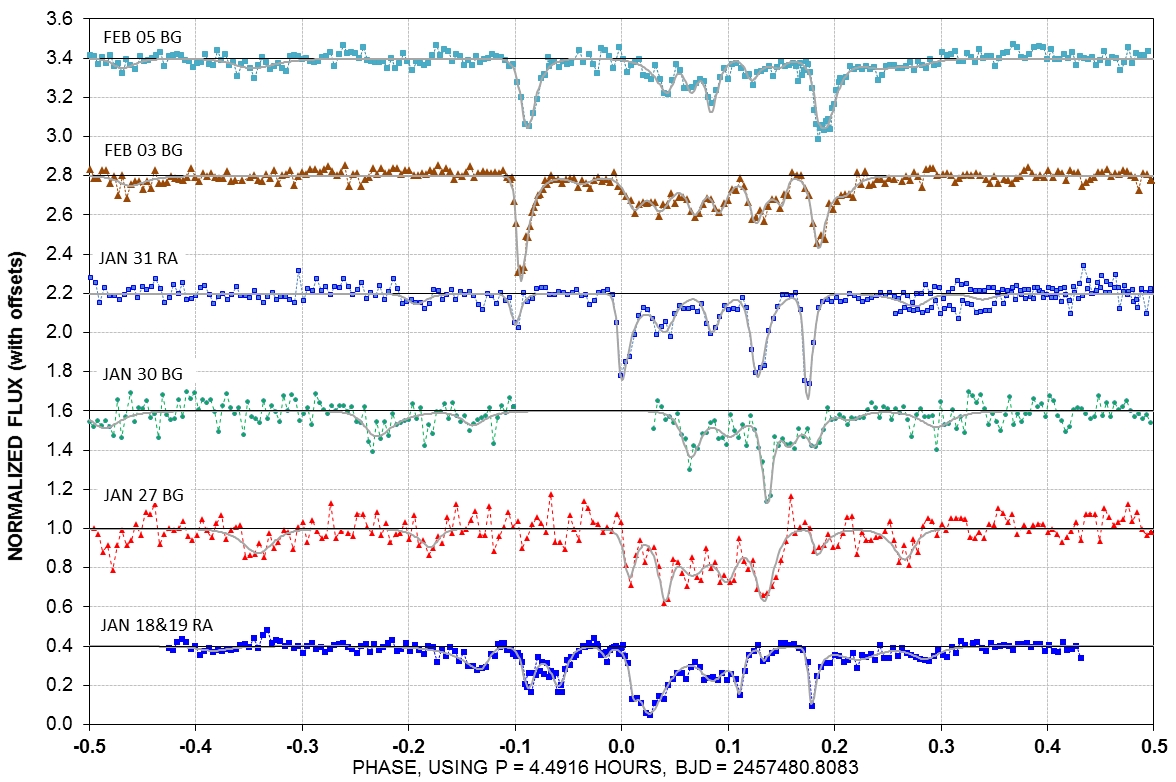

This is how that past several LCs "stack up."


Using A-fragment ephemeris (G6121 group).


Provisional phase-fold fit. Fade #1 is indeed drifting to the left (i.e., in "inner orbit").


Crude fade fit.


Crude fade fit.

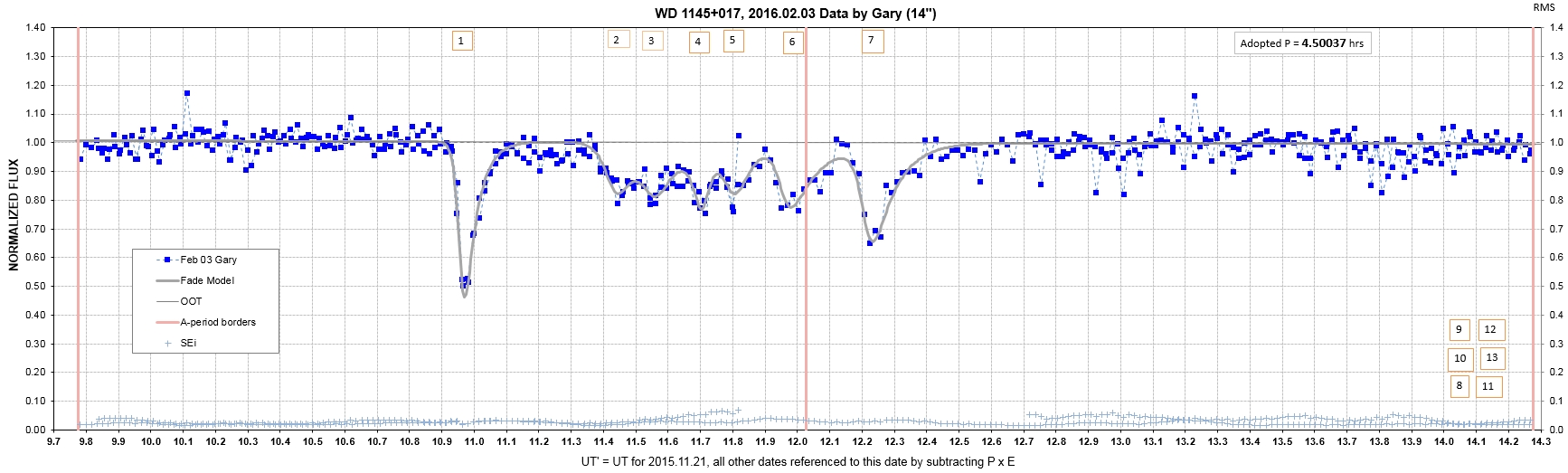

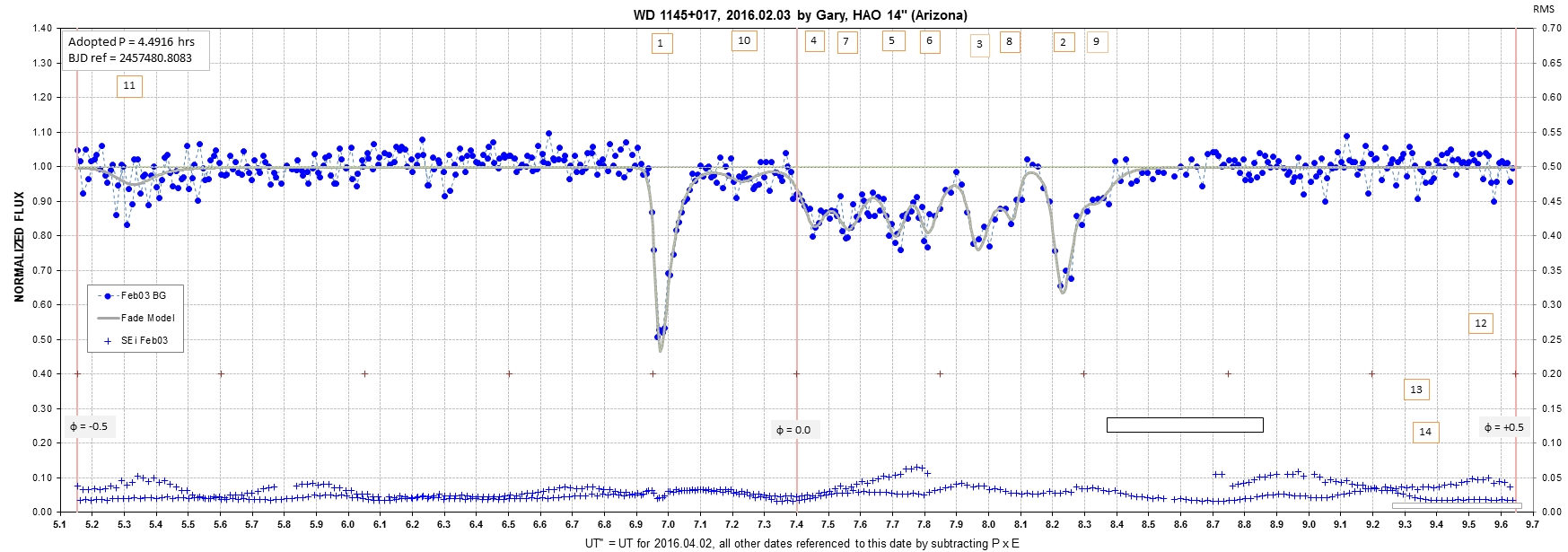

2016 Feb 03

Under cold but clear skies, an 8.2-hr observing session produced a LC 1.8 orbits long.





Using the G6121 ephemeris.


Using the A-asteroid ephemeris. The sharp fade at UT' = 10.97 is "new."




1.8 orbits, showing fade activity confined to a 1.3-hr region (probably the zero phase region).

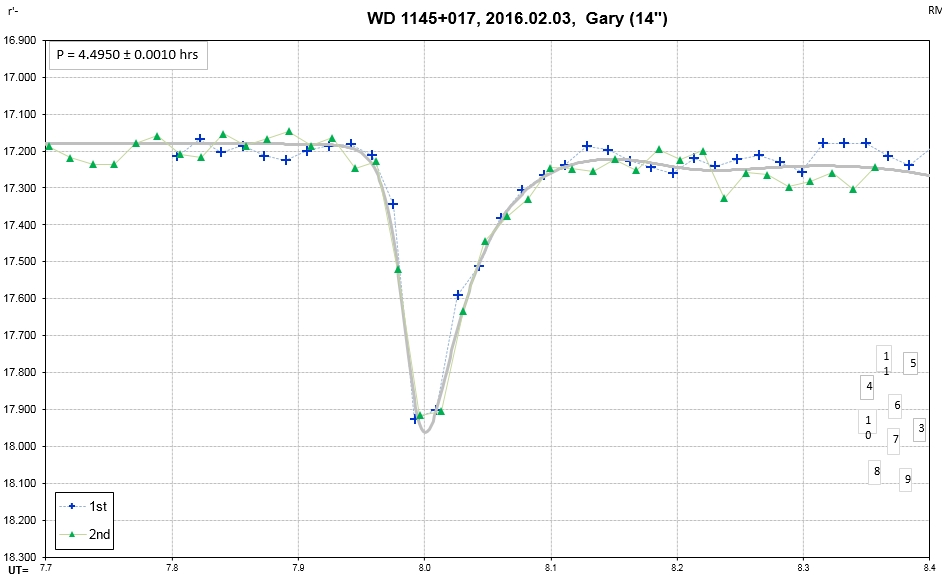

As a curiosity, Saul wondered if it was possible to estimate the period, and therefore "drift rate", of the sharp fade feature from the two appearances of it in one observing session. Answer: Yes!



The interval between the two sharp dips is 4.4950 ± 0.0009 hrs, using chi-sqr minimization. This is compatible with the Dec/Jan drift rates for 15 fade features, corresponding to P = 4.4925

2016.01.31 Alonso IAC80

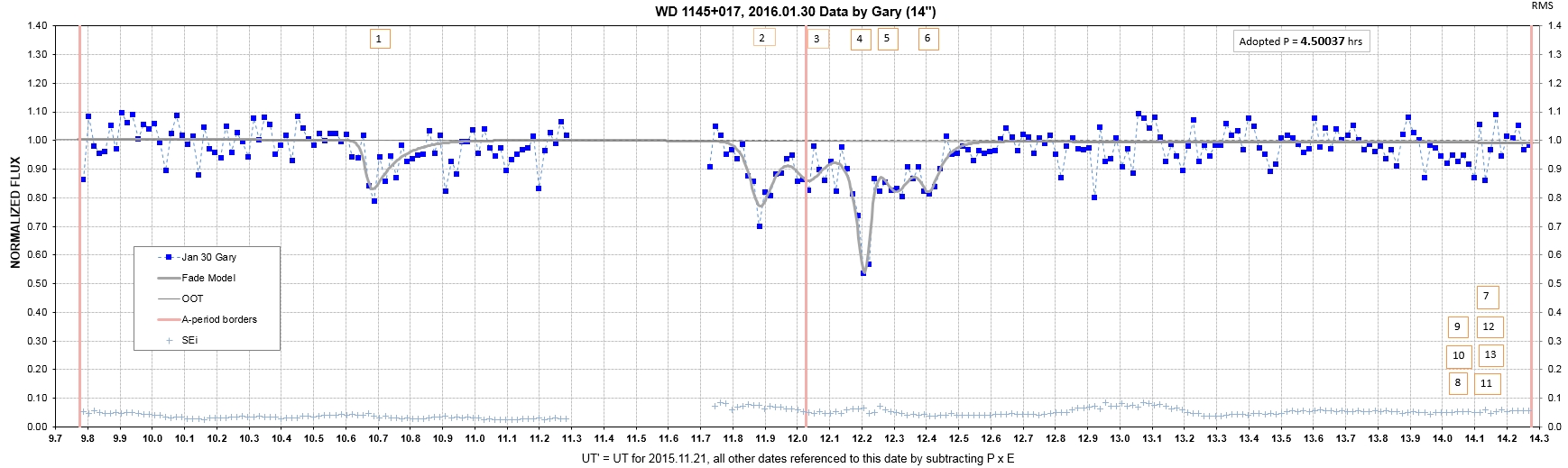

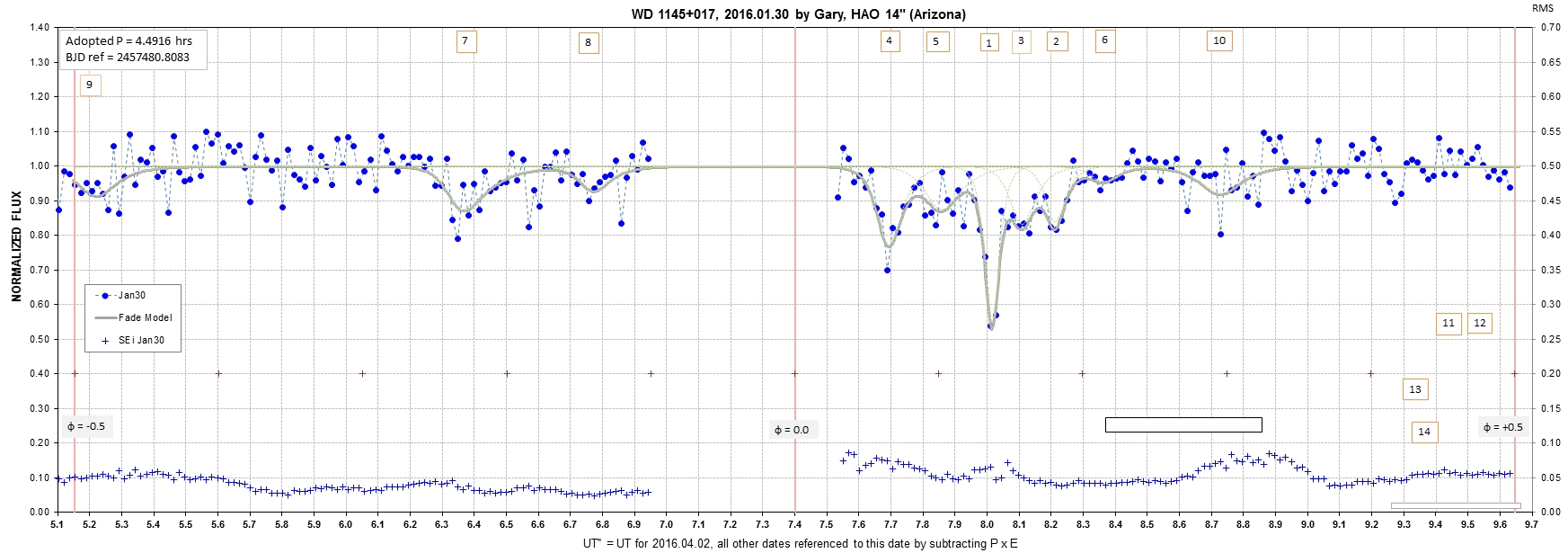

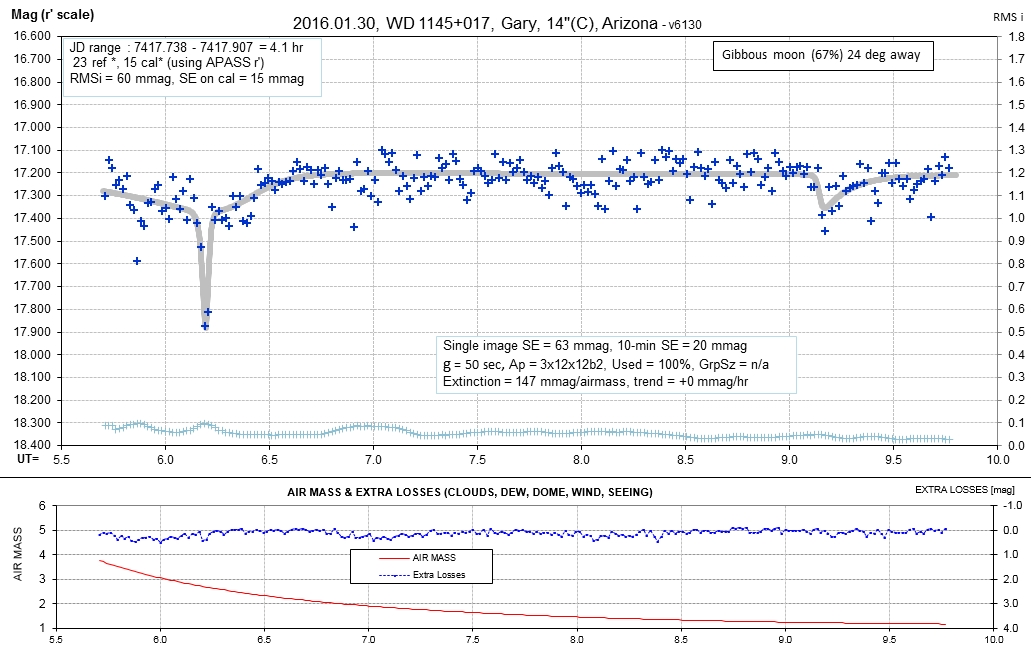

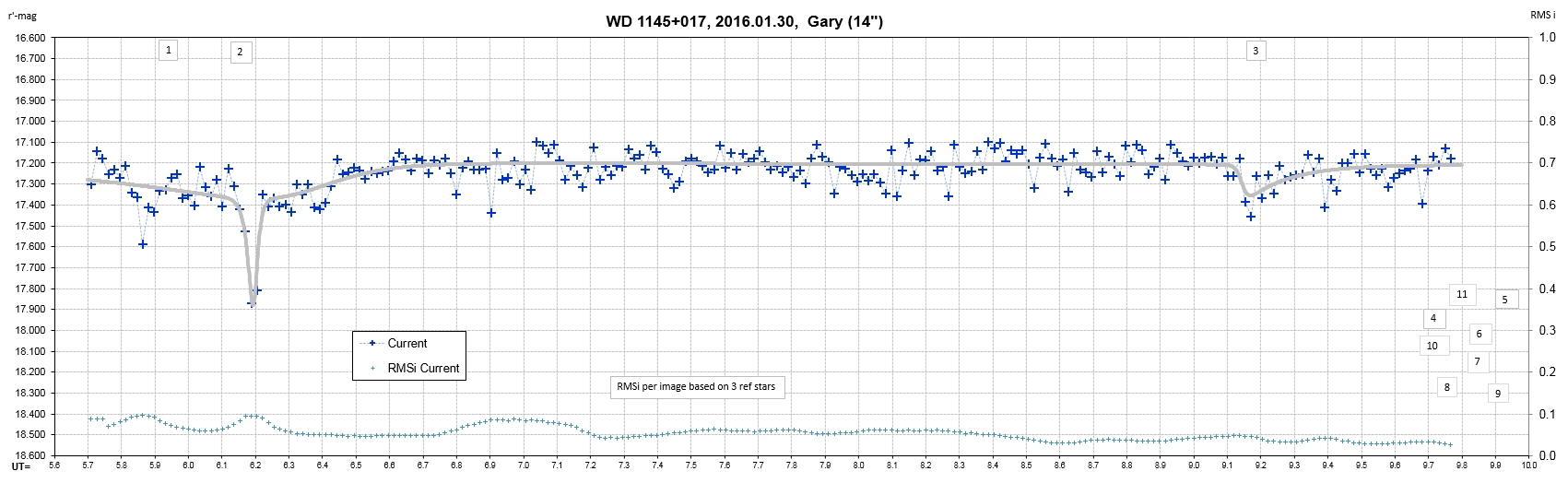

2016.01.30 Gary HAO

A gibbous moon was ~ 24 deg away, which reduced SNR, but I observed anyway.

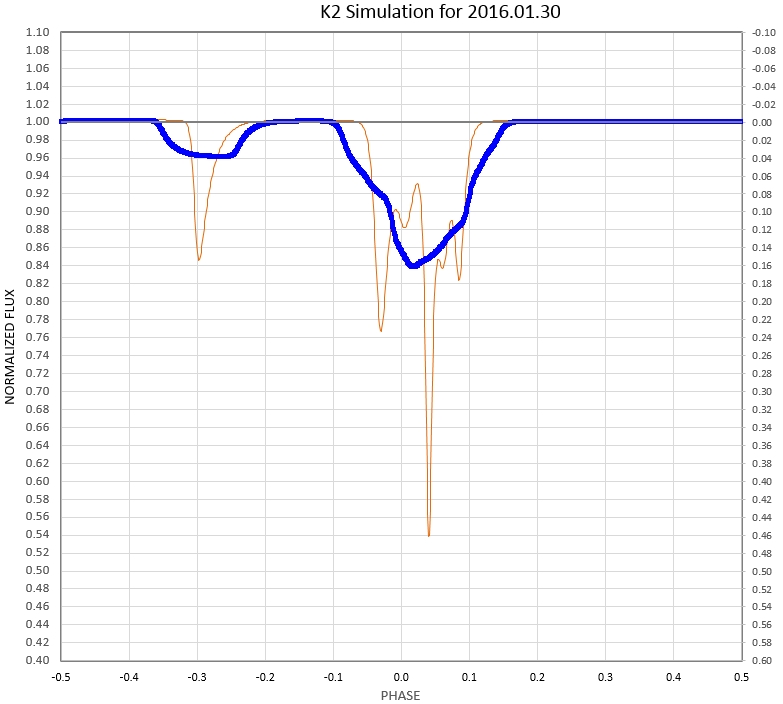

K2 would have measured a depth of 16%, which is slightly less than just 3 days ago (22%).


Using G6121 ephemeris.


The observing session ended sooner than planned, due to my mistake (requested too few images), but phase coverage is almost complete. Note that all but one fade is located within a 0.7-hr interval near phase zero. Fade depths < 10% would not be detected using this data.


The fade model is just approximate.


An approximate fade model.

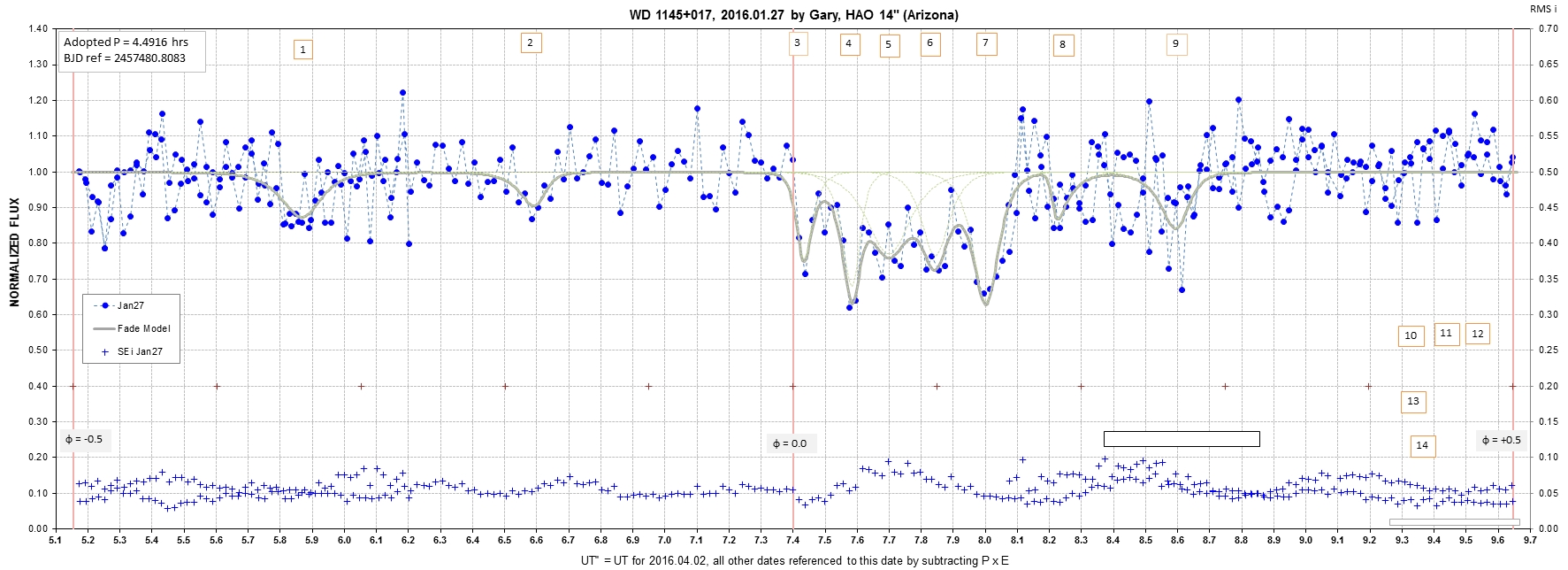

2015.01.27

The full moon (90% illuminated) was 12 deg away, so SNR is quite a bit worse than usual; I felt "lucky" so I observed against my better judgement.


Phase is defined by the ephemeris (given above). K2 would have observed a 22% fade at zero phase for this ephemeris.


Using G6121 ephemeris.


Using A-asteroid ephemeris. Note that the deepest fades are at zero phase (when the asteroid source for the dust-emitting fragments is close to transit).

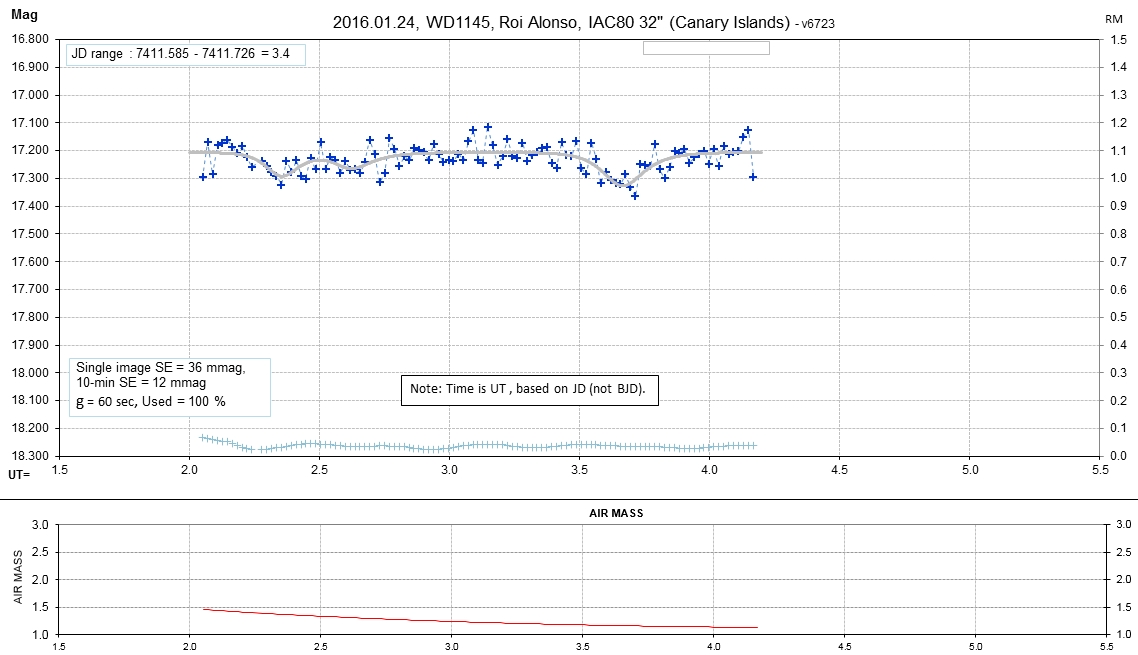

2016.01.24 Alonso IAC80

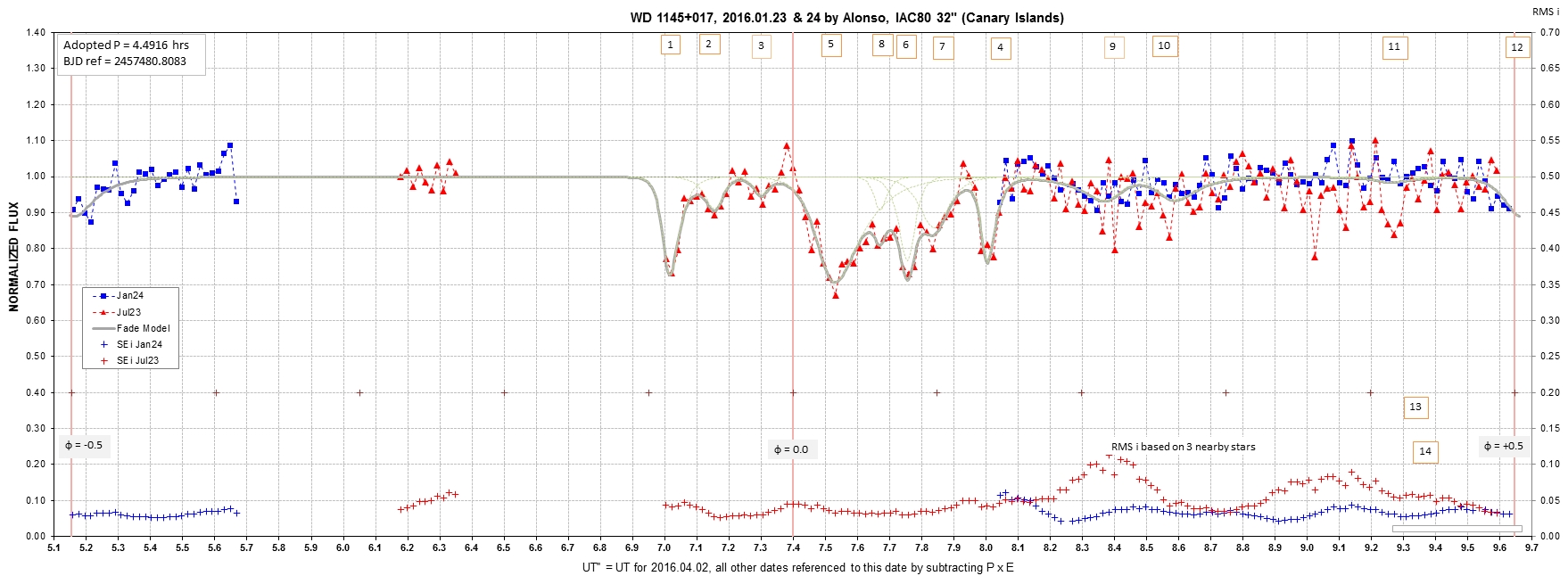

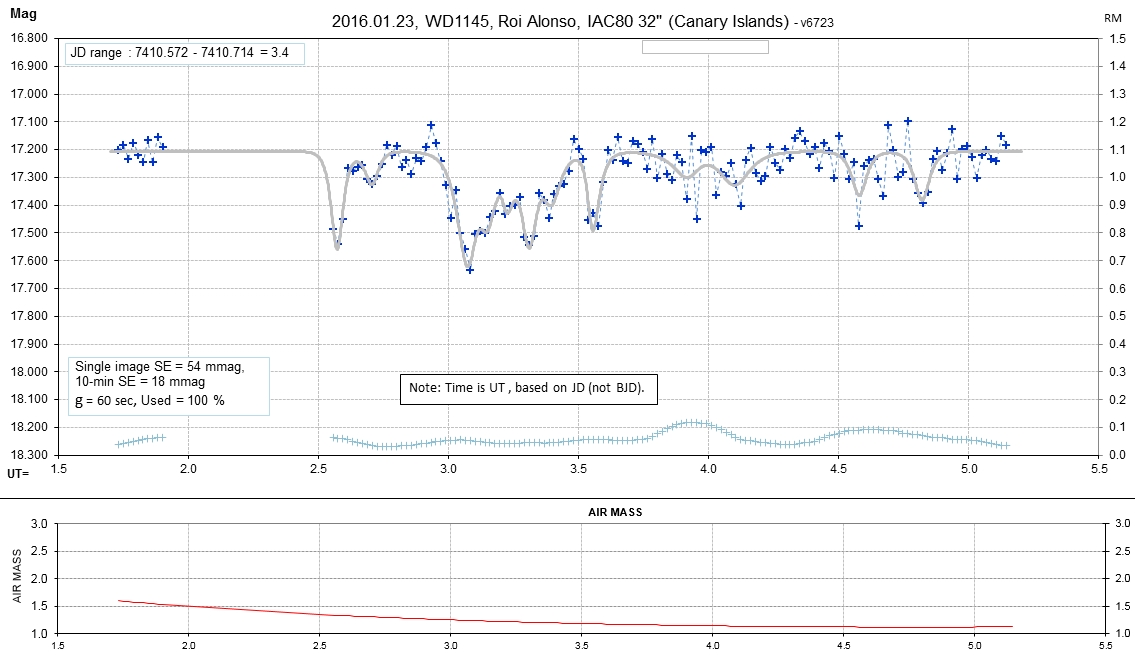

2016.01.23 Alonso IAC80







2016.01.19 Alonso IAC80

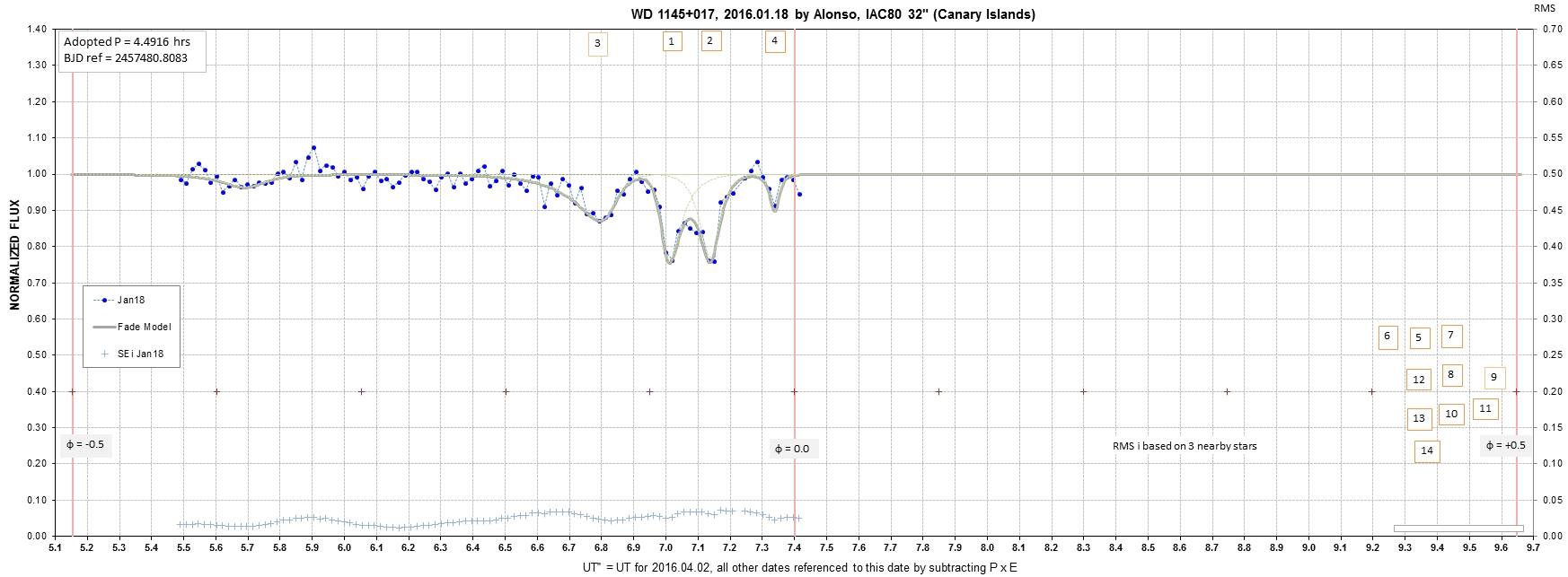

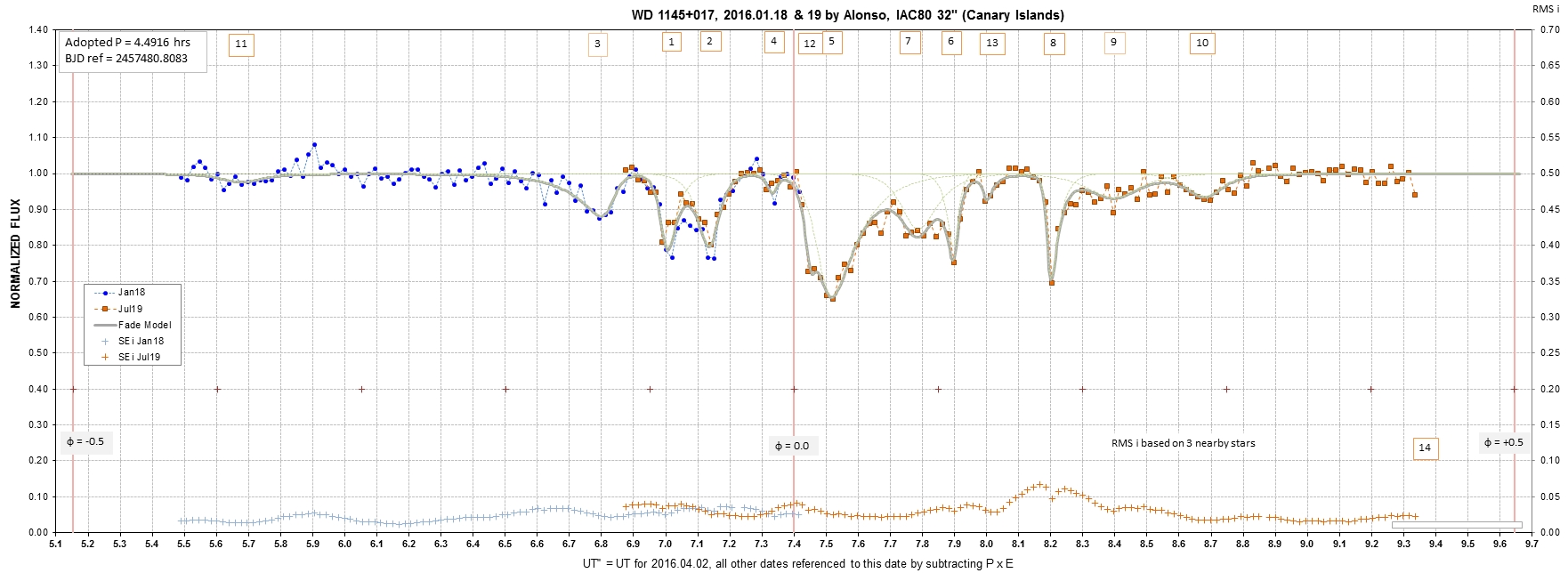

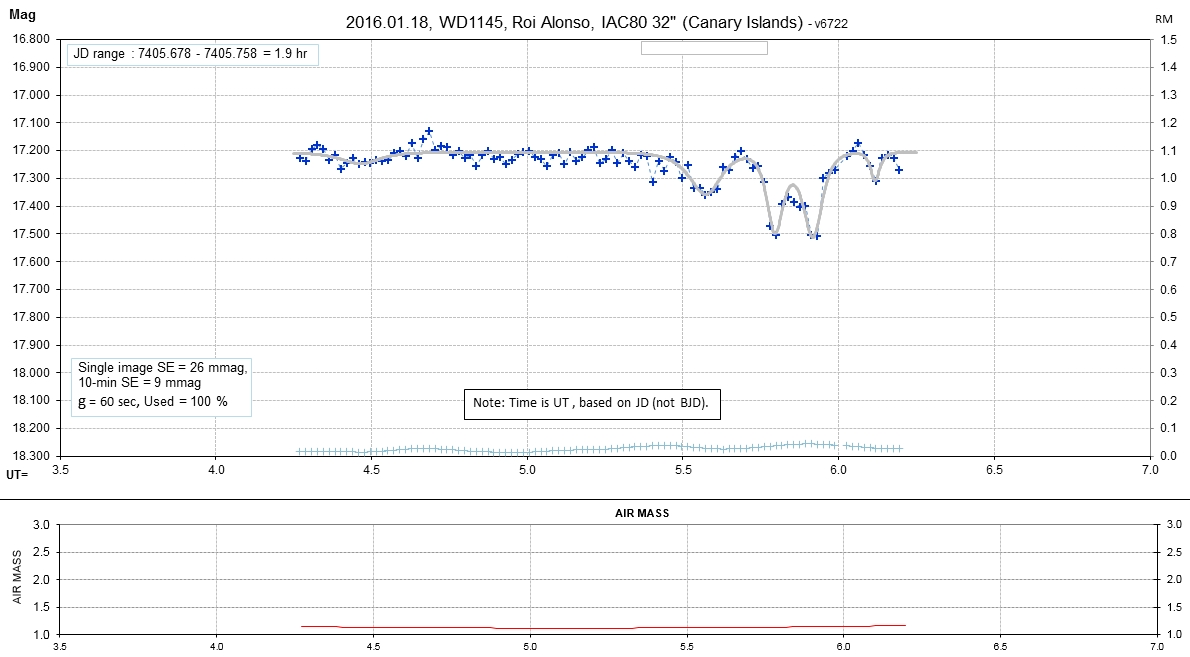

2016.01.18 Alonso IAC80

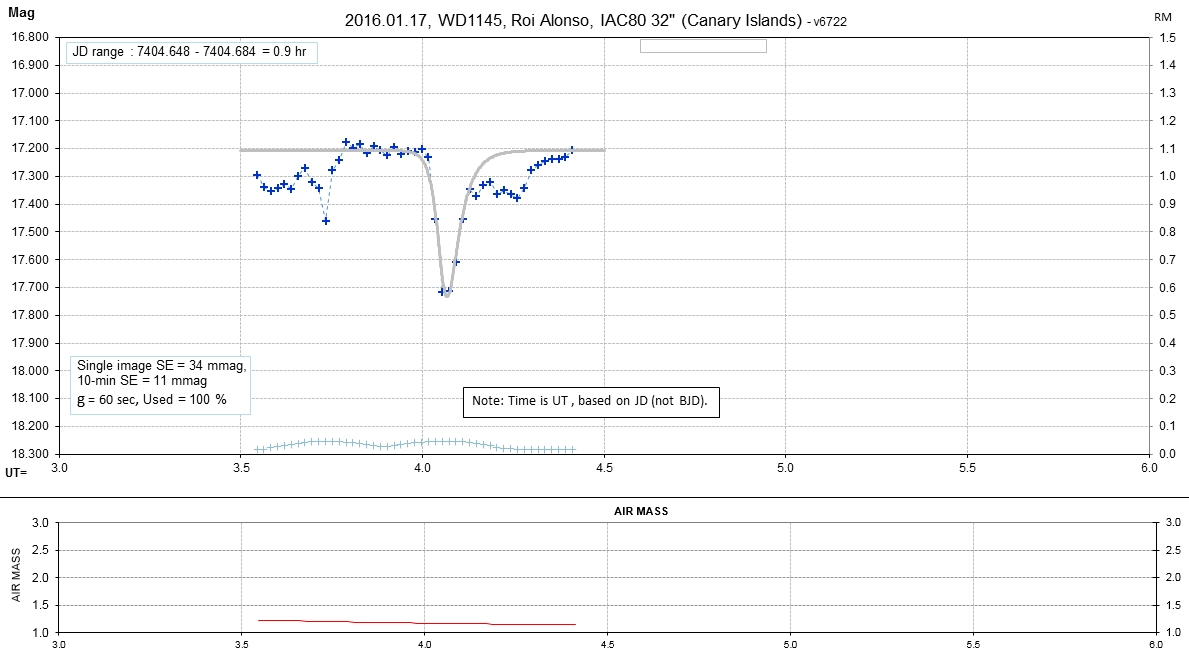

2016.01.17 Alonso IAC80

During the 1960s and 70s the culture was collegial; astronomers helped each other get established, and establishing a career required only a +2-sigma IQ and a love of the subject. We helped each other, and shared what we were doing without suspicion. During the 70s I transitioned into the atmospheric sciences, and lost track of the culture of astronomy, except for occasional grumblings by former colleagues. I recall MJ complaining, during the 1980s, that getting funded required being part of an "old boy's club."

After retiring in 1998 I remembered the fun of my childhood astronomy hobby, before college, so I bought a 10" Meade telescope and returned to astronomy as a hobbyist, an amateur. The transition from film to CCD was occurring, and as a result new observing opportunities for amateurs were opening up. I became one of the first amateurs to measure an exoplanet transit in 2002. I urged other amateurs to join in this fun, and created a web page for archiving amateur exoplanet transit LCs (AXA, with ~640 LCs). I tutored many of these amateurs so they could produce scientifically useful light curves. A few professional astronomers took note, and I was invited to collaborate by observing exoplanet candidate stars (the XO Project). Later I began a consulting arrangement with Vanderbilt University (i.e., KELT), lasting ~ 3 years.

I slowly started to take a new reading of the professional astronomy culture. It seemed that the most striking change was an out-of-balance supply/demand ratio; in other words, there were too many young PhD astronomers competing for the funding available from NASA and NSF. It occurred to me that universities were graduating too many PhD astronomers because it allowed them to maintain teaching staff.

After a couple years consulting for an asteroid astronomer, I gained some insight into the funding atmosphere for that discipline. That's where I learned about the new need for sharp elbows, keeping secrets and bitter competition for recognition. More recently I learned something from working with a young WD astronomer, in which my role was creating a group of amateurs for providing all the observations.

I have come to realize the role of secrecy in creating a career in astronomy. Using others without their knowing it is also helpful. Accepting co-authorship without contributing is acceptable. Anything, in short, that promotes securing employment defines the new astronomy culture. I'm not overlooking the role of intelligence and knowledge; it's just that those are merely a minimum requirement. Having a +3-sigma IQ, and being highly motivated, are just the entry ticket for achieving a career in astronomy because those other new skills that I've recently learned about have become important. I sense the loss of "spontaneous fun" within this new culture, so it may now be secondary. And there's also a loss of trust. It is now necessary to think twice about a colleague's motives. For example, does that person have an affiliation with another group of astronomers doing work that competes with what we're doing together, and is he passing secrets. Who is going to beat us in publishing similar work, knowing from an informant our publishing schedule.

For some people, this may be fun; but not me! I'm old fashioned, and accustomed to openness and trusting relationships. If this is unfeasible, then count me out. I'll restrict my future collaborations to other amateurs. For this reason I am proud to be an amateur again!

The rest of what I originally wrote for this section might be considered a "rant" that's a bit too truthfully ugly for this web page. If anyone wants to read it you'll have to ask me for the web page PW. The username is "123" but to get the PW you'll have to e-mail me (see bottom of this page). The rant is located at link.

Finder Image


WD1145 is at 11:48:33.59 +01:28:59.3 (J2000). FOV = 27 x 18 'arc, northeast at upper left.
