WASP-15
AXA Light Curves

Links internal to this web page:
    Comments
    Basic data
    Table Summary of transit measurements
    Transit LCs - Amateur
    Transit LCs - Professional
    OOT LCs
    Finder image

Comments on LCs on this web page:

Discovery paper is not yet in the public domain.

Basic Data

    RA = 13:55:42.7, DE = -32:09:35
    Season = April 18
    V = 10.9, B ~ 11.3, R ~ 11.0
    HJDo = 4584.69823 (29) & P = 3.7520656 (28) day (Schneider listing in Extrasolar Planets Encyclopaedia)

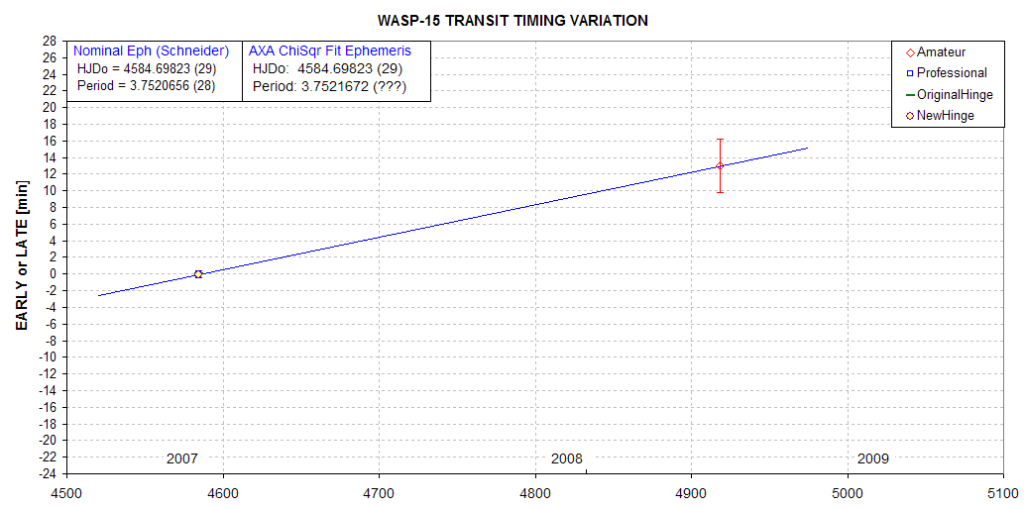

    HJDo = 4584.69??? (??) & P = 3.75217 (??) day (AXA fit)

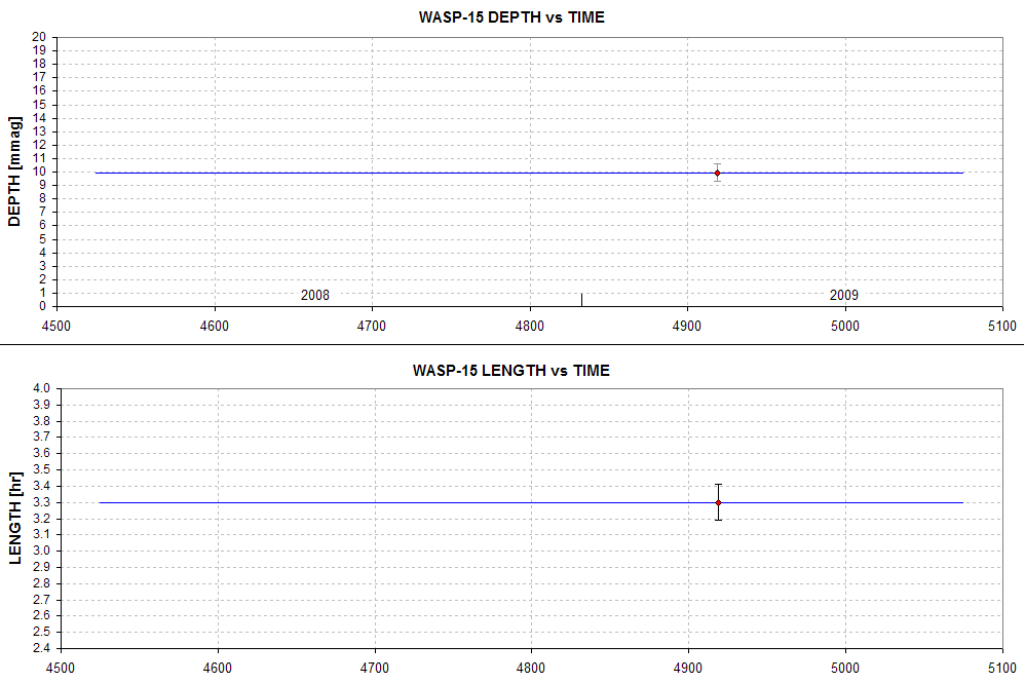

    Depth = 11.5 ± 1.5 mmag (R-band)
    Length = 3.5 ± 0.15 hr
    Impact parameter = 0.57 ± 0.04

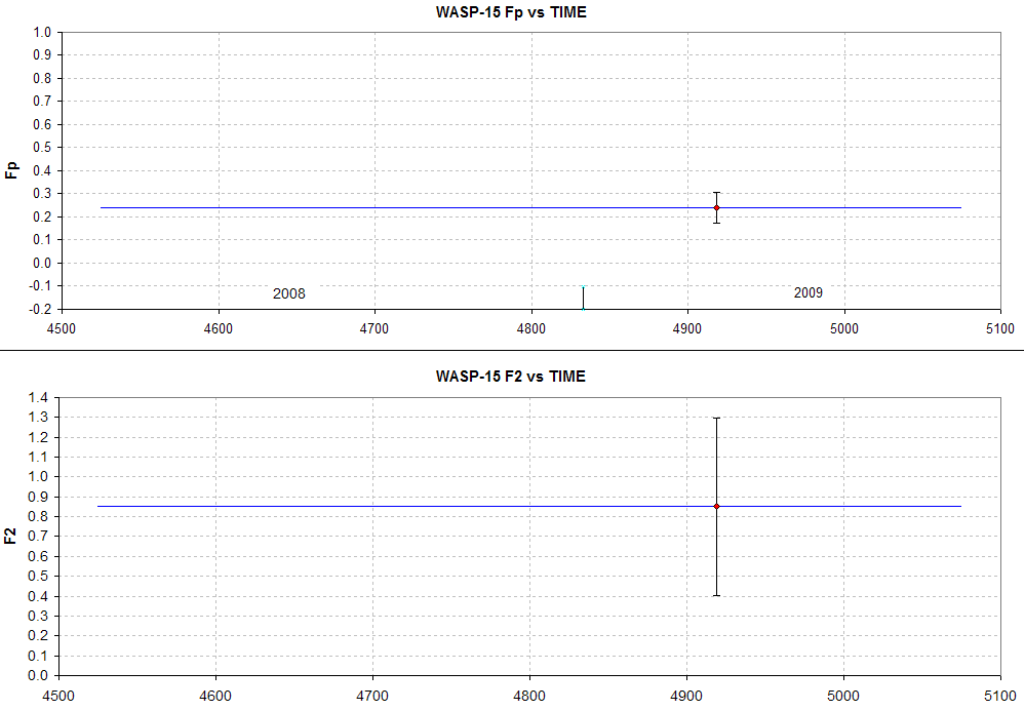

    Fp = 0.24 ± 0.15, F2 = 0.85 ± 0.45

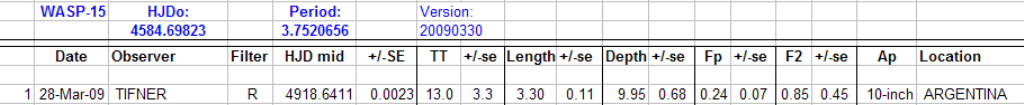

Summary of Transit Measurements







Transit Light Curves - Amateurs

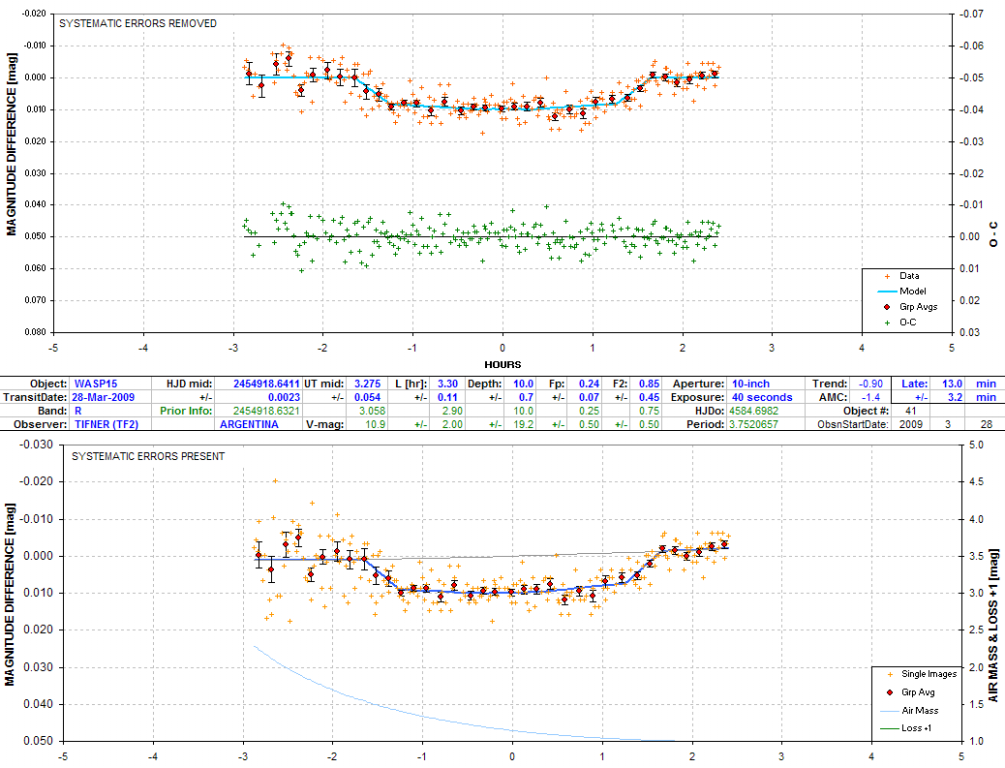

9328TF21


Transit Light Curves - Professionals

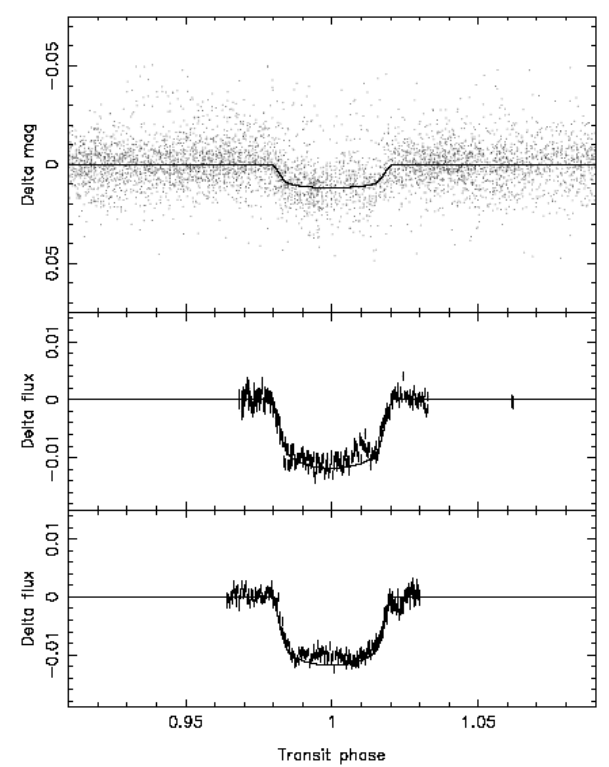

Light curve from discovery paper (West et al, 2009, see below). Top panel: WASP wide field survey camera folded LC. Middle panel: EULER I-band (1.2 meter telescope). Bottom panel: EULER R-band. My reading gives D = 12.5 ± 1.0 mmag and L = 3.6 ± 0.1 hr.

Out-of-Transit (OOT) Light Curves



Finder Image


Discovery Paper: West, R. et al, 2009  (http://fr.arxiv.org/abs/0902.2651)

Return to calling web page AXA

WebMaster: Bruce L. Gary. Nothing on this web page is copyrighted. This site opened:  2009.03.30.  Last Update: 2009.04.04
