WASP-12
AXA Light Curves

Links internal to this web page:
    Comments
    Basic data
    Table & plots of of AXA transit measurements
    Amateur Transit LC's
    Professional Transit LC's
    OOT LCs
    Finder images
    References

Comments



Basic data

    RA = 06:30:32.8, DE = +29:40:20
    Season = December 30

V = 11.69, B = 12.11, (B-V=0.42), I = 11.03, J = 10.48, K = 10.19
    HJDo = 4508.9761 (2) and P = 1.091423 (3) days (as listed in Schneider's Extrasolar Planets Encyclopaedia, HJDo corrected from earlier value)
    HJDo = 4508.97603 (38) and
P = 1.091426 (3) days (as derived from AXA submitted data)
    D = 17.2 ± 1.3 (R & C-band), Depth = 16.5 ± 0.6 mmag (z-band )
    Length = 2.92 ± 0.02 hr (z-band & C-band)

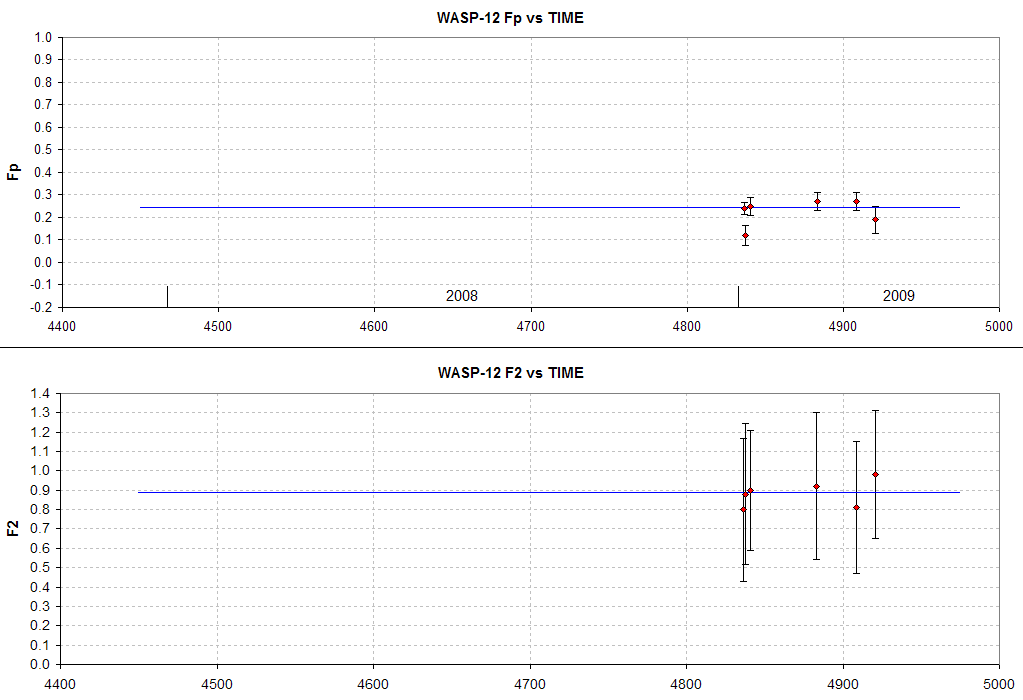

    Fp = 0.24
± 0.07, F2 = 0.89 ± 0.12

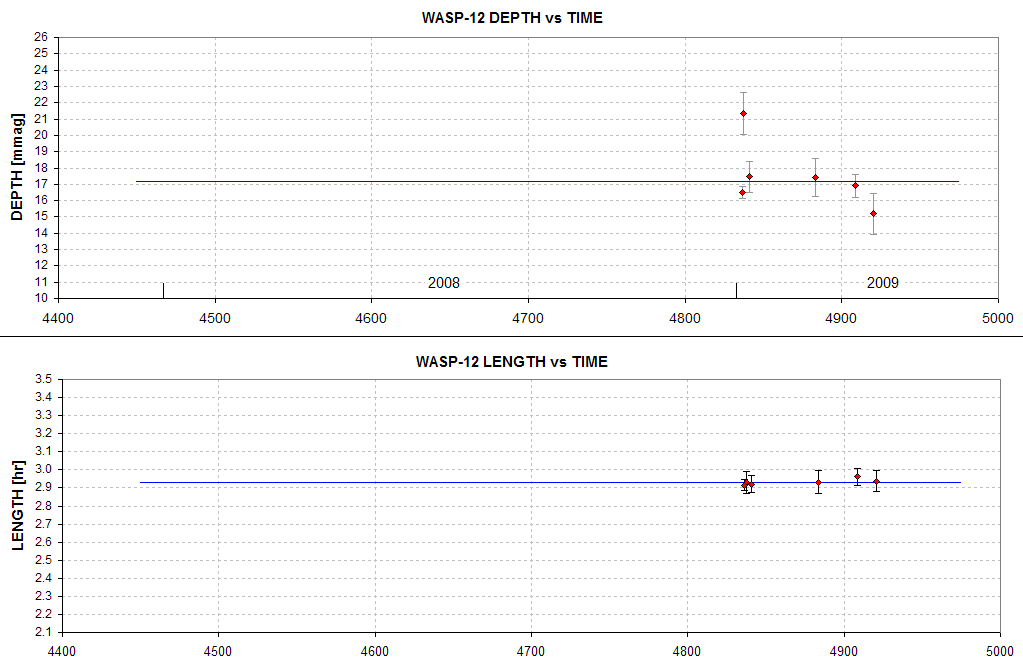

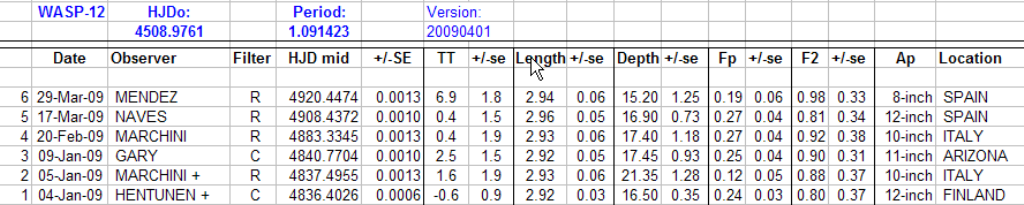

Table & Plots of Amateur Observations - No Longer Updating this Section (try Czech ETD)










Amateur Light Curves

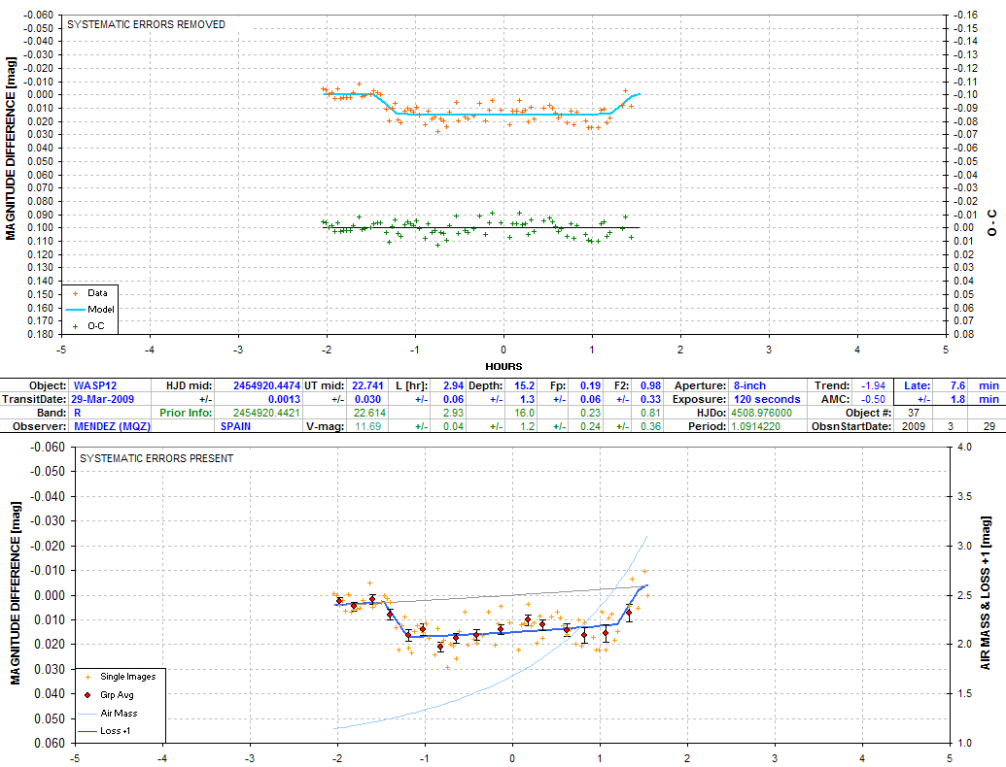

9329MQZ1

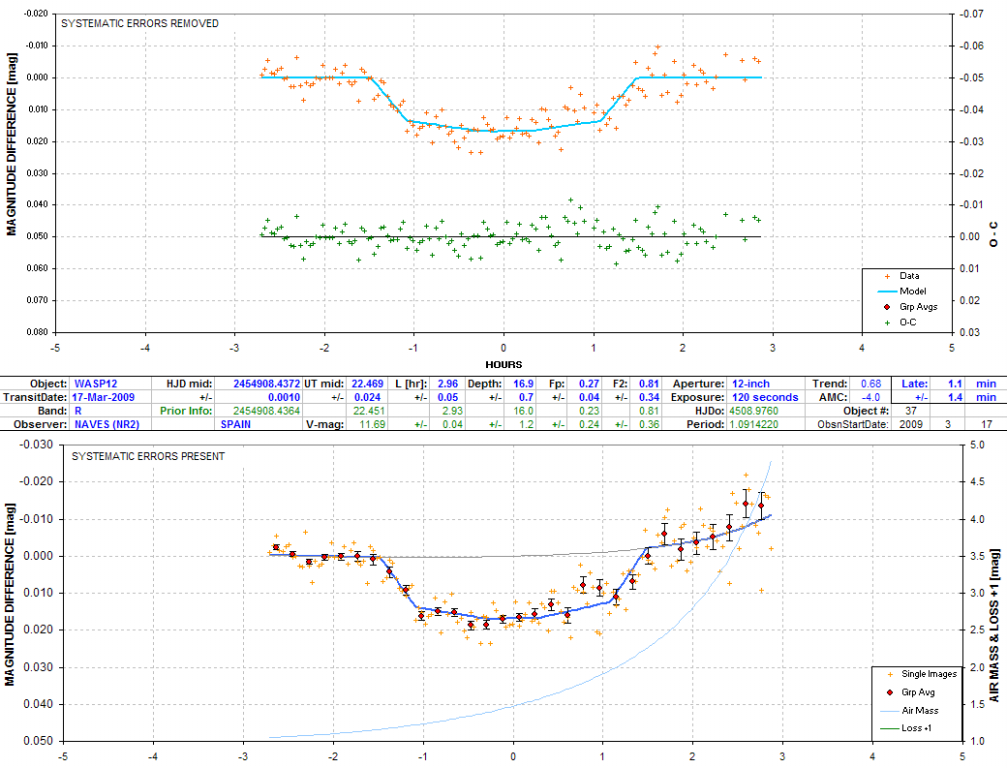

9317NR2

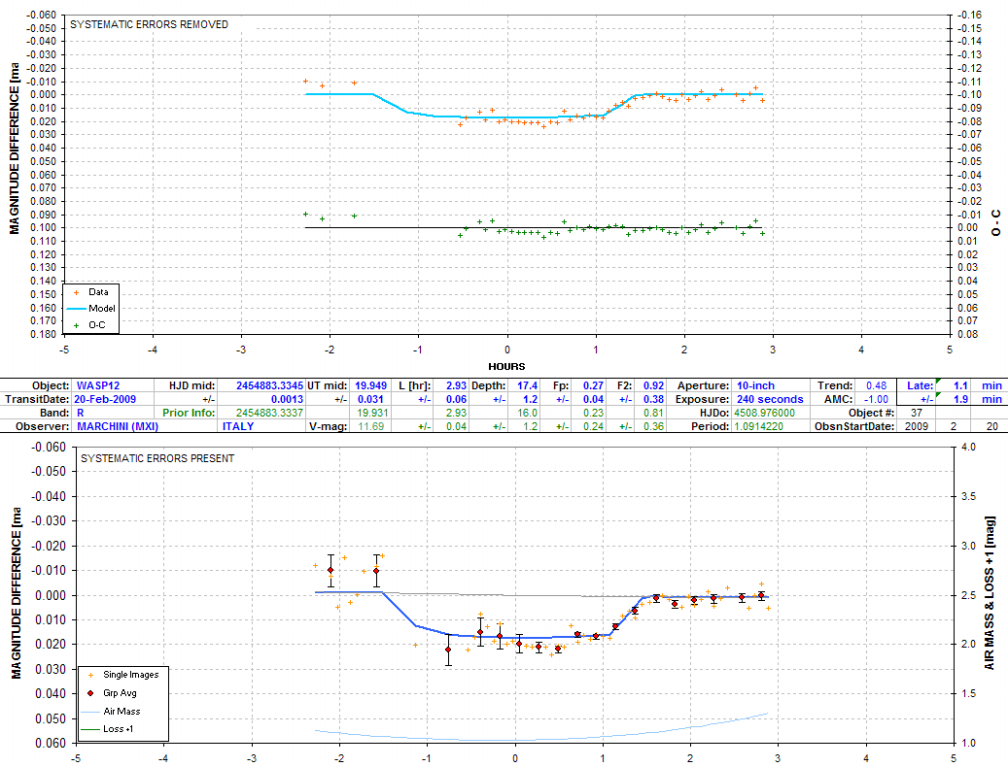

9220MXI1

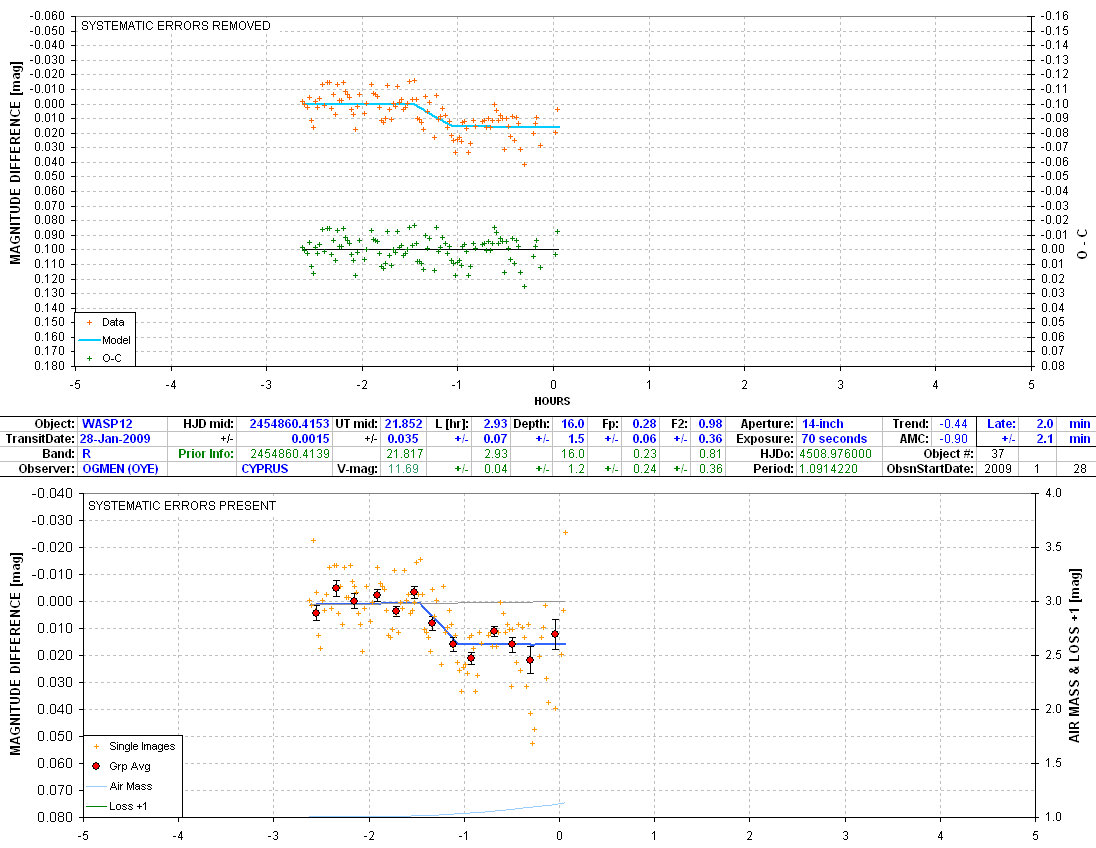

9128OYE2

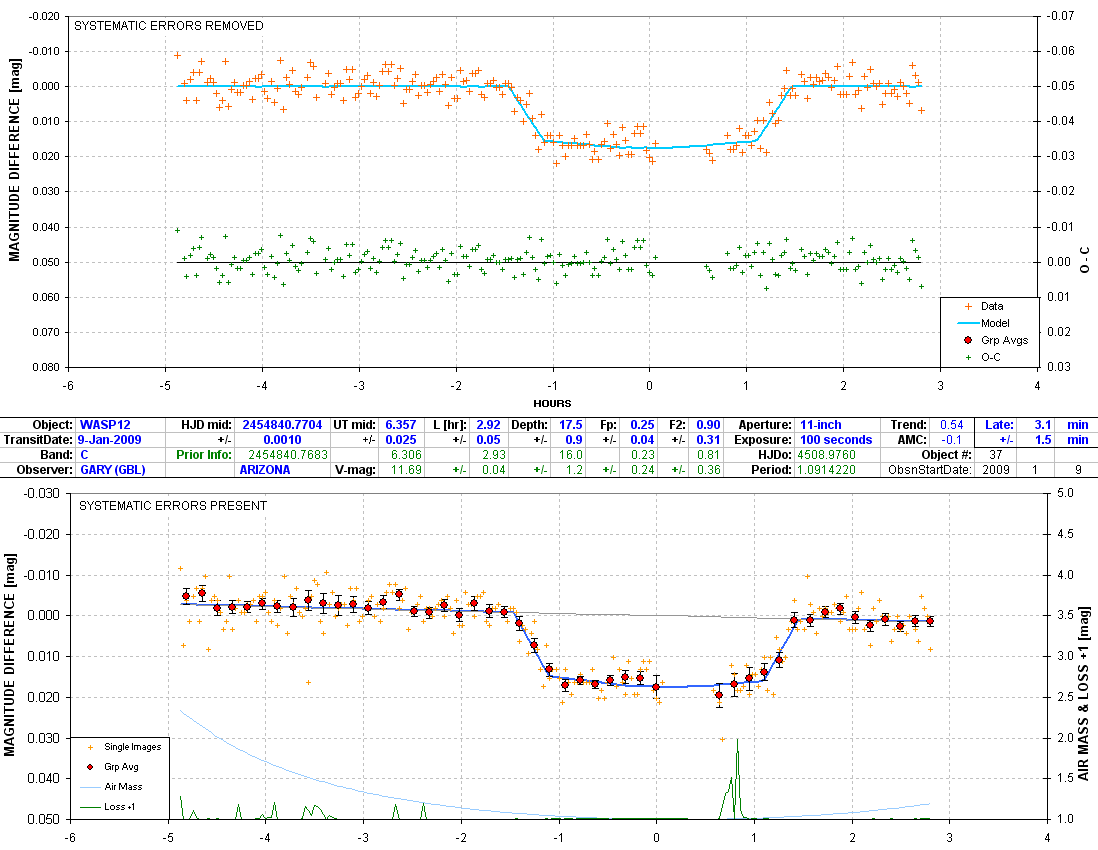

9109GBL1

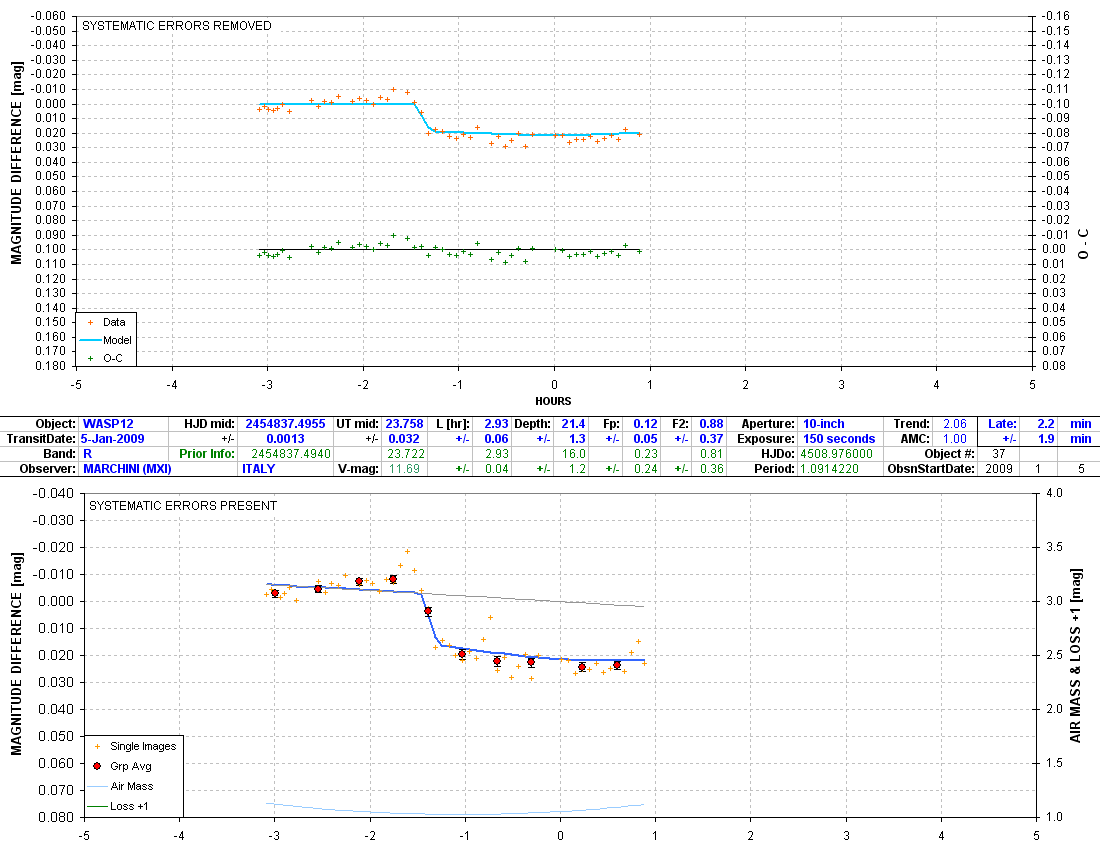

9105MXI1

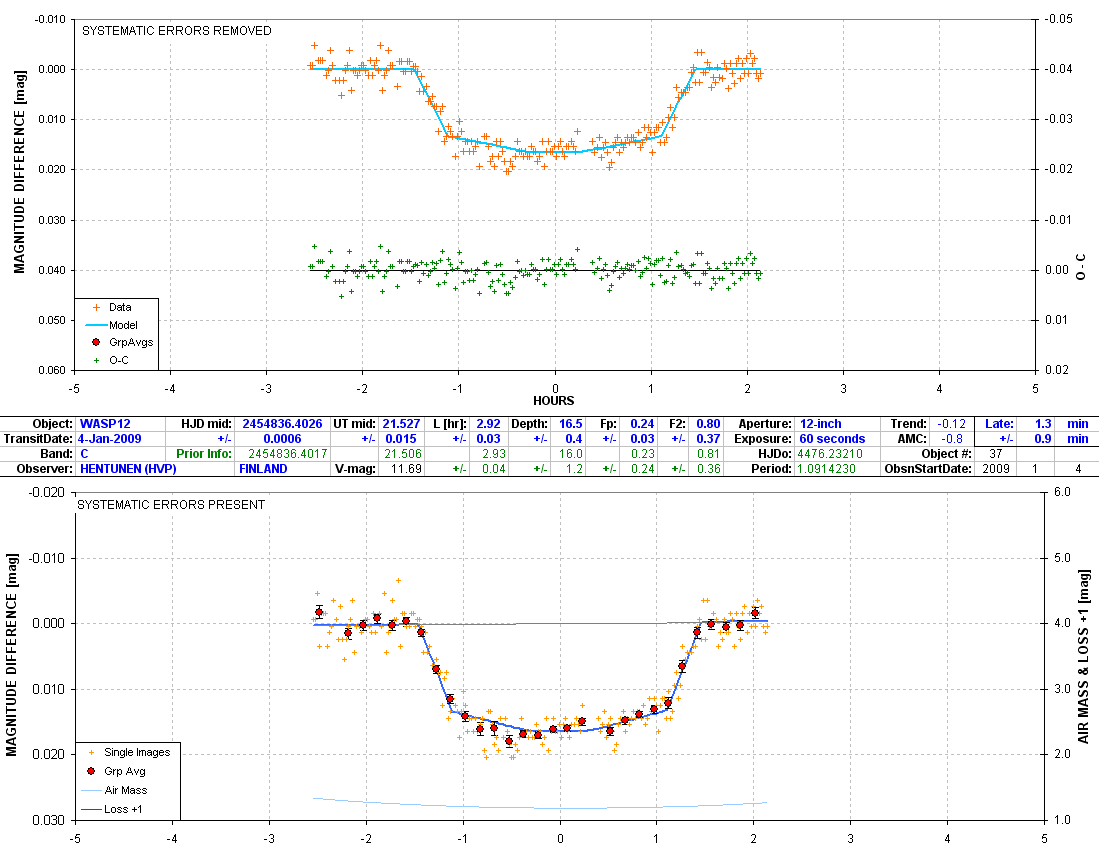

9104HVP1






Professional Light Curves

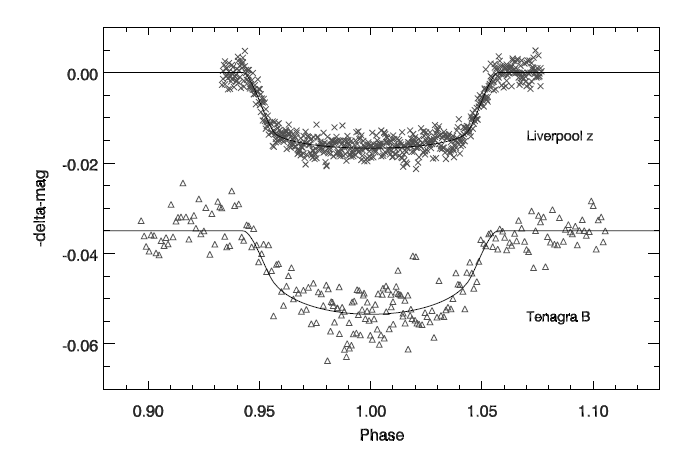

Light curve in discovery paper (Hebb et al, 2008). My reading for the z-band LC:
depth = 16.5 ± 0.6 mmag, Fp = 0.23 ± 0.12, F2 = 0.81 ± 0.18 (length = 2.93 ± 0.02 hr given in discovery paper).

Out-of-Transit (OOT) Light Curves

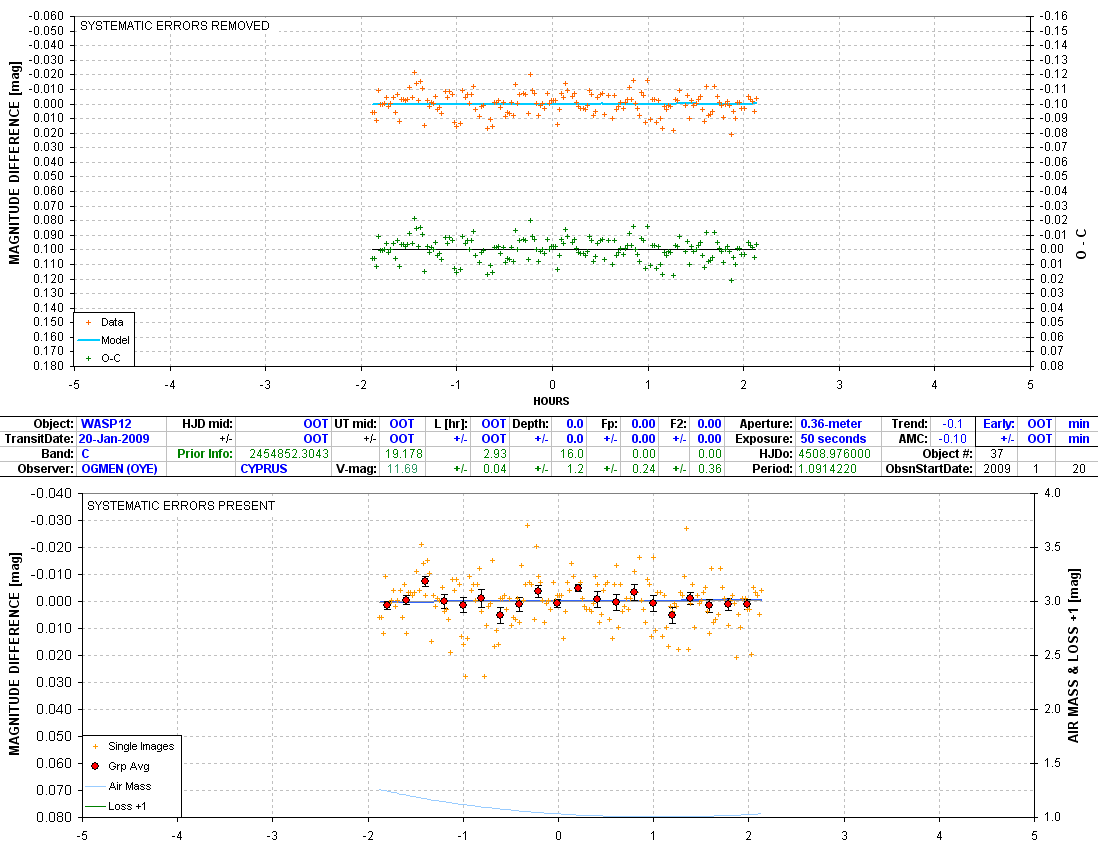

9120OYE1

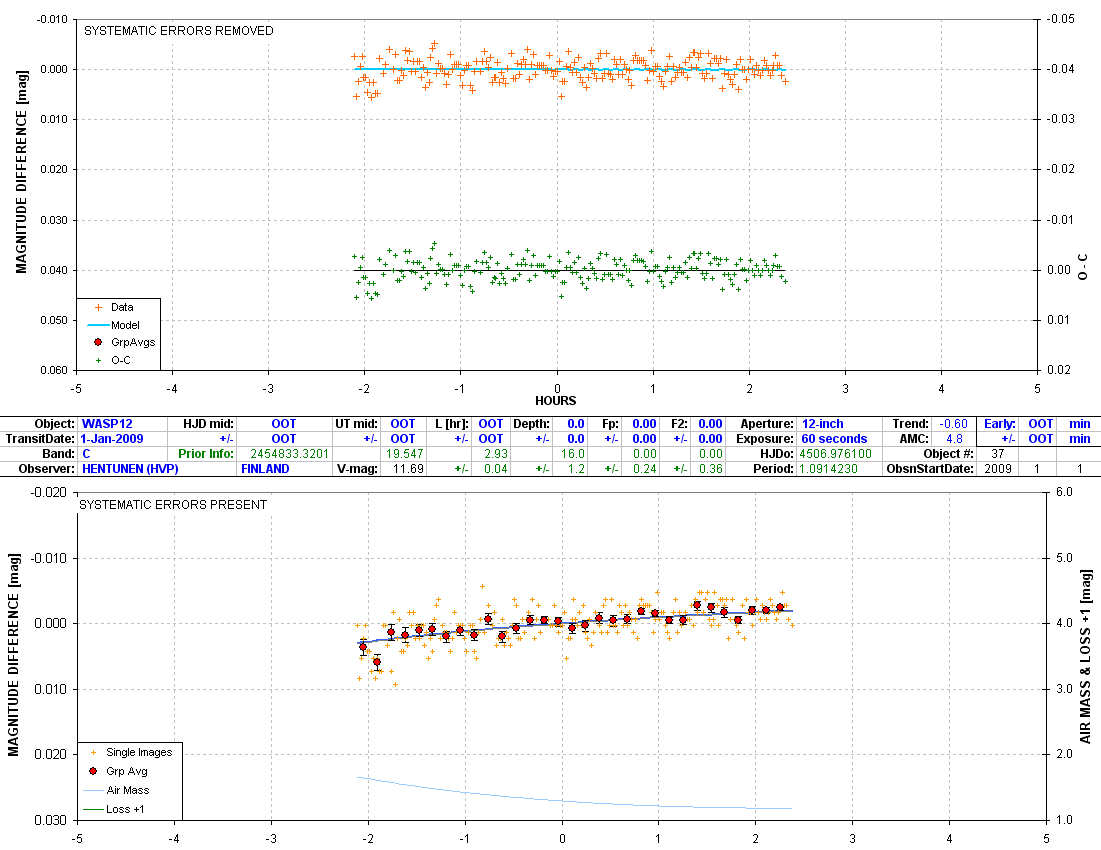

9101HVP1 If HJDo = 4506.9761 (2) and P = 1.091423 (3) were correct then there should have been a transit with mid-transit time at -0.20 +/- 0.02 hr on this time scale.  Since no such transit was observed there must be an error in HJDo = 4506.9761. I suggest that the discovery paper has a misprint such that HJDo = 4506.7961 instead of 4506.9761.

Finder Charts


FOV 15x12 'arc, north up, east left.


References
Discovery paper: Hebb, L. et al, 2008: arXiv:0812.3240v1 (submitted & under review)


Return to calling web page AXA

____________________________________________________________________

WebMaster: Bruce L. GaryNothing on this web page is copyrighted. This site opened:  2008.12.18  Last Update:  2009.04.01
