TrES-2
AXA Light Curves

Links internal to this web page

    Comments
    Basic data
    Table of observations
    Transit LCs
    OOT LC
    Finder image

Comments on LCs on this web page

Basic data

    RA = 19:07:14, Decl = +49:18:59
    Season = July 08
    V = 11.41, B-V =
    HJDo = 3957.6358
    P = 2.47063 day
    Depth = 18 mmag (R-band)
    Length = 1.72 hr

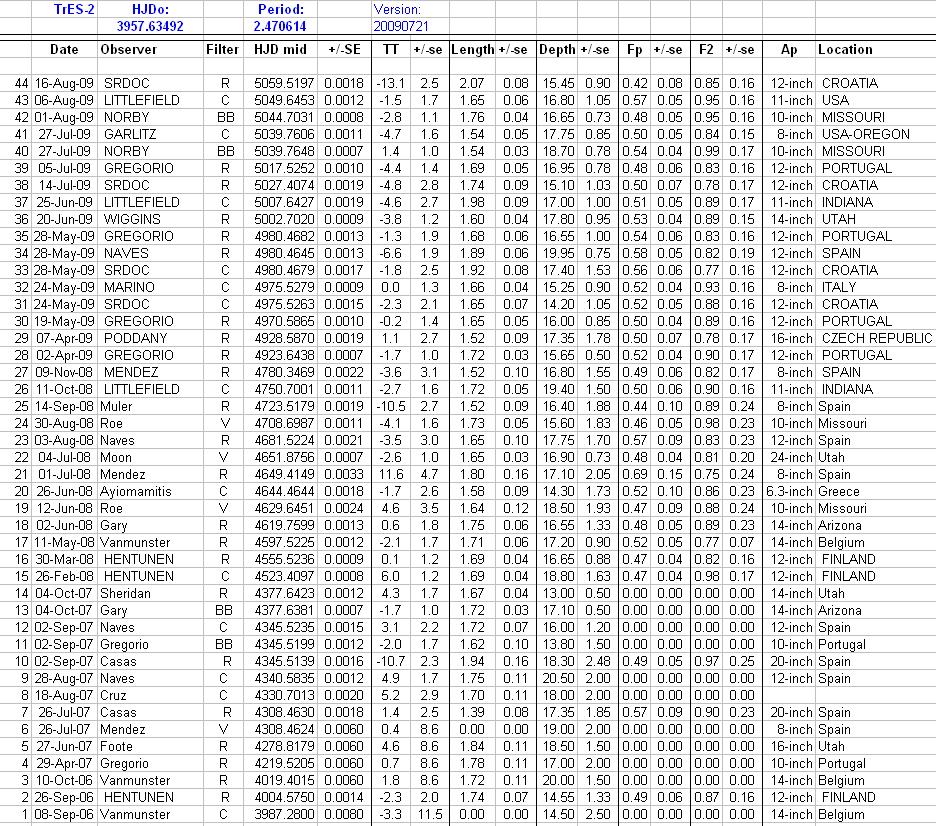

Table Summary of Transit Observations


#
 Date
 Filter
 Observer
 Depth [mmag]
 Length [hr]
 UT mid
 JD mid
 HJD mid
 HJD ephem
 dt [min]
13









12
 2007.10.04
 R
 Sheridan
 13.0 ± 0.5
 1.67 ± 0.04
 03.395 ± 0.020
 4377.6415
 4377.6423 ± 0.0008
 4377.6429
 -0.9 ± 1.2
11
 2007.10.04
 BB
 Gary
 17.1 ± 0.5
 1.72 ± 0.03
 03.300 ± 0.016
 4377.6373
 4377.6381 ± 0.0007
 4377.6429
 -6.7 ± 1.0
10
 2007.09.24
 R
 Sheridan
 18
 n/a
 n/a
 n/a
 n/a
 4366.7593
 n/a
9
 2007.09.02
 C
 Naves
 16
 1.72
 00.523
 4345.5218
 4345.5235
 4345.5247
 -1.8
8
 2007.09.02
 BB
 Gregorio
 13.8 ± 1.5
 1.62 ± ?.??
 00.440 ± ?.???
 4345.5183
 4345.5199
 4345.5247
 -6.9 ± ?.?
7
 2007.08.28
 C
 Naves
 20.5 ± 2.0
 1.75 ± ?.??
 01.825 ± ?.???
 4340.5818
 4340.5835
 4340.5835
 -8.3 ± ?.?
6
 2007.08.18
 C
 Cruz
 18 ± 2
 1.7 ± ?.?
 04.65 ± ?.??
 4330.6938
 4330.6596
 4330.7009
 -7.7 ± ?.?
5
 2007.07.26
 V
 Mendez
 19 ± 2
 ?.?? ± ?.??
 23.050 ± 0.150
 4308.4604
 4308.4624
 4308.4653
 -4.2 ± 5.2
4
 2007.06.27
 R
 Foote
 18.5 ± 1.5
 1.84 ± ?.??
 07.590 ± ?.???
 4278.0163
 4278.8179
 4278.8177
 +0.3  ?.?
3
 2007.04.29
 R
 Gregorio
 17 ± 2
 1.78 ± ?.??
 00.49 ± ?.??
 4219.5204
 4219.5205
 4219.5226
 -3.0 ± ?.?
2
 2006.10.10
 R
 Vanmunster
 20 ± 1.5 1.72 ± ?.??
 21.61 ± ?.??
 4019.4010
 4019.4015
 4019.4016
 -0.8 ± ?.?
1
 2006.09.08
 C
 Vanmunster
 14.5 ± 2.5 ?.?? ± ?.?? 18.7? ± ?.?? 3987.28??
 3987.28??
 3987.2834
 -4.0 ± ?.?

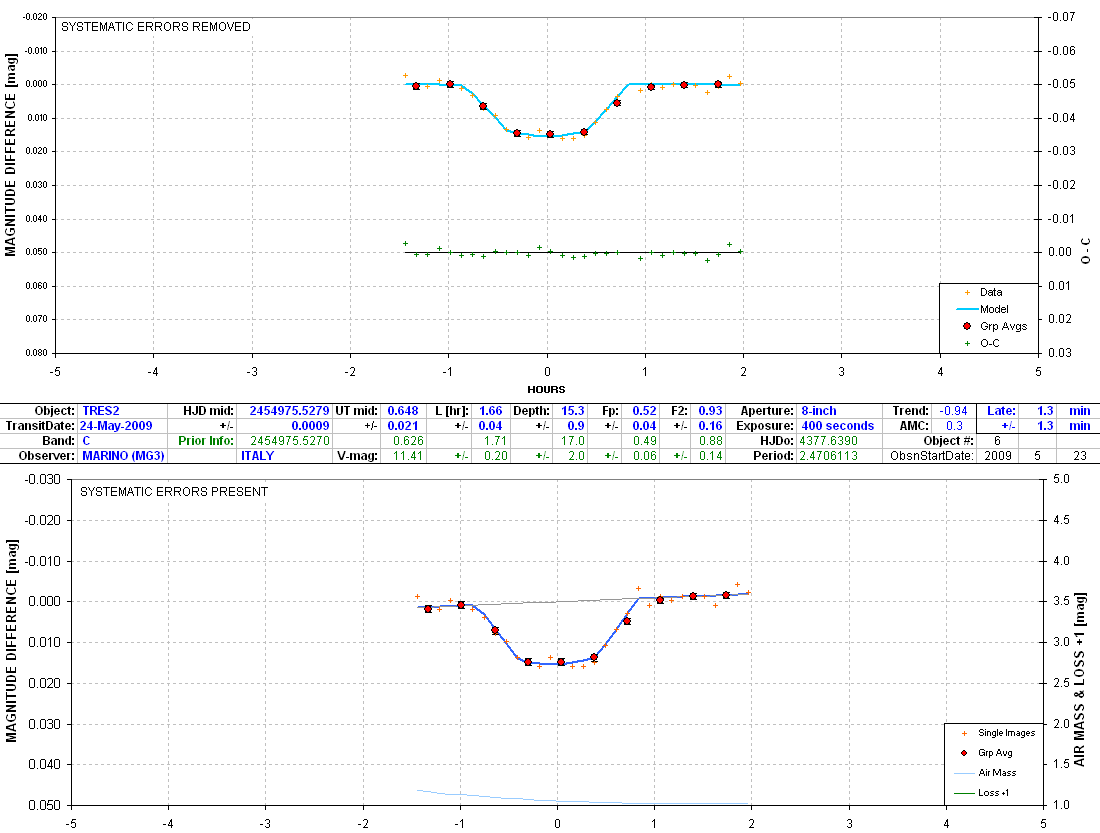

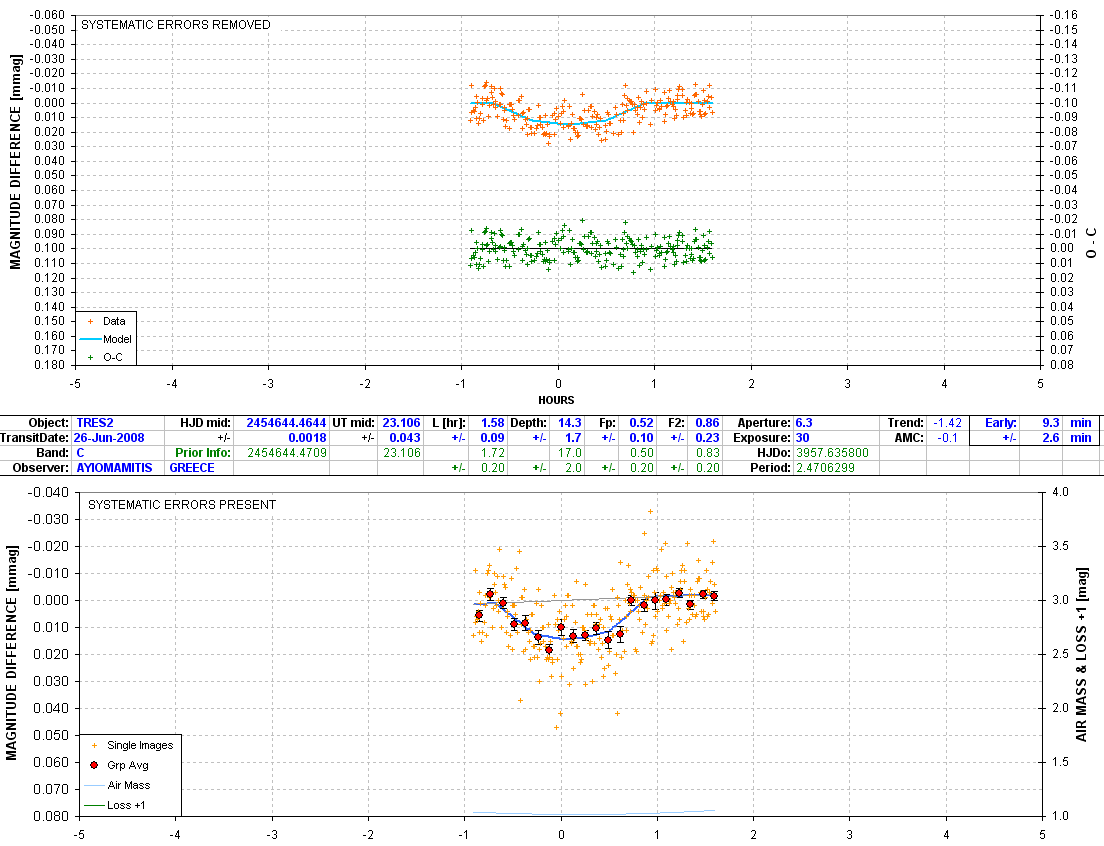

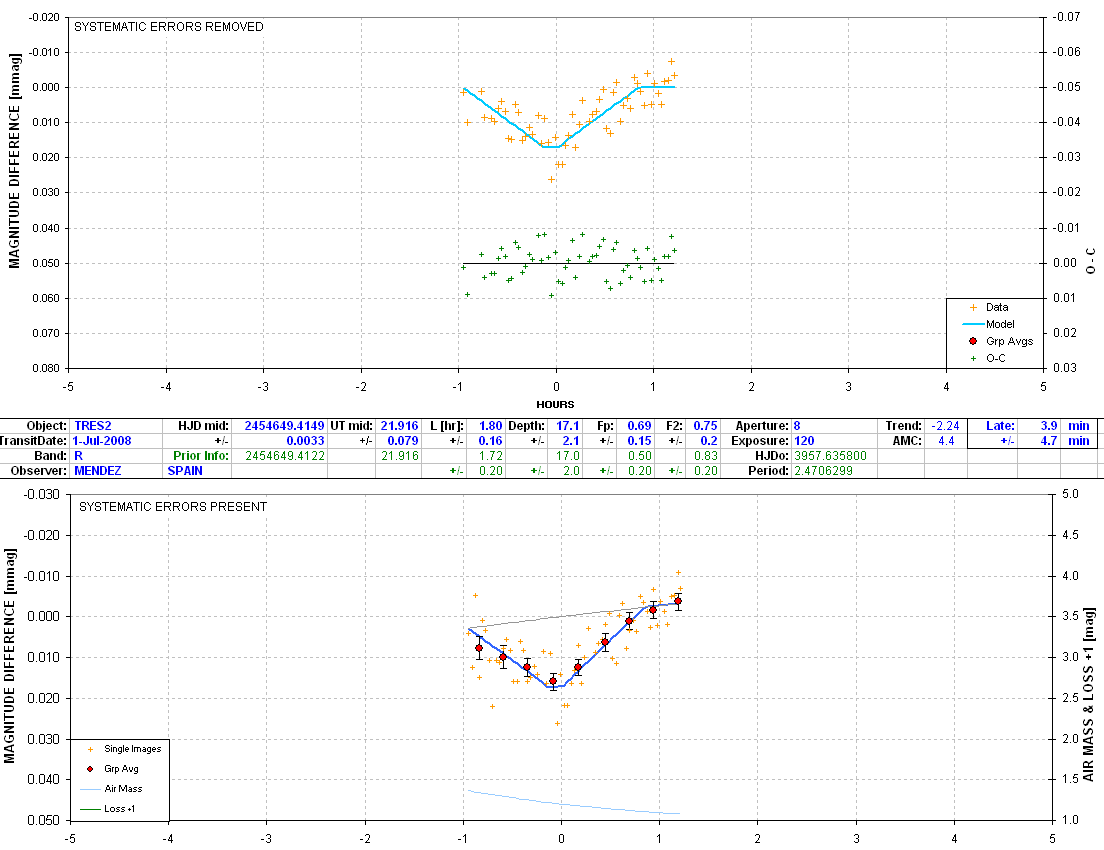

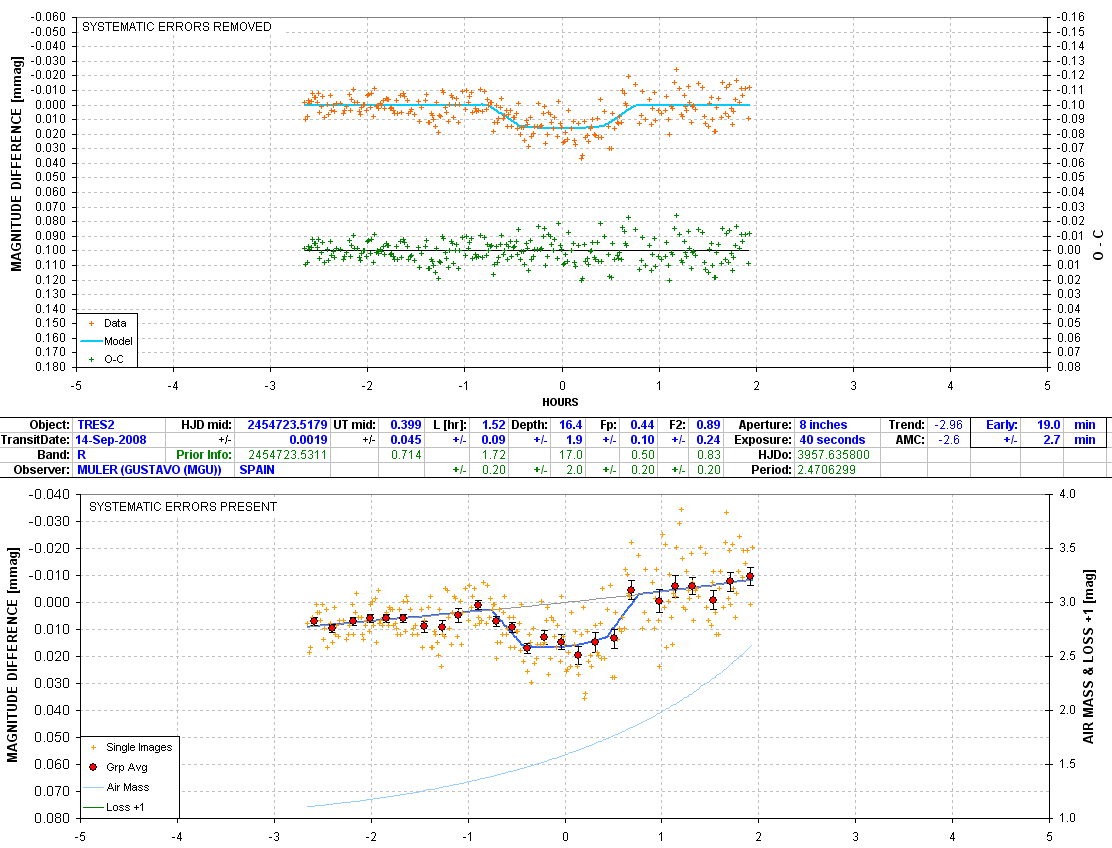

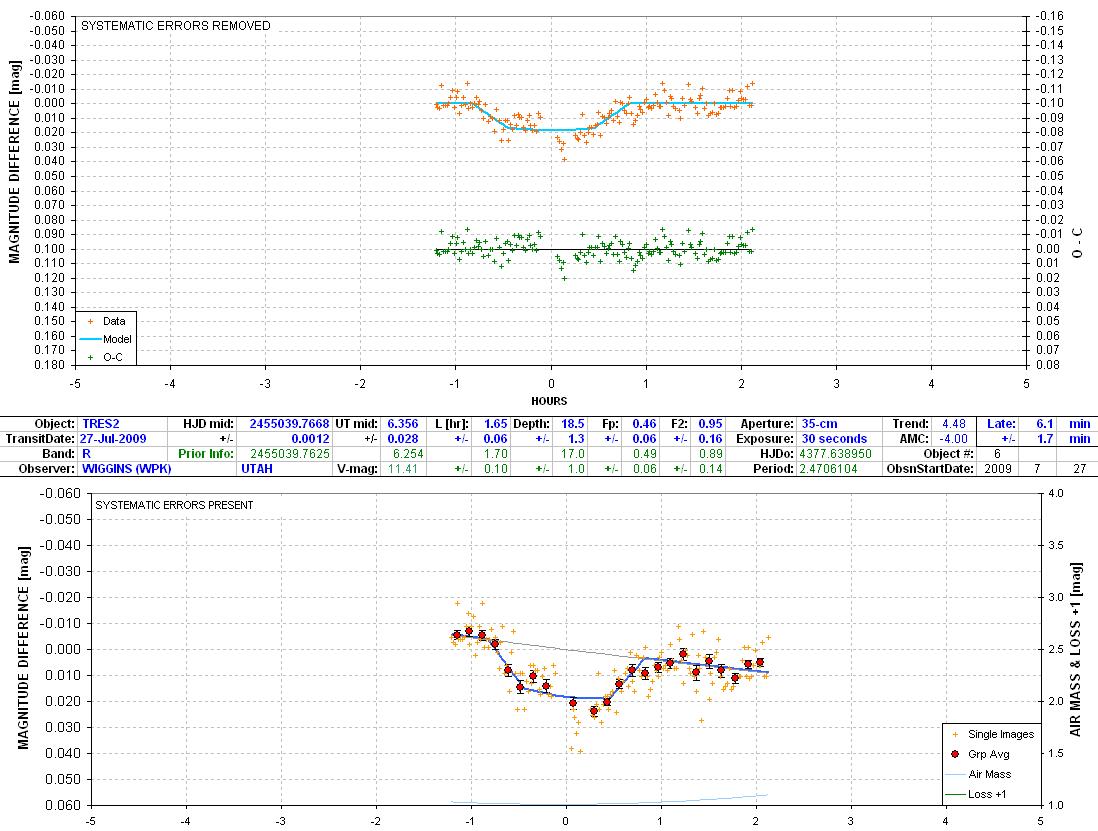

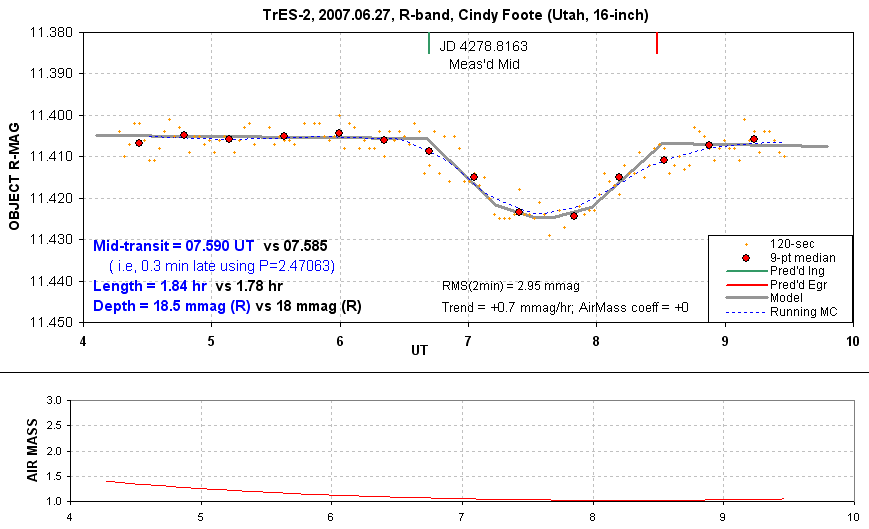

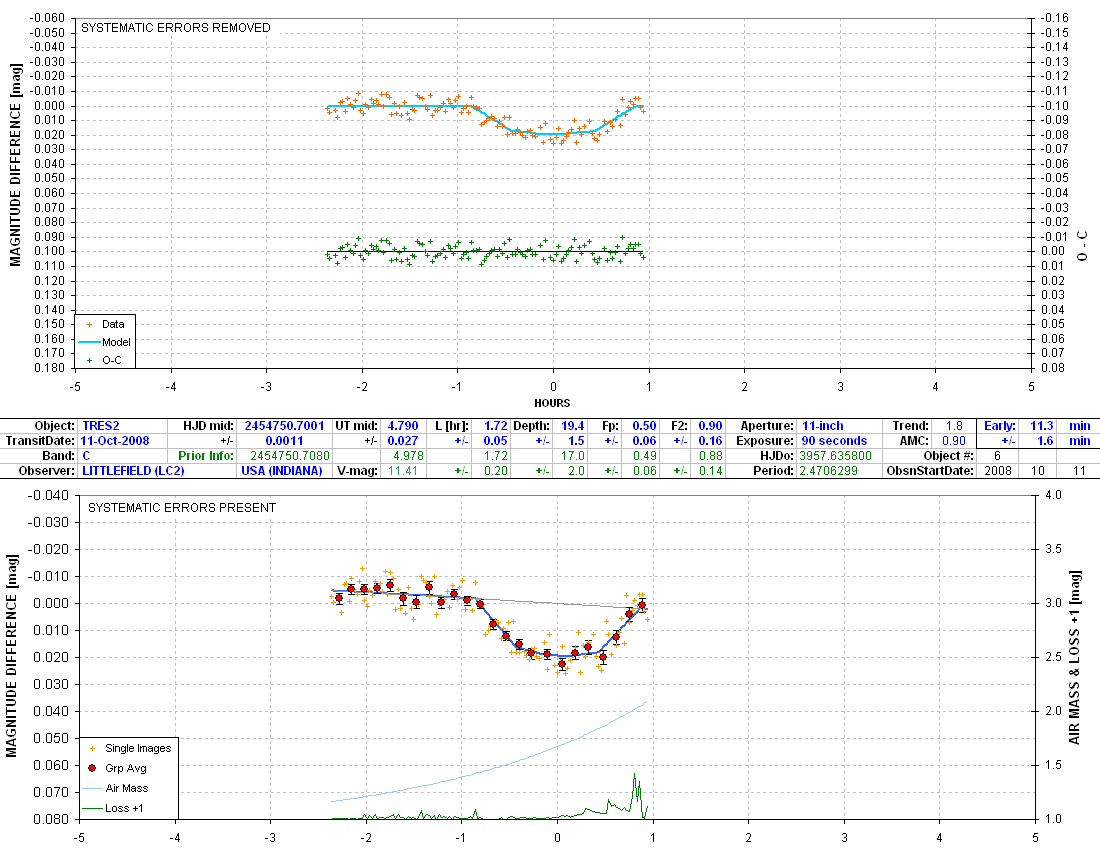

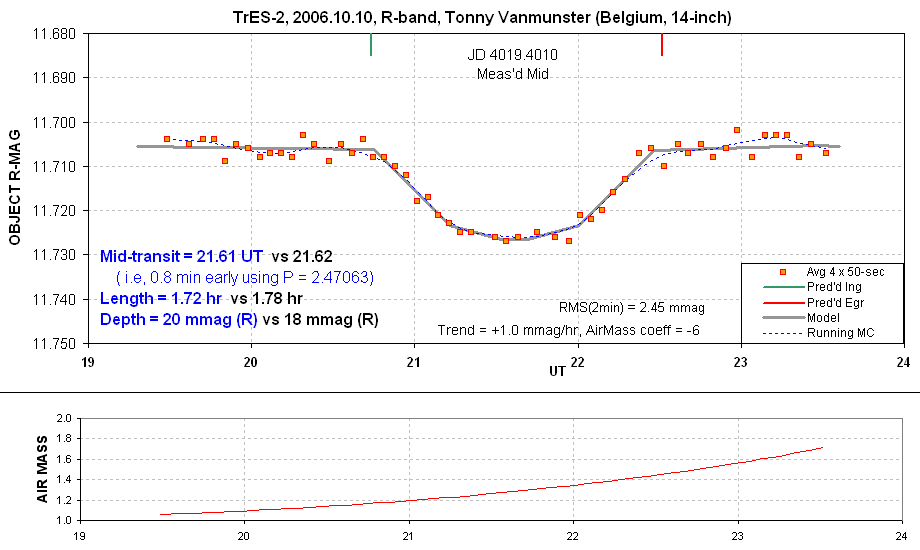

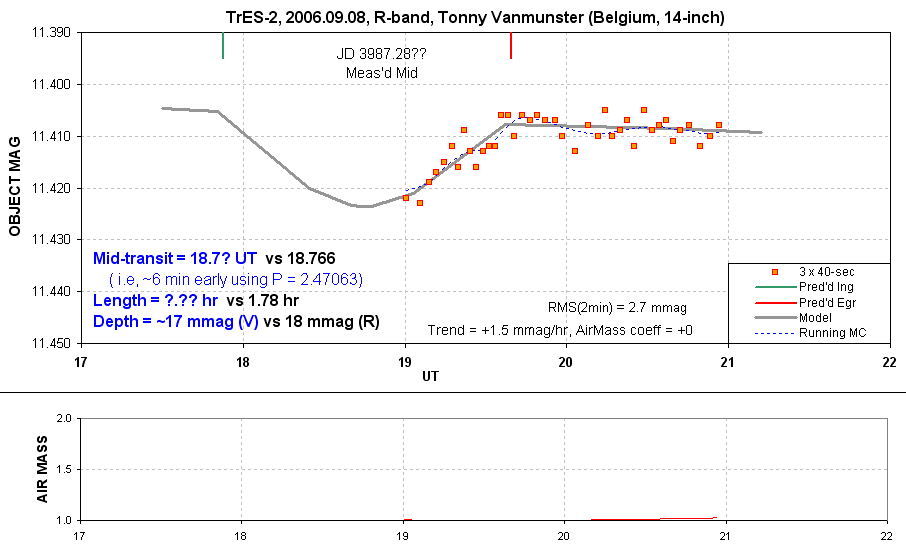

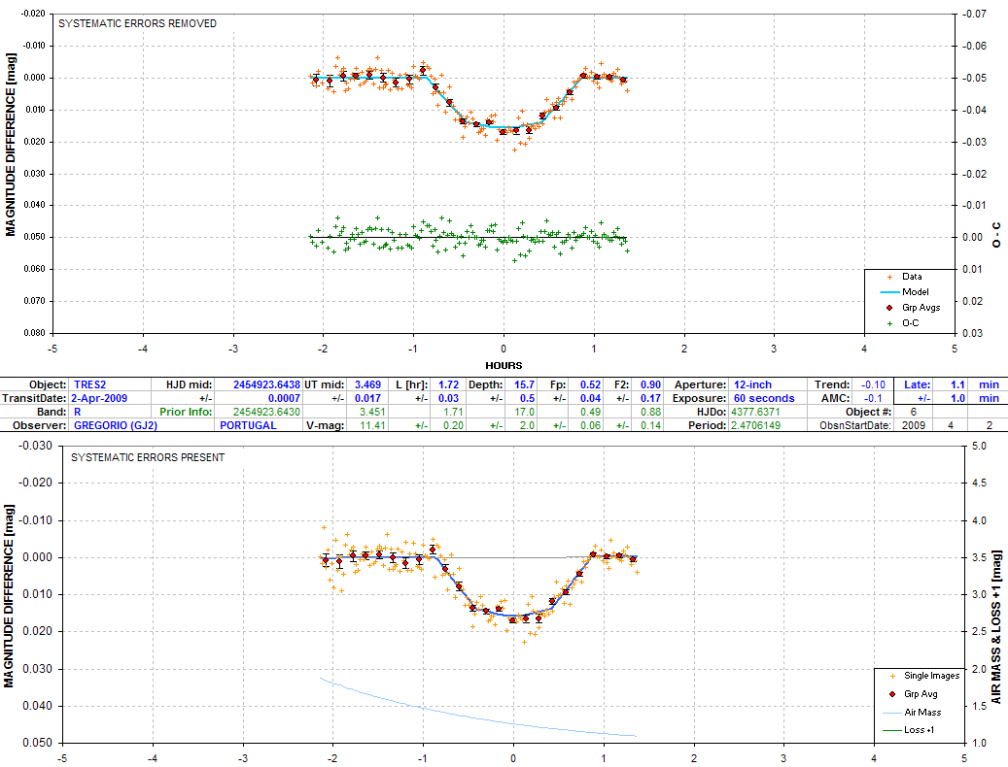

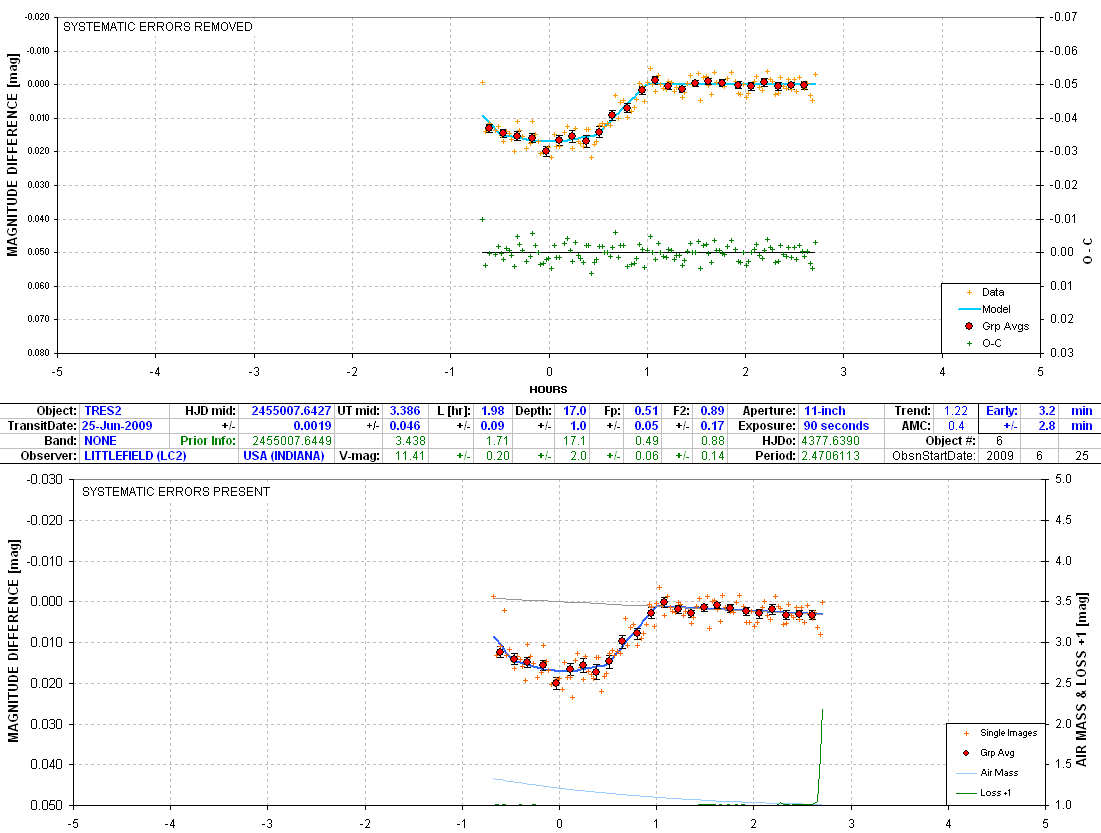

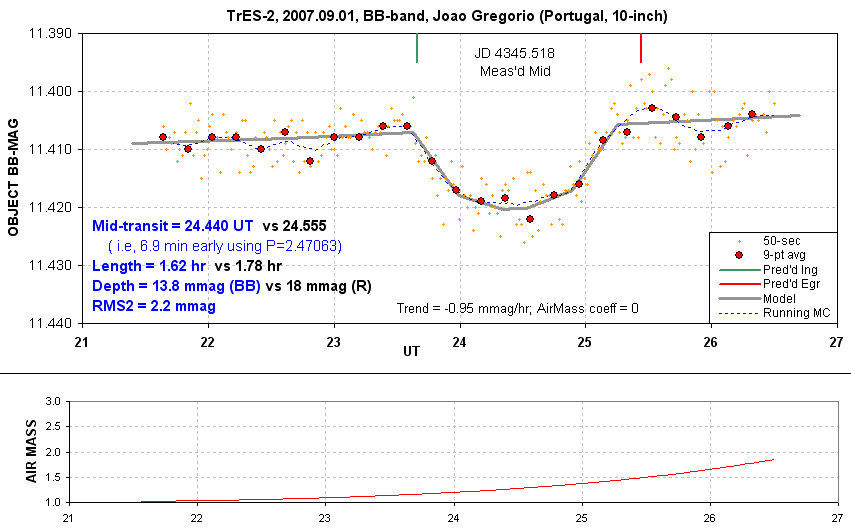

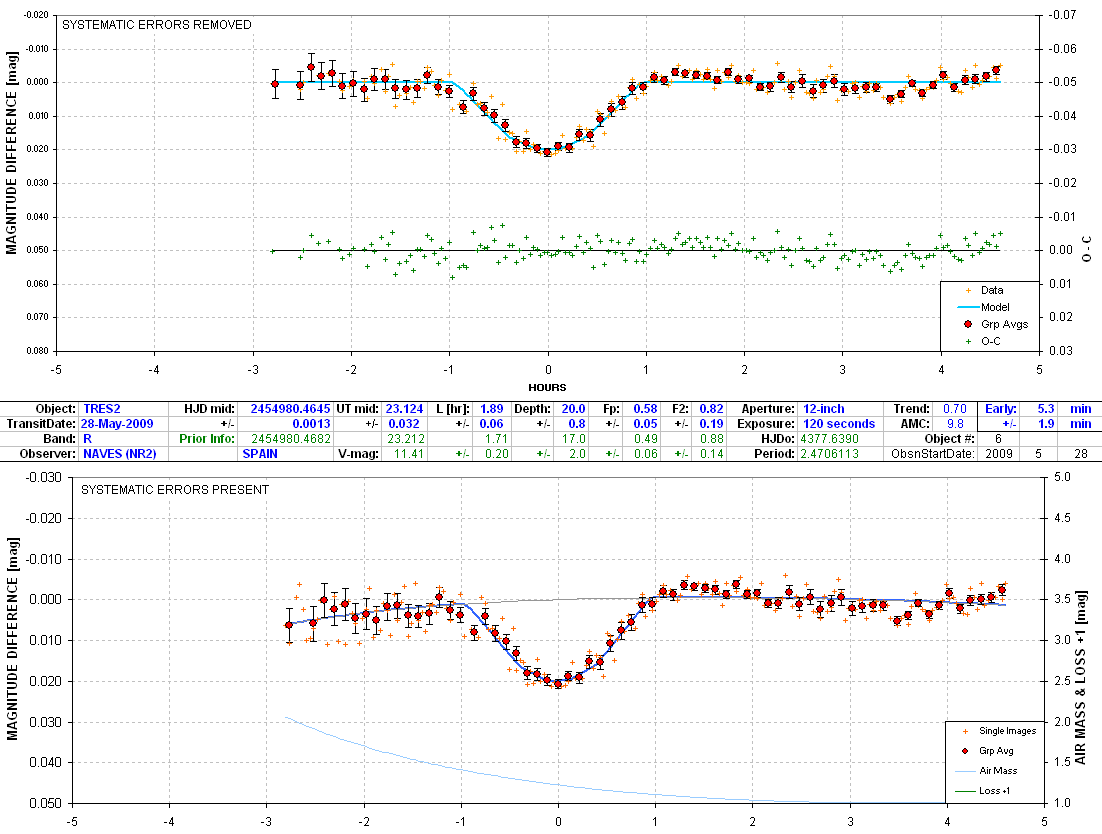

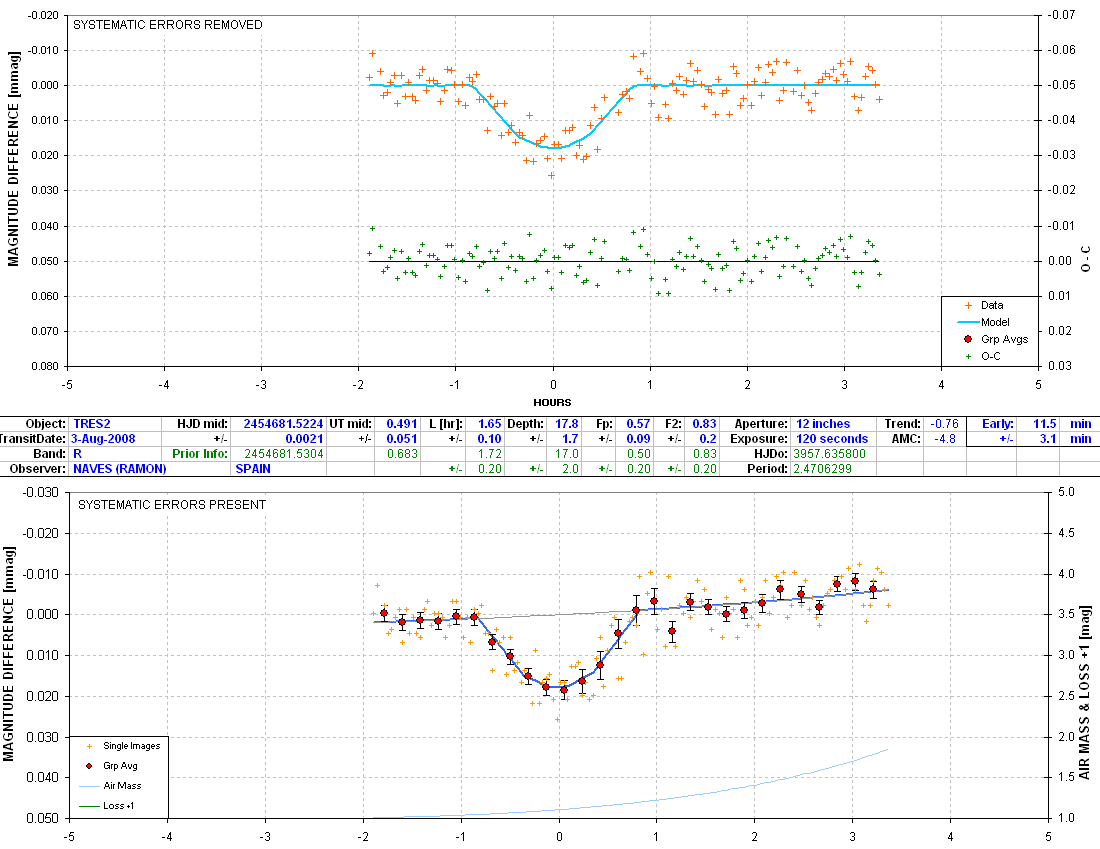

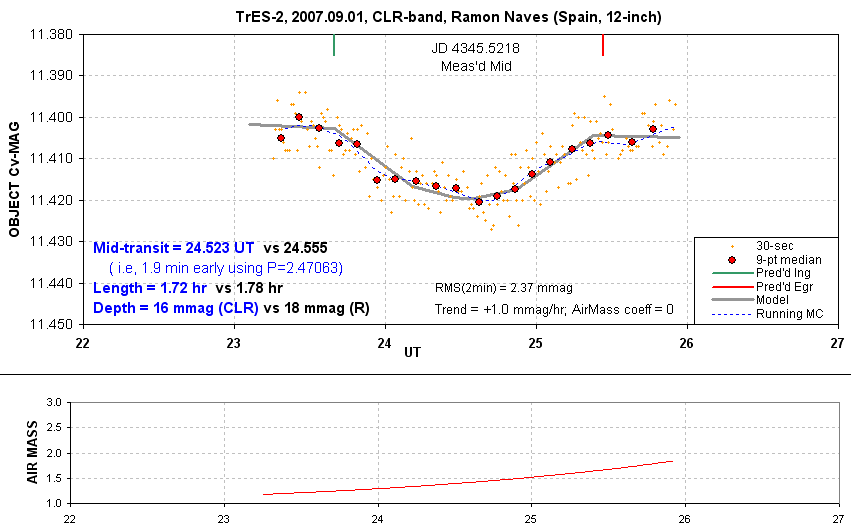

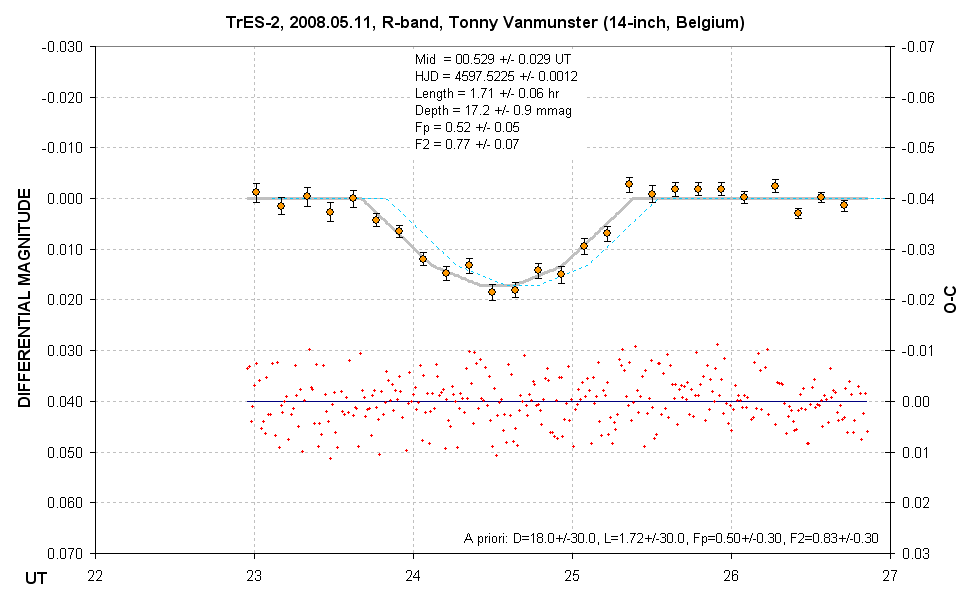

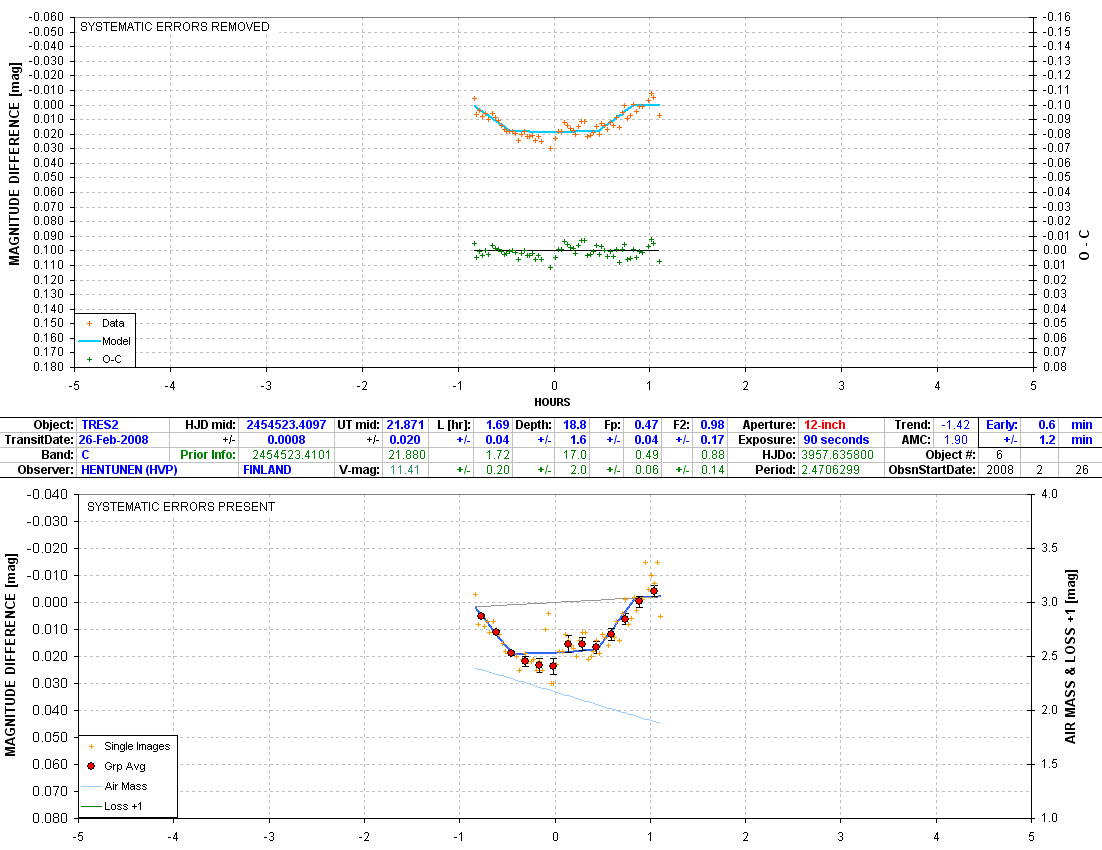

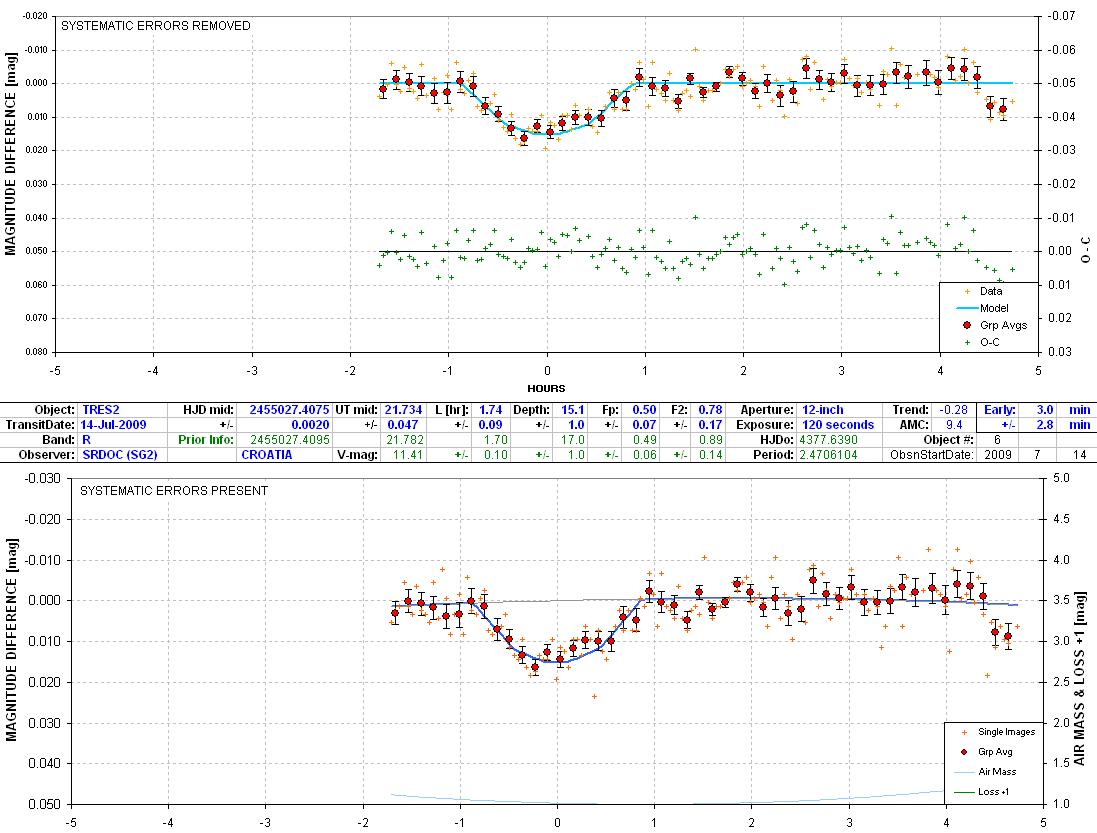

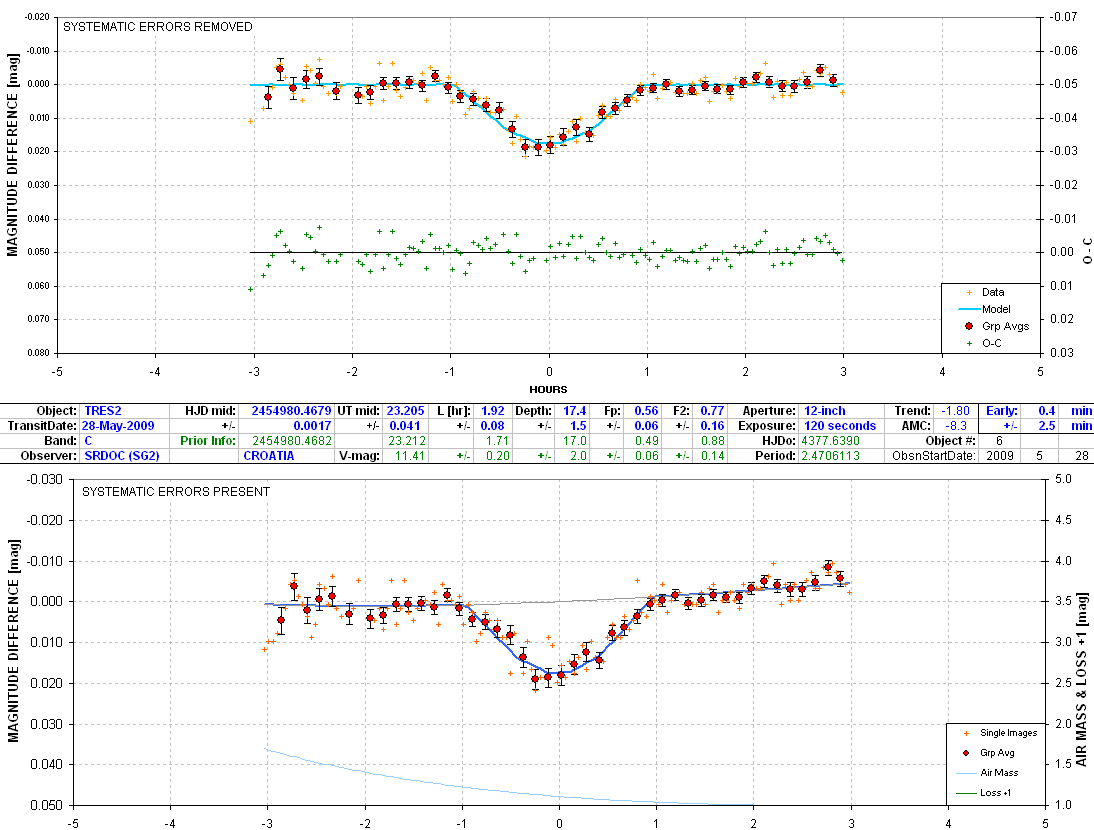

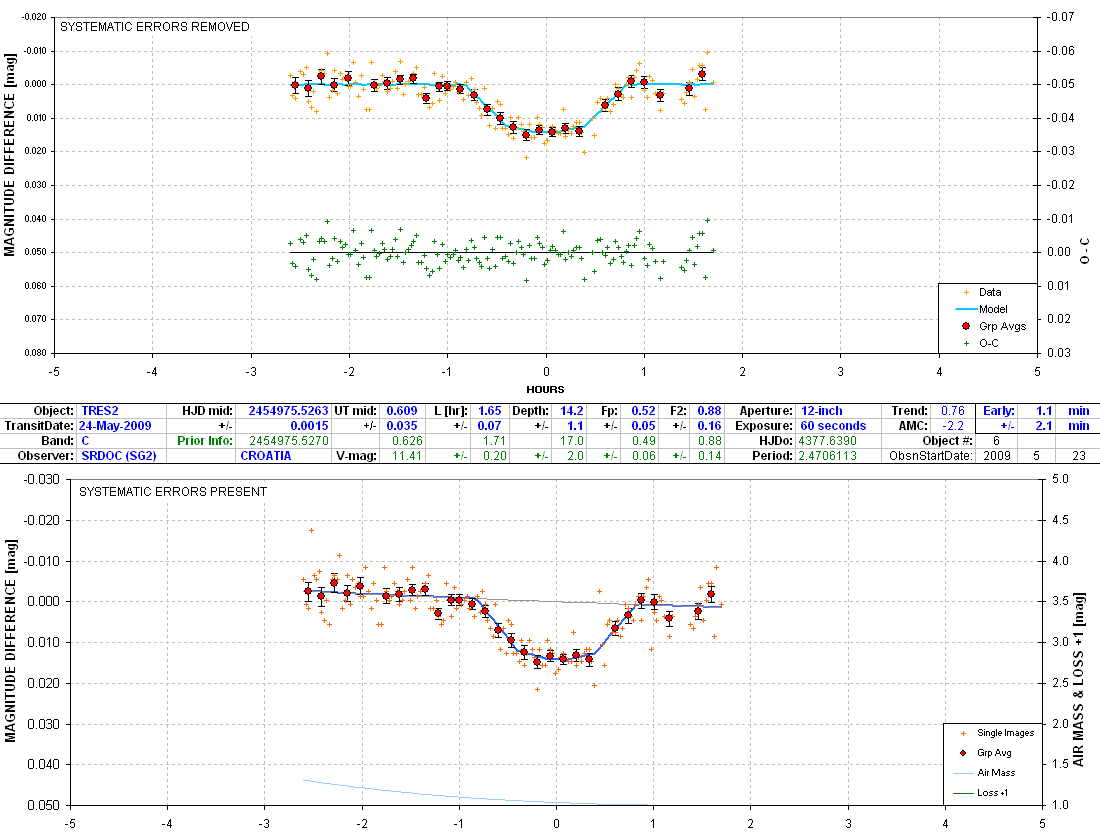

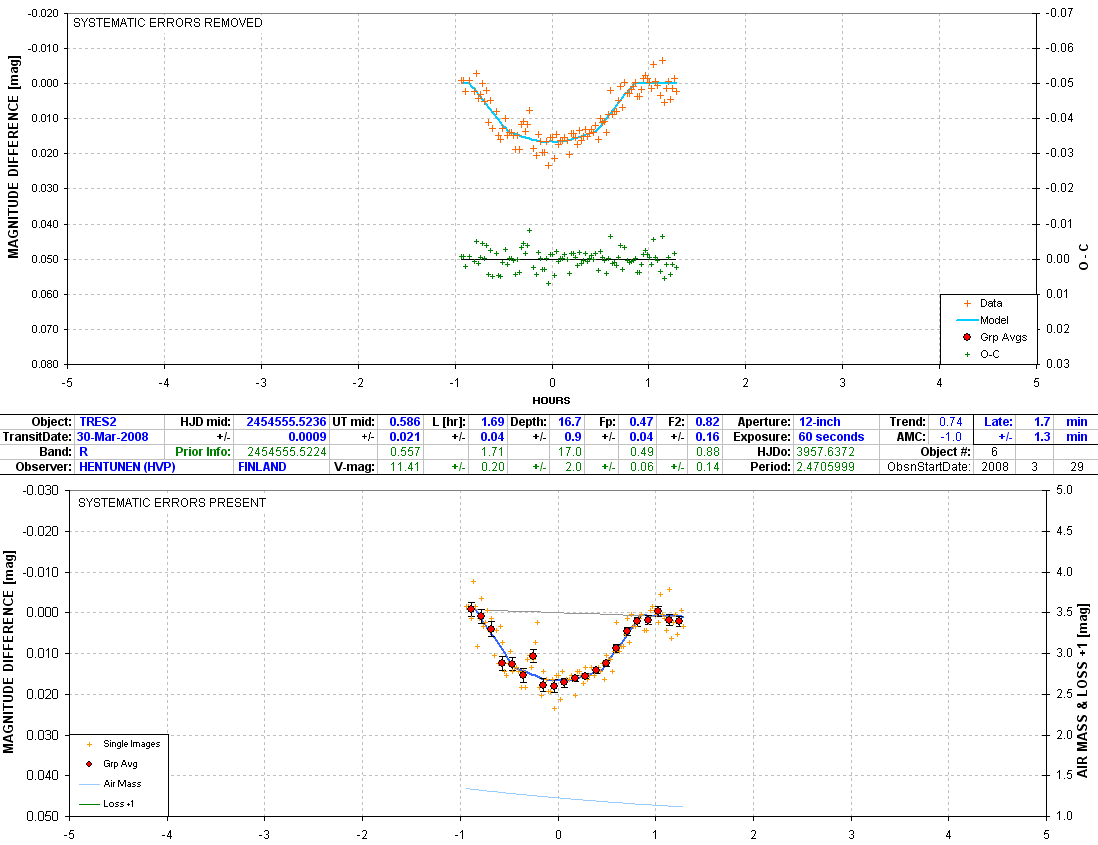

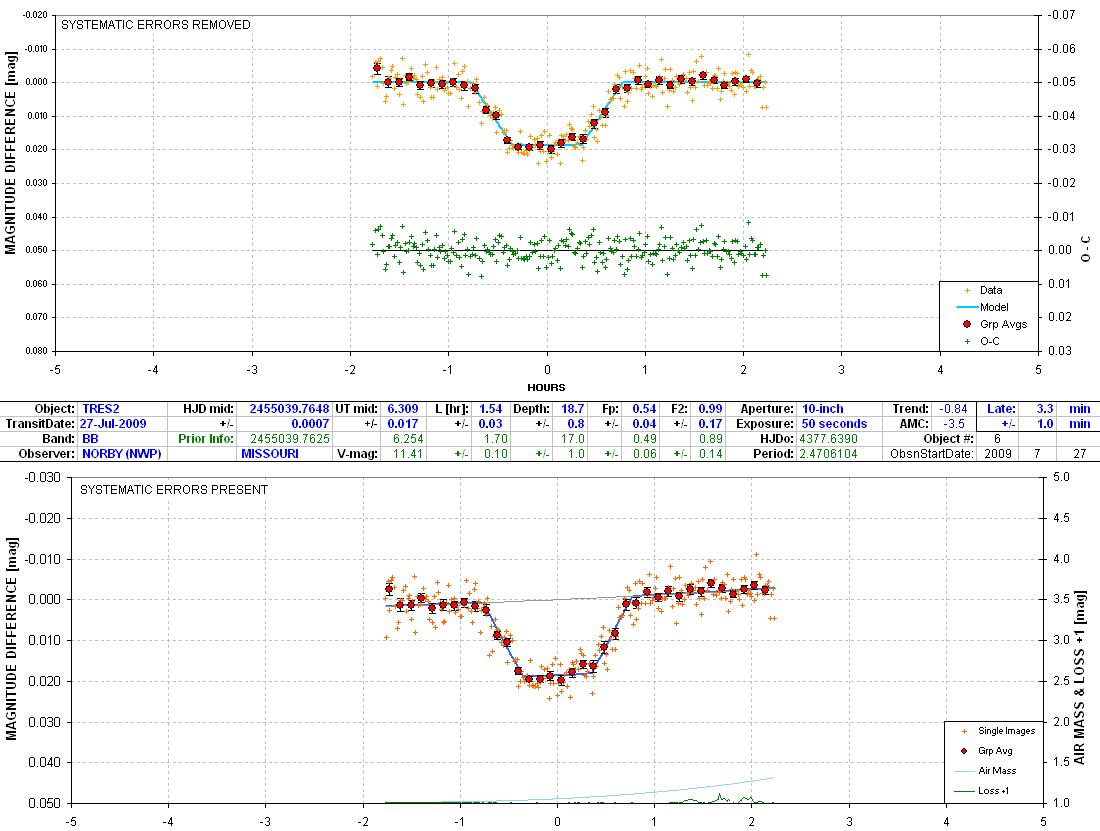

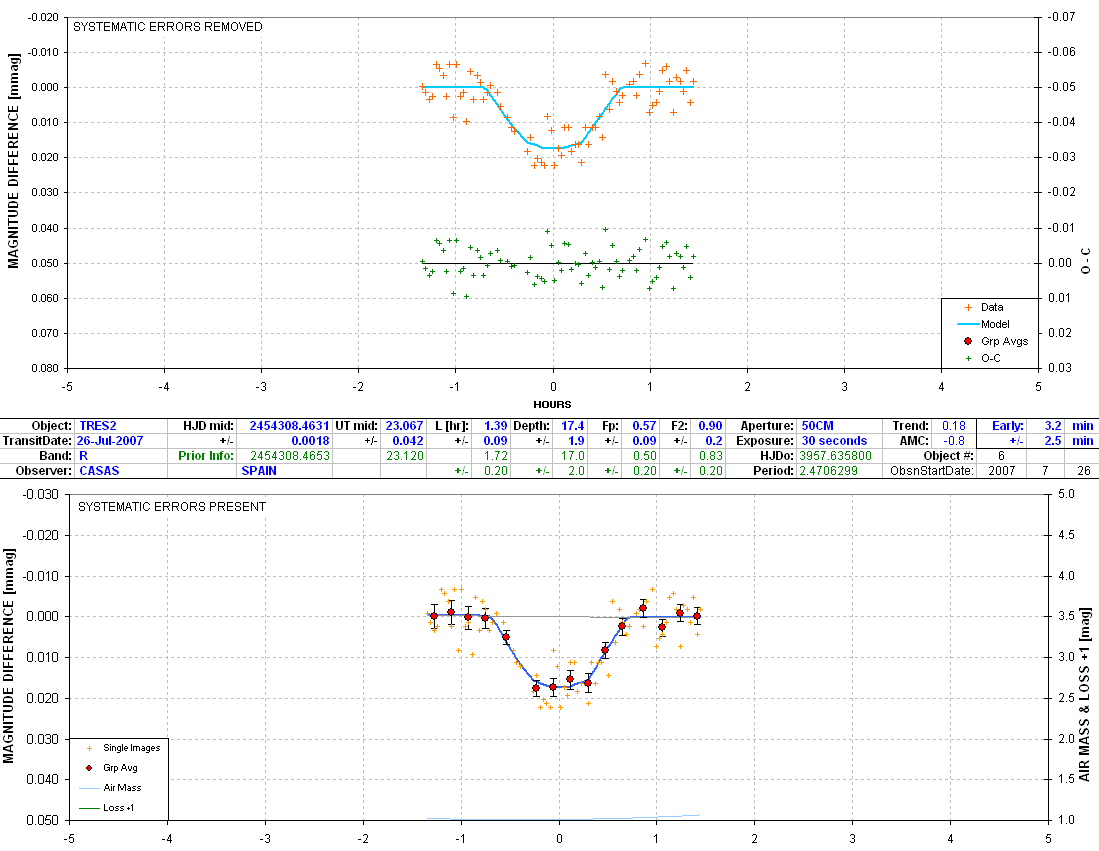

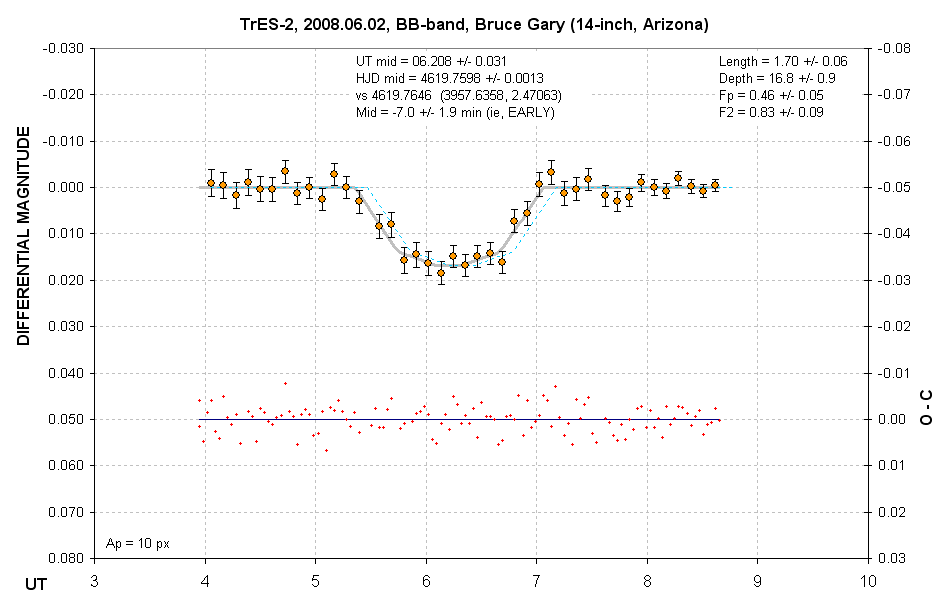

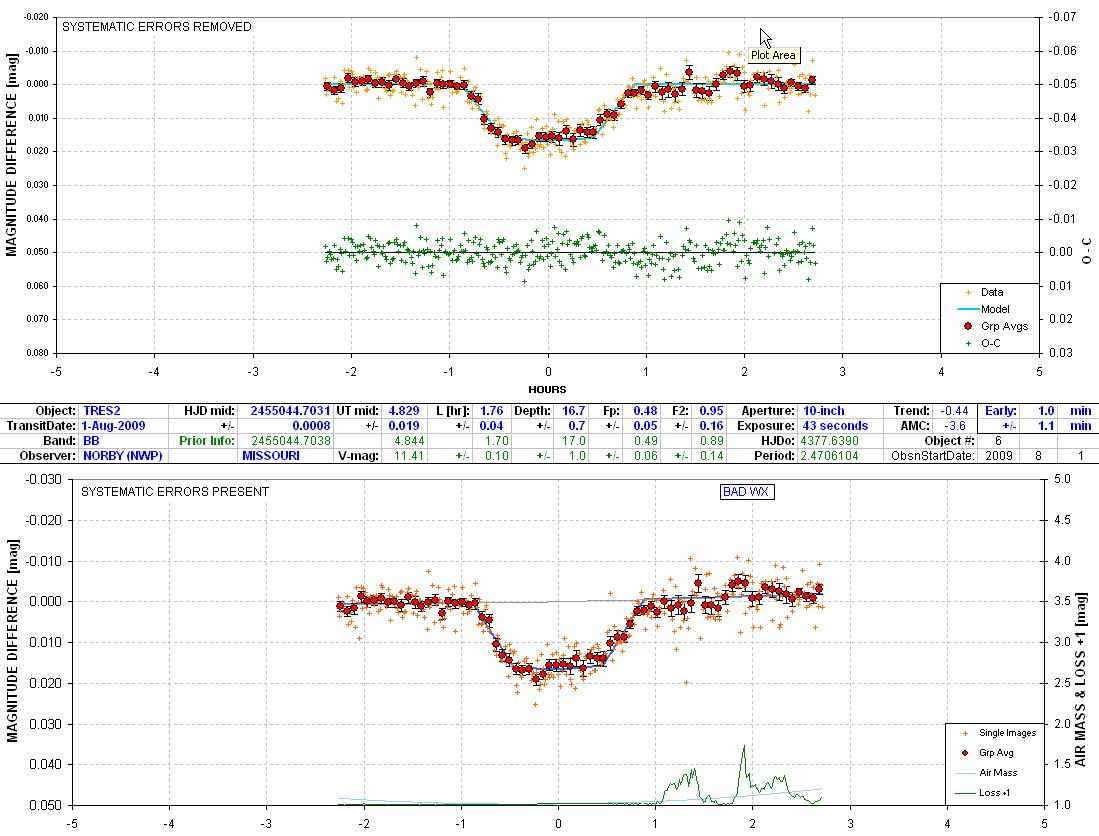

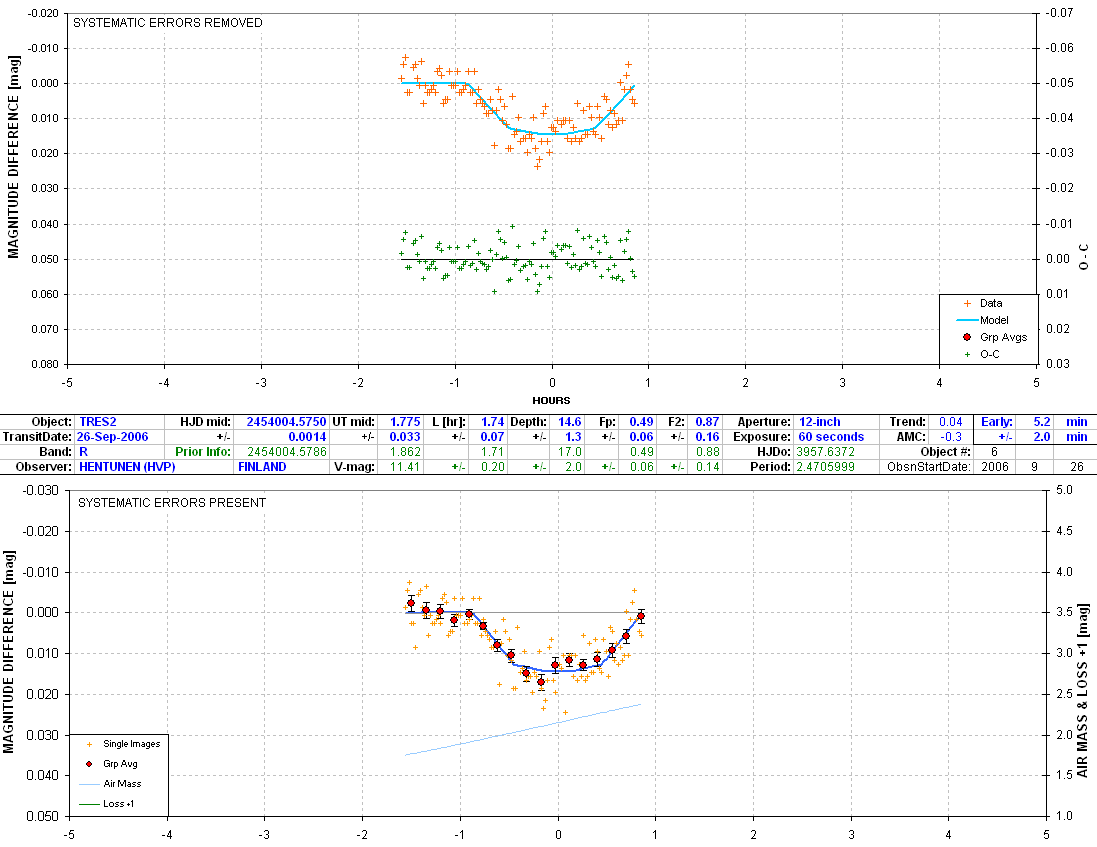

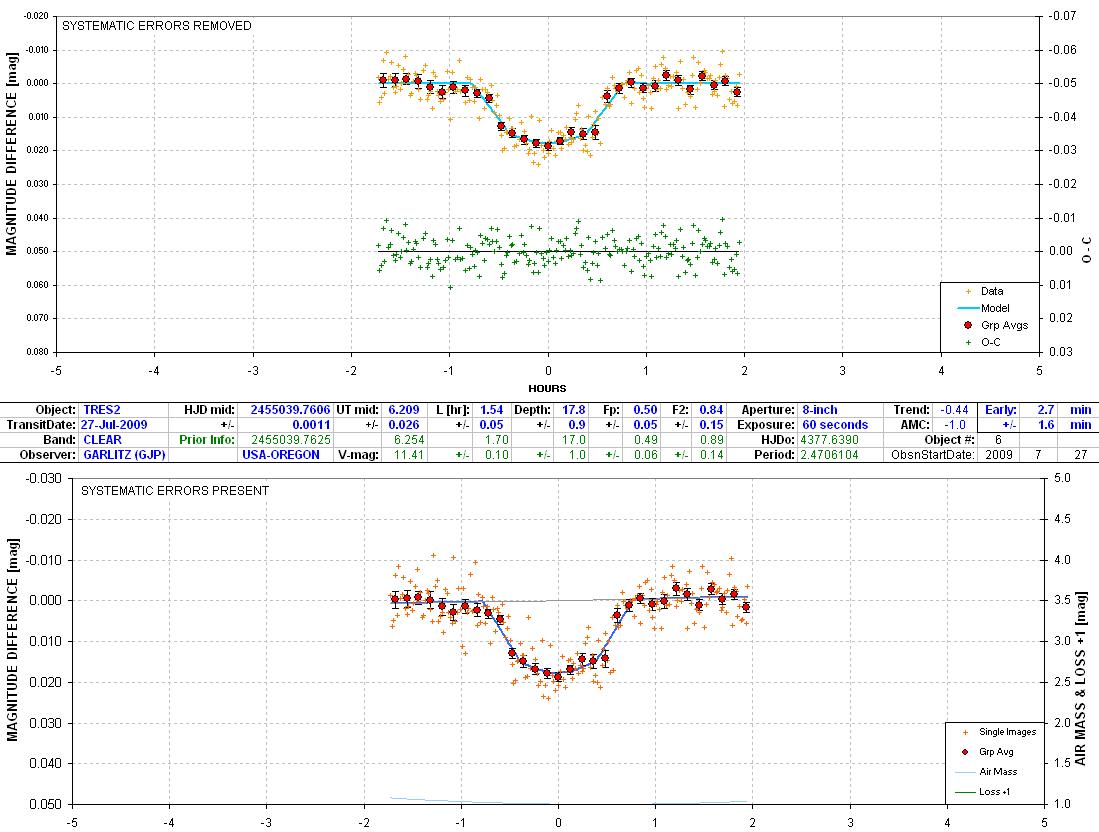

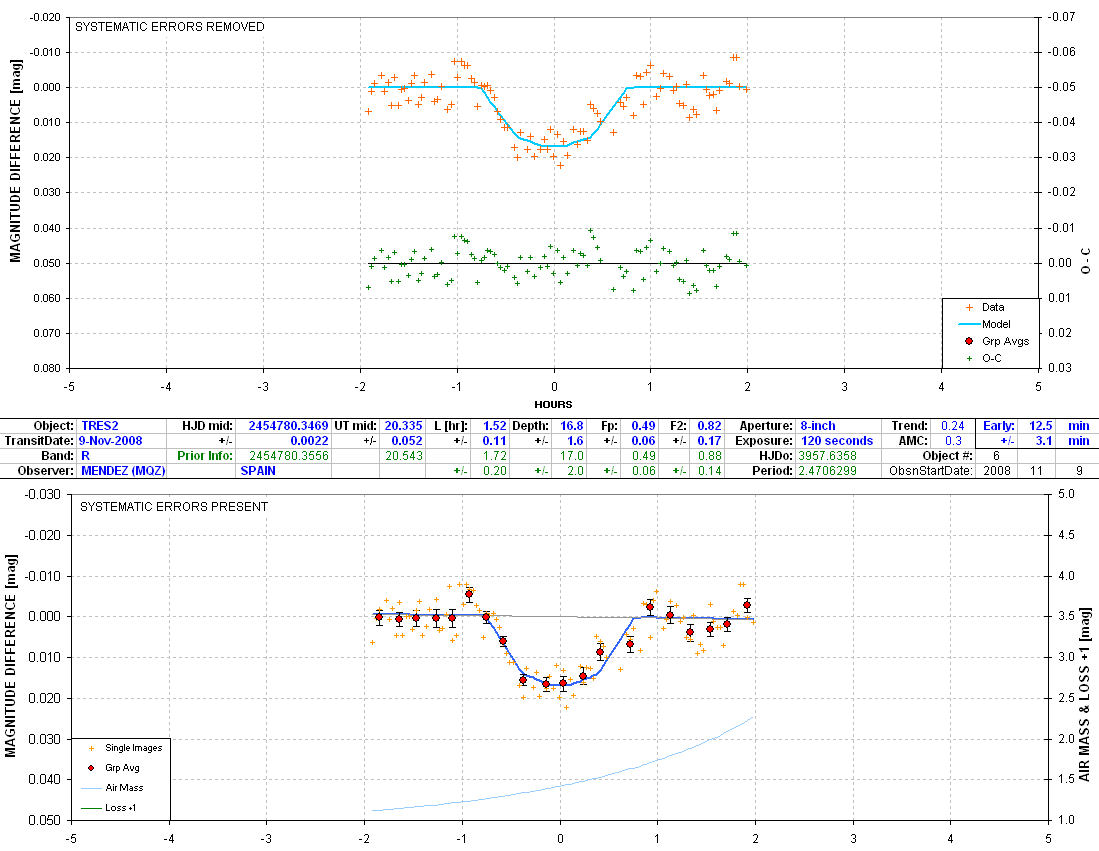

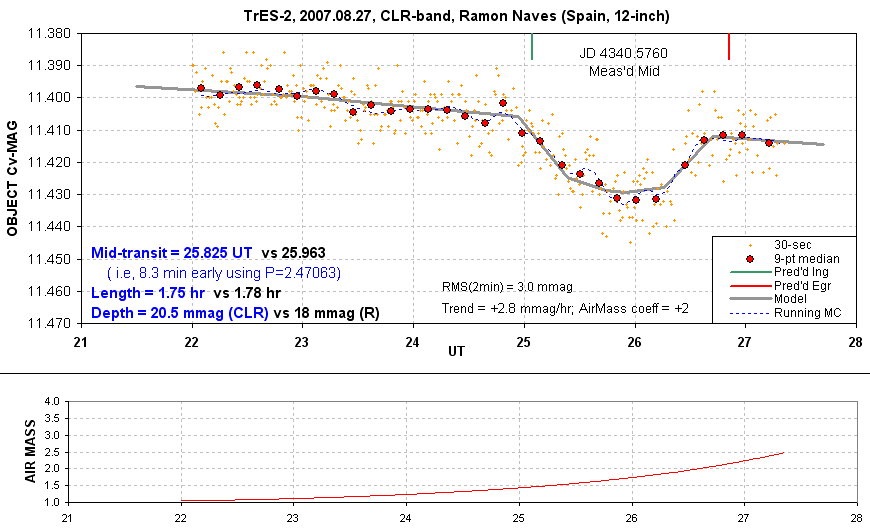

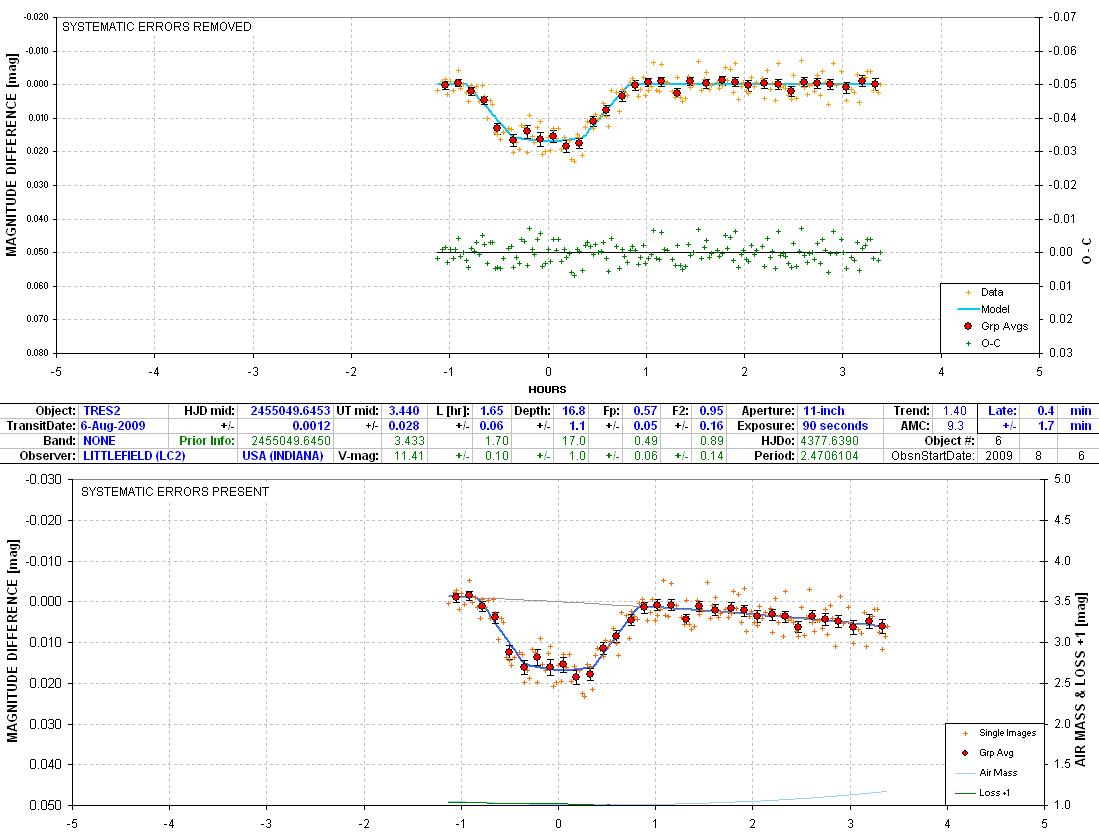

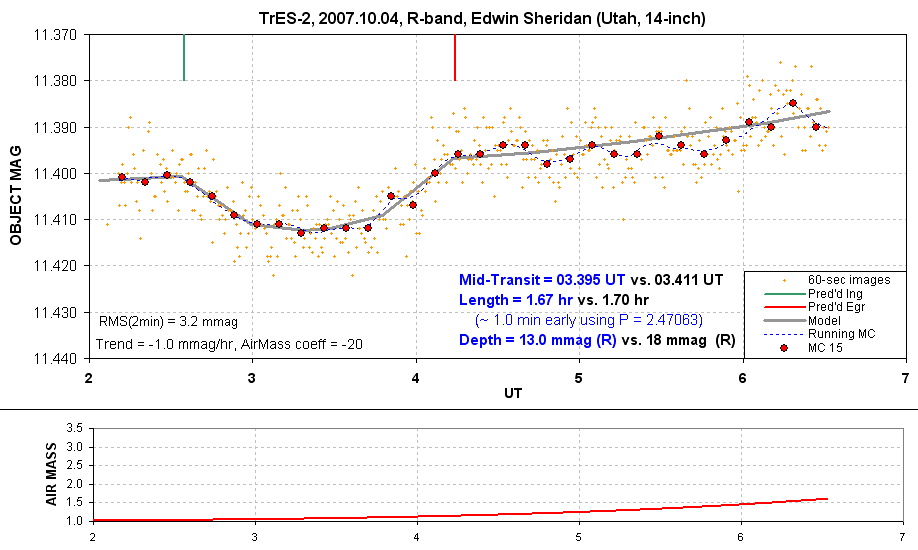

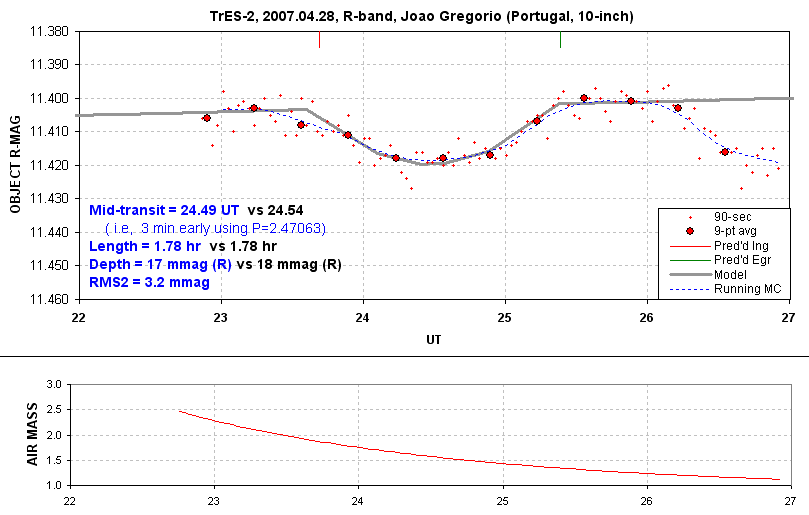

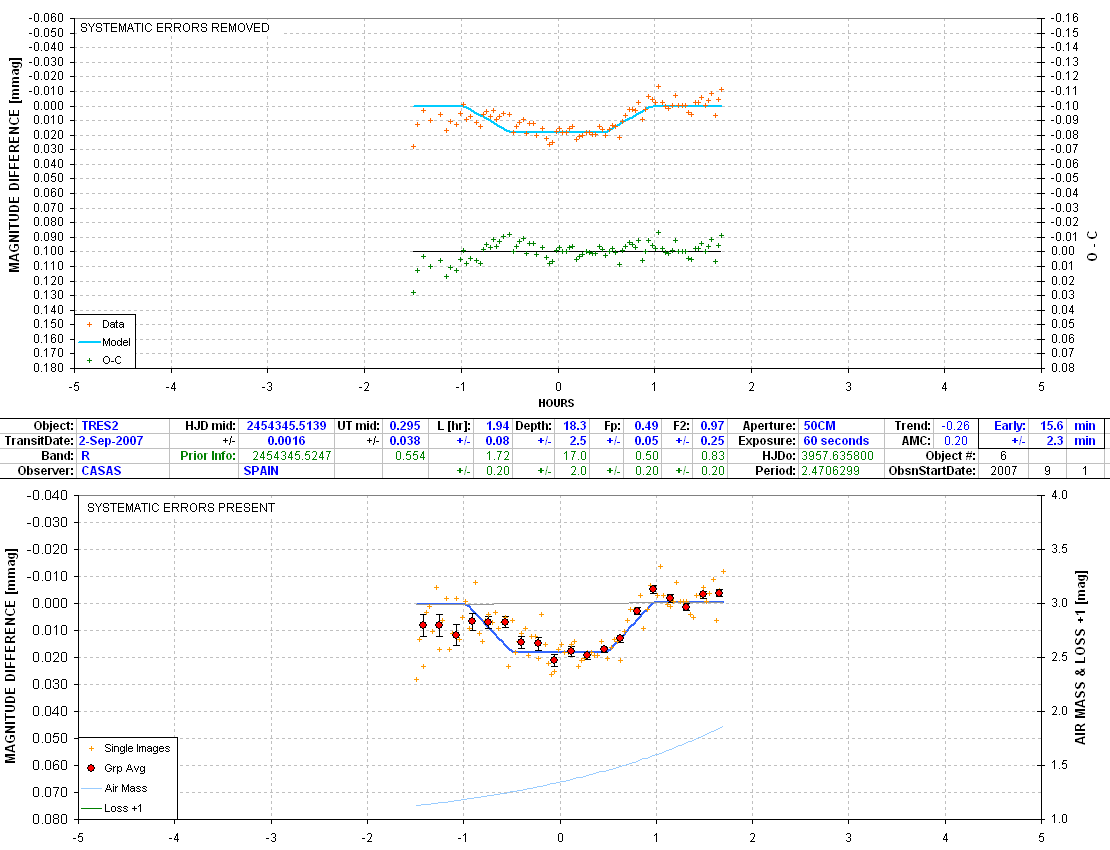

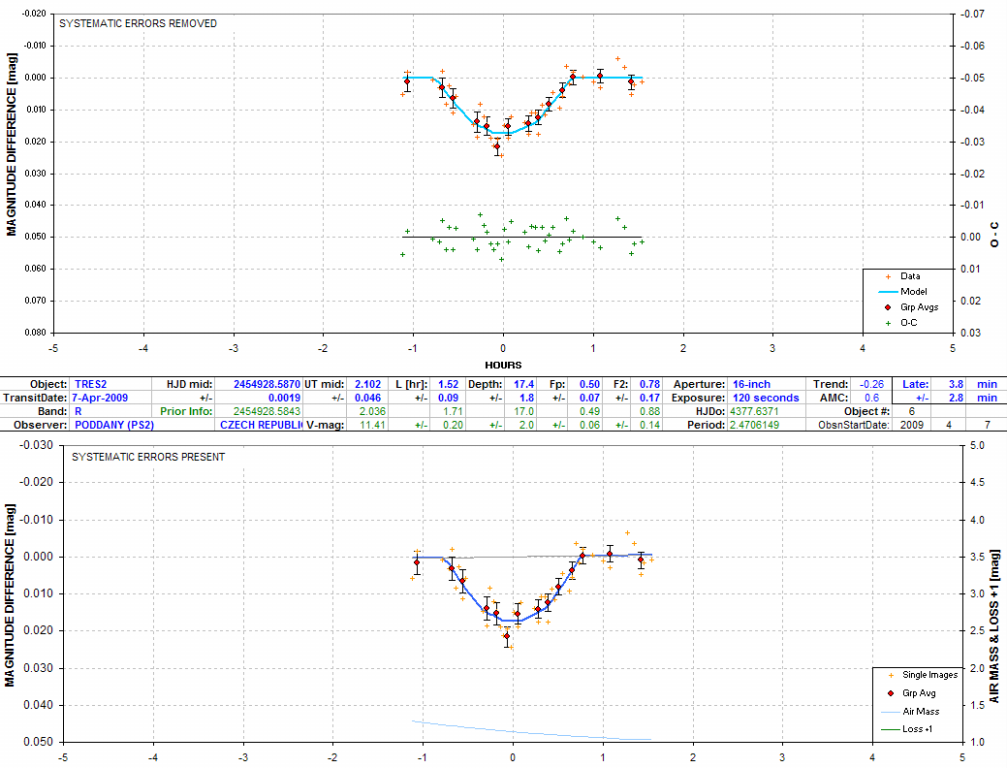

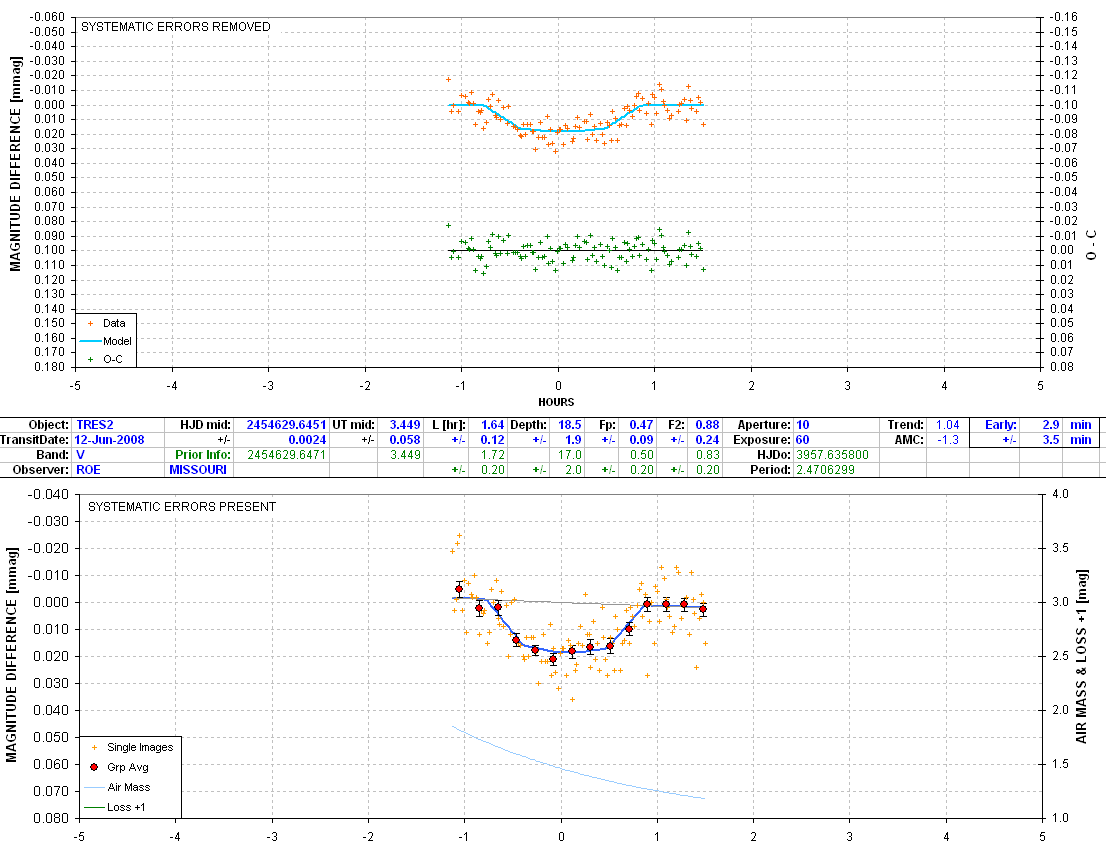

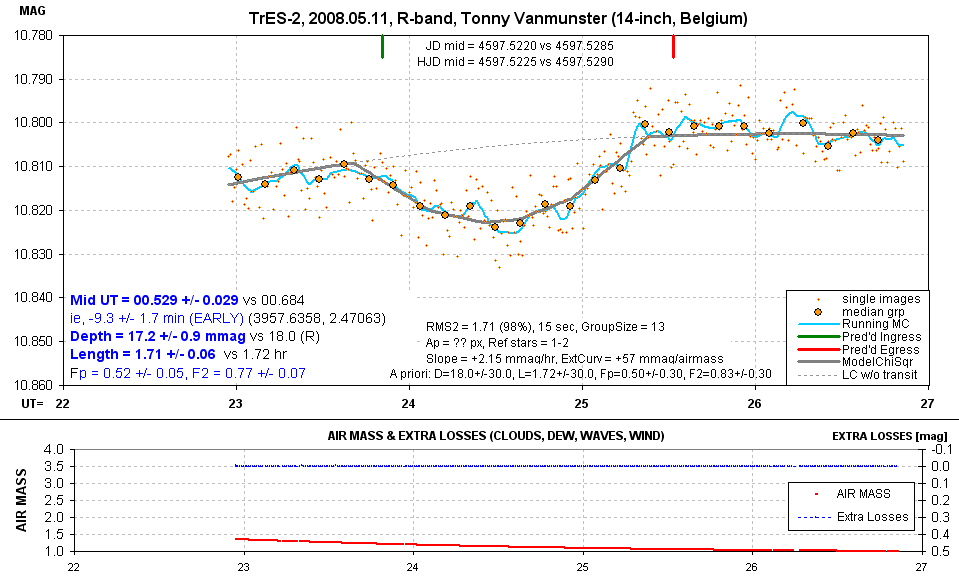

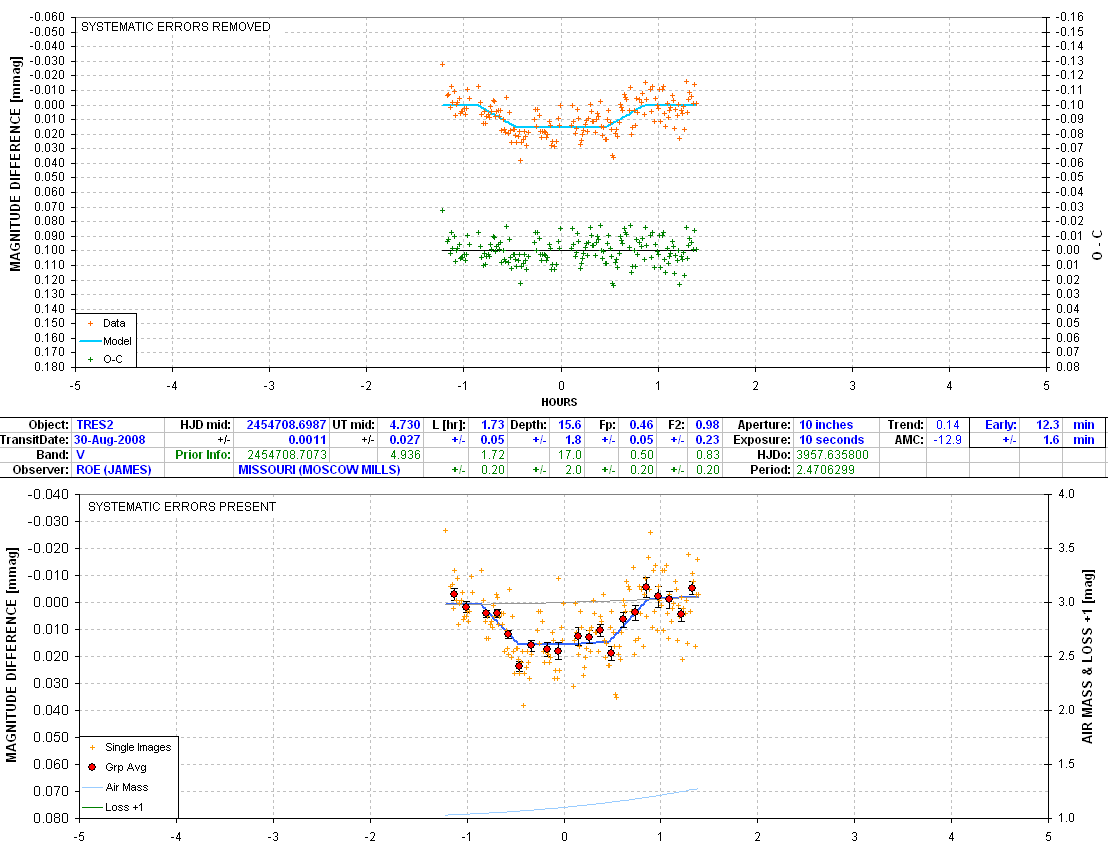

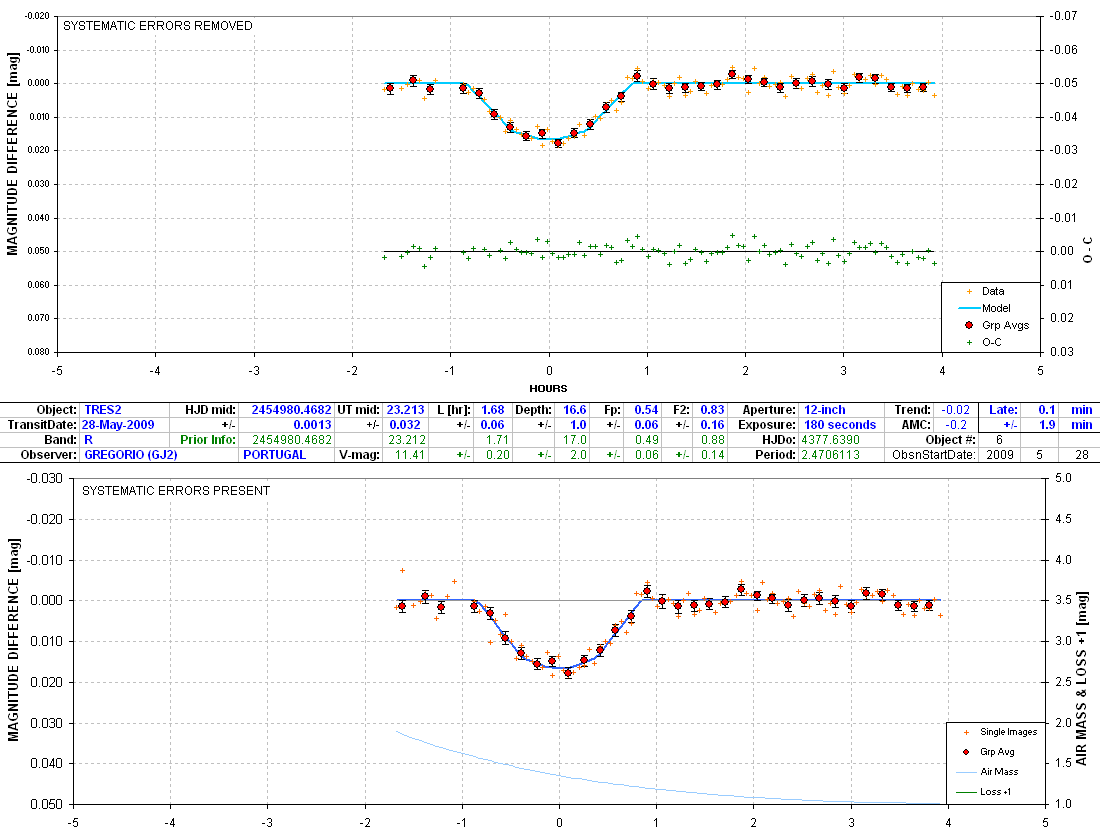

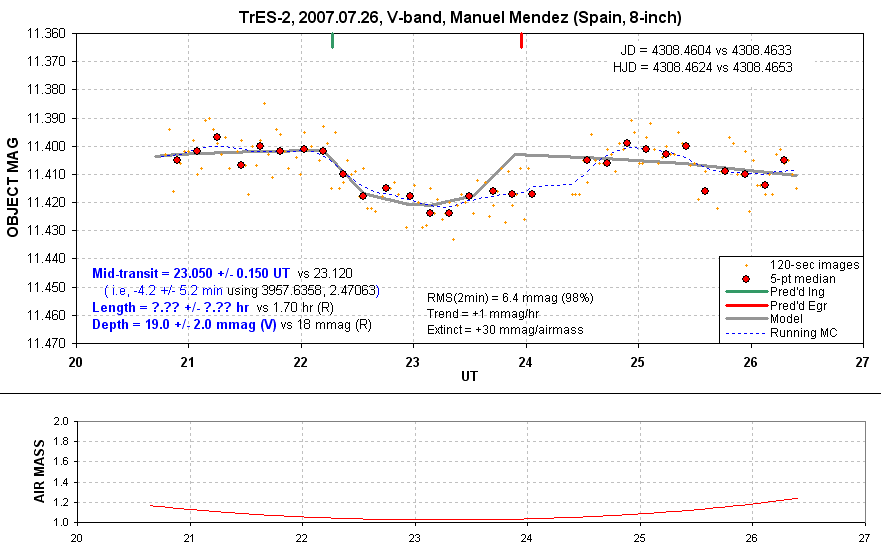

Transit light curves

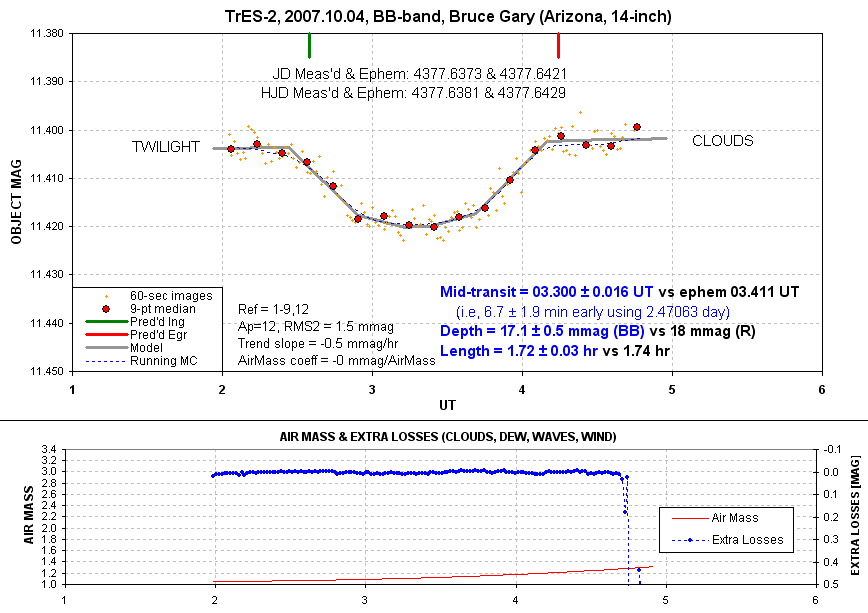

Same transit as the one below, but different filter.




OOT is well-behaved; good choice of refernce stars.


Good first submission. Need more OOT, but solution agrees with expection very well.


Nice.

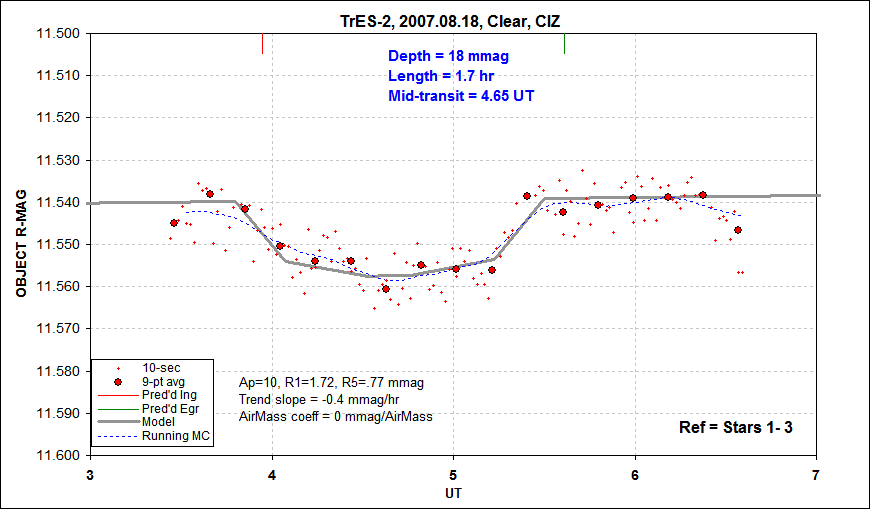

Observer is Isaac Cruz (Ohio), using a clear filter (disregard the axis label). Mid-transit was early (~4 min).

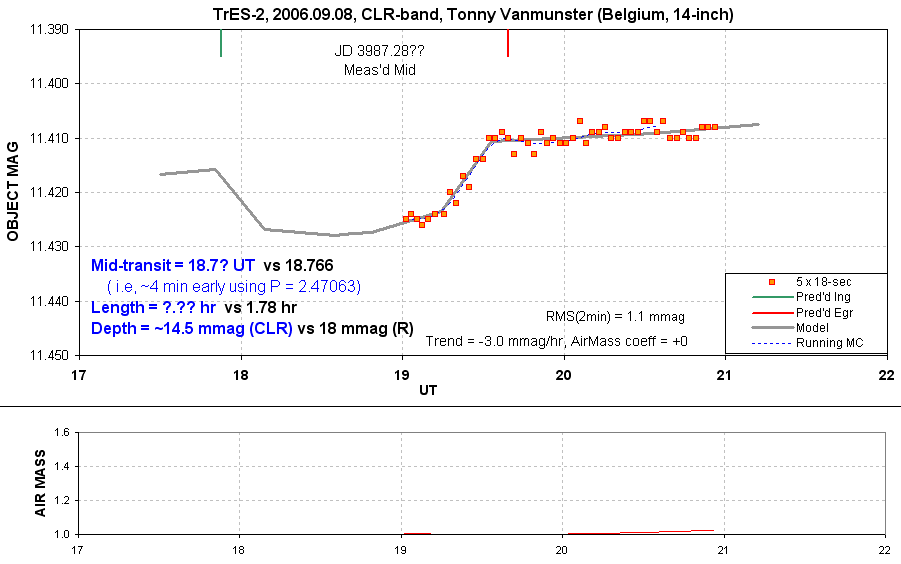

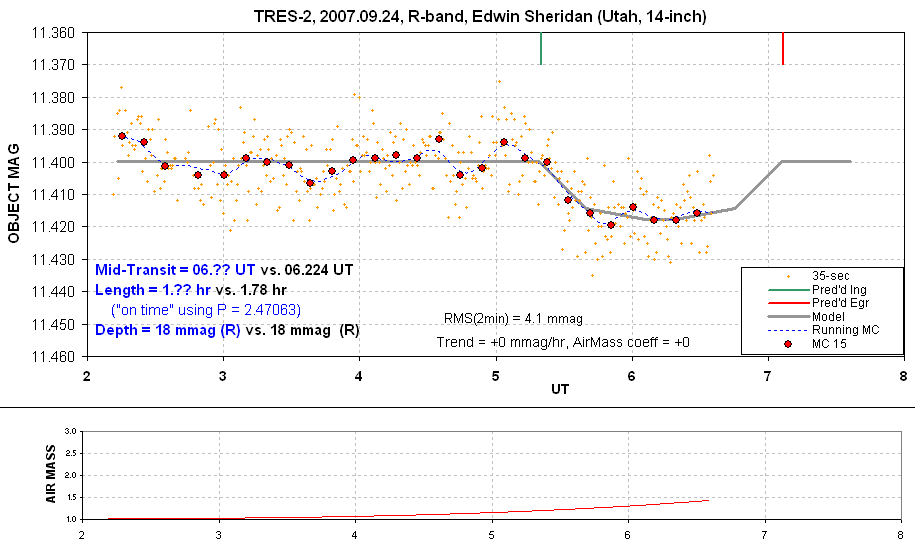

The model fit treats this data as an ingress only for timing purposes.




Something funny happened near end of obs'g session; otherwise, good fit.


Beautiful!


Note: I include partial transits for the purpose of searching for anomlaies after egress (or before ingress) that could be produced by forward scattering by a hot Jupiter's ring system or dust cloud. The above Summary Table does not include transit measurements from partial transits.


Note: I include partial transits for the purpose of searching for anomlaies after egress (or before ingress) that could be produced by forward scattering by a hot Jupiter's ring system or dust cloud. The above Summary Table does not include transit measurements from partial transits.

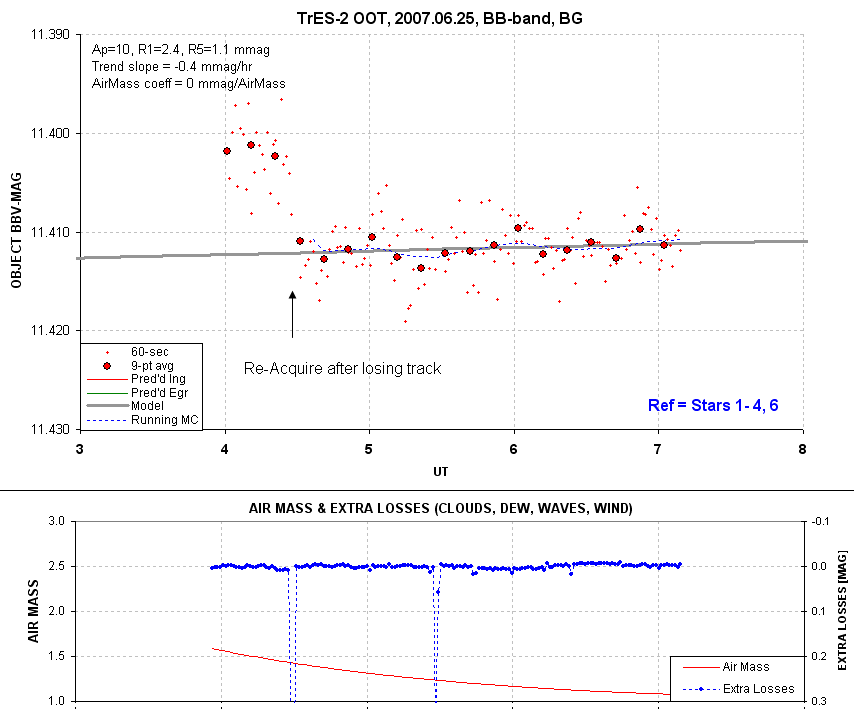

Out-of-Transit (OOT)


Out of transit observation, after a false start requiring re-acquisition with different flat frame-related offset.


Finder Image


FOV = 11 x 16 'arc. TrES-2 is circled.
