TrES-1
AXA Light Curves

Links internal to this web page

    Comments
    Basic data
    Summary of transit measurements
    Transit LCs
    OOT LC
    Finder image


Comments on LCs on this web page


The period for TrES-1 needs only a slight shortening. Transit depth and length also seem to be well-established and are not changing. No anomalies yet.

Basic Data - This section updated 2009.09.03

    RA = 19:04:09.8, Decl = +36:37:57
    Season = July 09
    B=12.607, V = 11.764,
Rc=11.300, Ic = 11.362, J = 10.294, K = 9.819, B-V = 0.843 (BVRcIc from Henden)
    HJDo = 3186.806341 (51) & P = 3.0300722 (2) day (Schneider listing in Extrasolar Planets Encyclopaedia)
    HJDo = 3186.80642 (51) & P = 3.03007157 (42) day (AXA fit); or even better:   HJDo = 4223.09089 (26) & P = 3.03007157 (42) day (alternative AXA fit)
    Depth = 25.0 ± 0.3 mmag (all bands)
    Length = 2.47
± 0.04 hr

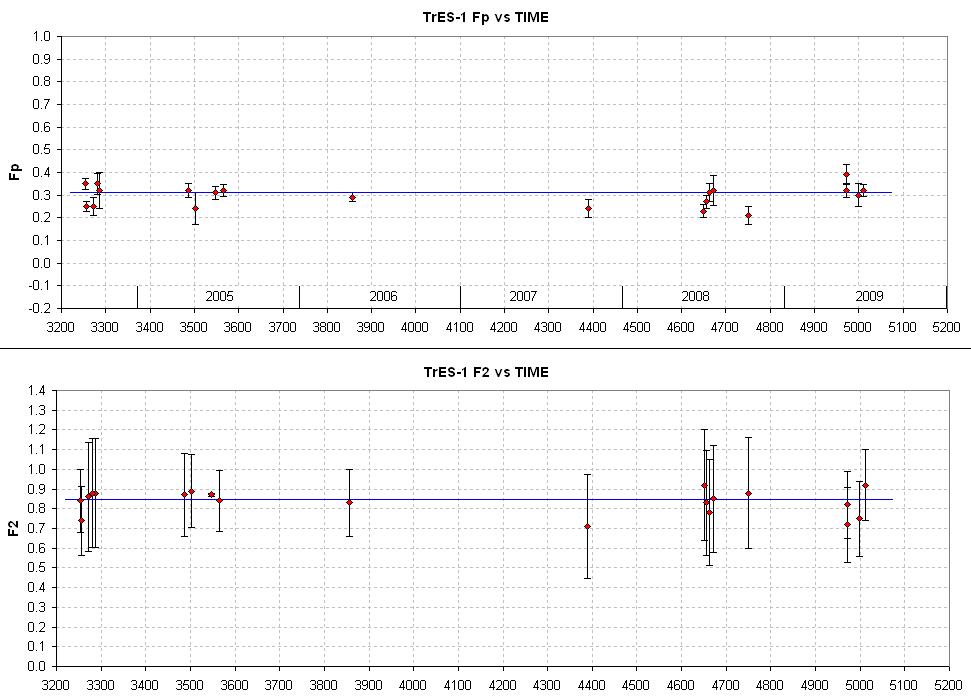

     Fp = 0.31
± 0.04, F2 = 0.84 ± 0.08

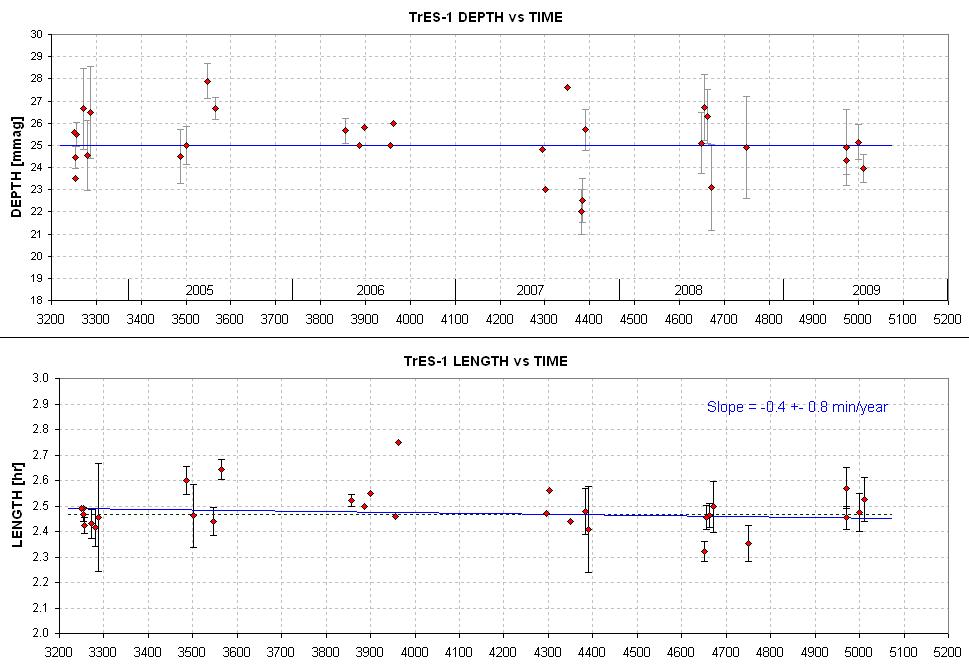

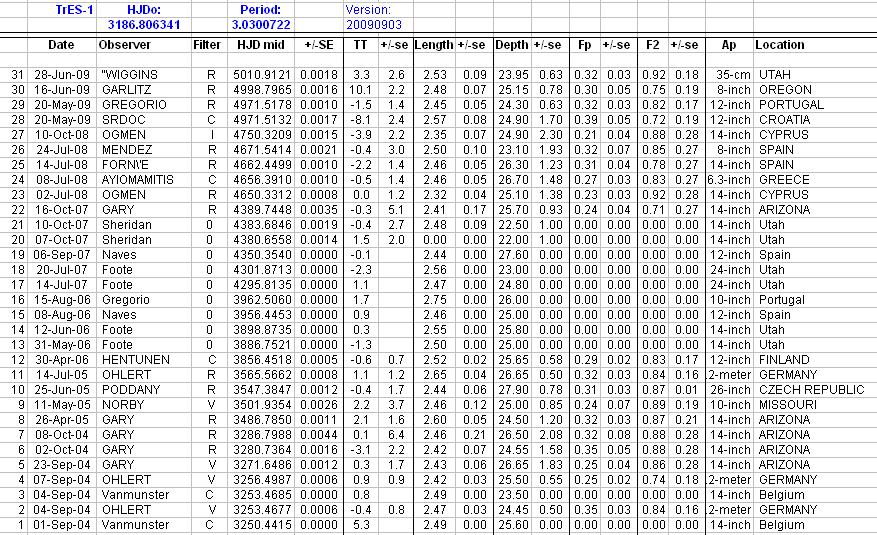

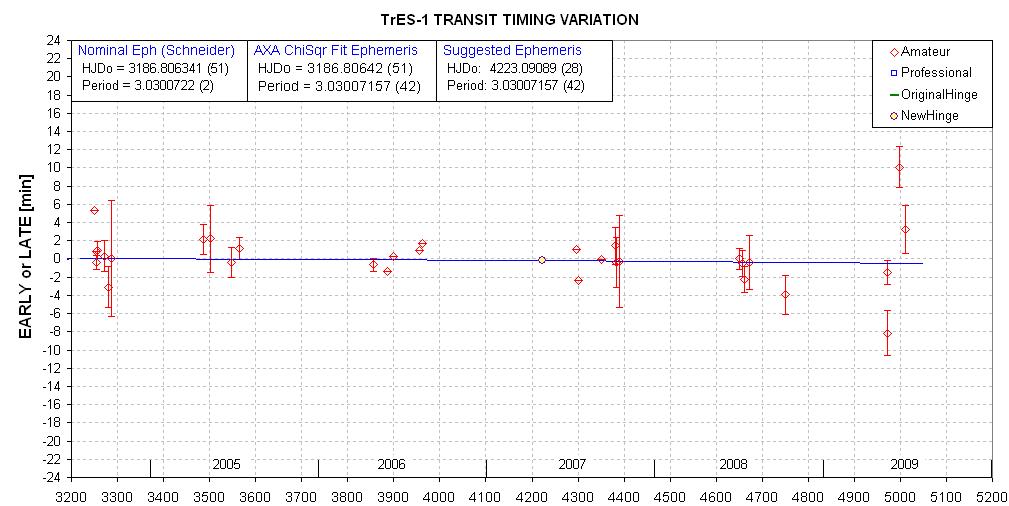

Summary of Transit Measurements - This section updated 2009.09.03









Transit Light Curves

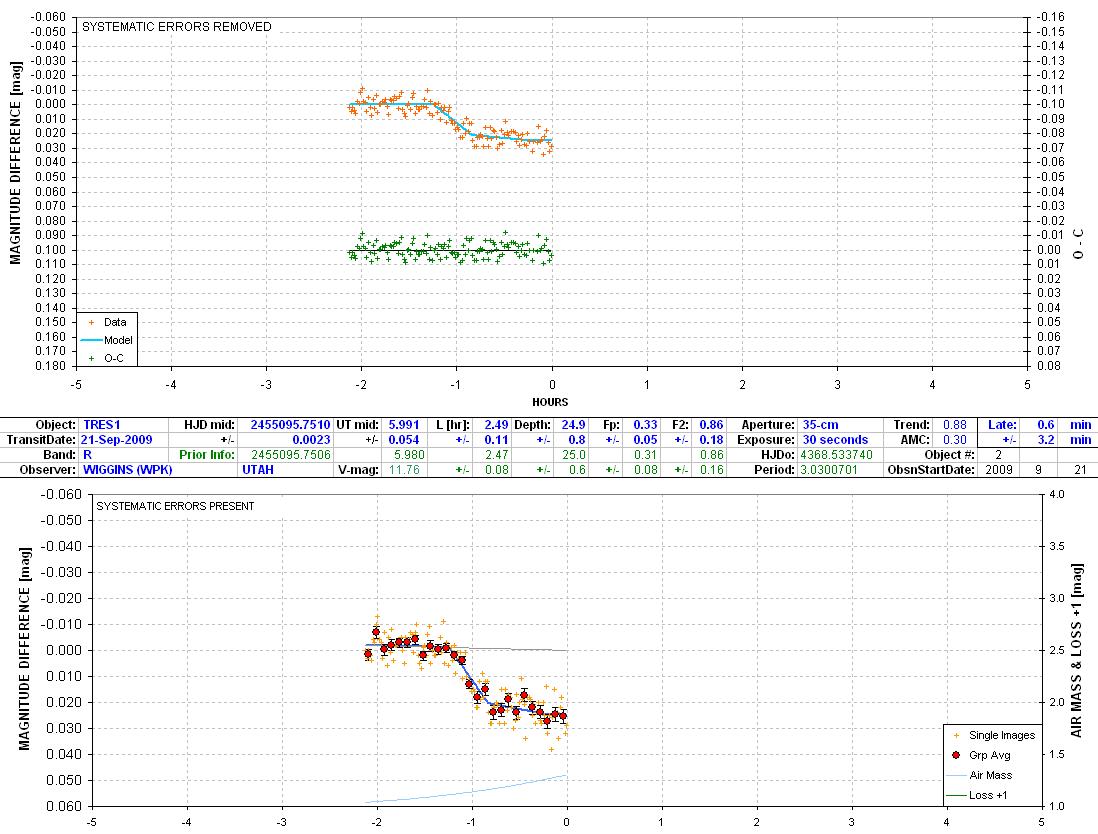

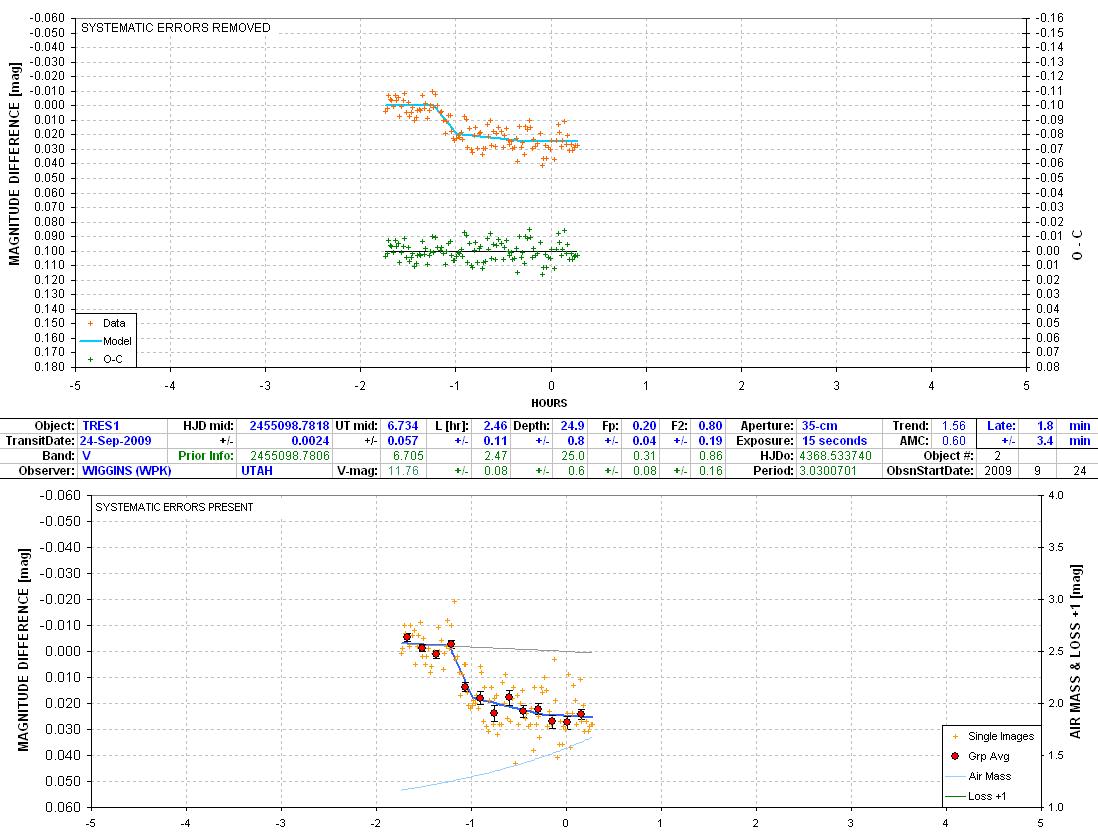

9924WPK

Light curves below here have been included in the table & plots in above section


9921WPK

Data below here have been included in table & plots (above)

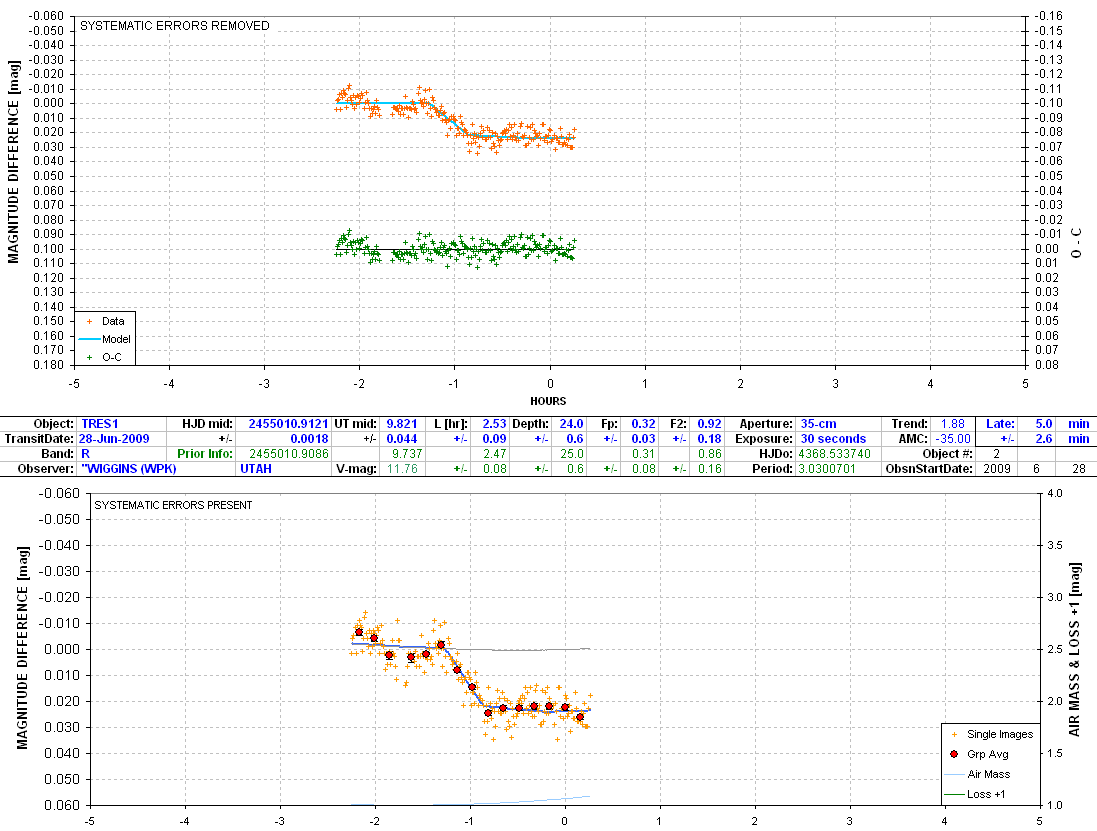

9628WPK

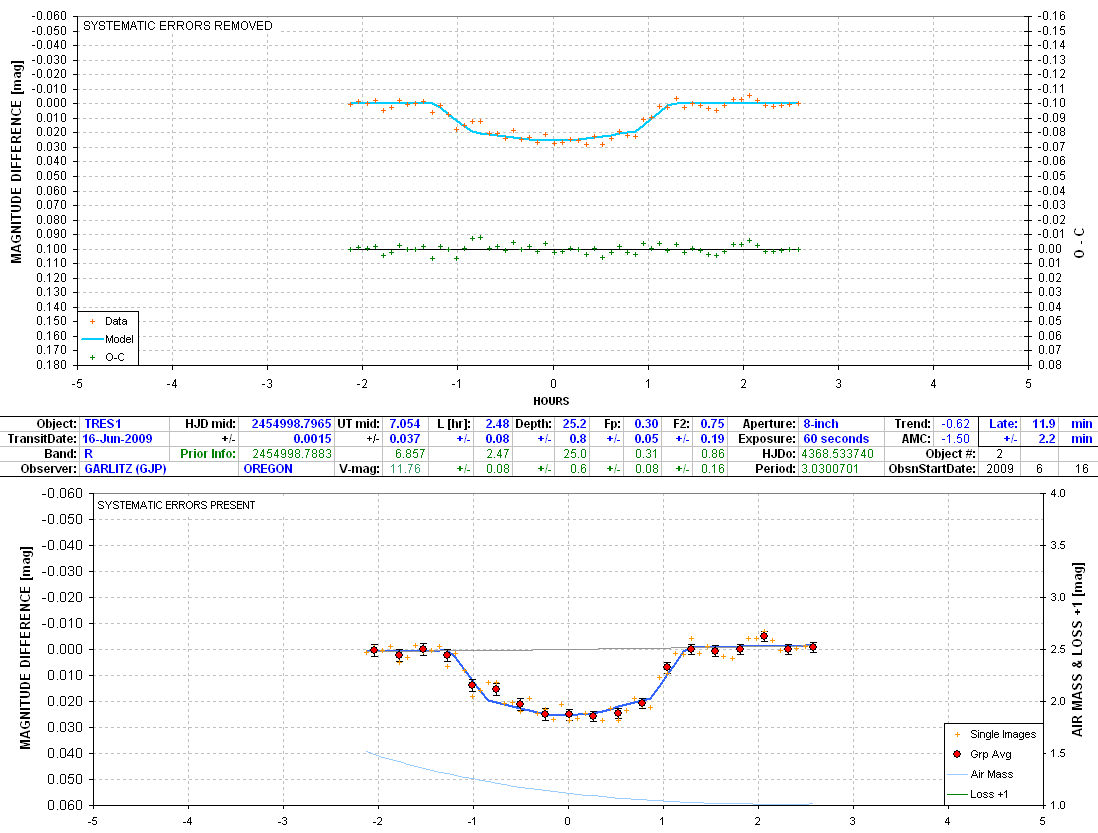

9616GJP

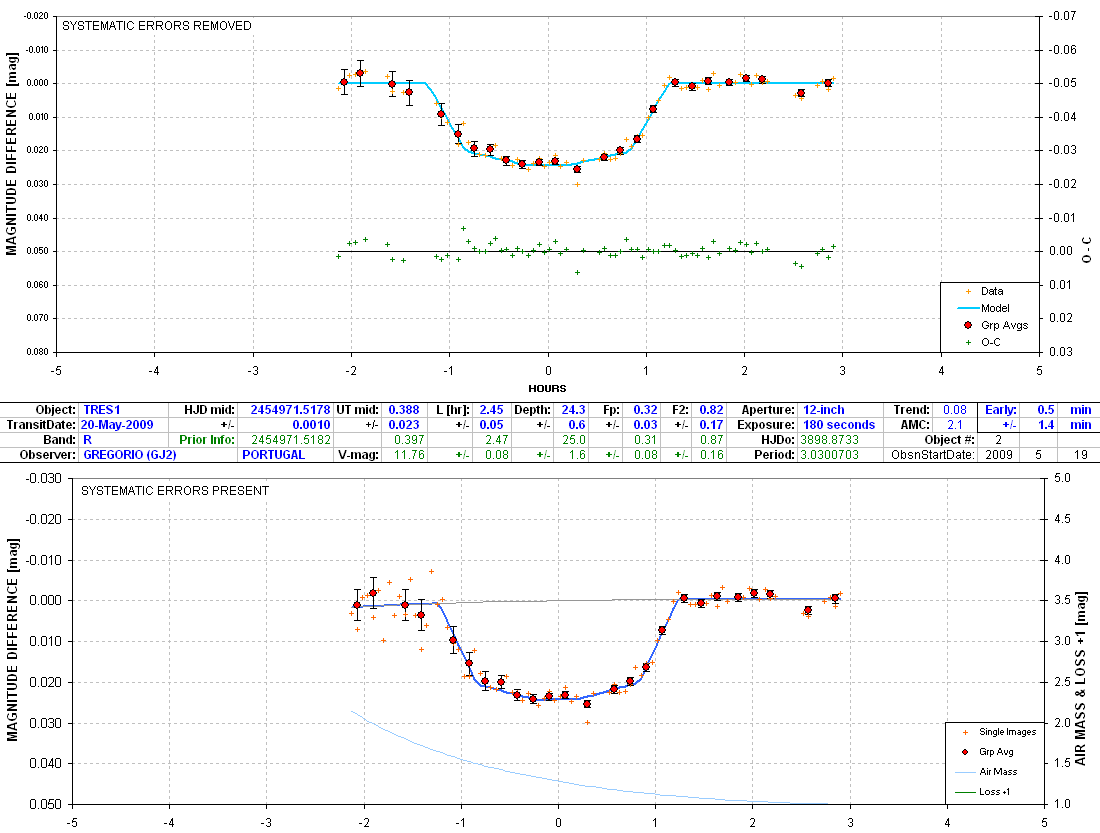

9519GJ22

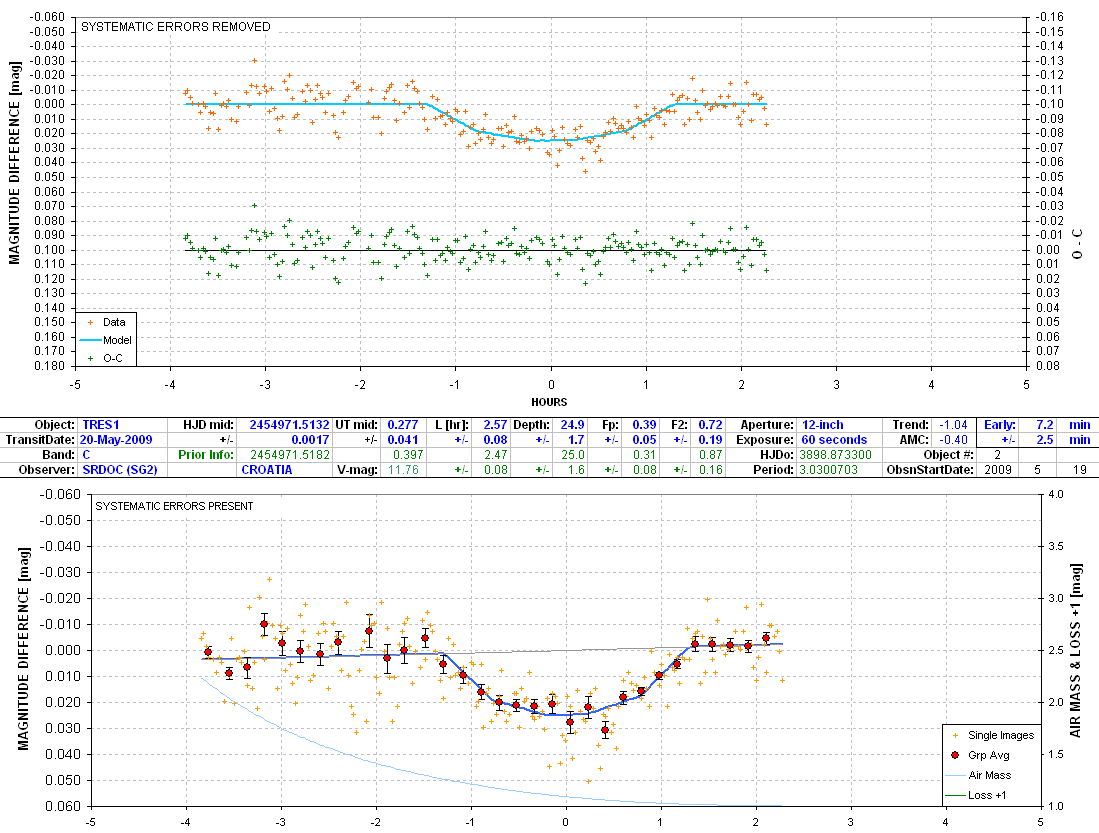

9519SG2

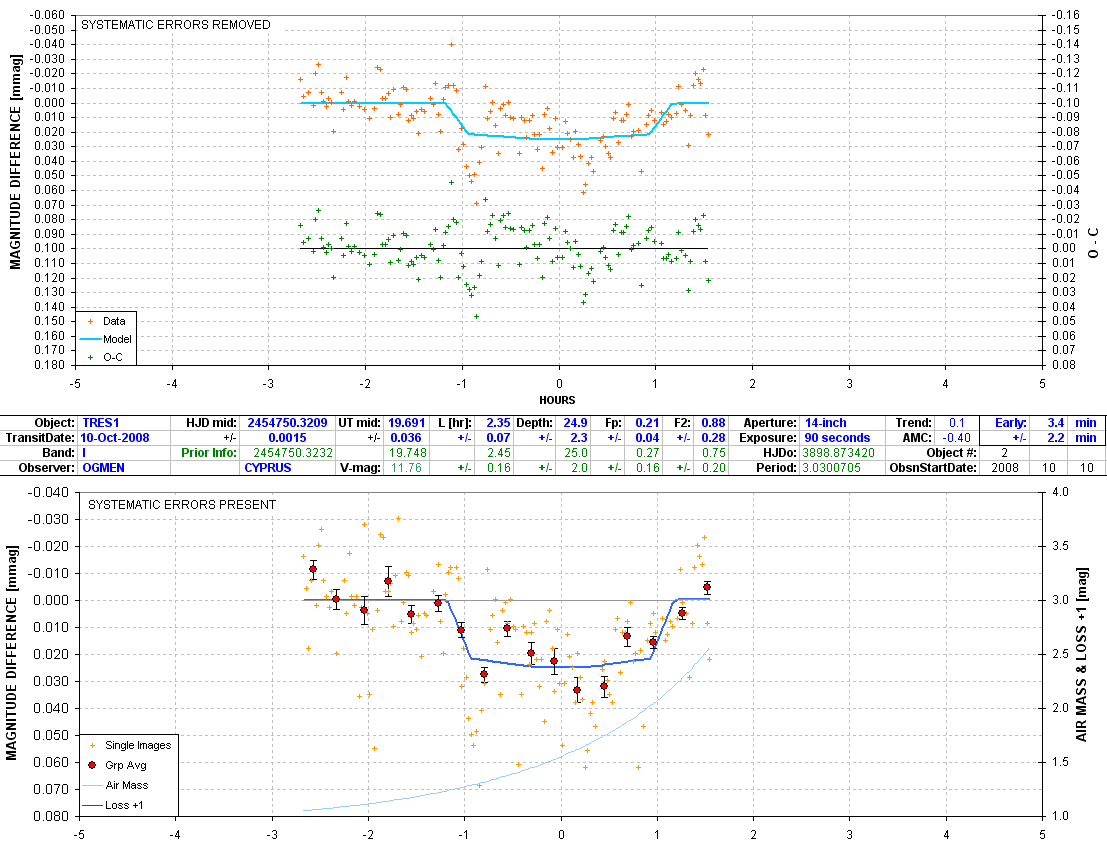

8a10OYE1

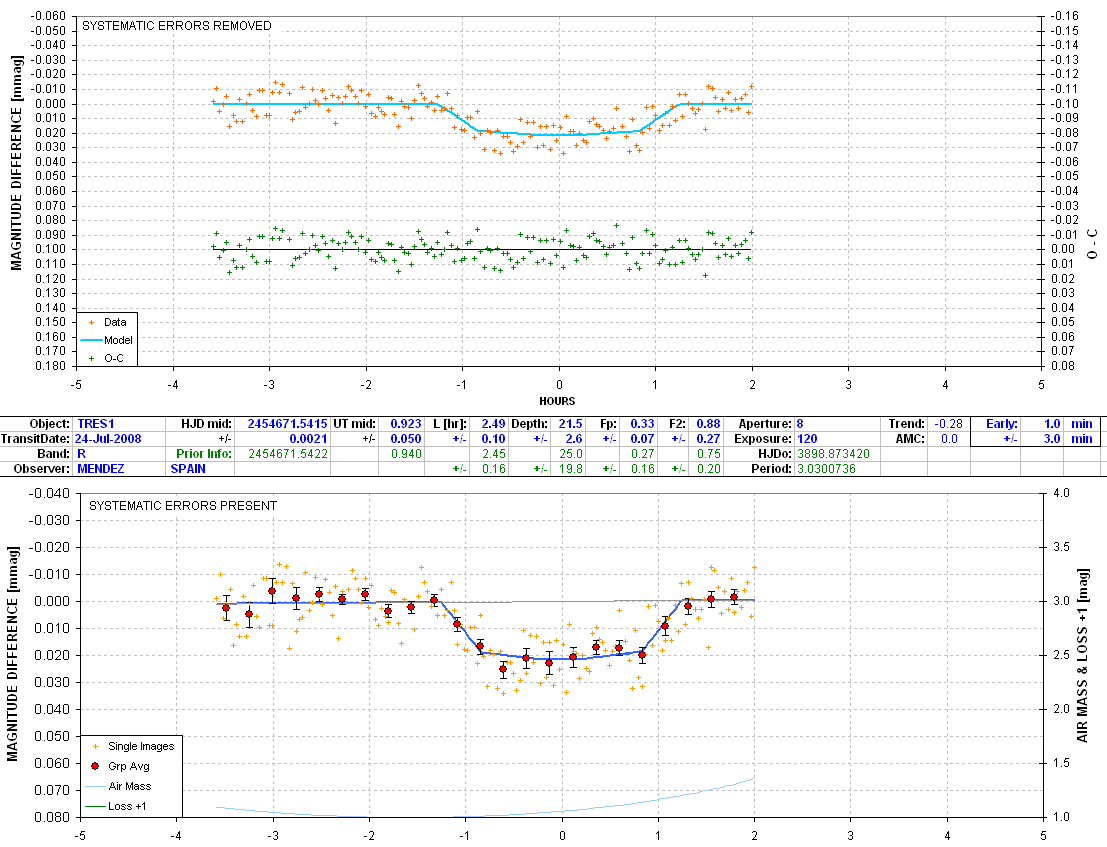

8723mqz1

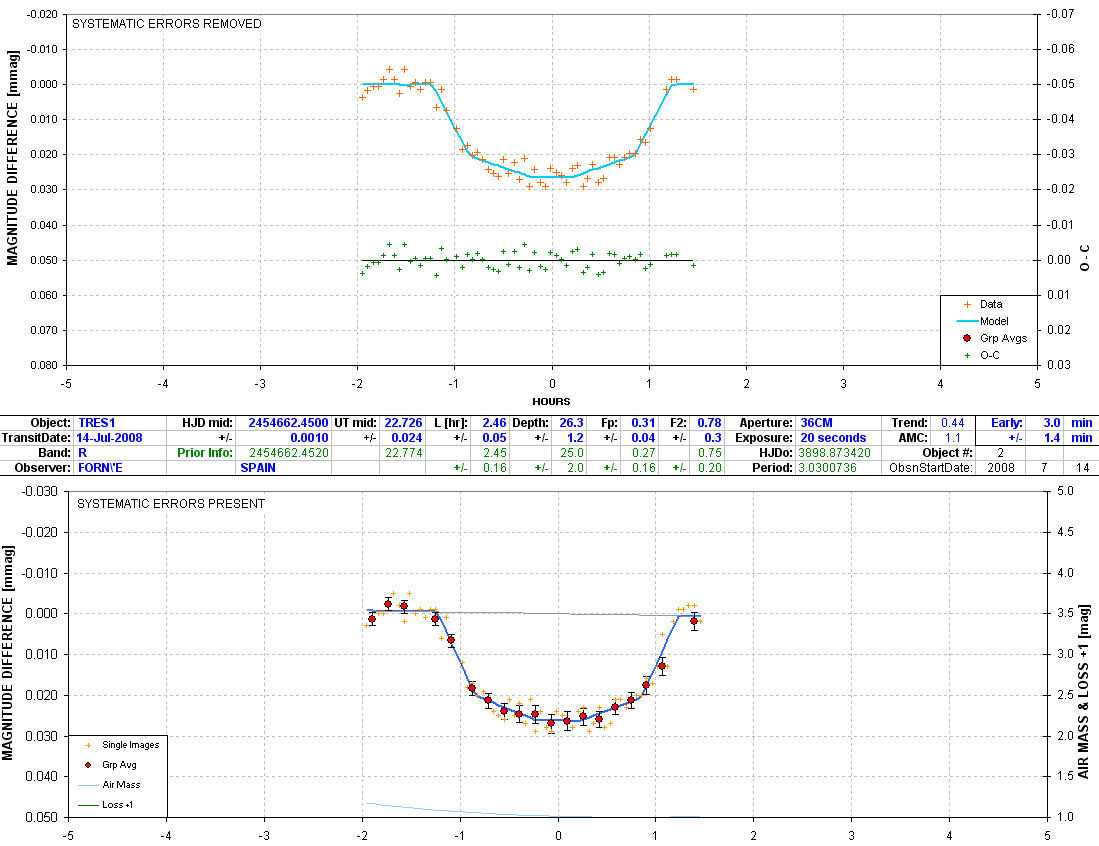

8714b291

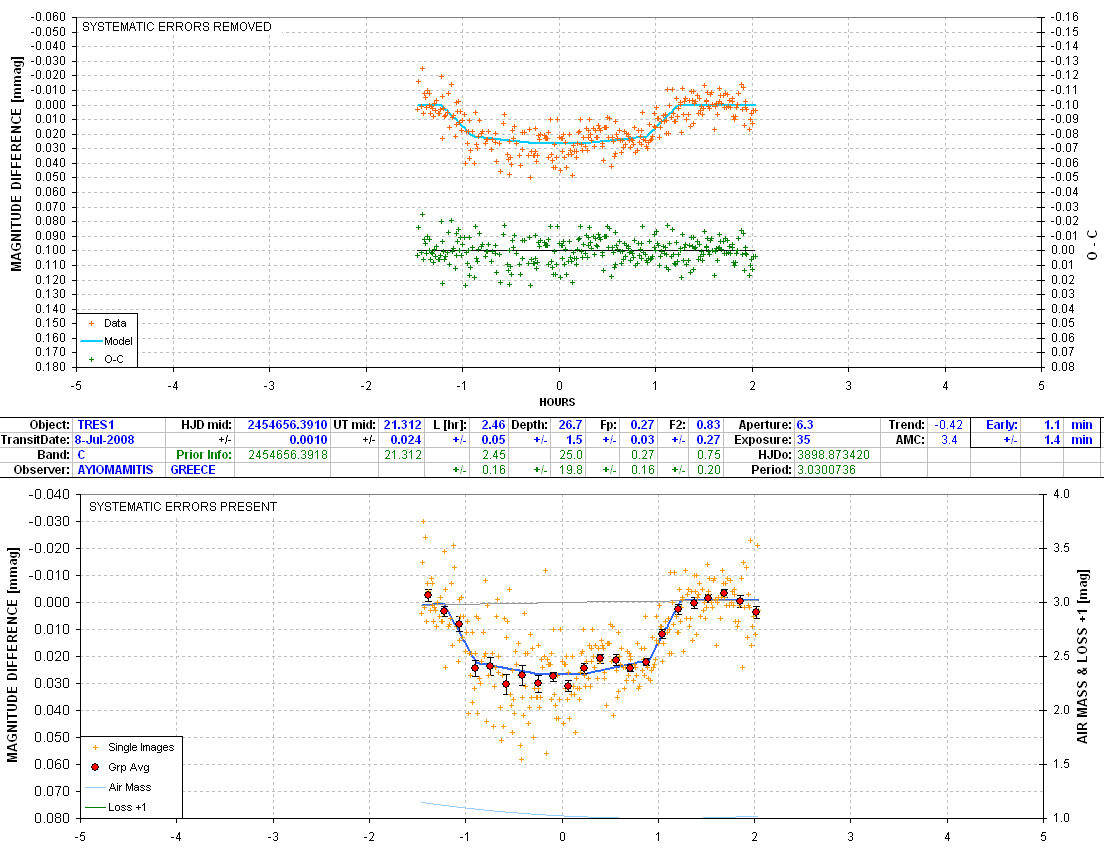

8708ayio

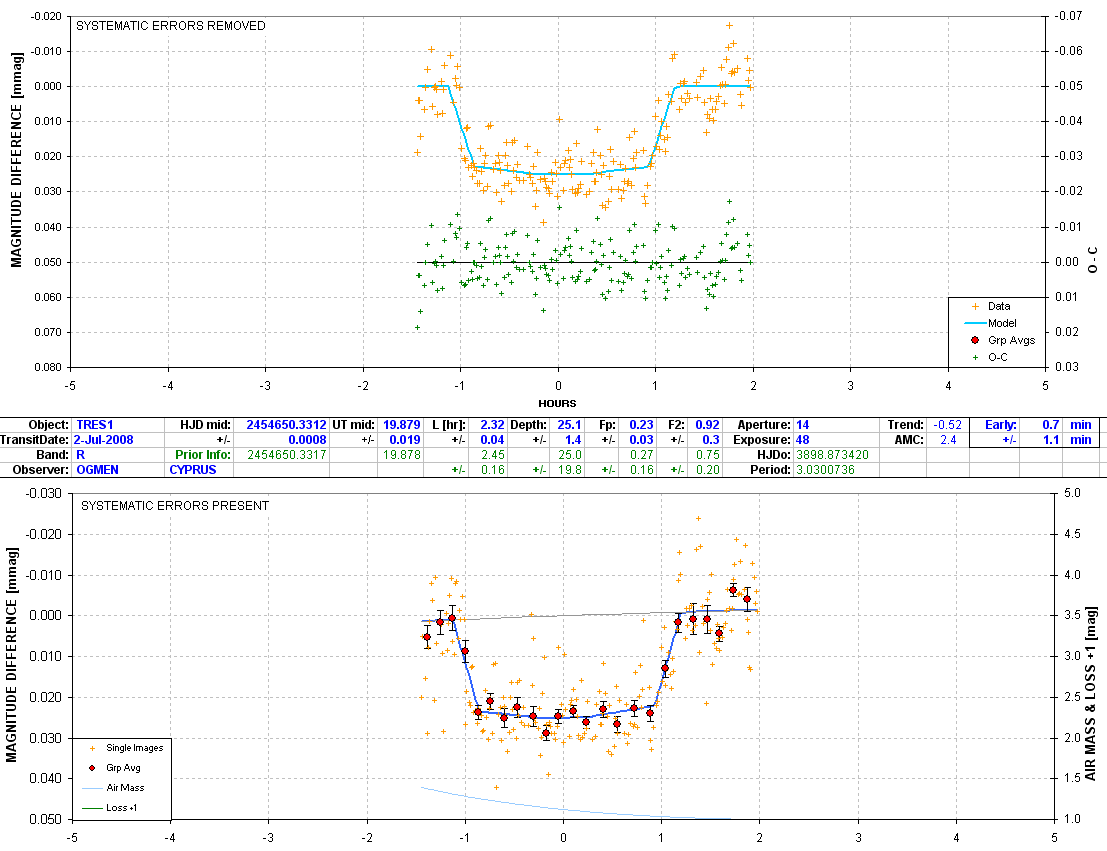

8702ogmn

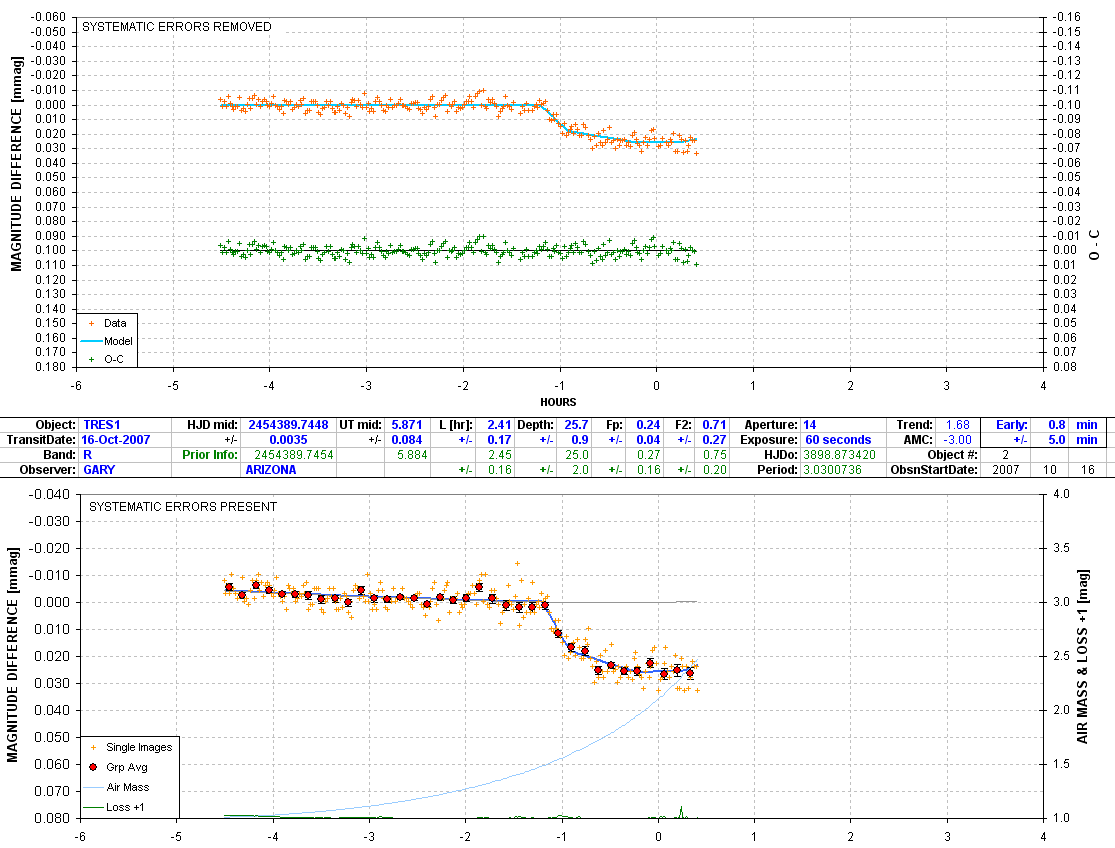

7a16gbl1





Good choice of reference stars (no trend or air mass curvature).


Right on time, and a little deeper with CLR than R-band.


Nice having a V-band LC (after 3 yrs).

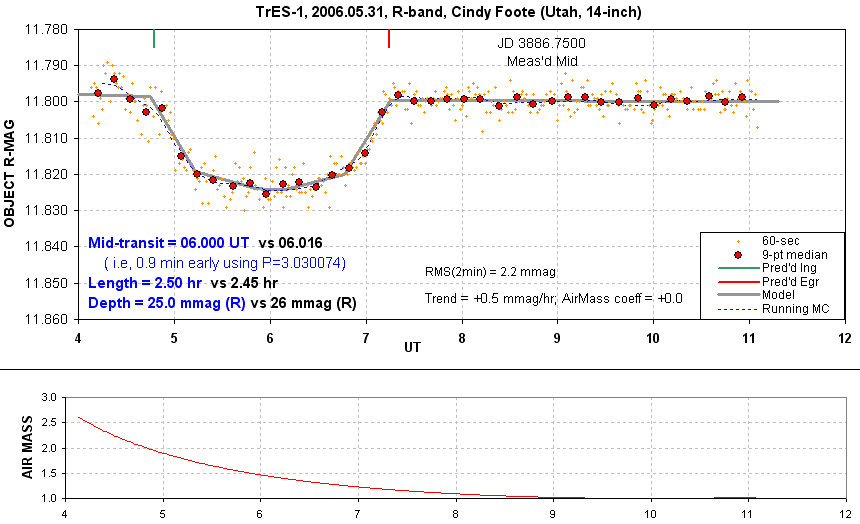

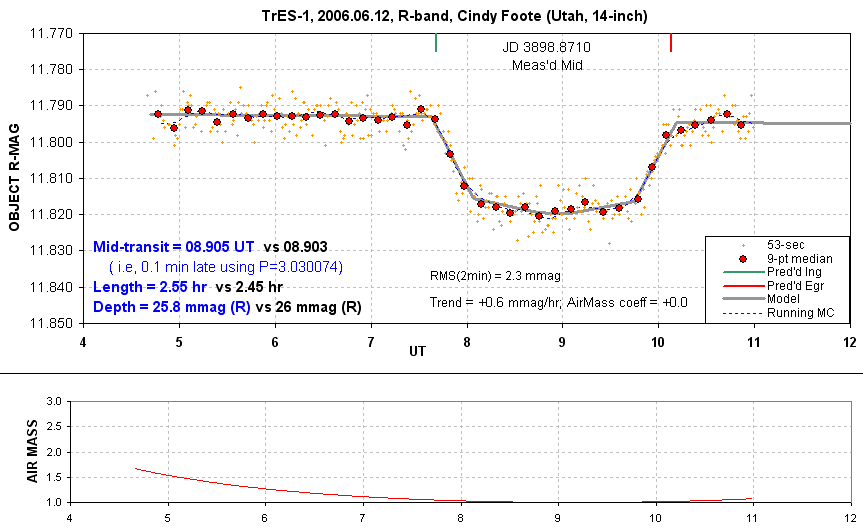

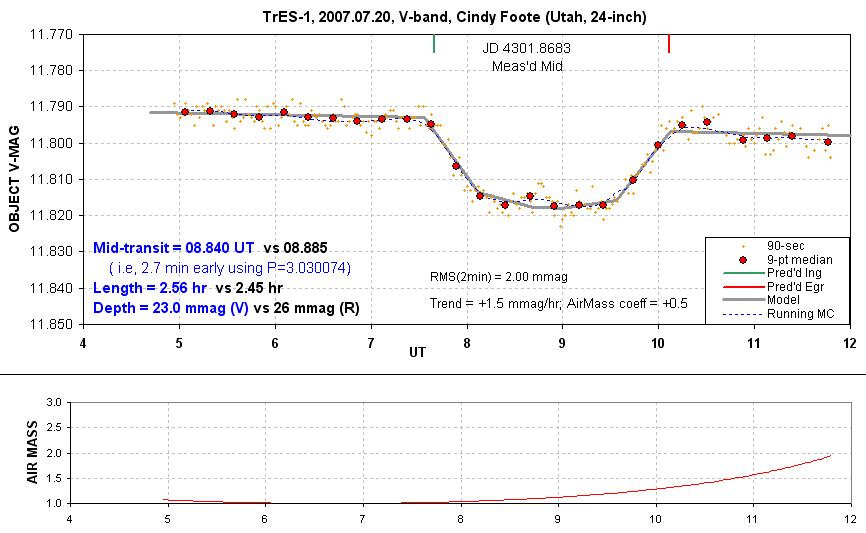

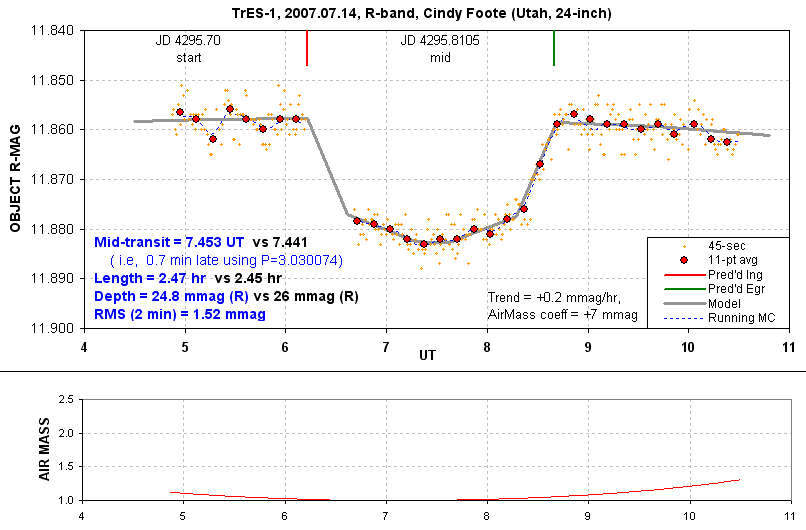

Cindy Foote's "gold standard" (when she uses the 24-inch) shows excellent agreement with the ephemeris mid-transit time and also transit depth.

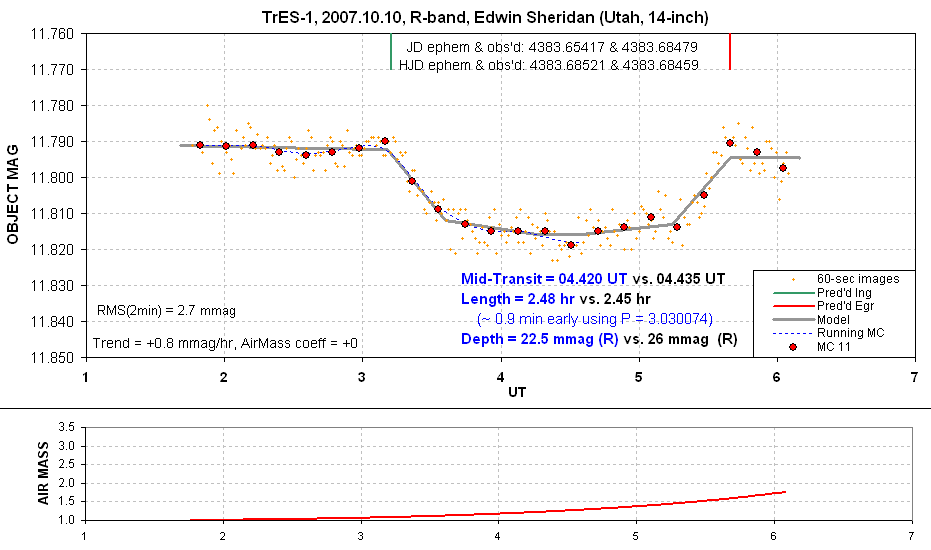

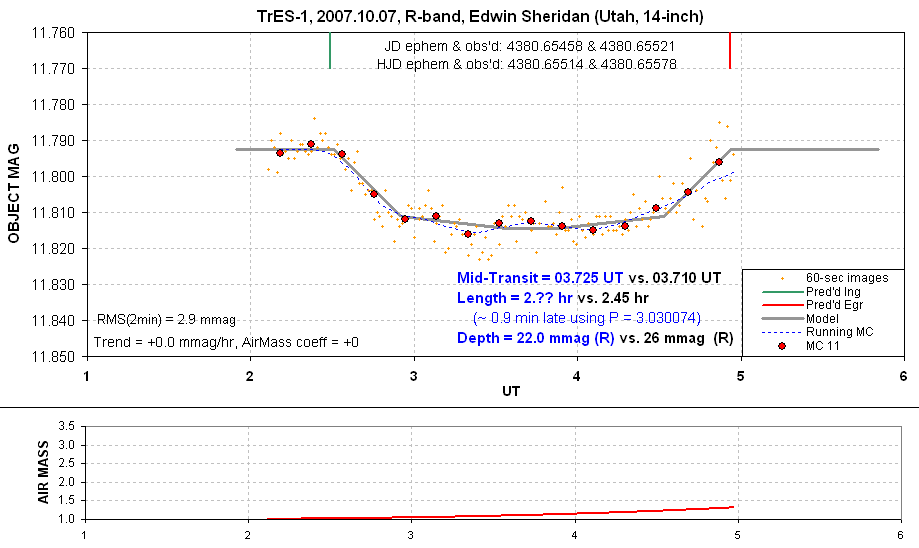

The computer clock must have been off 1 hour, so mid-transit occured ~1 minute late, +/- a few minutes. Length is uncertain because ingress was missed. Good depth agreement.

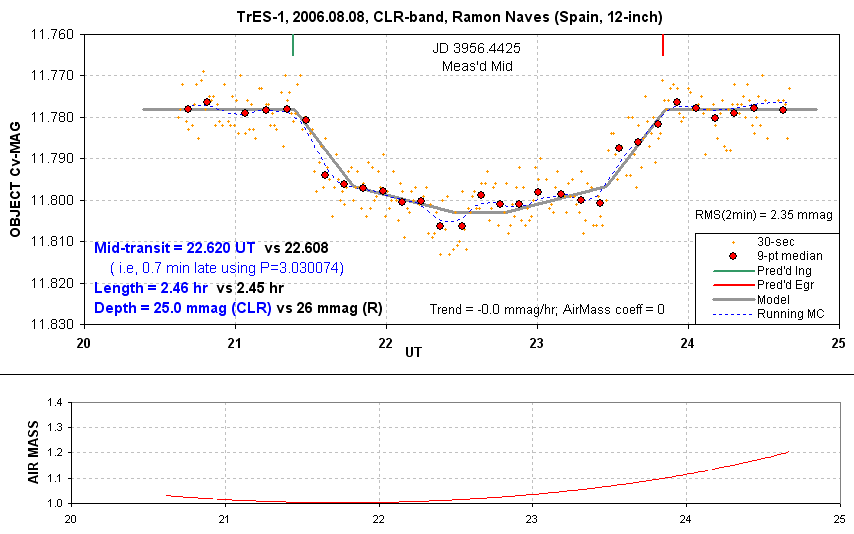

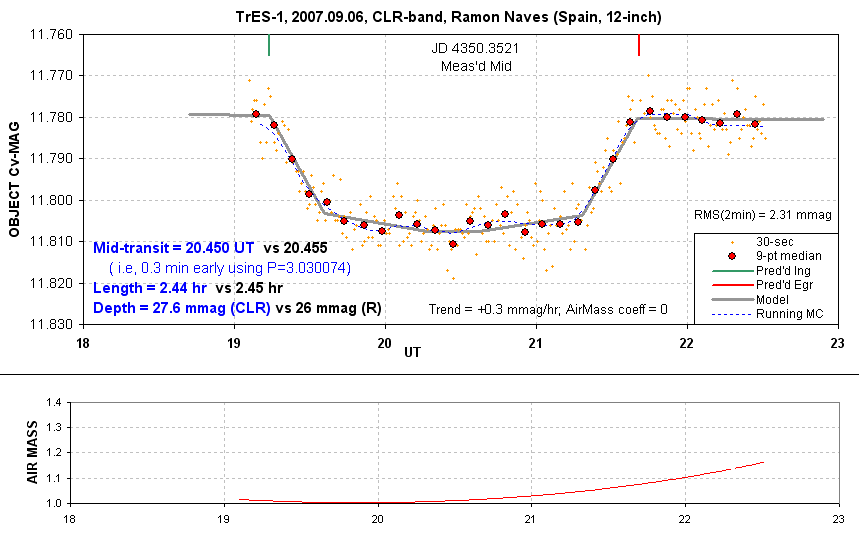

Excellent agreement with expectaion for mid-transit time, length and depth. First submitted data by Ramon Naves.


Good agreement in all respects.


Good job.

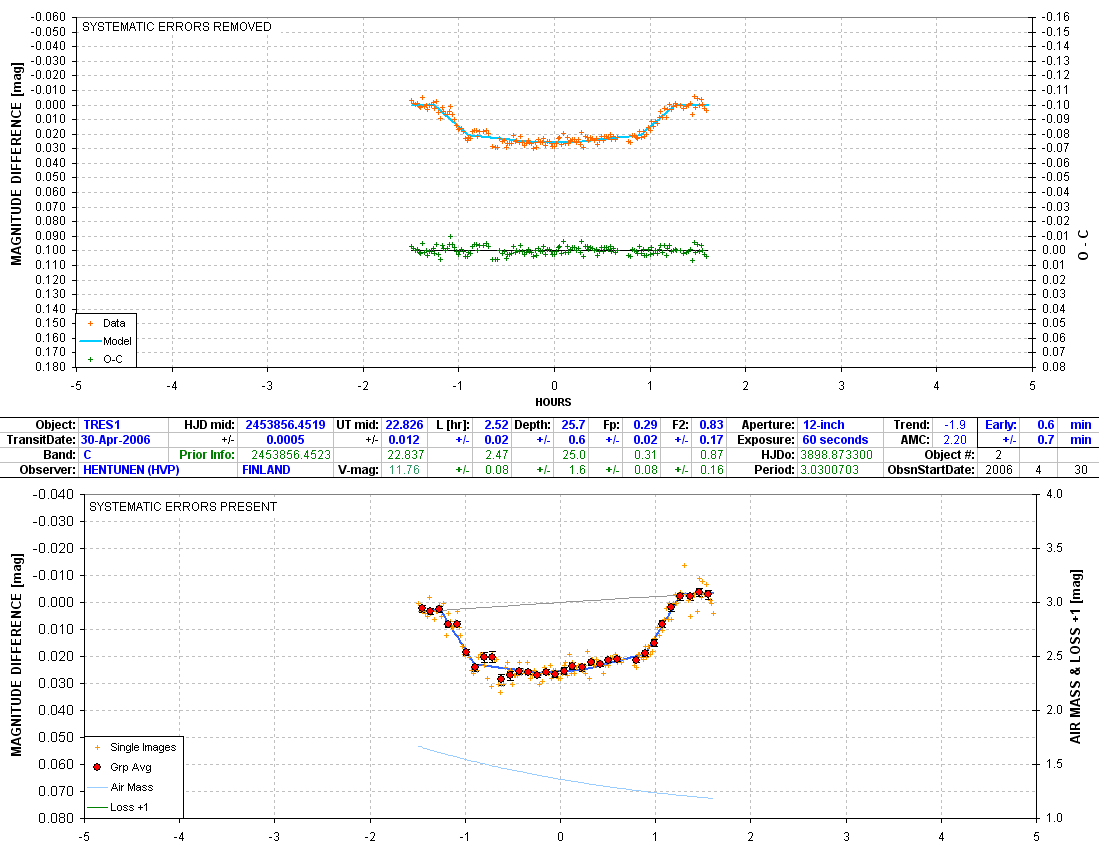

6430HVP1

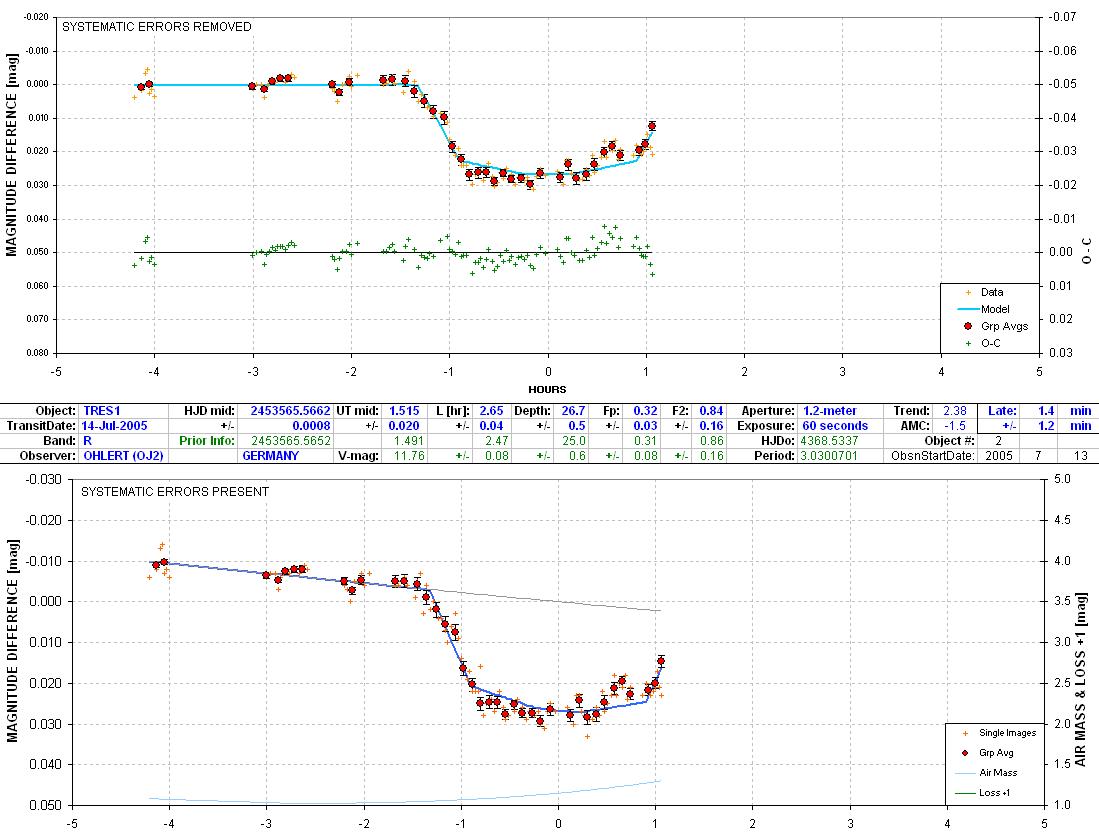

5713OJ2

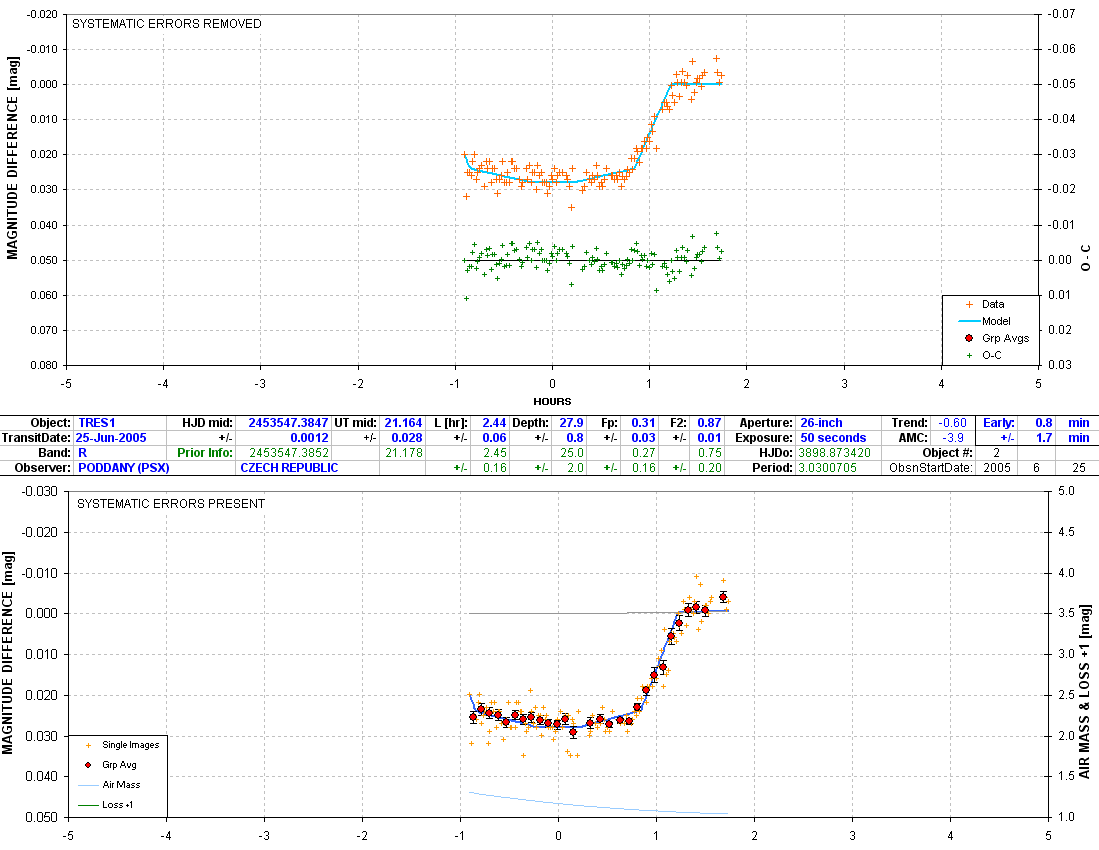

5625PSX1

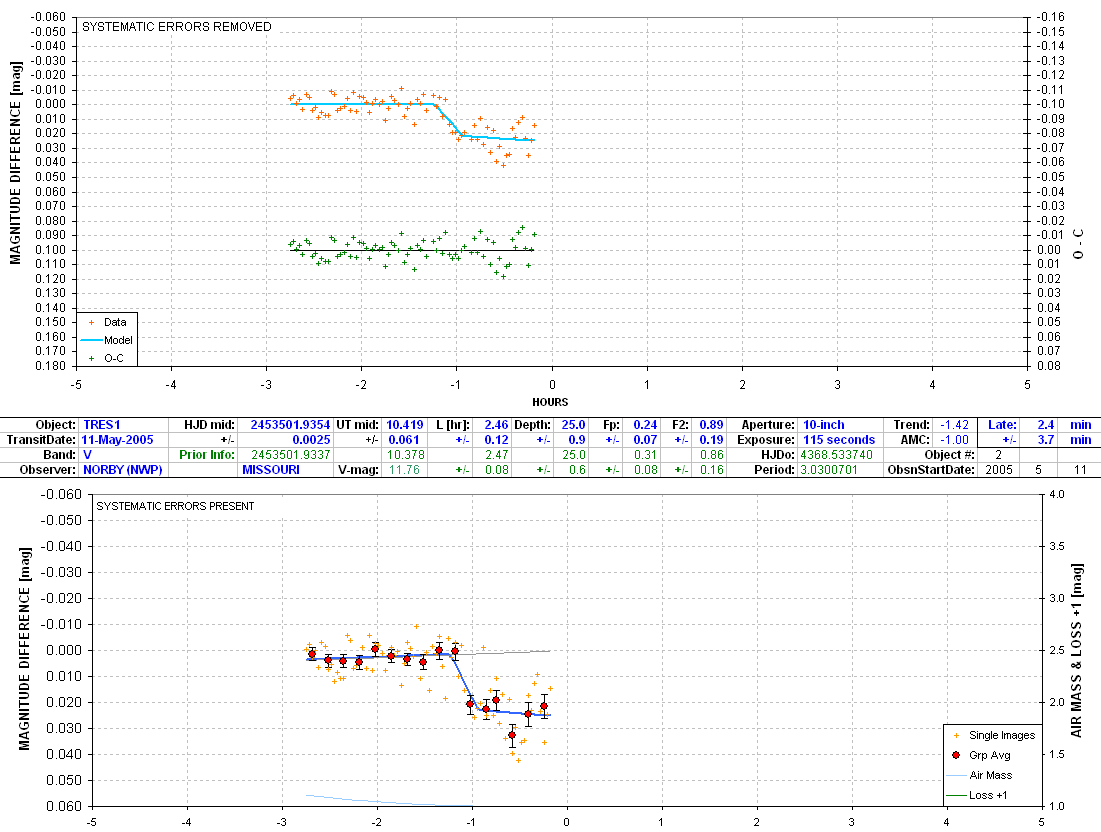

5511NWP

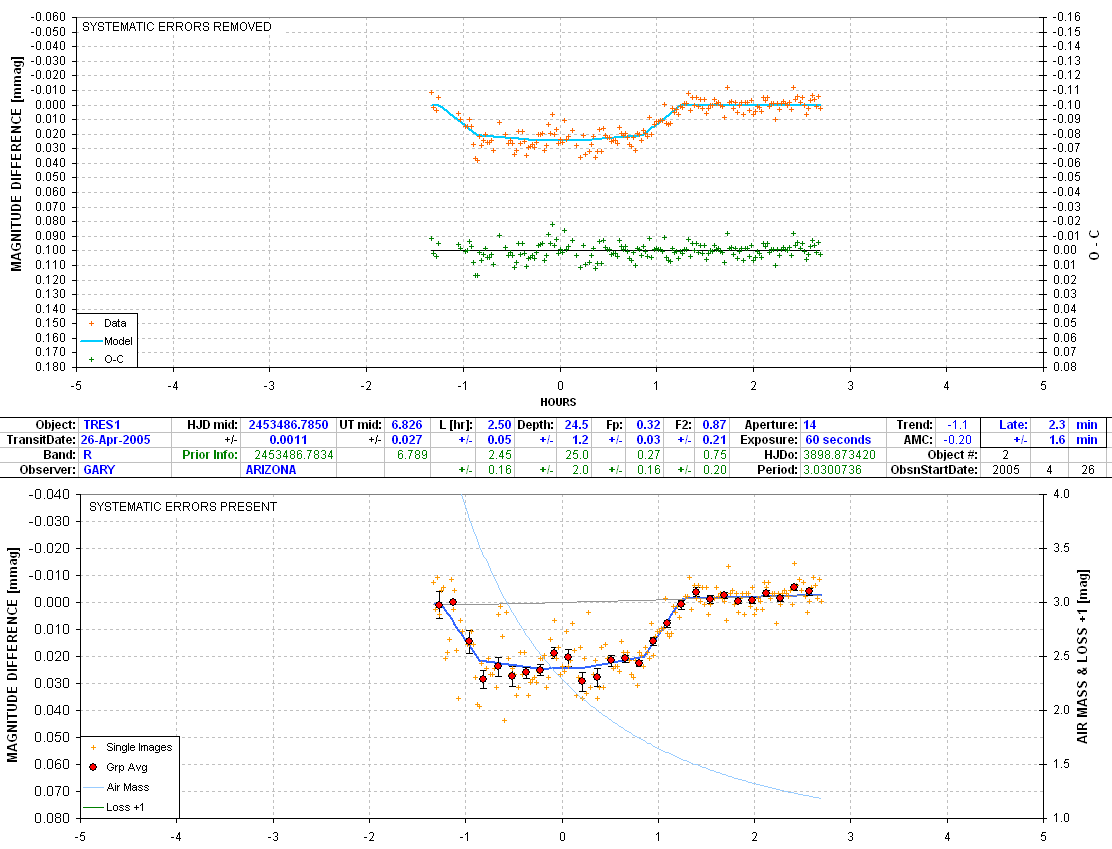

5426gbl1

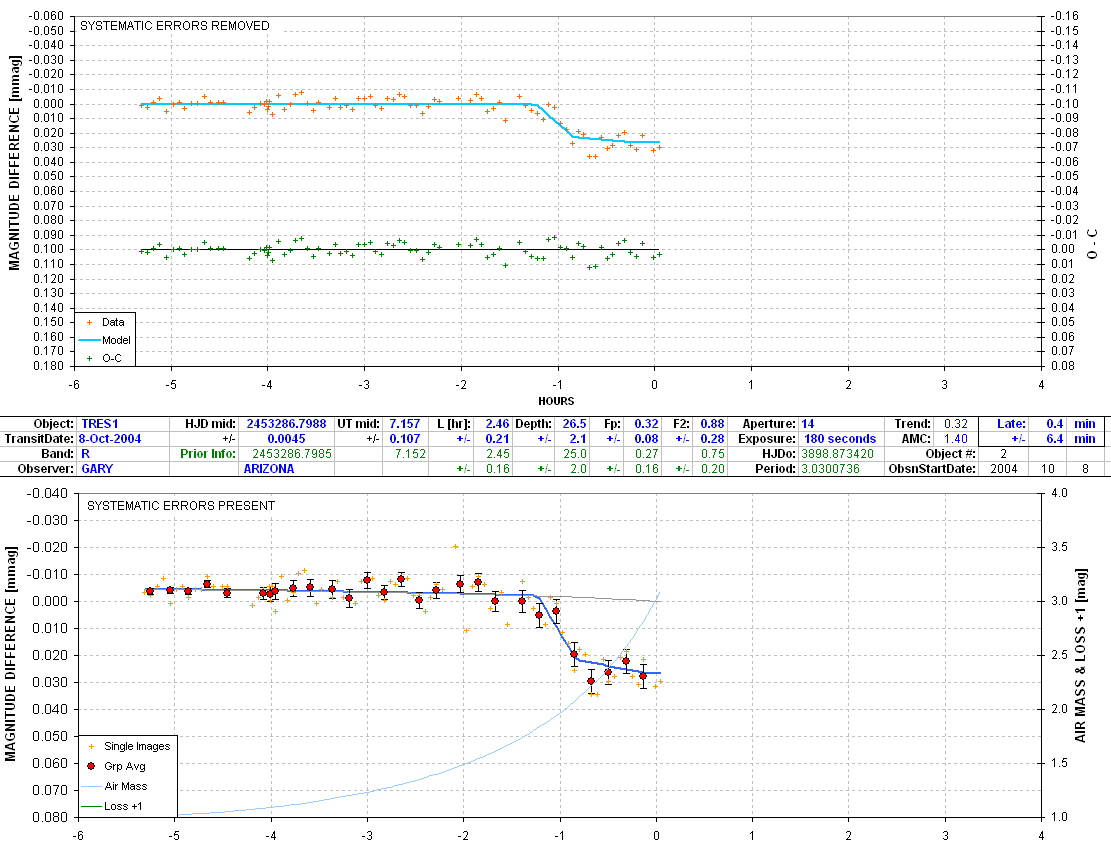

4a08gbl1

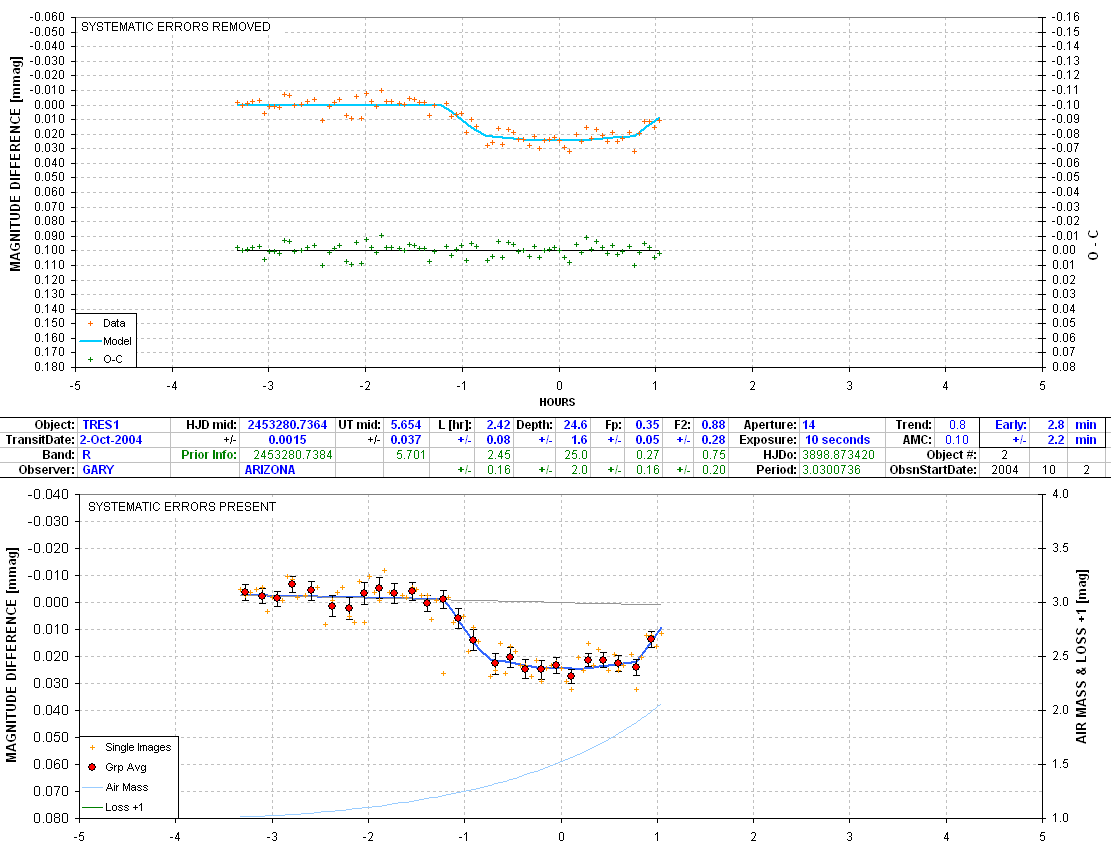

4a02gbl1

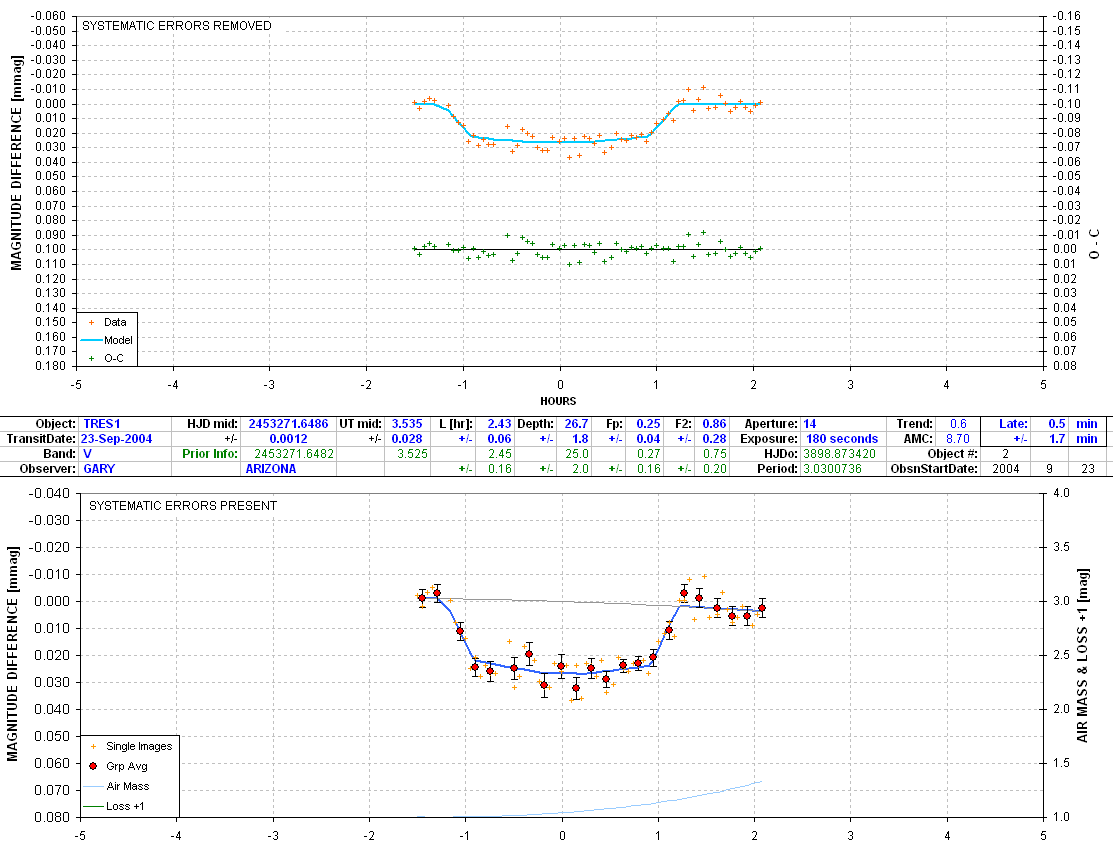

4923gbl1

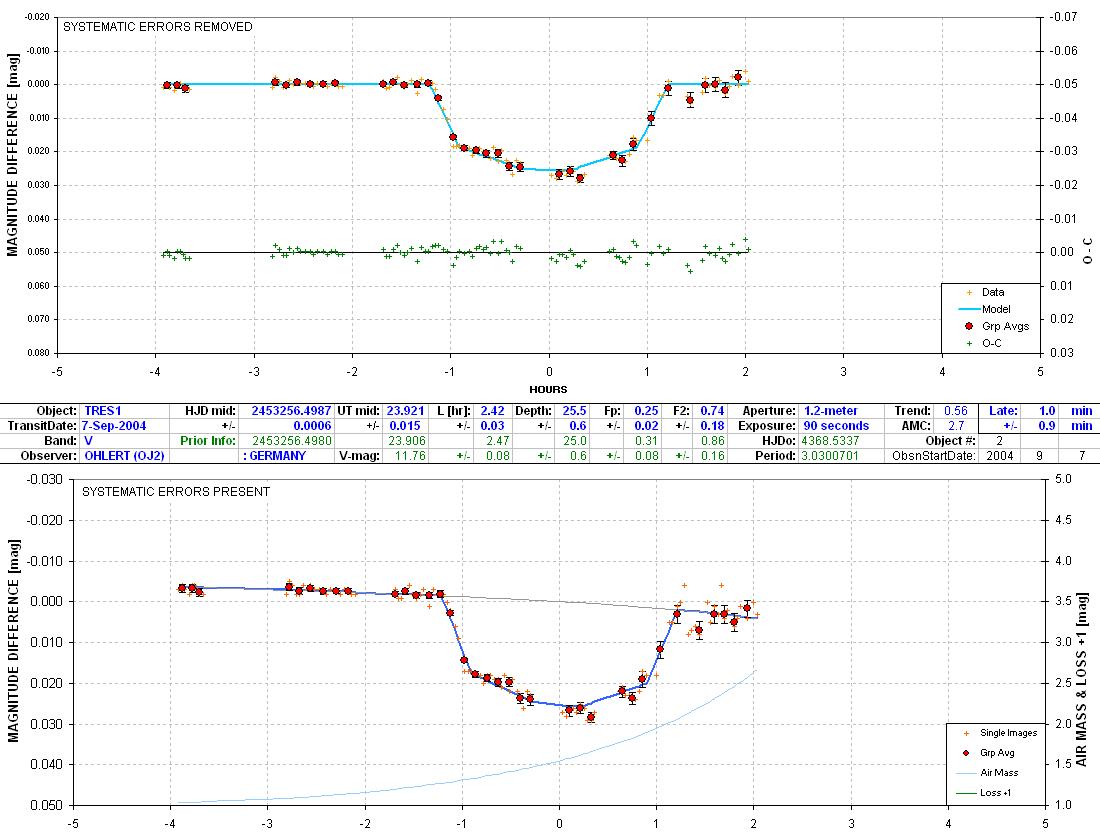

4907OJ2

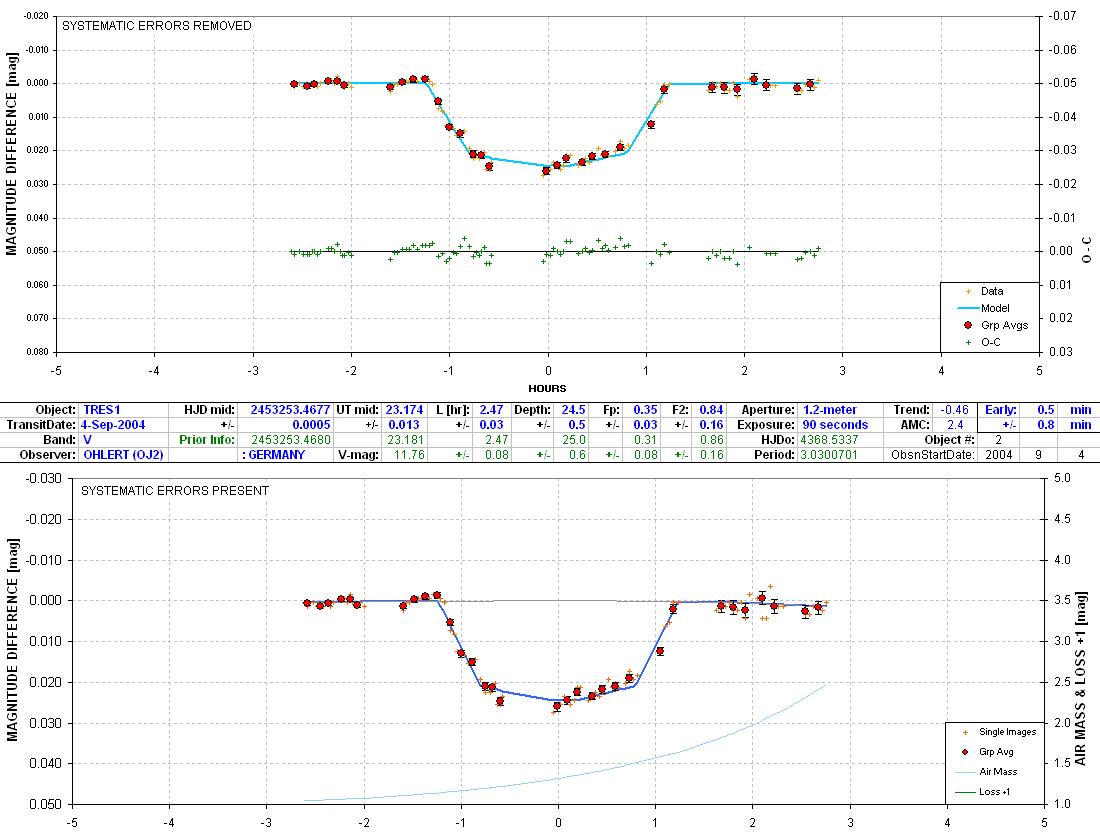

4904OJ2

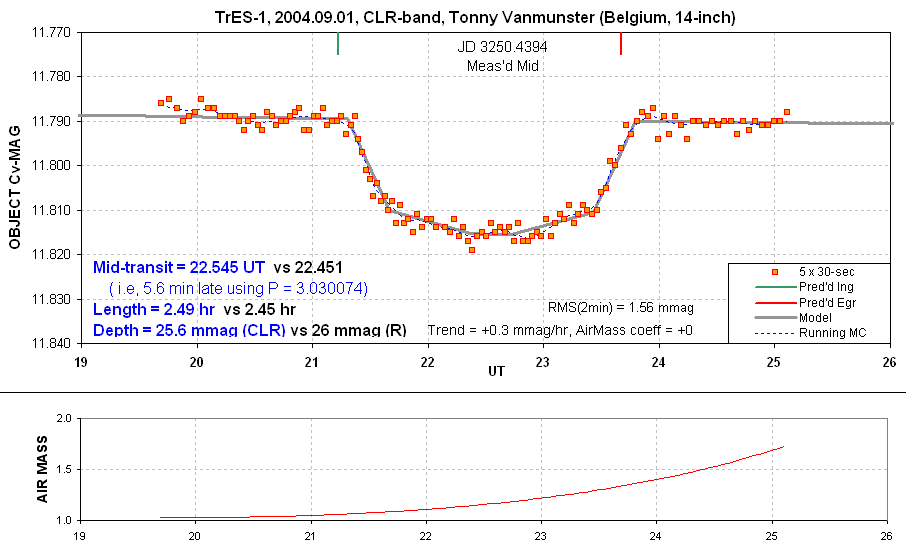

This is one of the TrES-1 LCs that led to interest in the possibility of a brightening after egress.

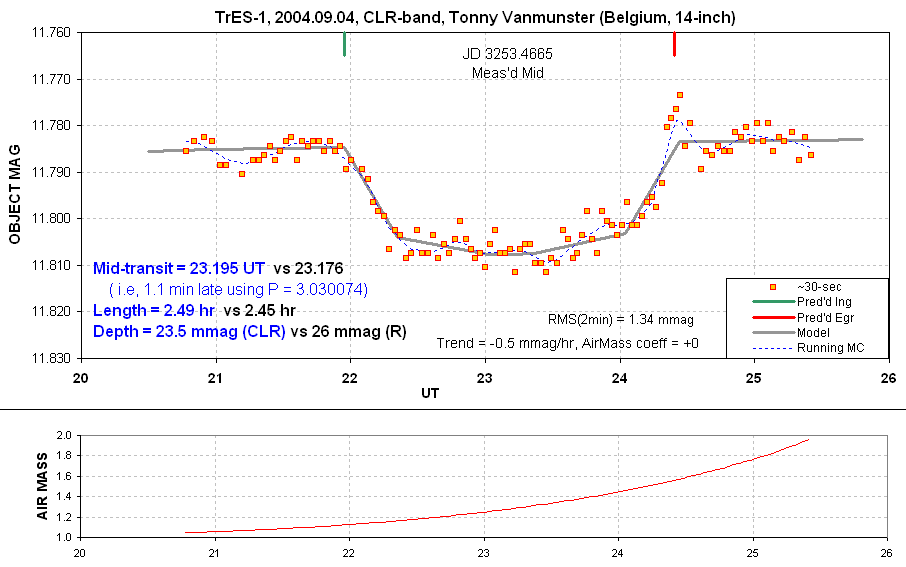

Beautiful! One of the first, if not THE first, amateur LCs of TrES-1.

Out-of-Transit Light Curves

    None yet.

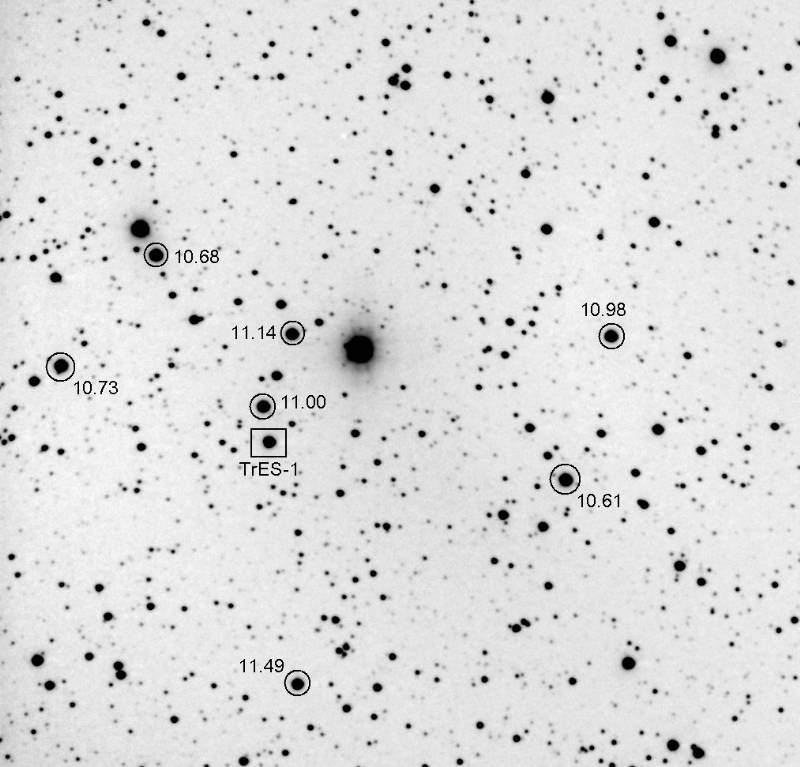

Finder Image



Return to calling web page AXA

WebMaster: Bruce L. GaryNothing on this web page is copyrighted. This site opened:  July 04, 2007 Last Update:  2009.10.03
