Bruce Gary
AXA/AAVSO Observer Code:
GBL

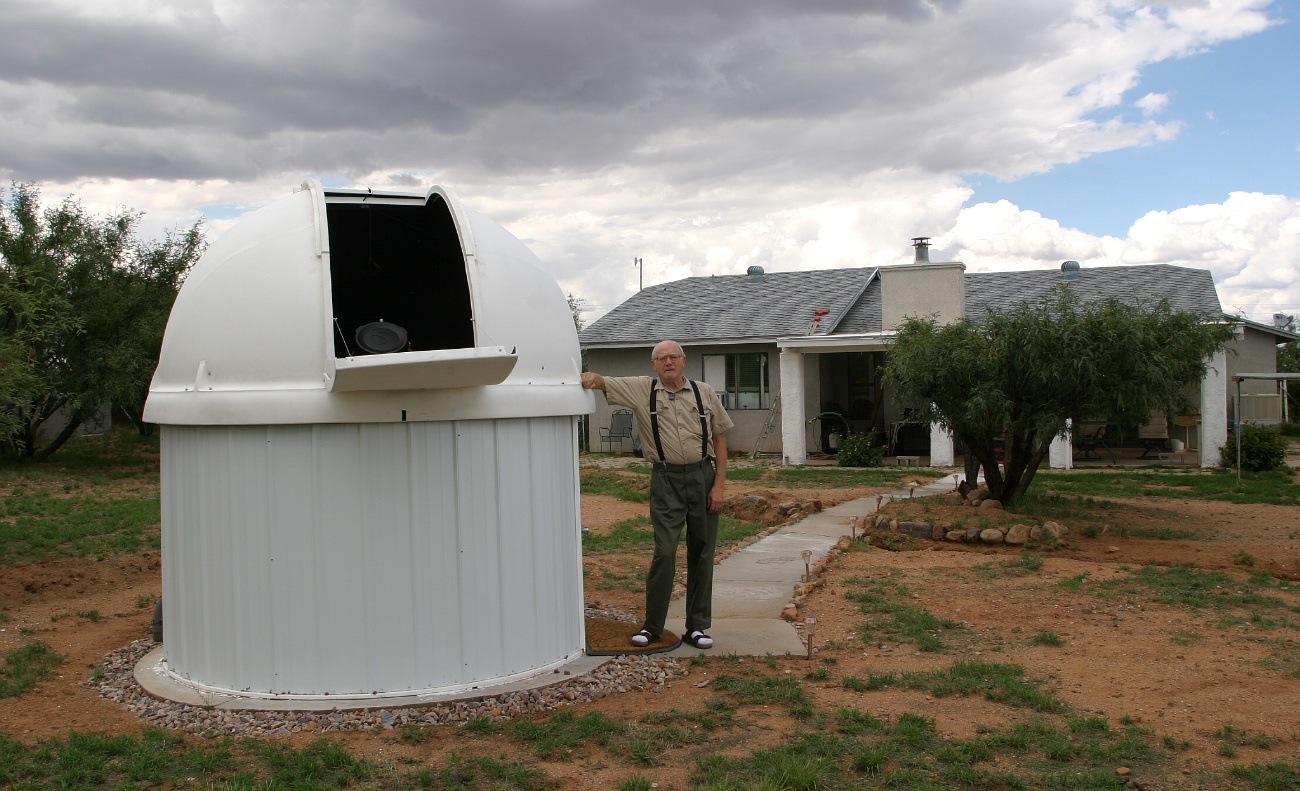

2009.07.01. The sidewalk is now complete, and both underground conduit
lines are buried & covered. The monsoon started a week before this picture
(June 25), so the grass is starting to grow.
A Celestron CPC 1100 (11-inch) is currently installed in the dome.

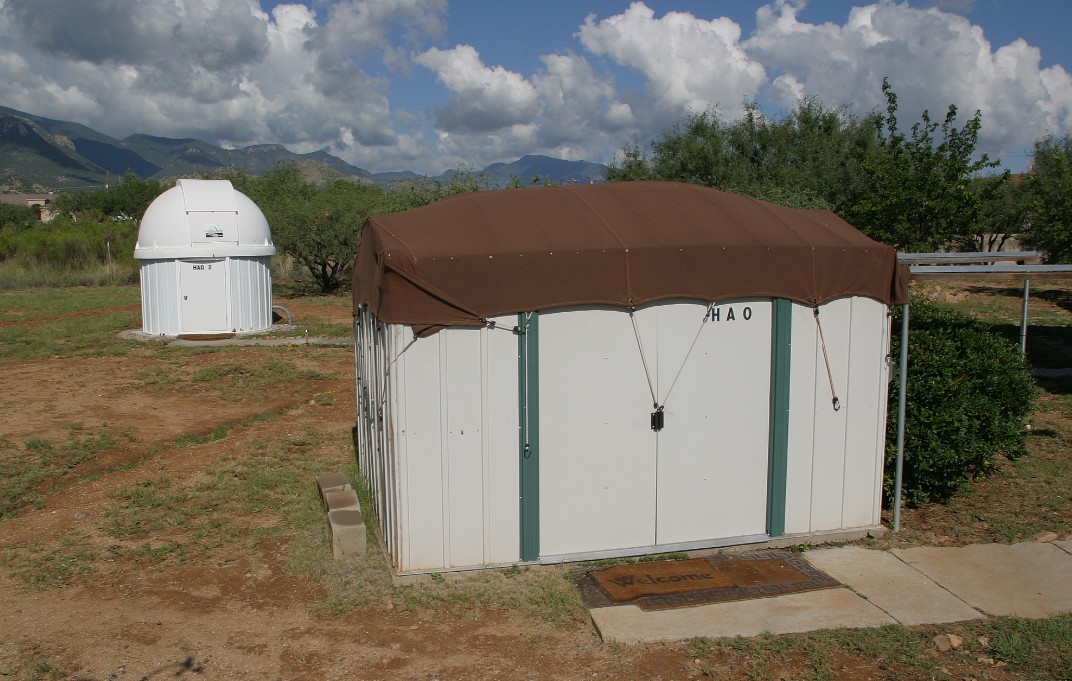

2009.08.15. My original sliding-roof-observatory in foregraound (where
the Meade 14-inch telescope will be installed after its repair (underway
since December, 2008) and the new ExploraDome in the background (where the
Celestron 11-inch CPC-1100 is installed). Both observatories have two buried
conduit lines (one for power the other for command and data lines).

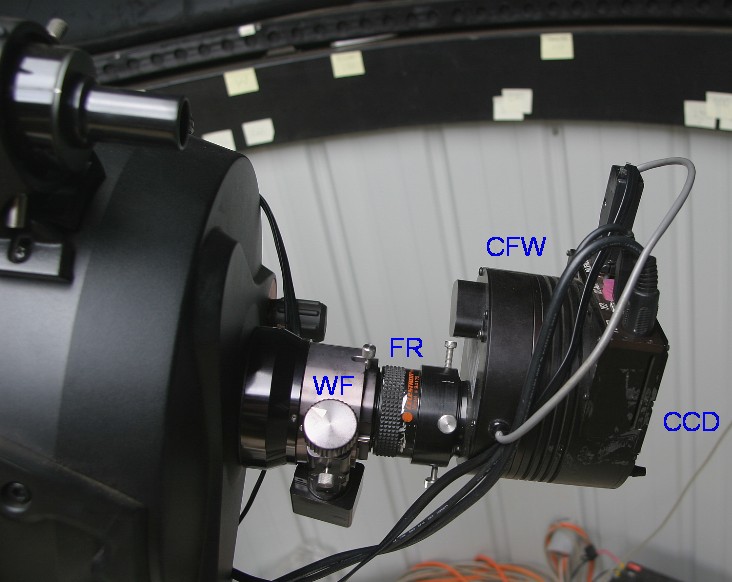

Celestron 11-inch (CPC 1100) with an optical backend consisting of
a wireless focuser (WF), focal reducer lens (FR), color filter wheel (CFW)
and ST-8XE CCD (CCD). This hardware will have to do while waiting for
my main telescope to be repaired (a Meade LX200GPS 14-inch).
Optics: 1) Meade 14" LX200GPS, 2) Celestron CPC 1100. SBIG AO-7 tip-tilt
image stabilizer is used with the Meade telescope.
Mount: Fork (both telescopes)
Camera: SBIG ST8-XE (both telescopes)
Filters: BVRcIcBB (Meade 14-inch)
Observatory Type: Sliding Roof Observatory (Meade 14-inch, sometime
in October, 2009), ExploraDome (Celestron 11-inch CPC-1100).
Location: Hereford, AZ; USA N 31° 27' 08" , W 110° 14'
16"
Software Used: TheSky/Six for planning; MaxIm DL for control of telescope,
CCD, wireless focuser (& dome); MaxIm DL for image analysis & photometry;
Excel for analysis of CSV-files created by MaxIm DL's photometry tool.
Web page: http://reductionism.net.seanic.net/brucelgary/AstroPhotos/x.htm
