HAT-P-24

Links internal to this web page:
    Comments
    Basic data
    Table & plots of of AXA transit measurements
    Amateur Transit LC's
    Professional Transit LC's
    OOT LCs
    Finder images
    References

Comments

It's a crowded star field, so be careful in setting photometry aperture.

Basic data

    RA = 07:15:18.0, DE = +14:15:45
    Season = Jan 08

V = 11.818, J = 10.797 (22), K = 10.543 (20) -> B = 12.17(16), V = 11.71(11), Rc=11.44(8), Ic=11.17(6), B-V=0.46(19)
    HJDo = 5216.97667 (28) and P = 3.355240 (7) days (as listed in Schneider's Extrasolar Planets Encyclopaedia, HJDo corrected from earlier value)
    Depth =  11.4 ± 1.0 mmag
    Length = 3.69
± 0.02 hr
    Fp = 0.??
± 0.??, F2 = 0.?? ± 0.??
    b = 0.19 ± 0.08

Table & Plots of Amateur Observations



Amateur Light Curves



Professional Light Curves

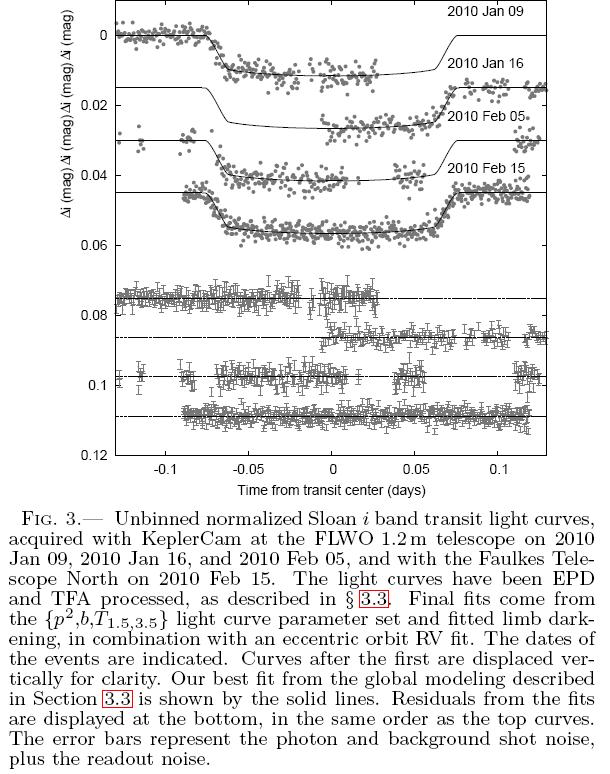

HAT-P-24 LC as published in the discovery paper, Kipping et al, 2010.

Out-of-Transit (OOT) Light Curves



Finder Charts


Finder image based on Palomar Observatory Sky Survey (POSS) B & R photographic plate images (converted to RGB color by SkyMap (http://sky-map.org/).


Finder image, created by Joao Gregorio (based on DSS2-POSS II image retrieved by Aladin), showing colors of candidate reference stars.


References

Discovery paper: Kipping et al, 2010  http://fr.arxiv.org/abs/1008.3389v1


Return to calling web page AXA
