HAT-P-22

Links internal to this web page:
    Comments
    Basic data
    Table & plots of of AXA transit measurements
    Amateur Transit LC's
    Professional Transit LC's
    OOT LCs
    Finder images
    References

Comments

Fainter companion 9.1"arc to northeast, so be careful reporting depths.

Basic data

    RA = 10:22:43.6, DE = +50:07:42
    Season = Feb 22

V = 9.732, J = 8.293 (23), K = 7.837 (21) -> B = 10.46(16), V = 9.70(10), Rc=9.28(8), Ic=8.88(6), B-V=0.76(19)
    HJDo = 4930.22001 (25) and P = 3.212220 (9) days (as listed in Schneider's Extrasolar Planets Encyclopaedia, HJDo corrected from earlier value)
    Depth =  14.0 ± 1.0 mmag
    Length = 2.87
± 0.03 hr
    Fp = 0.??
± 0.??, F2 = 0.?? ± 0.??
    b = 0.47 ± 0.08

Table & Plots of Amateur Observations



Amateur Light Curves



Professional Light Curves

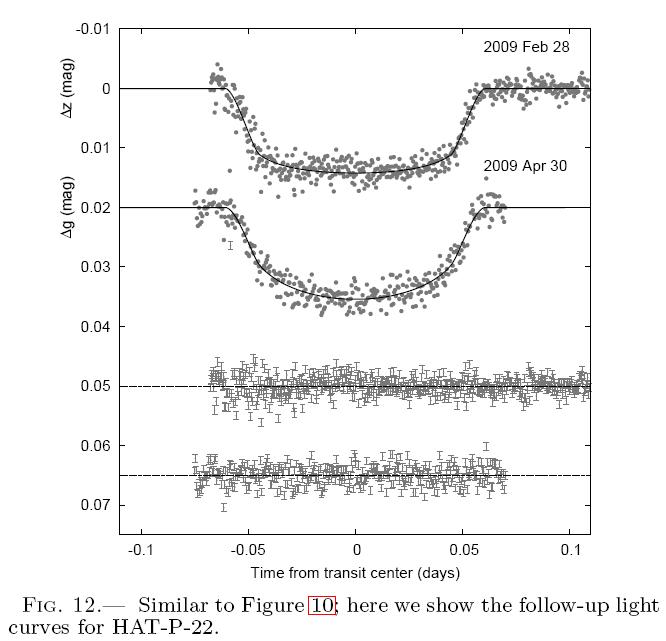

HAT-P-22 LC as published in the discovery paper, Bakos et al, 2010.


Out-of-Transit (OOT) Light Curves



Finder Charts


Finder image based on Palomar Observatory Sky Survey (POSS) B & R photographic plate images (converted to RGB color by SkyMap (http://sky-map.org/). Notice the fainter companion to upper-left. Bakos et al 2010 state that it's 2.58 mag's fainter (i'-band) and 9.1"arc away.


Finder image, created by Joao Gregorio (based on DSS2-POSS II image retrieved by Aladin), showing colors of candidate reference stars.


References

Discovery paper: Bakos et al, 2010  http://fr.arxiv.org/abs/1008.3388v1
