HAT-P-18
AXA Light Curves

 Links internal to this web page:
    Basic data
    Comments

    Table & plots of of AXA transit measurements
    Amateur Transit LC's
    Professional Transit LC's
    OOT LCs
    Finder images and all-sky photometry
    References

Basic data
    RA = 17:05:23.3, DE = +33:00:45
    Season = June 10
    Discovery paper give V = 12.759
    J = 10.822 ± 0.020, K = 10.234 ± 0.017 -> B = 13.48 ± 0.14, V = 12.53 ± 0.09, Rc = 12.01 ± 0.07, Ic = 11.54 ± 0.06, B-V = 0.95 ± 0.17
    BJDo = 4715.02174 (20) & P = 5.508023 (6), (e.g., Schneider listing in Extrasolar Planets Encyclopaedia)
    Depth = 24.3 ± 1.0 (probably i'-band)
    Length = 2.71 ± 0.02 hr (i-band)
    Fp = 0.13 ± 0.01, F2 = 0.?? ± 0.??
    b = 0.32 ± 0.08

Comments


Table & Plots of Amateur Observations



Amateur Light Curves

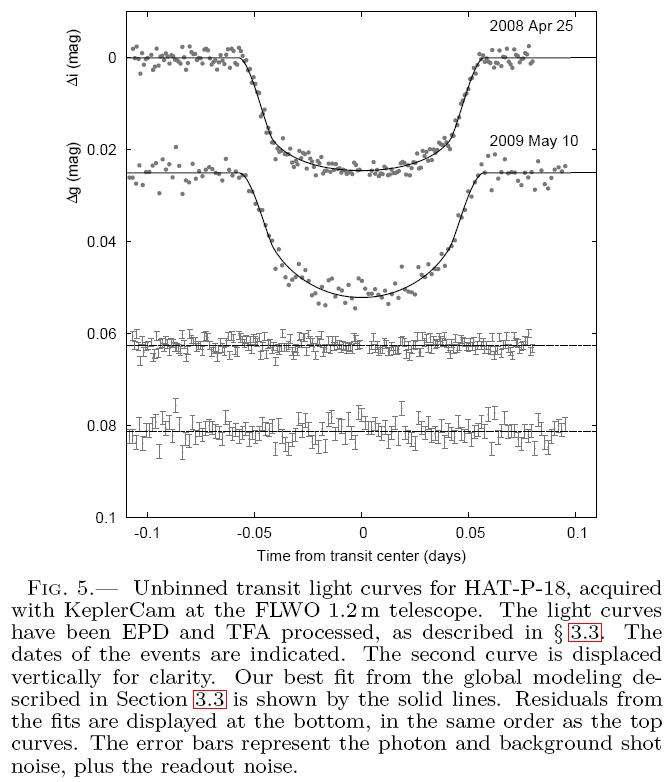

Professional Light Curves



Copied from discovery paper (Hartman, J. D. et al, 2010, reference below). Depth ~ 24.3 mmag (probably i'-band).

Out-of-Transit (OOT)



Finder Images


FOV = 23.5 x 14.7 'arc. SDSS image, north up, east left.

References

Discovery paper: Hartman, J. D. et al, 2010: http://fr.arxiv.org/abs/1007.4850
